لوحات فيوبورد التفاعلية
IFP6570
الميزات الرئيسية
- Advanced Projected Capacitive (PCAP) touch technology
- Write Naturally and Accurately with Smart Active Pen
- Azure certified IoT sensor hub for workplace management
- Skype for Business certified FHD camera
- Single cable content sharing through USB Type C
المنتج وصف

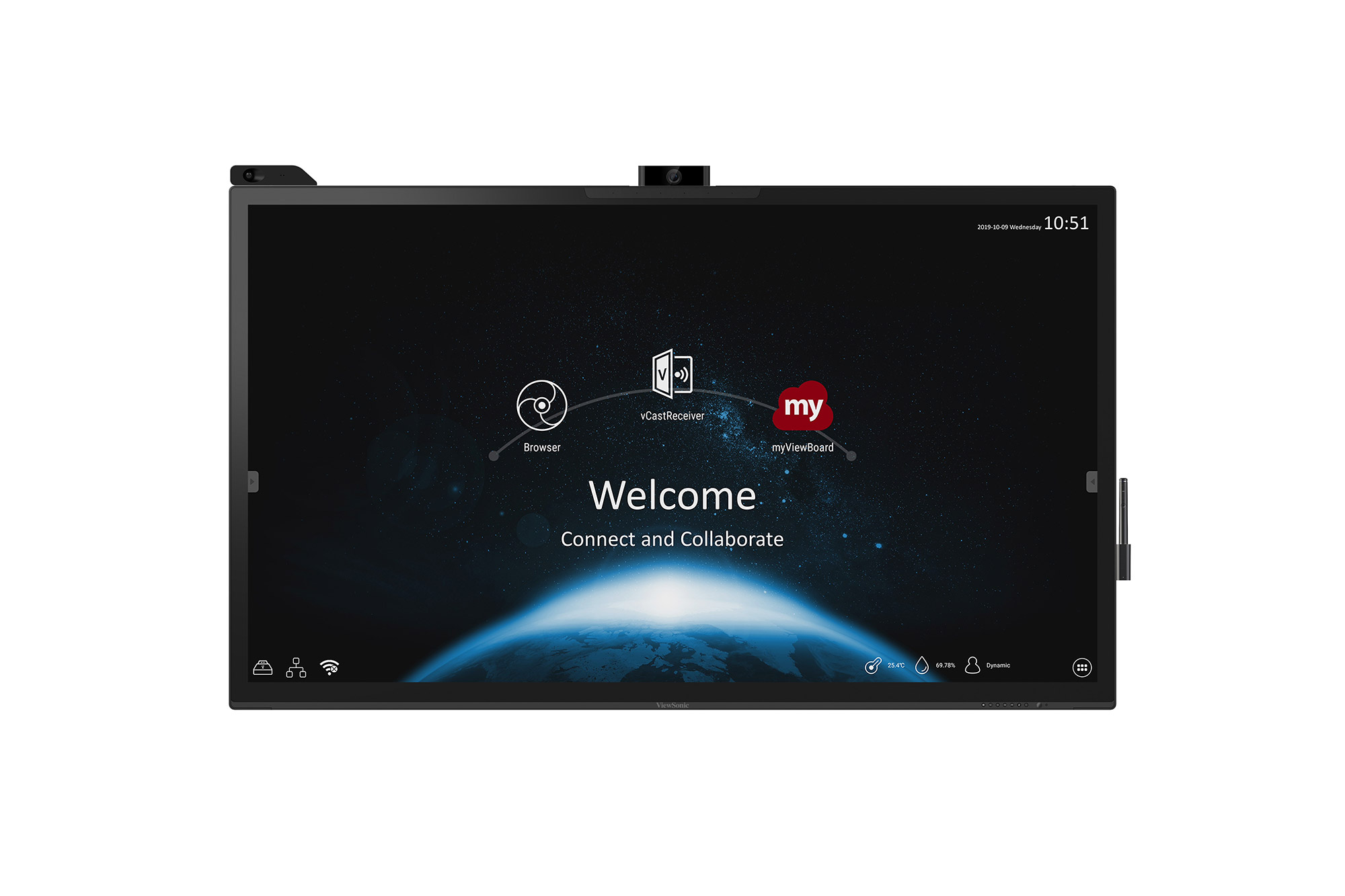

The ViewBoard® IFP70, our flagship interactive display, is tailored for visual collaboration in a digital workplace. Adopting advanced Projected Capacitive (PCAP) touch technology, it has a frameless, flat touchscreen to deliver precise responsiveness and the most accurate touch experience. Together with the smart pen, it enables you to write naturally and accurately like a real pen on a 4K Ultra HD resolution screen, streamlining visual collaboration. The ViewBoard® IFP70 series has quick, easy connectivity for content sharing via USB-C cable or wireless ViewBoard® Cast. Furthermore, it has a high quality video conferencing solution for the remote workforce with certified FHD camera, 6 mic array and 2.1 speaker configuration. In addition, the ViewBoard® IFP70 series gives you extra security to keep your information safe, private and compliant. It has built-in, AWS-powered myViewBoard™ whiteboarding software and an optional Intel® vPro™ slot-in PC. The ViewBoard® IFP70 series is also equipped with IoT sensors, which meet Windows Collaboration Display standards. It can work with Microsoft Azure Digital Twins to monitor and optimise your smart meeting rooms and collaboration spaces.
تفضل بزيارة لنا
- www.viewsonic.com
-
الشاشة
Panel Size: 65" Type/Tech: TFT LCD Module with DLED Backlight. منطقة العرض (مم): 1428.48(H) x 803.52(V) mm (64.5” diagonal) الابعاد المتزنة: 16:9 Native Resolution: UHD 3840x2160(Pixels) الألوان: 1.07B colours (10bit) السطوع: 350 nits (typ.) نسبة التباين: 1200:1 Typ. Response Time: 8ms زوايا النظر: H = 178, V = 178 typ. عمر الإضاءة الخلفية: 30,000 Hours (Min) Surface Treatment: Anti-Glare/anti finger print الحافة: Slim Orientation: Landscape -
PLATFORM
Processor: Dual core A73+Dual core A53 RAM: 4GB DDR4 Storage: 32GB -
TOUCH
Type/ Tech: PCAP Touch Resolution: 32767 x 32767 Touch Point: 20 points touch, 10 points writing -
INPUT
HDMI: 2.0 x1 (3840x2160 @60Hz) منفذ الشاشة: X1 1.4 RS232: x1 OPS: x1 PC Slot -
OUTPUT
HDMI: X1(4K2K@60Hz) الصوت: x1 (Earphone out) SPDIF: 1(optical) -
LAN
RJ45: x1 -
USB
Type A: USB 3.0 x3 Type B: USB 3.0 x2, for touch Type C: x1 USB3.0, DP1.4 Alternate mode, Ethernet, PD 60W -
SPEAKERS
SPEAKERS: 10W x 2 + 15W x 1 subwoofer -
لوحة الكاميرا في الأعلى لتثبيت كاميرا الويب ببراغي
لوحة الكاميرا في الأعلى لتثبيت كاميرا الويب ببراغي: Yes -
حزمة البرامج
برنامج الشرح الأساسي: myViewBoard for android Pro Annotation Software: myViewBoard for windows (Embedded in Windows Slot-in PC) Wireless Presentation with Touch Feedback: Viewboard Cast: ViewBoard Cast -
POWER
Voltage: 100-240VAC +/- 10% Wide Range الاستهلاك: On:99(Typ.)
Off: <0.5W -
ERGONOMICS
Wall Mount (VESA® ): 800 x 600 -
OPERATING CONDITIONS
Temperature (º C): 0°C to 40°C Humidity: 10% ~ 90% RH non-condensing -
المقاسات (العرض × الارتفاع × العمق)

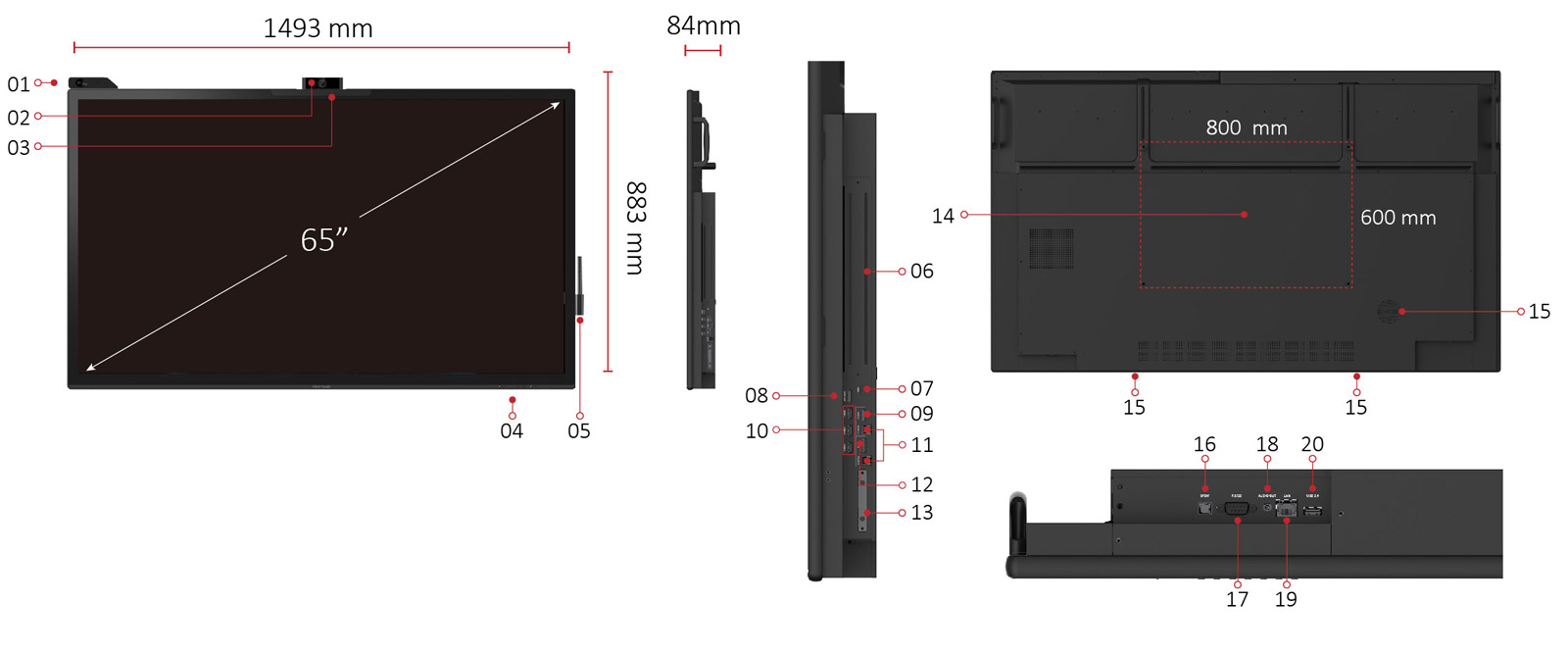

Physical (inch / mm): 1493X883X84(mm)
58.77x34.76x3.3(inch)Packaging (inch / mm): 1669X1010X223(mm)
65.7X39.7X8.7(inch) -
WEIGHT
Net (lb / kg): 94.79 lb/43Kg Gross (lb / kg): 110.23 /51Kg -
REGULATIONS
REGULATIONS: FCC, cTUVus, CB, CE, RCM, -
ENERGY STAR VERSION
Energy Star version: ES8.0 -
EEI RATING
EEI rating: A+ -
PACKAGE CONTENTS
PACKAGE CONTENTS: 1. Power cable x 4
2. Remote control
3. AAA battery X2
4. USB cable Type C
5. activeTouch pen x 2
6. Pen Charger X1
7. Quick Start Guide
8. RS232 adapter
9. Clamp x 7
10. Camera
11. Screw x 6 (4 for wall mount ,2 for sensor hub)
12. HDMI cable
13. Sensor hub
14 .Touch USB cable
15. Micro USB cable for camera -
جهاز كمبيوتر متوافق مع فتحة
جهاز كمبيوتر متوافق مع فتحة: VPC14-WP series
VPC10-WP series
VPC15-WP series
VPC16-WP series
VPC17-WP series
