لوحات فيوبورد التفاعلية

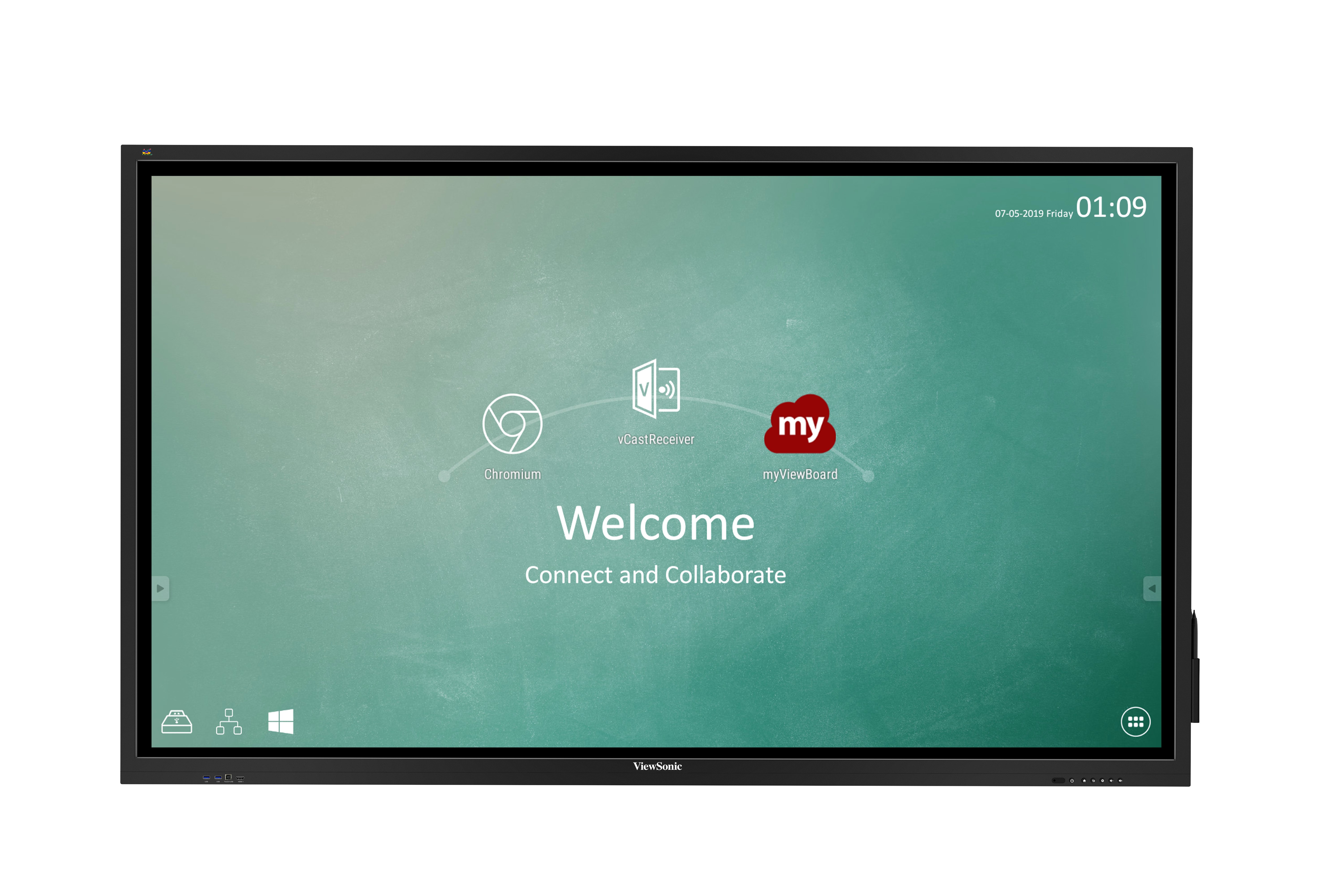

IFP7530
الميزات الرئيسية
- UFT (Ultra Fine Touch) Technology
- myViewBoard™ digital whiteboard software
- Dual-pen writing with 3mm/8mm diameter pen tips
- Ambient Light Sensor
- ENERGY STAR® certified
المنتج وصف
The ViewBoard® IFP30 series embraces UFT (Ultra Fine Touch) Technology to offer more precise writing and faster processing time than traditional IR panels. 2mm height sensitivity increases writing accuracy while allowing for dual-pen annotation with both 3mm & 8mm diameter pens. It’s also incredibly responsive, distinguishing the different touch diameters among pens, fingers and palms to avoid false strokes. In addition, the IFP30 series is integrated with myViewBoard™ digital whiteboard software to provide collaboration on the go, and is further complimented by native casting including Miracast, Airplay, and Chromecast. Interactive whiteboards are becoming commonplace. The IFP30 series is the solution for schools and workplaces of all sizes and considerations.
- CONTROLS PANEL
- USB X 2
- TOUCH USB
- HDMI IN
- HDMI OUT
- SPDIF OUT
- TOUCH USB
- USB X 2
- DISPLAY PORT IN
- HDMI IN X 2
- VESA® WALL Mount 600x400 mm
- RS232 IN
- AUDIO OUT
- VGA IN
- LAN X 2
- PC AUDIO IN
تفضل بزيارة لنا
- www.viewsonic.com
-
الشاشة
Panel Size: 75" Type/Tech: IPS/V-by-one منطقة العرض (مم): 1647.36*926.64mm الابعاد المتزنة: 16:9 Native Resolution: 4K60hz الألوان: 10 bits السطوع: 450(Typ.)
400(min.)نسبة التباين: 1200:1 Response Time: 8ms(Type) زوايا النظر: H = 178, V = 178 typ. عمر الإضاءة الخلفية: 30,000hr(min) Surface Treatment: Hardness: 7H
Costing: AG coating
Thickness: 4mmالحافة: 29/29/29/49.7mm(btm.) Orientation: Landscape -
PLATFORM
Processor: ARM Cortex-A73*2 + Cortex-A53*2 1.5Hz RAM: 3GB DDR4 Storage: 16GB -
TOUCH
Type/ Tech: IR Recognition Touch Resolution: 32767W*32767D Touch Point: 20 points -
INPUT
HDMI: Front*1
Rear* 2
All ports HDMI2.0RGB / VGA: 1 منفذ الشاشة: DP1.2*1 الصوت: PC audio in (3.5 mm)*1 RS232: x1 OPS: 1 -
OUTPUT
HDMI: *1 الصوت: 3.5mm Earphone Out *1, SPDIF*1 SPDIF: x1 -
LAN
RJ45: *2
10M/100 -
USB
Type A: USB2.0 *4 (Front:*2 Rear: *2 ) Type B: For touch (Front*1, rear*1)) -
SPEAKERS
SPEAKERS: 15WX2 -
لوحة الكاميرا في الأعلى لتثبيت كاميرا الويب ببراغي
لوحة الكاميرا في الأعلى لتثبيت كاميرا الويب ببراغي: yes -
COMPATIBILITY
RGB PC/HDMI PC: VGA: 1080p
HDMI: 4KHDMI: 3840x2160 منفذ الشاشة: 3840x2160 -
EMBEDDED OS
Embedded OS: OS 8.0
Resolution: 1080p -
POWER
Voltage: PB model:
100-240VAC +/- 10% Wide Rangeالاستهلاك: On: 115W(Typ.)
Off: <0.5W -
ERGONOMICS
Wall Mount (VESA® ): 600x400 -
OPERATING CONDITIONS
Temperature (º C): 0°C to 40°C Humidity: 20% ~ 80% RH Non-Condensing(working) -
المقاسات (العرض × الارتفاع × العمق)
Physical (inch / mm): 1753.1*1052.3*102.8(mm)
69.02*41.43*4.05(inch)Packaging (inch / mm): 1880*1160*280(mm)
74*45*11(inch) -
WEIGHT
Net (lb / kg): 135lb, 61.25kg Gross (lb / kg): 173.8lb, 78.85kg -
ENERGY STAR VERSION
Energy Star version: YES -
EEI RATING
EEI rating: A+ -
PACKAGE CONTENTS
PACKAGE CONTENTS:
1. US/EU/UK/AU power cord , no PE bag
2. QSG
3. Compliance statement
4. HDMI cable*1
5. Touch USB cable *1
6. Touch PEN *2. Extra tip: Thick*2, thin*1
7. Remote control with AAA batteries (VS version)
8. Webcam plate with screws pack
a. Need to compatible with Logi CC4000e)
b. Add screw holes on top of the frame
9. Pen tray*1 (two pen, detachable, mount for both side)
10. Wall mount screws -
جهاز كمبيوتر متوافق مع فتحة
جهاز كمبيوتر متوافق مع فتحة: VPC12 series
