الميزات الرئيسية
  • All-in-one myViewBoard™ suite with Whiteboard, Display, and Manager​​
  • Pen-on-paper writing experience with Ultra Fine Touch Technology​​​
  • Front-facing dual speakers to deliver attention-grabbing sound​​
  • Webcam bracket easily attached with camera for better engagement​​
  • Quad Core CPU with upgraded storage powered by Android 9.0 OS​

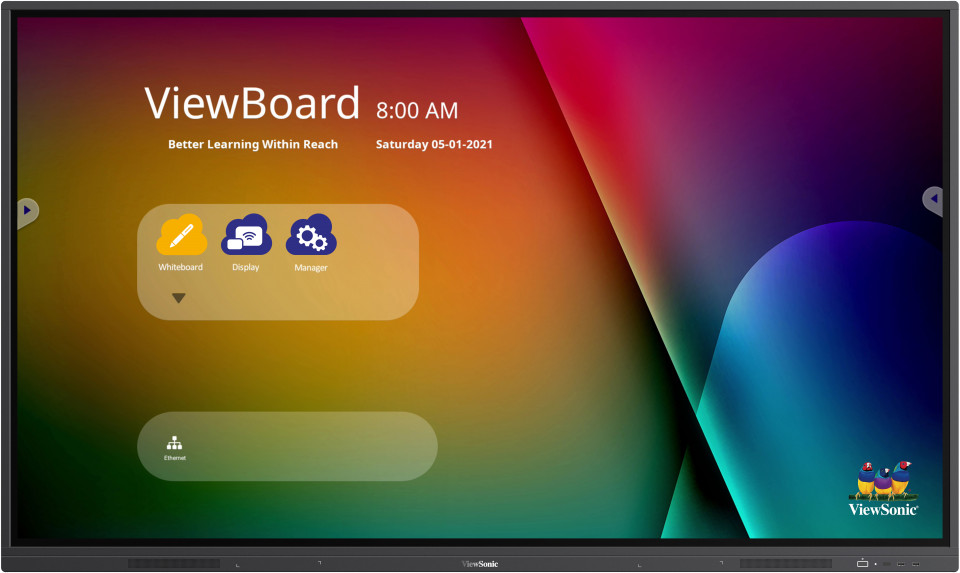

ViewBoard 7532-2
المنتج وصف
The ViewBoard® 32-2 series is an advanced model that provides a comprehensive solution for schools and teachers looking to deliver more interactive and engaging lessons. Clearer colors, more vibrant contrast, and less glare are achieved thanks to 4K UHD display's bonding technology. With 20-point touchscreen interface, users collaborate naturally either with a finger or one of the ViewBoard styluses. The display integrates Ultra Fine Touch Technology which brings a paper-like writing experience with instant response and high accuracy. The dual-tip pen support allows you to simultaneously write or draw with two different colors. Seamless software integration is assured by the built-in access to the myViewBoard suite that brings together all the hardware. With upgraded RAM and storage, ViewBoard 32-2 Series offers instant connectivity and effortless usability for classroom engagement.
  1. Smart Port USB™ X 2
  2. Camera
  3. LAN
  4. RS232
  5. HDMI X 2
  6. USB 2.0
  7. Touch
  8. Audio Out
  9. VESA® Wall Mount800 x 400mm
  10. VGA
  11. Audio In
  12. Wi-fi Module Slot
تفضل بزيارة لنا
  • www.viewsonic.com
  • الشاشة
    حجم اللوحة: 75"
    نوع اللوحة: TFT LCD Module with DLED Backlight
    منطقة العرض (مم): 1650.24mm(H) x 928.26mm(V) (74.6” diagonal)
    الابعاد المتزنة: 16:9
    الدقة: UHD 3840x2160(Pixels)
    الألوان: 1.07B colors (8bit+FRC)
    السطوع: 400 nits (typ.)
    نسبة التباين: 4000:1
    زمن الاستجابة: 8.5ms
    زوايا النظر: H=178, V=178typ.
    عمر الإضاءة الخلفية: 50,000 Hours (Min)
    معالجة السطح: Hardness: 9H Anti-glare coating
    الاتجاه: Landscape
  • المنصة
    المعالج: ARM quad-core Cortex-A55
    ذاكرة RAM: 4GB DDR4
    التخزين: 32 GB
  • اللمس
    النوع/ التقنية: Ultra Fine Touch Technology
    نقاط اللمس: 20 points touch
  • الإدخال
    HDMI: HDMI 2.0 x2 (3840x2160 @60Hz)
    RGB / VGA: x1
    الصوت: x1
    RS232: x1
    OPS: x1 (Optional Intel Standard OPS)
    WiFi: x1 (Optional VB-WIFI-002/VB-WIFI-004)
  • الإخراج
    الصوت: x1
  • LAN
    RJ45: x1
  • USB
    Type A: USB2.0 Front x2; Side x2
    Type B: x1 for HDMI/VGA touch
  • مكبرات الصوت
    10W x 2
  • لوحة الكاميرا العلوية
    Yes
  • نظام التشغيل المدمج
    Android 9
  • حزمة البرامج
    برنامج الشرح الأساسي: myViewBoard Whiteboard
    برنامج التعليق الاحترافي: myViewBoard Whiteboard for Windows (Embedded in optional Windows Slot-in PC)
    العرض التقديمي اللاسلكي: myViewBoard Display & ViewBoard Cast​
  • ميزات خاصة
    منفذ USB متعدد الوظائف: (combine slot-in PC/Android/HDMI USB port) Front “SmartPort™ USB” to all channels.
    مشاركة LAN بسيطة بين الشاشة التفاعلية (IFP) والجهاز المُدرج: 10/100M for Android & Slot-in PC
    مستشعر الضوء: Yes
  • الطاقة
    الجهد: 162V-264V +/- 10%
    الاستهلاك: On:238W(typ.)
    Off: ≤ 0.5W
  • التصميم المريح
    التثبيت على الحائط (VESA®): 800x400
  • ظروف التشغيل
    درجة الحرارة (º م): 0°C to 40°C
    الرطوبة: 10% ~ 90% RH non-condensing
  • المقاسات (العرض × الارتفاع × العمق)
    الأبعاد الفعلية (بوصة / مم): 1710×1020×87 mm / 67.3x40.2x3.4 in
    العبوة (بوصة / مم): 1860×280×1140 mm / 73x11x44.9 in
  • الوزن
    الوزن الصافي (رطل / كجم): 51.8kg/114.2lb
    الوزن الإجمالي (رطل / كجم): 65.7kg/144.8lb
  • اللوائح التنظيمية
    EMC/CE , CB/LVD, GOST-R / EAC, FAC, RCM, BIS, ECAS, LBL (Low Blue Light Certification), RoHS, REACH, SCIP, WEEE, TPCH, Packing waste, CA65, Green BOM, ErP-Eco
  • محتويات العبوة
    1. Power cord / 2.Remote control with AAA battery / 3.USB touch cable / 4. Touch pen x 2 / 5. Quick Start Guide + Compliance statement / 6. RS232 adapter / 7. Screw x 4 ( wall mount 4) / 8. HDMI cable / 9. Clamp x5 /
    10. Camera plate x1
  • جهاز كمبيوتر متوافق مع فتحة
    VPC12-WPO/VPC25/VPC2C/VPC27 series
