الميزات الرئيسية
  • EPEAT Gold Certification with 20% better power efficiency than the previous generation.
  • Integrated ViewSonic Education Software empowers teachers and boosts learning outcomes.
  • EDLA-certified Android 14 unlocks Google Play Store access for a world of apps.
  • Quad-core CPU and microSD port deliver fast performance with expandable storage.

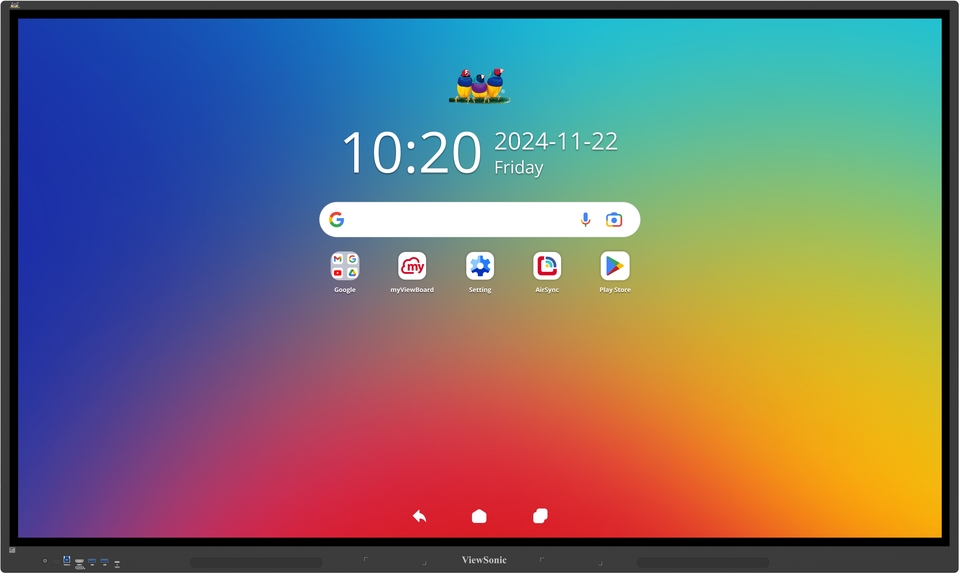

ViewBoard IFP7534
المنتج وصف
Start your EdTech journey right with the ViewBoard IFP34 Series, designed with enhanced writing functionality and optimized power efficiency to meet the needs of K12 and higher education. Powered by EDLA-certified Android 14, it offers a smooth, secure user experience with full access to the Play Store for endless educational and productivity apps. Integrated ViewSonic Education Software takes it even further, adding powerful tools for digital whiteboarding, wireless casting, and centralized device management. Together, these features empower educators to create engaging, interactive learning environments, all while simplifying classroom workflows.
  1. Power On/Off
  2. Touch 2
  3. HDMI 3
  4. USB 3.2 Gen 1
  5. USB-C
  6. VESA CompatibleWall Mount 800 x 400 mm
  7. OPS Slot
  8. HDMI Out
  9. USB 3.2 Gen 1
  10. USB-C
  11. Touch 1
  12. HDMI 1
  13. HDMI 2
  14. DP
  15. VGA
  16. Audio In
  17. Micro SD Slot
  18. AC In
  19. Power Switch
  20. WiFi Slot
  21. USB
  22. RS232
  23. SPDIF
  24. Audio Out
  25. LANx2
تفضل بزيارة لنا
  • www.viewsonic.com
  • الشاشة
    حجم اللوحة: 75"
    نوع اللوحة: TFT LCD Module with DLED Backlight.
    منطقة العرض (مم): 1650.24(H) x 942.01(V)
    الابعاد المتزنة: 16:9
    الدقة: UHD 3840x2160(Pixels)
    الألوان: 1.07B colors
    السطوع: 450 nits
    نسبة التباين: 5000:1 (max. with DCR enabled)
    زمن الاستجابة: 8ms
    زوايا النظر: H=178, V=178
    عمر الإضاءة الخلفية: 50,000 Hours (8 hours of use per day)
    معالجة السطح: Hardness: 9H Anti-glare coating
    الاتجاه: Landscape
  • المنصة
    المعالج: Quad-core
    ذاكرة RAM: 8GB DDR4
    التخزين: 128 GB
  • اللمس
    النوع/ التقنية: Ultra Fine Touch Technology
    دقة اللمس: 32767 x 32767
    نقاط اللمس: 40 points touch
    رفض لمس راحة اليد: Yes
  • الإدخال
    HDMI: x3 (Front x1: HDMI2.0/HDCP 2.2/CEC; Rear x 2:HDMI2.0/HDCP 2.2/CEC/ARC for HDMI 2)
    RGB / VGA: x1
    منفذ الشاشة: x1
    الصوت: x1
    RS232: x1
    SD/SDHC: x1
    OPS: x1 (Optional Intel Standard OPS)
    WiFi: x1 (Optional VB-WIFI-002/VB-WIFI-004/VSB-050)
  • الإخراج
    HDMI: HDMI 2.0 x1
    الصوت: x1
    SPDIF: x1
  • LAN
    RJ45: x2
  • USB
    Type A: USB3.2 Gen 1 x 4 (Front x 2; Rear x 2 )
    USB 2.0x1 (Rear)
    Type B: USB 3.0 x2 (Rear x1 + Front x1)
    Type C: Front*1 [PD65W (15W with OPS, 65W without OPS)+ DP1.2 + Data + 10M/100M sharing)]

    Rear *1 (PD15W +Data)
  • مكبرات الصوت
    20W x 2
  • لوحة الكاميرا العلوية
    Yes
  • نظام التشغيل المدمج
    Android 14 EDLA
  • البرامج المرفقة
    برنامج الشرح الأساسي: myViewBoard
    برنامج التعليق الاحترافي: myViewBoard for Windows (Embedded in optional Windows Slot-in PC)
    العرض التقديمي اللاسلكي: AirSync
    إدارة الأجهزة: Manager
    ViewSonic Launcher: Yes
  • ميزات خاصة
    منفذ USB متعدد الوظائف: (combine slot-in PC/Android/HDMI USB port) Front “SmartPort™ USB” to all channels.
    مشاركة LAN بسيطة بين الشاشة التفاعلية (IFP) والجهاز المُدرج: 10/100M for Android & Slot-in PC
    مستشعر الضوء: Yes
  • الطاقة
    الجهد: 100-240V AC
    الاستهلاك: On:89.24W ; Off: ≤ 0.5W
  • التصميم المريح
    التثبيت على الحائط (VESA®): 800*400
  • ظروف التشغيل
    درجة الحرارة (º م): 0°C to 40°C
    الرطوبة: 20% ~ 80% RH non-condensing
  • المقاسات (العرض × الارتفاع × العمق)
    الأبعاد الفعلية (بوصة / مم): 67.5 x 40.4 x 3.42 (in.) / 1716.5 x 1025.8 x 86.9 (mm)
    العبوة (بوصة / مم): 73.22 x 44.29 x 7.28 (in.) / 1860 x 1125 x 185 (mm)
  • الوزن
    الوزن الصافي (رطل / كجم): 108.03 lb / 49 kg
    الوزن الإجمالي (رطل / كجم): 133.38 lb /60.5 kg
  • اللوائح التنظيمية
    FCC/ICES003, EPEAT, CE EMC, LVD or CB, RoHS Green BOM, & RoHS DoC, ErP, REACH SVHC List, & DoC, EEL, WEEE, BSMI,BIS
  • محتويات العبوة
    1. 3m power cord by ship area 2. Remote control with AAA battery 3. 3m touch USB cable 4. Touch pen x 2 (VB-PEN-009) 5. Quick Start Guide + Compliance statement 6. RS232 adapter 7. Clamp x 5 8. Camera Plate 9. Screw x 8 (camera 2+2, wall mount 4) 10. HDMI cable 3m
  • جهاز كمبيوتر متوافق مع فتحة
    VPC3X, VPCF5-2A, VPCF5, VPC2X, VPC-A31-O1
