لوحات فيوبورد التفاعلية

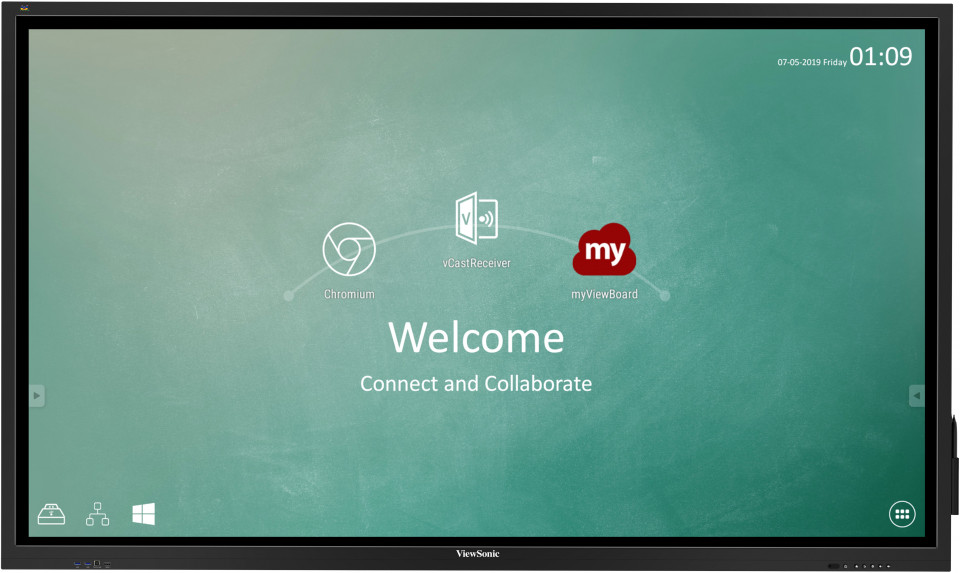

IFP8630
الميزات الرئيسية
- UFT (Ultra Fine Touch) Technology
- myViewBoard® digital whiteboard software
- Dual-pen writing with 3mm/8mm diameter pen tips
- Ambient Light Sensor
- Wireless presentation across devices
المنتج وصف
The ViewBoard® IFP30 series embraces ultra fine touch technology to offer fine precision writing. It increases the writing accuracy with 2mm height sensitivity while allowing for dual-pen writing with both 3mm & 8mm diameter pens. It’s also very responsive to distinguish the touch diameters among pens, fingers and palms to avoid false strokes. In addition, the IFP30 series is integrated with myViewBoard® whiteboarding software to provide more accommodative features such as to collaboration on the go; and it’s further complimented by native casting including Miracast, Airplay, and Chromecast; as well as the front I/O ports including HDMI, Touch USB, and USB for easy access. Interactive whiteboards are becoming commonplace. The IFP30 series is the solution for schools and workplaces of all sizes and considerations.
- CONTROL PANEL
- USB X 2
- TOUCH USB
- HDMI IN
- HDMI OUT
- SPDIF OUT
- TOUCH USB
- USB X 2
- DISPLAY PORT IN
- HDMI IN X 2
- VESA® Wall Mount(700 x 400 mm)
- RS232 IN
- AUDIO OUT
- VGA IN
- LAN X 2
- PC AUDIO IN
تفضل بزيارة لنا
- www.viewsonic.com
-
الشاشة
Panel Size: 86" Type/Tech: TFT LCD module with DLED backlight منطقة العرض (مم): 1895.04*1065.94mm الابعاد المتزنة: 16:9 Native Resolution: 4K60hz Colors: 10 bits السطوع: 400(Typ.) نسبة التباين: 1200:1 Response Time: 8ms(Tyoe) زوايا النظر: H = 178, V = 178 typ. عمر الإضاءة الخلفية: 30,000hr(min) Surface Treatment: Hardness: 7H, Costing: AG coating الحافة: Slim Orientation: Landscape -
PLATFORM
Processor: Cortex-A73*2 + Cortex-A53*2 1.5Hz RAM: 3GB DDR4 Storage: 16GB -
TOUCH
Type/ Tech: IR Recognition Touch Resolution: 32767W*32767D Touch Point: 20 points , 5 writing -
INPUT
HDMI: Front*1, Rear* 2, All ports HDMI2.0 RGB / VGA: 1 منفذ الشاشة: DP1.2*1 الصوت: PC audio in (3.5 mm)*1 RS232: x1 OPS: 1 -
OUTPUT
HDMI: x1, up to 4K60hz الصوت: 3.5mm Earphone Out *1, SPDIF*1 SPDIF: 1(optical) -
LAN
RJ45: *2, 10M/100M -
USB
Type A: USB2.0 *4 (Front:*2 Rear: *2 ), USB3.0:N/A Type B: For touch (Front*1, rear*1)) -
SPEAKERS
SPEAKERS: 15WX2 -
TOP CAMERA PLATE
yes -
COMPATIBILITY
RGB PC/HDMI PC: VGA: 1080p, HDMI: 4K HDMI: 3840x2160 منفذ الشاشة: 3840x2160 -
EMBEDDED OS
Embedded OS: Android 8.0 -
حزمة البرامج
برنامج الشرح الأساسي: myViewBoard for Android Pro Annotation Software: myViewBoard for Windows ( embedded in VPC12) Wireless Presentation with Touch Feedback: Viewboard Cast: Yes ViewSonic Launcher: Embedded -
SPECIAL FEATURES
منفذ USB متعدد الإمكانات (يجمع بين منفذ Windows / Android USB ؛ لا داعي للتمييز بينهما بعد الآن): Front “SmartPort USB” to all channels. Simple LAN sharing between IFP and slot-in device: 10M/100M share to OPS -
POWER
Voltage: PB model: , 100-240VAC +/- 10% Wide Range -
ERGONOMICS
Wall Mount (VESA® ): 400*700 -
OPERATING CONDITIONS
Temperature (º C): 0°C to 40°C Humidity: 20% ~ 80% RH Non-Condensing(working) -
المقاسات (العرض × الارتفاع × العمق)
Physical (inch / mm): 2006.4*1189.1*118(mm), 79*46.8*4.7(inch) Packaging (inch / mm): 2140*1340*280(mm), 84.3*52.8*11(inch) -
WEIGHT
Net (lb / kg): 176lb / 79.8kg Gross (lb / kg): 219.4lb / 99.5kg -
PROAV CERTIFICATE READINESS
كرسترون ( Crestron): On-going Extron: On-going AMX: Self-certificate -
PACKAGE CONTENTS
PACKAGE CONTENTS:
1.US/EU/UK/AU power cord 3M, no PE bag
2. QSG
3. Compliance statement
4. HDMI cable 3M*1
5. Touch USB cable 3M *1
6. Touch PEN *2. Extra tip: Thick*2, thin*1
7. Remote control with AAA batteries (VS version)
8. Webcam plate with screws pack
a. Need to compatible with Logi CC4000e)
b. Add screw holes on top of the frame
9. Pen tray*1 (two pen, detachable, mount for both side)
10. Wall mount screws -
جهاز كمبيوتر متوافق مع فتحة
جهاز كمبيوتر متوافق مع فتحة: VPC12 series
