الميزات الرئيسية
  • 20-Point Multi-Touch
  • Floating Pen - Annotation on Demand
  • ViewBoard® Cast Content Sharing Software
  • Built-in ARM Quad-core CPU with 16GB Storage
  • Out-of-Box Collaboration

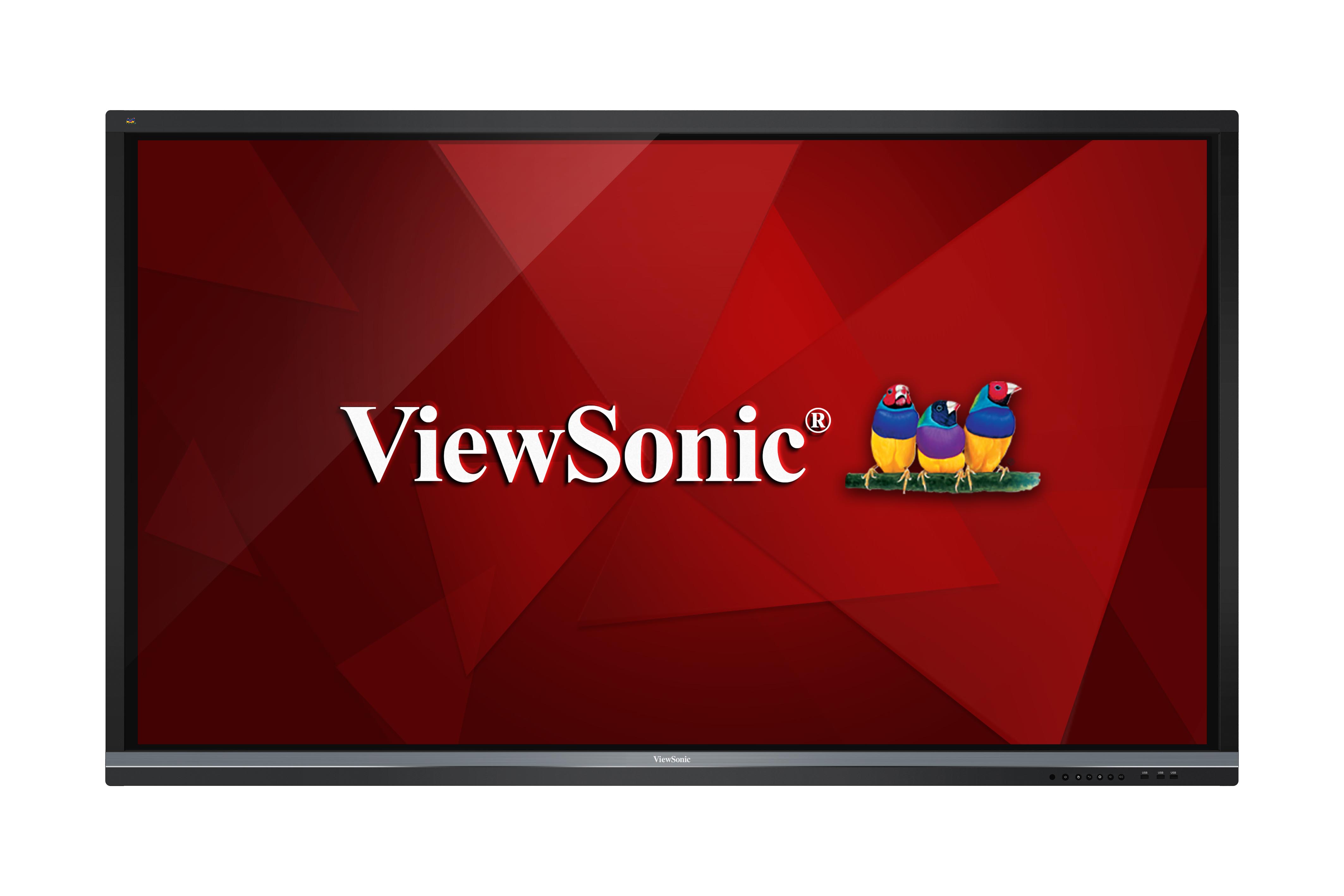

IFP8650
المنتج وصف
Featuring 4K Ultra HD resolution and an immersive 20-point touch screen, the ViewSonic® ViewBoard® IFP8650 delivers incredible collaborative capabilities for 21st century boardrooms and classrooms. With astonishing 20-point simultaneous touch capabilities and pre-installed ViewSonic myViewBoard™ whiteboarding software, this 86” interactive flat panel lets multiple users write or draw on the screen with their fingers and styluses. With a built-in quad-core processor, as well as versatile connectivity options including multiple HDMI, VGA, RS232, RJ45, and USB ports, this display provides powerful computing for annotation and multimedia playback without the need for a PC. This display delivers optional slot-in PC capability, for more computing-intensive interactive applications. The IFP8650 features a VESA-compatible design and can be placed on a wall mount, or on an optional trolley cart for flexible installation in classrooms and corporate meeting rooms.
  1. SPEAKERS
  2. VESA® WALL MOUNT 600x400 mm
  3. MENU CONTROLS
  4. USB 2.0
  5. CVBS IN (AV IN)
  6. SPDIF (COAX OUT)
  7. RS232 IN
  8. AUDIO OUT
  9. RJ45 (LAN)
  10. POWER ON / OFF
  11. AC IN
  12. USB 2.0 & 3.0
  13. HDMI IN
  14. AUDIO IN
  15. USB 2.0 & 3.0
  16. PC SLOT
  17. HDMI OUT
  18. WIFI & BLUETOOTH MODULE SLOT
  19. USB 2.0 (Touch)
  20. DisplayPort
  21. VGA IN
تفضل بزيارة لنا
  • www.viewsonic.com
  • لوحة LCD
    حجم اللوحة: 86"
    النوع/ التقنية: TFT LCD Module with DLED Backlight
    منطقة العرض (مم): 1895.04 (H) x 1065.96 (V) (85.6” diagonal)
    الابعاد المتزنة: 16:9
    الدقة: 3840 x 2160
    الألوان: 1.07B colors (10bit)
    السطوع: 350 nits (typ.) 300 nits (min.)
    نسبة التباين: 1200:1 (typ.)
    زمن الاستجابة: 8 ms
    زوايا النظر: H = 178, V = 178 (typ.)
    الإضاءة الخلفية: DLED
    عمر الإضاءة الخلفية: 30,000 Hours Min.
    Hardness: 7H
  • اللمس
    النوع/ التقنية: IR Recognition
    دقة اللمس: 32767 x 32767
    نقاط اللمس: 20 points touch, 10 points writing
    زمن الاستجابة: <15ms
    System: Windows 10 / Windows 8 / Windows 7 / Windows XP / Vista / Linux / Mac / Android / Wince / Chrome
    العمر الافتراضي: 80,000hrs
  • الإدخال
    HDMI: x 3
    RGB / VGA: x 1
    منفذ الشاشة: x 1
    الصوت: x 1
    CVBS (AV): x 1
    RS232: x 1
    PC Slot: x 2
  • الإخراج
    HDMI: x 1 (for all sources)
    Audio (Earphone out): x 1
    SPDIF: x 1
  • LAN
    RJ45: x 1
  • USB
    2.0 Type A: x 4 (front x 2, for both embedded player and slot-in PC)
    3.0 Type A: x 2 (front x 1, for both embedded player and slot-in PC)
    2.0 Type B (For touch): x 2
  • مكبرات الصوت
    16W x 2
  • BUILT-IN PC
    المعالج: ARM Cortex A53 Quad Core 1.2G Hz CPU
    Graphic: ARM Mali-450 Quad Core
    الذاكرة: 2GB DDR3
    التخزين: 16GB eMMC
    Networking: 10/100M auto-identification and DHCP
  • التوافق
    VGA: Refer to timing table
    HDMI: 3840x2160
    DP: 3840x2160
    CVBS (فيديو مركّب): 480i
  • الطاقة
    الجهد: 100-240VAC +/- 10% Wide Range
    الاستهلاك: 361W(Typ, without Slot-In PC); 456W(Typ, Including Slot-In PC)
  • التصميم المريح
    التثبيت على الحائط (VESA®): 800 x 600mm; Screw: M8 x 25mm
  • ظروف التشغيل
    درجة الحرارة (º م): 32°F to 104°F (0°C to 40°C)
    الرطوبة: 10% ~ 90% non-condensing
  • DIMENSIONS (W X H X D)
    Physical w/o Stand (mm / inch): 1988 x 1186 x 100 mm / 78.3 x 46.7 x 3.9 inch
    Packaging (mm / inch): 2211 x 1380 x 280 mm / 87.0 x 53.1 x 11.0 inch
  • الوزن
    Net (kg / lb): 78kg / 171.96lbs
    Gross (kg / lb): 105kg / 231.49lbs
  • اللوائح التنظيمية
    Standard: FCC, CE, cTUVus, RCM, CCC
  • WHAT'S IN THE BOX?
    VGA cable(5 meters)/Power cable(3 meters) x 4/Remote control/USB cable(5 meters)/Audio cable(5 meters)
    6.AV cable/Touching pen x 3/User manual CD wizard/Quick Start Guide/RS232 adapter/Clamp x 5/Plate/Screw x 3
