الميزات الرئيسية
  • UFT (Ultra Fine Touch) Technology
  • myViewBoard™ digital whiteboard software
  • ViewBoard® Cast 4-way split screen content sharing software
  • SmartPort™ shared front USB ports for internal & external PCs
  • 2.1 Stereo sound with built-in subwoofer

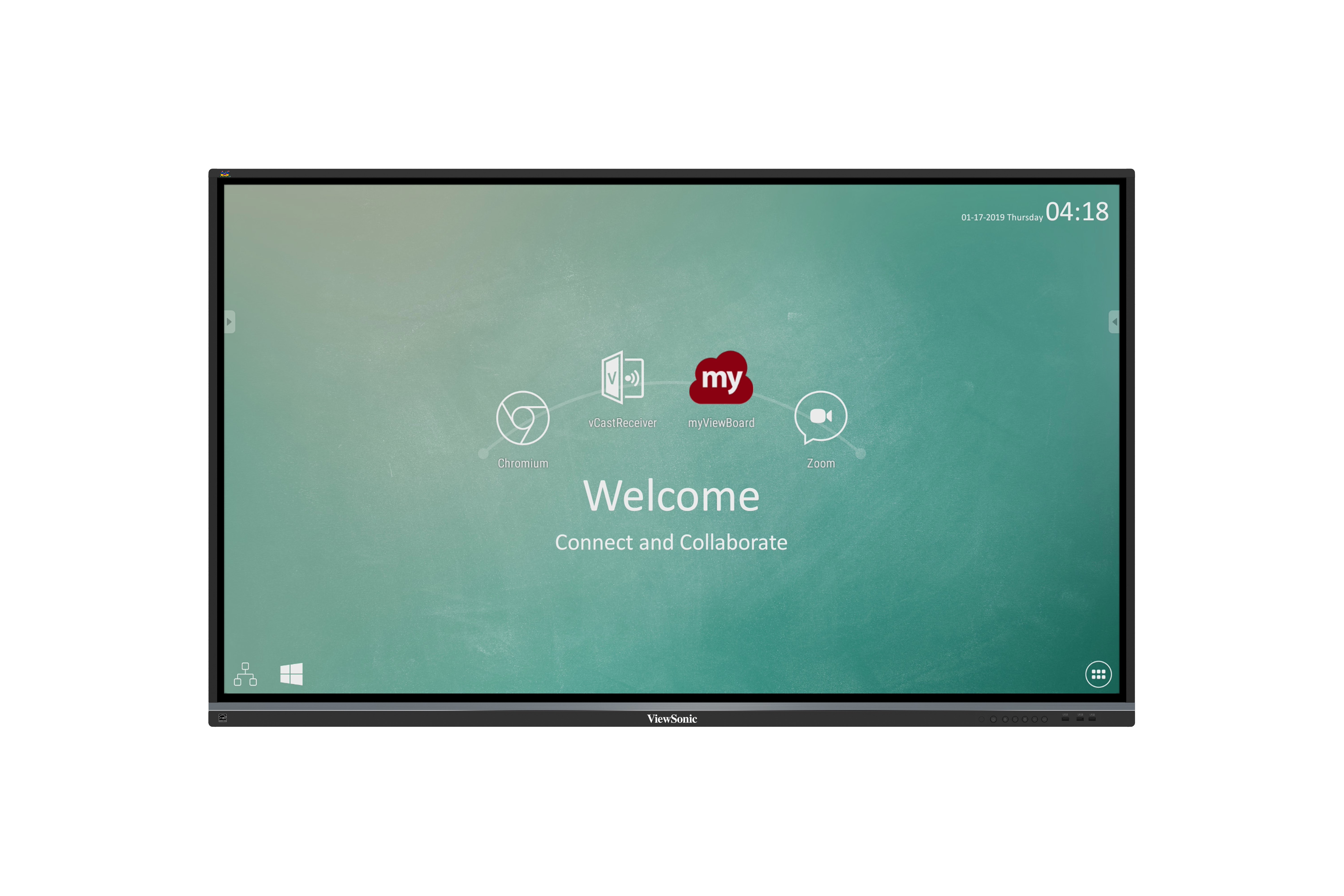

IFP8650-2
المنتج وصف
The ViewBoard® IFP50 series embraces ultra fine touch technology to offer fine precision writing. Along with slim IR touch and its optimized integration, the processing time is faster than traditional IR panels. Meanwhile, smooth dual-pen writing with our new, slim 3mm pens enables teachers and students to work efficiently on any detailed tasks that require the accurate use of fine tipped pens during group discussion. On top of that, the ViewBoard® IFP50 series is designed with a slim bezel to broaden your viewing experience, so that even at the edge you can write clearly and thinly. It is also well integrated with myViewBoard™ whiteboarding software to collaborate on the go, and further complimented by ViewBoard® Cast software for 4 way split screen content sharing.
  1. MENU CONTROLS
  2. USB X 3
  3. Intel Unite® Certified OPS Slot
  4. HDMI OUT
  5. USB 3.0
  6. TOUCH X 2
  7. VGA
  8. HDMI IN X 3
  9. AUDIO IN
  10. CAMERA PORT
  11. VESA® WALL Mount 800x600 mm
  12. INTERNAL SPEAKERS
  13. USB 2.0
  14. AUDIO OUT
  15. RS232
  16. AV IN
  17. SPDIF
  18. LAN
تفضل بزيارة لنا
  • www.viewsonic.com
  • الشاشة
    حجم اللوحة: 86"
    النوع/التقنية: TFT LCD Module with DLED Backlight.
    منطقة العرض (مم): 1895.04 (H) x 1065.96 (V) (85.6”diagonal)
    الابعاد المتزنة: 16:9
    الدقة الأصلية: UHD 3840x2160(Pixels)
    الألوان: 1.07B colours (10bit)
    السطوع: 350 nits (typ.) 300 nits (min.)
    نسبة التباين: 5000:1 (DCR)
    زمن الاستجابة: 8ms
    زوايا النظر: H = 178, V = 178 typ.
    عمر الإضاءة الخلفية: 30,000 Hours (Min)
    معالجة السطح: Anti-Glare
    الحافة: Slim
    الاتجاه: Landscape
  • المنصة
    المعالج: ARM Cortex A73 dual-core 1.2GHz
    ذاكرة RAM: 2GB DDR4
    التخزين: 16GB
  • اللمس
    النوع/ التقنية: IR Recognition
    دقة اللمس: 32767 x 32767
    نقاط اللمس: 20 points touch, 10 points writing
  • الإدخال
    HDMI: 2.0 x3 (3840x2160 @60Hz)
    RGB / VGA: x1
    الصوت: x1 (PC audio in)
    CVBS (فيديو مركّب): x1
    RS232: x1
    OPS: x1 PC Slot (proprietary)
  • الإخراج
    HDMI: x1
    الصوت: x1 (Earphone out)
    SPDIF: 1(optical)
  • LAN
    RJ45: x1
  • USB
    Type A: USB 2.0 x4(including 2 USB port in front)
    USB 3.0 x2(including 1 USB port in front)
    Type B: x2, for touch
  • مكبرات الصوت
    مكبرات الصوت: 10W x 2 + 15W x 1
  • نظام التشغيل المدمج
    نظام التشغيل المدمج: Android 7
  • تنسيقات الملفات المدعومة عبر USB
    تنسيقات الملفات المدعومة عبر USB: Picture -
    BMP, JPEG, PNG

    Video -
    Codec: MPEG1, MPEG2, MPEG2-PS, MPEG4, MKV
    Container: MPG, MP4, MOV, VOB, DAT, MKV

    Audio -
    Codec: AAC, HEAAC, MPEG1, MPEG2
    Container: AAC, M4A, MP3
  • حزمة البرامج
    برنامج الشرح الأساسي: myViewBoard
    برنامج التعليق الاحترافي: myViewBoard for windows (Embedded in Windows Slot-in PC)
    عرض تقديمي لاسلكي مع استجابة اللمس: Viewboard Cast: yes
    ViewSonic Launcher: Embedded
  • ميزات خاصة
    منفذ USB متعدد الإمكانات (يجمع بين منفذ Windows / Android USB ؛ لا داعي للتمييز بينهما بعد الآن): Front “SmartPort™ USB” to all channels.
    مشاركة LAN بسيطة بين الشاشة التفاعلية (IFP) والجهاز المُدرج: Yes
  • الطاقة
    الجهد: 100-240VAC +/- 10% Wide Range
    الاستهلاك: 155W (Typ.)
    < 0.5 W ("Off")
  • التصميم المريح
    التثبيت على الحائط (VESA®): 800 x 600
  • ظروف التشغيل
    درجة الحرارة (º م): 0°C to 40°C
    الرطوبة: 10% ~ 90% RH non-condensing
  • المقاسات (العرض × الارتفاع × العمق)
    الأبعاد الفعلية (بوصة / مم): 77.1 x 45.7 x 3.5 in / 1958 x 1160 x 90 mm
    العبوة (بوصة / مم): 83.6 x 53.0 x 11.0 in / 2123 x 1345 x 280 mm
  • الوزن
    الوزن الصافي (رطل / كجم): 153.66 lb / 69.7 Kg
    الوزن الإجمالي (رطل / كجم): 202.83 lb / 92 Kg
  • اللوائح التنظيمية
    اللوائح التنظيمية: FCC, cTUVus, CB, CE, BSMI, RCM, BIS, CCC, EAC
  • إصدار ENERGY STAR
    إصدار Energy Star: ES8.0
  • تصنيف مؤشر كفاءة الطاقة (EEI)
    تصنيف مؤشر كفاءة الطاقة (EEI): A+
  • محتويات العبوة
    محتويات العبوة: 1. Power cable (3 meters) x 4
    2. Remote control
    3. USB cable (3 meters)
    4. AV cable
    5. Touching pen x 2
    6. Quick Start Guide
    7. RS232 adapter
    8. Clamp x 5
    9. Plate
    10. Screw x 8
    11. HDMI cable
  • جهاز كمبيوتر متوافق مع فتحة
    جهاز كمبيوتر متوافق مع فتحة: VPC14-WP series
    VPC10-WP series
    VPC15-WP series
    VPC16-WP series
    VPC17-WP series
