الميزات الرئيسية
  • Advanced Projected Capacitive (PCAP) touch technology
  • Write Naturally and Accurately with Smart Active Pen
  • Azure certified IoT sensor hub for workplace management
  • Skype for Business certified FHD camera
  • Single cable content sharing through USB Type C

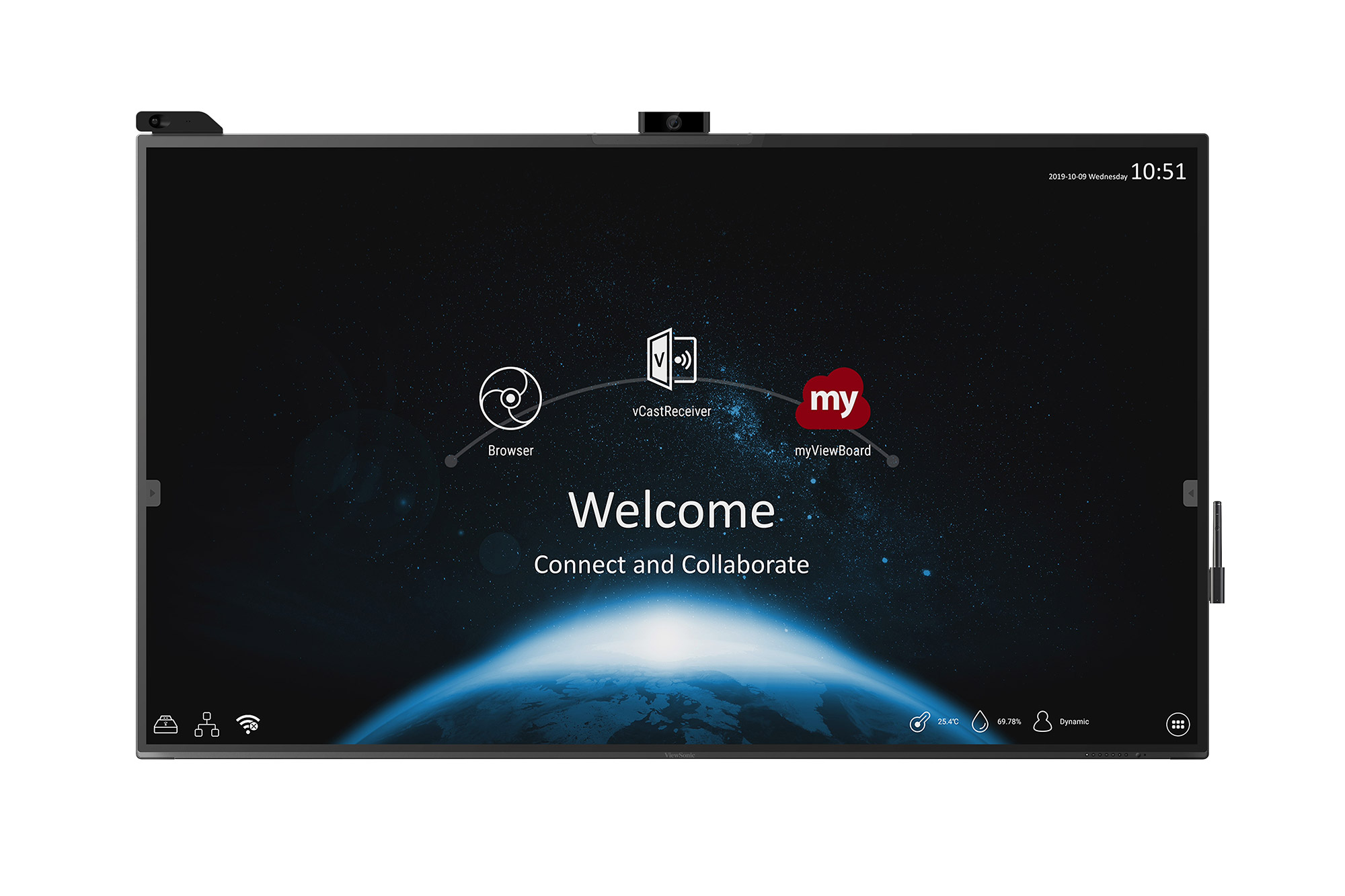

IFP8670
المنتج وصف
The ViewBoard® IFP70, our flagship interactive display, is tailored for visual collaboration in a digital workplace. Adopting advanced Projected Capacitive (PCAP) touch technology, it has a frameless, flat touchscreen to deliver precise responsiveness and the most accurate touch experience. Together with the smart pen, it enables you to write naturally and accurately like a real pen on a 4K Ultra HD resolution screen, streamlining visual collaboration. The ViewBoard® IFP70 series has quick, easy connectivity for content sharing via USB-C cable or wireless ViewBoard® Cast. Furthermore, it has a high quality video conferencing solution for the remote workforce with certified FHD camera, 6 mic array and 2.1 speaker configuration. In addition, the ViewBoard® IFP70 series gives you extra security to keep your information safe, private and compliant. It has built-in, AWS-powered myViewBoard™ whiteboarding software and an optional Intel® vPro™ slot-in PC. The ViewBoard® IFP70 series is also equipped with IoT sensors, which meet Windows Collaboration Display standards. It can work with Microsoft Azure Digital Twins to monitor and optimise your smart meeting rooms and collaboration spaces.
تفضل بزيارة لنا
  • www.viewsonic.com
  • الشاشة
    حجم اللوحة: 86"
    النوع/التقنية: TFT LCD Module with DLED Backlight.
    منطقة العرض (مم): 1895.04 (H) x 1065.96 (V) (85.6”diagonal)
    الابعاد المتزنة: 16:9
    الدقة الأصلية: UHD 3840x2160(Pixels)
    الألوان: 1.07B colours (10bit)
    السطوع: 350 nits (typ.)
    نسبة التباين: 1200:1 Typ.
    زمن الاستجابة: 8ms
    زوايا النظر: H = 178, V = 178 typ.
    عمر الإضاءة الخلفية: 30,000 Hours (Min)
    معالجة السطح: Anti-Glare/anti finger print
    الحافة: Slim
    الاتجاه: Landscape
  • المنصة
    المعالج: Dual core A73+Dual core A53
    ذاكرة RAM: 4GB DDR4
    التخزين: 32GB
  • اللمس
    النوع/ التقنية: PCAP
    دقة اللمس: 32767 x 32767
    نقاط اللمس: 20 points touch, 10 points writing
  • الإدخال
    HDMI: 2.0 x1 (3840x2160 @60Hz)
    منفذ الشاشة: X1 1.4
    RS232: x1
    OPS: x1 PC Slot (proprietary)
  • الإخراج
    HDMI: X1(4K2K@60Hz)
    الصوت: x1 (Earphone out)
    SPDIF: 1(optical)
  • LAN
    RJ45: x1
  • USB
    Type A: USB 3.0 x3
    Type B: USB 3.0 x2, for touch
    Type C: x1 USB3.0, DP1.4 Alternate mode, Ethernet, PD 60W
  • مكبرات الصوت
    مكبرات الصوت: 10W x 2 + 15W x 1 subwoofer
  • لوحة الكاميرا في الأعلى لتثبيت كاميرا الويب ببراغي
    لوحة الكاميرا في الأعلى لتثبيت كاميرا الويب ببراغي: Yes
  • التوافق
    CVBS (فيديو مركّب): 480i
    HDMI: 3840x2160
  • نظام التشغيل المدمج
    نظام التشغيل المدمج: Android 8
  • تنسيقات الملفات المدعومة عبر USB
    تنسيقات الملفات المدعومة عبر USB: Picture -
    BMP, JEPG, PNG

    Video -
    Codec: MPEG1, MPEG2, MPEG2-PS, MPEG4, MKV
    Container: MPG, MP4, MOV, VOB, DAT, MKV

    Audio -
    Codec: AAC, HEAAC, MPEG1, MPEG2
    Container: AAC, M4A, MP3
  • حزمة البرامج
    برنامج الشرح الأساسي: myViewBoard for android
    برنامج التعليق الاحترافي: myViewBoard for windows (Embedded in Windows Slot-in PC)
    عرض تقديمي لاسلكي مع استجابة اللمس: Viewboard Cast: Yes
    التكبير/التصغير: Yes
    ViewSonic Launcher: Embedded
  • ميزات خاصة
    منفذ USB متعدد الإمكانات (يجمع بين منفذ Windows / Android USB ؛ لا داعي للتمييز بينهما بعد الآن): Yes
    مشاركة LAN بسيطة بين الشاشة التفاعلية (IFP) والجهاز المُدرج: Yes
  • الطاقة
    الجهد: 100-240VAC +/- 10% Wide Range
    الاستهلاك: On:176.6W(Typ.)
    Off: <0.5W
  • التصميم المريح
    التثبيت على الحائط (VESA®): 800 x 600
  • ظروف التشغيل
    درجة الحرارة (º م): 0°C to 40°C
    الرطوبة: 10% ~ 90% RH non-condensing
  • المقاسات (العرض × الارتفاع × العمق)
    الأبعاد الفعلية (بوصة / مم): 1962X1146X84(mm)
    77.24x45.11x3.3(inch)
    العبوة (بوصة / مم): 2123X1345X280(mm)
    83.8X52.9X11(inch)
  • الوزن
    الوزن الصافي (رطل / كجم): 160.93/73Kg
    الوزن الإجمالي (رطل / كجم): 209.43/95Kg
  • اللوائح التنظيمية
    اللوائح التنظيمية: FCC, cTUVus, CB, CE, RCM,
  • إصدار ENERGY STAR
    إصدار Energy Star: Under proceed apply to ES8.0
  • تصنيف مؤشر كفاءة الطاقة (EEI)
    تصنيف مؤشر كفاءة الطاقة (EEI): A+
  • محتويات العبوة
    محتويات العبوة: 1. Power cable x 4
    2. Remote control
    3. AAA battery X2
    4. USB cable Type C
    5. activeTouch pen x 2
    6. Pen Charger X1
    7. Quick Start Guide
    8. RS232 adapter
    9. Clamp x 7
    10. Camera
    11. Screw x 6 (4 for wall mount ,2 for sensor hub)
    12. HDMI cable
    13. Sensor hub
    14 .Touch USB cable
    15. Micro USB cable for camera
  • جهاز كمبيوتر متوافق مع فتحة
    جهاز كمبيوتر متوافق مع فتحة: VPC14-WP series
    VPC10-WP series
    VPC15-WP series
    VPC16-WP series
    VPC17-WP series
