الميزات الرئيسية
  • Ultrawide 92" screen enhances multitasking and collaboration.
  • 5K resolution provides crystal-clear visuals and precise details.
  • 21:9 aspect ratio optimized for Microsoft Teams Rooms Front Row mode.
  • Comprehensive 8-mic array and 2.1 channel 60W speaker system for superior audio.
  • Dual USB-C ports deliver streamlined connectivity and boost productivity.

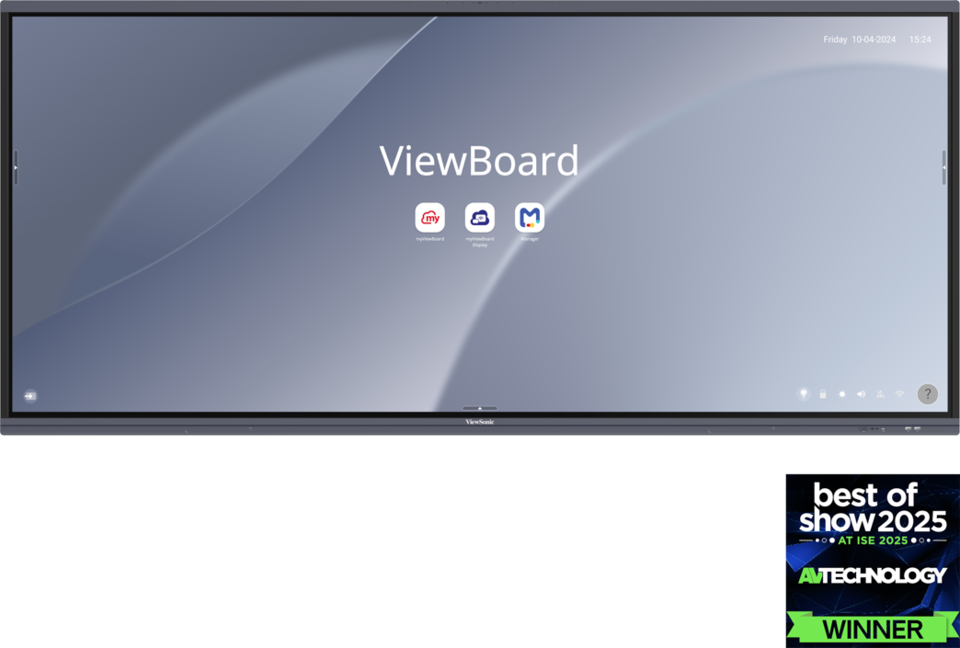

ViewBoard IFP92UW
المنتج وصف
The ViewBoard® IFP92UW delivers an expansive interactive experience with its 21:9 aspect ratio, optimized for Microsoft Teams Rooms and Front Row mode, and stunning 5K resolution. This ultrawide 92” display facilitates multitasking with split-screen functionality, enhancing collaboration and productivity in team huddles, meetings, and brainstorming sessions. It boasts highly responsive 50-point touch capabilities that capture every input naturally and intuitively, offering pen-on-paper precision, complemented by seamless wireless screen casting through vCast. Additionally, an 8-microphone array and 60W soundbar ensure optimal audio clarity for both in-room and remote participants.
  1. Power
  2. USB Type-C 2
  3. USB3.2 Gen 1
  4. VESA® Wall Mount (800x600 mm)
  5. USB3.2 Gen 1​
  6. USB3.2 Gen 1​
  7. Slot-in PC
  8. AC Power
  9. WiFi Slot
  10. SPDIF
  11. LAN
  12. RS232
  13. Touch 3
  14. USB 2.0
  15. Touch 1
  16. Audio In
  17. HDMI 1
  18. DP IN
  19. Audio Out
  20. USB 3.2 Gen 1​ *2
  21. HDMI Out
  22. Touch 2
  23. HDMI 2
  24. HDMI 3
  25. HDMI 4
  26. USB Type-C 1
تفضل بزيارة لنا
  • www.viewsonic.com
  • الشاشة
    حجم اللوحة: 92"
    نوع اللوحة: TFT LCD Module with DLED Backlight, VA
    منطقة العرض (مم): 2141.952(H) × 903.636(V) (91.52” diagonal)
    الابعاد المتزنة: 21:9
    الدقة: WUHD 5120x2160(Pixels)
    الألوان: 1.07G colors (8bits+ 2bits FRC)
    السطوع: 500nits (Typ.)
    نسبة التباين: OC spec 5000:1 (typ.)
    زمن الاستجابة: <6.5ms
    زوايا النظر: H = 178, V = 178 (Typ.)
    عمر الإضاءة الخلفية: 50,000hrs (typ.)
    معالجة السطح: Panel Hard Coating 3H
    Glass Anti-Glare + Anti-Fingerprint (7H Mohs; 9H pencil hardness)
    الحافة: 19.48/19.48/29.78/41.18 mm
    الاتجاه: Landscape
  • المنصة
    المعالج: RK3588 Octa-Core CPU (A76*4 + A55*4)
    ذاكرة RAM: DDR4 8GB
    التخزين: 128GB eMMC
  • اللمس
    النوع/ التقنية: IR Recognition
    دقة اللمس: 32767 x 32767
    نقاط اللمس: Windows: 50
    Android and all other channels: 32
  • الإدخال
    HDMI: Rear x4 (HDMI 2.1x 1, HDMI 2.0 x3)
    منفذ الشاشة: 1
    الصوت: 1
    RS232: 1
    OPS: 1 (OPS Slot 80pin)
    WiFi: 1 (Module Slot)
  • الإخراج
    HDMI: 1
    الصوت: 1
    SPDIF: 1
  • LAN
    RJ45: 1 in 1 out
    (Android & PC 10M/100M/1000Mbps)
  • USB
    Type A: REAR x 1 (USB 2.0 support OTG)
    REAR x 2 (USB 3.2 Gen 1)
    FRONT x 2 (USB 3.2 Gen 1)
    TOP x 2 (USB 3.2 Gen 1)
    Type B: REAR x 3 (USB 2.0)
    Type C: FRONT x1 (1*PD15W + DP1.2 + Data + 10M/100M sharing, USB 3.2 Gen 1)
    REAR x1 [1*PD65W(65W with OPS, 100W without OPS) + DP1.2 + Data + 10M/100M sharing, USB 2.0]
  • مكبرات الصوت
    20W x 2+ 20W x 1 (Subwoofer)
  • الميكروفون
    Built-in 8 Array Microphone
  • التوافق
    HDMI: HDMI 1: 5120x2160 @60Hz (YUV444),
    5120x2160 @30Hz (YUV420)
    HDMI 2/3/4: 3840x2160 @60Hz
    منفذ الشاشة: 5120x2160
  • نظام التشغيل المدمج
    Android 13
  • البرامج المرفقة
    برنامج الشرح الأساسي: myViewBoard Whiteboard for Android
    برنامج التعليق الاحترافي: myViewBoard Whiteboard for Windows (embedded in VPC)
    العرض التقديمي اللاسلكي: myViewBoard Display, vCast, AirSync*
    *myViewBoard Display will be replaced by AirSync in Q1 2025.
    إدارة الأجهزة: ViewSonic® Manager
    ViewSonic Launcher: Yes
  • ميزات خاصة
    منفذ USB متعدد الوظائف: USB 3.2 Gen 1 “SmartPort USB” to all channels
    مشاركة LAN بسيطة بين الشاشة التفاعلية (IFP) والجهاز المُدرج: (10/100/1000M) (USB Type-C 10/100, Android & PC 10/100/1000)
    مستشعر الضوء: Yes
  • الطاقة
    الجهد: 100-240VAC +/- 10% Wide Range
    الاستهلاك: On: 151.24W(Energy Star) / Off: <0.5W
  • التصميم المريح
    التثبيت على الحائط (VESA®): 800 x 600
  • ظروف التشغيل
    درجة الحرارة (º م): 0°C to 40°C
    الرطوبة: 20% ~ 80% RH non-condensing
  • المقاسات (العرض × الارتفاع × العمق)
    الأبعاد الفعلية (بوصة / مم): 86.73 x 39.37 x 3.62 in / 2203 x 1000 x 92mm
    العبوة (بوصة / مم): 92.52 x 44.72 x 8.5 in / 2350 x 1136 x 216mm
  • الوزن
    الوزن الصافي (رطل / كجم): 147.7lb/ 67kg
    الوزن الإجمالي (رطل / كجم): 183lb/ 83kg
  • اللوائح التنظيمية
    cTUVus,FCC/ICES003,CE/EMC,CB/LVD,EAC,UkrSEPRO,UKCA,UK-EEL,LBL,FF,ErP-EEL,Green BOM,RoHS DoC,ErP-Eco,REACH DoC,SCIP,WEEE, EPEAT
  • محتويات العبوة
     1. 3m power cord by ship area

     2. Type C cable 1.8m(USB-IF certified)

     3. Remote control with AAA battery x 2

     4. 3m touch USB cable(USB 2.0)

     5. Touch pen x 2 (VB-PEN-002)

     6. Quick Start Guide with Compliance statement

     7. RS232 adapter

     8. Clamp x 5

     9. Camera Plate x 2 (1 for VB-CAM-201, 1 for UMB202)

     10. Screw x 8 (camera 2+2, wall mount 4)

     11. HDMI cable 3m (HDMI LA certified)
  • جهاز كمبيوتر متوافق مع فتحة
    VPC3X series / VPCF5-2A
