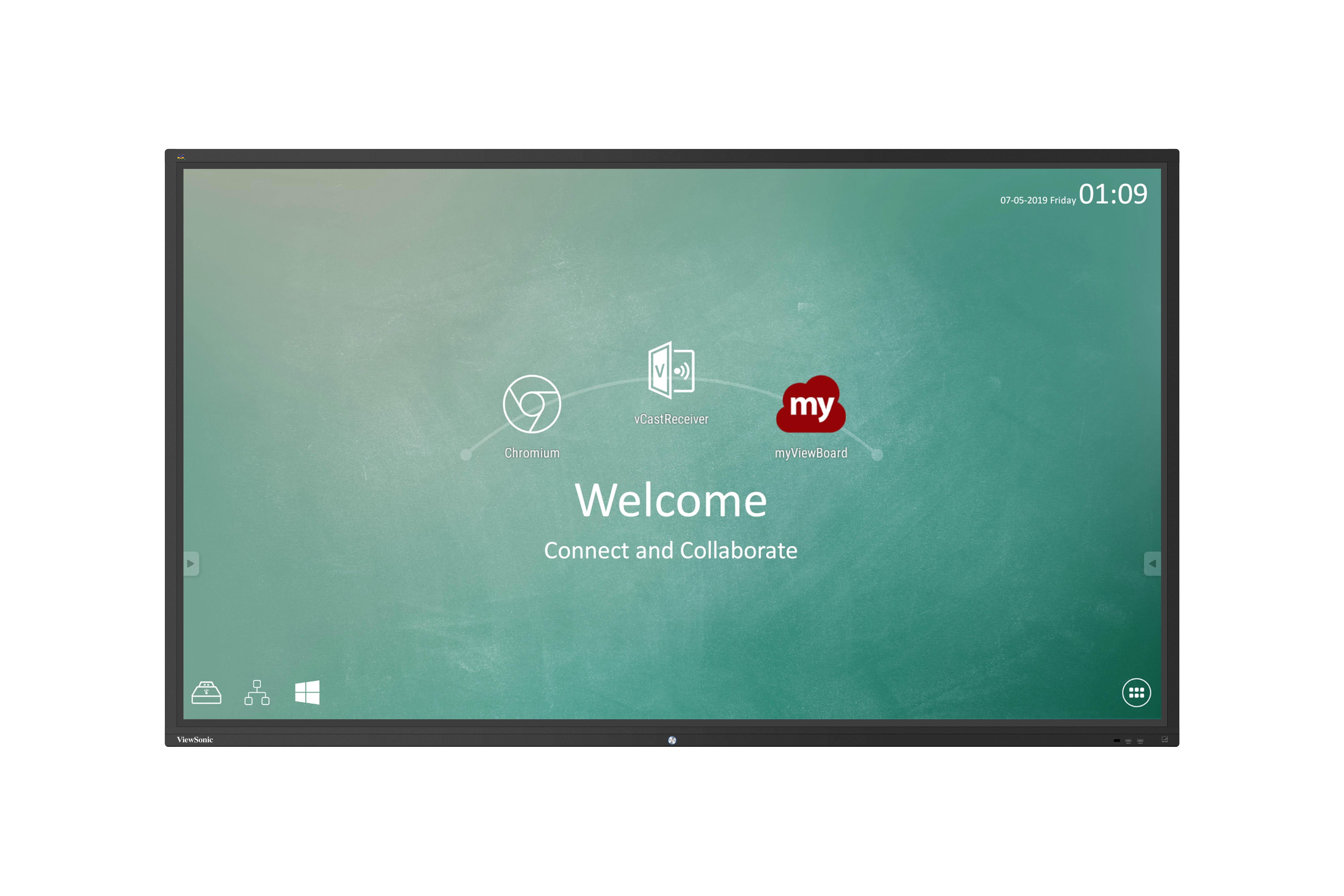

لوحات فيوبورد التفاعلية
IFP9850-3
الميزات الرئيسية
- UFT (Ultra Fine Touch) Technology
- myViewBoard™ digital whiteboard software
- ViewBoard® Cast 4-way split screen content sharing software
- SmartPort™ shared front USB ports for internal & external PCs
- 2.0 Stereo sound
المنتج وصف
The ViewBoard® IFP50 series embraces UFT (Ultra Fine Touch) Technology to offer more precise writing and faster processing time than traditional IR panels. Smooth, dual-pen writing with our new, slim 2.5mm pens enables groups of teachers and students to work efficiently on any detailed tasks that require the use of accurate, fine tipped pens. The ViewBoard® IFP50 series is designed with a slim bezel to broaden your viewing experience so that even at the edge you can write clearly and confidently. Integrated myViewBoard™ digital whiteboarding software allows users to collaborate on the go, while ViewBoard® Cast provides 4-way, split screen content sharing.
- USB 2.0 X 2
- HDMI OUT
- USB 3.0 X 3
- USB Touch Port
- HDMI In X 3
- USB Touch Port
- VESA® WALL Mount 800x600 mm
- AC IN
- VGA
- AUDIO IN
- SPDIF Out
- RS232
- AUDIO OUT
- LAN
- USB 2.0
تفضل بزيارة لنا
- www.viewsonic.com
-
الشاشة
Panel Size: 98" Type/Tech: TFT LCD Module with DLED Backlight. منطقة العرض (مم): 2171.85(H) x 1232.35(V) (97.52”diagonal) الابعاد المتزنة: 16:9 Native Resolution: UHD 3840x2160(Pixels) الألوان: 1.07B colours (10bit) السطوع: 400 nits (typ.) نسبة التباين: 30000:1 (Dynamic) Response Time: 6ms زوايا النظر: H = 178, V = 178 typ. عمر الإضاءة الخلفية: 50,000 Hours (Min) Surface Treatment: Anti-Glare Orientation: Landscape Shell Materials: Metal Sell+ Alum Alloy Frame + Toughened Glass Surface: Metal Case with Powder Burning; Tempered Glass -
PLATFORM
Processor: ARM Cortex A73*2(1.5GHz)+A53*2(1.2GHz) RAM: 3GB DDR4 Storage: 16GB -
TOUCH
Type/ Tech: IR Recognition Touch Resolution: 32767 x 32767 Touch Point: 20 points touch, 10 points writing Transparency Ratio: Min>97% -
INPUT
HDMI: 2.0 x3 (3840x2160 @60Hz) RGB / VGA: x1 الصوت: x1 (PC audio in) RS232: x1 OPS: x1 PC Slot -
OUTPUT
HDMI: x1 الصوت: x1 (Earphone out) SPDIF: 1(optical) RS232: x1 -
LAN
RJ45: x1 -
USB
Type A: USB 2.0 x3
USB 3.0 x3Type B: x2, for touch -
SPEAKERS
SPEAKERS: 12Wx2 -
لوحة الكاميرا في الأعلى لتثبيت كاميرا الويب ببراغي
لوحة الكاميرا في الأعلى لتثبيت كاميرا الويب ببراغي: Yes -
COMPATIBILITY
HDMI: 3840x2160 -
USB SUPPORTED FILE FORMAT
USB SUPPORTED FILE FORMAT: Picture -
BMP, JPEG, PNG,GIF
Video -
Codec: H.263, H.264, MJPEG, MPEG2, MPEG4, RV30/40, VP6, Xvid-ASP
Container: 3GP, ASF, ASX, AVI, FLV, M4V, MKV, MOV, MP4, MPG, MPEG, RMVB, TS
H.265
Audio -
Codec: AAC, ALAC, FLAC, MPEG 3, Vorbis, WAV, WMA
Container: AAC, APC, FLAC, M4A, MP3, OGG, WAV, WMA -
حزمة البرامج
برنامج الشرح الأساسي: myViewBoard for android Pro Annotation Software: myViewBoard for windows (Embedded in Windows Slot-in PC) Wireless Presentation with Touch Feedback: Viewboard Cast: ViewBoard Cast -
SPECIAL FEATURES
منفذ USB متعدد الإمكانات (يجمع بين منفذ Windows / Android USB ؛ لا داعي للتمييز بينهما بعد الآن): Front “SmartPort USB” to all channels. Simple LAN sharing between IFP and slot-in device: Yes -
POWER
Voltage: 100-240VAC +/- 10% Wide Range الاستهلاك: 171 (Typ.)
< 0.5 W ("Off") -
ERGONOMICS
Wall Mount (VESA® ): 800 x 600 -
OPERATING CONDITIONS
Operating hours: 18hrs / 7 days Temperature (º C): 0°C to 40°C Humidity: 10% ~ 90% RH non-condensing -
المقاسات (العرض × الارتفاع × العمق)
Physical (inch / mm): 88.4 x 52.1 x 3.6 in / 2245 x 1323 x 91 mm Packaging (inch / mm): 97.8 x 58.8 x 14.8 in / 2483 x 1493 x 376 mm -
WEIGHT
Net (lb / kg): 223.77 lb / 101.5 kg Gross (lb / kg): 306 lb / 138.8 kg -
REGULATIONS
REGULATIONS: FCC, cTUVus -
ENERGY STAR VERSION
Energy Star version: ES8.0 -
EEI RATING
EEI rating: A++ -
PACKAGE CONTENTS
PACKAGE CONTENTS: 1. Power cable(3 meters) x 4 2. Remote control 3. USB cable(3 meters) 4. Touching pen x 2 5. Quick Start Guide 6. RS232 adapter 7. Clamp x 5 8. Plate 9. Screw x 8 10. HDMI cable -
جهاز كمبيوتر متوافق مع فتحة
جهاز كمبيوتر متوافق مع فتحة: VPC14-WP series
VPC10-WP series
VPC15-WP series
VPC16-WP series
VPC17-WP series
