الميزات الرئيسية
  • Customizable screen shapes and sizes with All-in-One design for hassle-free installation
  • Compact 1U rack-mount control box and discreet power box simplify integration and reduce cabling
  • Reliable performance in any space, enabled by GOB surface treatment and an IP54-rated, IK06-certified surface that protects against dust, moisture, and impact
  • Energy-efficient design with advanced driving ICs and integrated system architecture lowers power consumption and supports sustainable operation
  • Centralized and efficient system management via LAN control

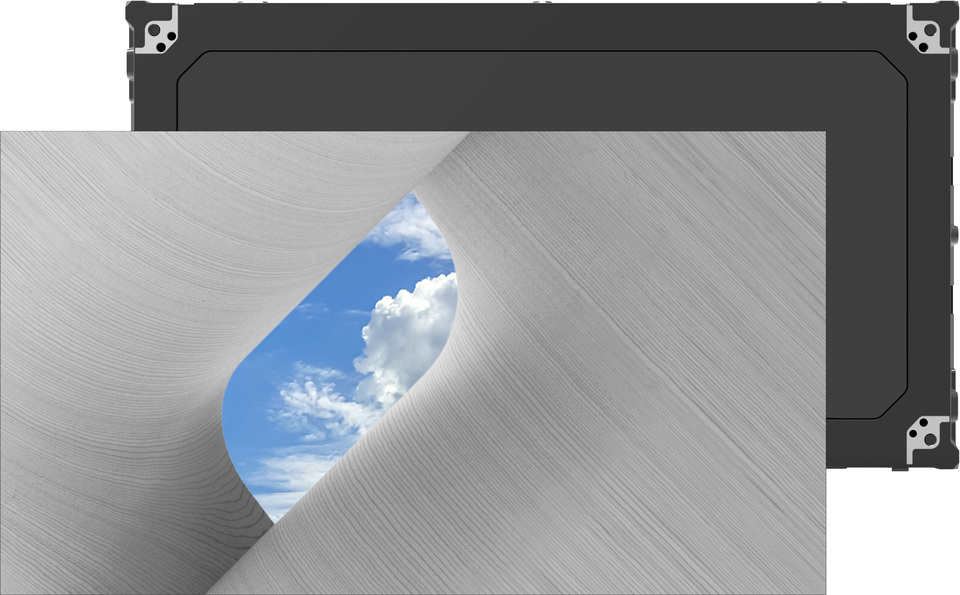

LDC027G-151
المنتج وصف
The ViewSonic LDC series is an innovative, customizable all-in-one fine-pitch LED display that offers flexible layouts and effortless installation—all in a single solution. Combine the LDC027G-151 LED cabinets to create LED video walls in diverse shapes and sizes, delivering compelling digital signage that brings your concepts to life. Its all-in-one design ensures a hassle-free installation process and intuitive operation. Protected by Glue-on-Board (GOB) surface treatment, the LED modules are sealed with transparent epoxy resin to enhance durability and protect internal components. The IP54-rated, IK06-certified surface protects against dust, moisture, and impact — making it ideal for public spaces such as lobbies, shopping malls, and transportation hubs. An energy-efficient system architecture combined with advanced driving ICs lowers power consumption by up to 40% compared to traditional solutions, reducing heat generation and extending product lifespan. With its slim 32.9mm thickness, total installation depth under 10 cm, and 99% screen-to-body ratio, the display delivers a sleek, modern aesthetic that blends seamlessly into any environment. Its compact 1U rack-mount control box, designed to fit standard server cabinets, simplifies integration with AV systems, while a discreet power box installed behind the display reduces cabling for a cleaner installation. The display is also compatible with multiple Novastar control systems, allowing flexible integration with existing AV infrastructures. Centralized management through LAN connectivity streamlines operation and control.
  1. Indicator Light
  2. Power Button
  3. AC In x2
  4. AC Out x4
  5. RS232
  6. LAN Control In & Out
  7. Display Panel
  8. Control Knob
  9. Back Button
  10. Layer Control Buttons
  11. Input Source Buttons
  12. Function Buttons
  13. USB-A (Front Panel)
  14. USB Control
  15. Ethernet Port x2 (Control)
  16. Light Sensor
  17. Genlock In & Loop
  18. 3G-SDI In & Loop
  19. USB-A (Rear Panel)
  20. RS232 (3-Pin)
  21. Ethernet Port x6 (Output)
  22. Audio In & Out
  23. 3D Out
  24. HDMI 2.0 In & Loop
  25. HDMI 1.3 In x2
  26. Optical Port x2
  27. Monitor Out (HDMI 1.3)
  28. Power Button
  29. AC In
تفضل بزيارة لنا
  • www.viewsonic.com
  • المواصفات
    حجم الشاشة: 27"
    تقنية اللوحة: Direct view LED
    نوع حزمة LED: SMD 3 in 1 (GOB)
    سلك الربط: Copper
    المسافة بين البكسلات (مم): 1.56
    السطوع (الحد الأقصى): 600 nits (100 levels adjustable)
    نسبة التباين (نموذجي): 6500:1
    درجة حرارة اللون: 3000K -10000K
    الاتجاه: Landscape
    زوايا الرؤية (نموذجي): H = 170, V = 170
    عمر LED (نموذجي): 100,000 Hours
    الدقة المدعومة: VGA(640 x 480) to 4K(3840 x 2160@60hz)
    التوافق مع HDTV: 480p, 576p, 720p, 1080p, 2160p
    التردد الأفقي: 31K-94kHz
    معدل المسح الرأسي: 56-85Hz
  • الإدخال
    HDMI: 3 (HDMI 2.0/HDCP 2.2 x1, HDMI 1.3/HDCP 1.4 x2)
    USB Type A: 2 (USB3.0 x1, USB2.0 x1)
    دخل RJ45: 2 (control)
    مدخل الصوت (3.5 ملم): 1
  • الإخراج
    خرج HDMI: 1 (HDMI 1.3/HDCP 1.4)
    مخرج الصوت (3.5 ملم): 1
    USB Type A (طاقة): Shared with USB A input (USB 3.0 5V/0.9A x1, USB 2.0 5V/0.5A x1)
  • التحكم
    RJ45 (التحكم عبر LAN): 2
    USB Type A (للصيانة): 1(shared with USB A input)
    USB Type B: 1(Debug)
    RS232 (DB ذو 9 سنون - أنثى): 1(3 pin)
  • أخرى
    جهد مصدر الطاقة: 100-240V ~ 50/60Hz (vary by country)
    استهلاك الطاقة (واط/وحدة): 21W per cabinet (typ), 63W per cabinet (max), < 0.5W (Hibernate)
    استهلاك الطاقة (واط/م²): 104W/m² (typ), 311W/m² (max)
    تبديد الحرارة (BTU/ساعة): 72 per cabinet (typ), 215 per cabinet (max)
    تبديد الحرارة لكل وحدة مساحة (BTU/ساعة/م²): 353.8 (typ), 1061.5 (max)
    درجة حرارة التشغيل: 0~40℃
    إجمالي عدد وحدات LED: 4 per cabinet
    تصنيف الحماية من الدخول (IP): IP54(Front)
    تصنيف الحماية من الصدمات (IK): IK06(Front)
    الوزن الصافي (بدون حامل الحائط): 8.16 lbs (3.7 kg) per cabinet
  • الملحقات القياسية
    صندوق التحكم: LD-SCB-025
    سلك الطاقة: By Configuration
    دليل التركيب: 1
    التثبيت على الحائط: 1
    قطع الغيار: LED module 7% 3 in 1 hub board x1
    أداة الصيانة: RSPL
  • الملحقات الاختيارية
    صندوق التحكم: LD-SCB-024 LD-SCB-026
    أداة الصيانة: RSPL
