الميزات الرئيسية
  • Customizable screen size with All-in-One design for hassle-free installation ​
  • Anti-collision, dustproof, and moisture-proof through GOB surface treatment​
  • Centralized and efficient management via LAN control ​
  • Detachable system control box for minimalistic aesthetics and easy access​
  • Ultra-slim design that seamlessly blends into any space​

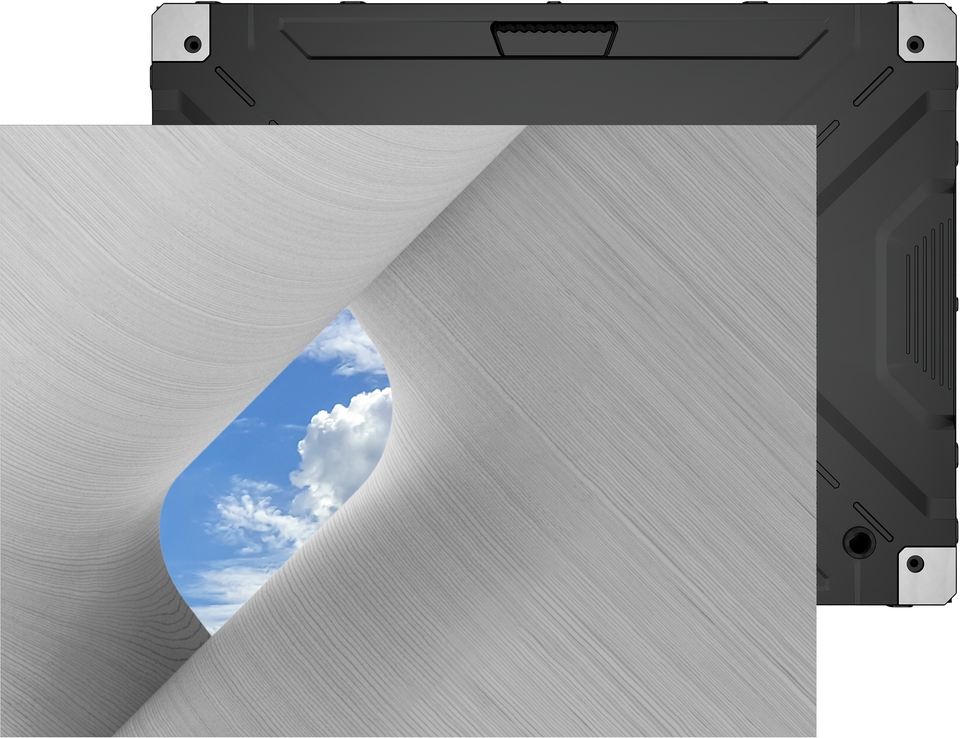

LDC031-150
المنتج وصف
The ViewSonic LDC series is an innovative, customizable All-in-One LED display that offers flexible sizing and effortless installation—all in a single solution. Combine the LDC031-150 LED cabinet to create video walls in diverse aspect ratios and sizes, delivering compelling digital signage that brings your concepts to life. Its all-in-one design ensures a hassle-free installation process and intuitive operation. Using Glue-on-Board (GOB) surface treatment technology, the IP54-rated LED modules provide enhanced protection against collision, dust, and moisture — making it ideal for public spaces such as lobbies, shopping malls, and transportation hubs. With its slim 31mm thickness and a control box that can be detached to achieve a 99% screen-to-body ratio, this premium display offers an exceptional viewing experience with sleek aesthetics. Complete with centralized management through LAN connectivity to enhance operational efficiency.
  1. USB 2.0
  2. Power Kry + LED Indicator
  3. Cabinet LAN Cable x18
  4. HDMI 2.0 Output x2
  5. DP 1.2 Output
  6. DP 1.2 Input
  7. HDMI 2.0 Input x3
  8. Optical
  9. IR Extended
  10. Audio Out
  11. Internet
  12. Service
  13. RS-232
  14. USV 2.0 x2
  15. Power Switch
  16. LAN Control
  17. Service
  18. AC Out x4
  19. AC In x2
  20. Speakers
  21. HDMI Out
  22. SPDIF Out
  23. HDMI In x4
  24. LAN
  25. Audio Out x2
  26. IR Interface
  27. Light Senor
  28. IR Receiver
  29. USB-C
  30. USB-A 3.0
  31. USB-A 2.0
  32. Menu Control:Setting
  33. Menu Control:Enter
  34. Menu Control:Brightness Level
  35. Power Button
  36. Indicator Light
تفضل بزيارة لنا
  • www.viewsonic.com
  • المواصفات
    حجم الشاشة: 31.5"
    تقنية اللوحة: Direct view LED
    نوع حزمة LED: SMD 3 in 1 (GOB)
    سلك الربط: Copper
    المسافة بين البكسلات (مم): 1.538
    السطوع (الحد الأقصى): 600 nits (100 levels adjustable)
    نسبة التباين (نموذجي): 6500:1
    درجة حرارة اللون: 3000K -10000K
    الاتجاه: Landscape
    زوايا الرؤية (نموذجي): H = 170, V = 170
    عمر LED (نموذجي): 100,000 Hours
    التخزين المحلي: Total 32GB (26GB available storage)
    نظام التشغيل المدمج: Android 9.0
    الدقة المدعومة: VGA(640 x 480) to 4K(3840 x 2160@60hz)
    التوافق مع HDTV: 480p, 576p, 720p, 1080p, 2160p
    التردد الأفقي: 31K-94kHz
    معدل المسح الرأسي: 56-85Hz
  • الإدخال
    HDMI: 4 (HDMI 2.0/HDCP 2.2) (internal x3, external x1)
    USB Type A: 3 (USB3.0 x1, USB2.0 x2)
    دخل RJ45: 3 (internet x2, control x1)
    دخل الأشعة تحت الحمراء (3.5 مم): 1
    دخل Wi-Fi: 2.4G/5G Hz
    USB Type C: 1 (data only)
  • الإخراج
    خرج HDMI: 1 (HDMI 1.4/HDCP 1.4) (internal x1)
    مكبر الصوت: 30Wx2
    مخرج الصوت (3.5 ملم): 2
    S/PDIF: 1
    USB Type A (طاقة): Shared with USB A input (USB 3.0 5V/0.9A x1, USB 2.0 5V/0.5A x1, USB 2.0 5V/2A x1)
    USB Type C (طاقة): Shared with USB Type C input (5V/1A x1)
  • التحكم
    RJ45 (التحكم عبر LAN): 1(shared with internet)
    USB Type A (للصيانة): 1(shared with USB A input)
    RS232 (DB ذو 9 سنون - أنثى): 1
    مستقبل الأشعة تحت الحمراء: 1
    مستشعر الضوء: 1
  • أخرى
    جهد مصدر الطاقة: 100-240V ~ 50/60Hz (vary by country)
    استهلاك الطاقة (واط/وحدة): 35W per cabinet (typ), 105W per cabinet (max), < 0.5W (Hibernate)
    استهلاك الطاقة (واط/م²): 114W/m² (typ), 342W/m² (max)
    تبديد الحرارة (BTU/ساعة): 119 per cabinet (typ), 358 per cabinet (max)
    تبديد الحرارة لكل وحدة مساحة (BTU/ساعة/م²): 388.7 (typ), 1166.2 (max)
    درجة حرارة التشغيل: 0~40℃
    إجمالي عدد وحدات LED: 6 per cabinet
    تصنيف الحماية من الدخول (IP): IP54(Front)
    تصنيف الحماية من الصدمات (IK): IK06(Front)
    الوزن الصافي (بدون حامل الحائط): 13.89 lbs (6.3 kg) per cabinet
  • الملحقات القياسية
    صندوق التحكم: LD-SCB-023
    سلك الطاقة: By Configuration
    كابل LAN (Cat 5E): 1
    كابل تمديد الأشعة تحت الحمراء: 1
    جهاز التحكم عن بُعد: 1(Bluetooth & IR)
    دليل التركيب: 1
    التثبيت على الحائط: 1
    قطع الغيار: LED module 7% 3 in 1 hub board x1
    أداة الصيانة: LD-MK-004 x1 LD-MK-006 x1
  • الملحقات الاختيارية
    صندوق التحكم: LD-SCB-011 LD-SCB-021
    أداة الصيانة: LD-MK-004 LD-MK-006
    حامل أرضي: LD-STND-009 (support 4x3/4x4/5x3/5x4/6x3/6x4)
