الميزات الرئيسية
  • 4K UHD resolution with Mini LED delivers ultra-fine detail, vivid color, and deep contrast for premium visual impact
  • Advanced COB technology ensures enhanced durability with water, dust, and impact resistance—ideal for high-traffic professional spaces
  • All-in-One integration simplifies installation by combining power, control, image stitching, and display
  • Energy-efficient design with common cathode LEDs and smart ICs reduces power consumption and supports sustainable operation
  • Smart collaboration tools include PIP/PBP screen-split modes, LAN control, and wireless content sharing via ViewShare and AirSync

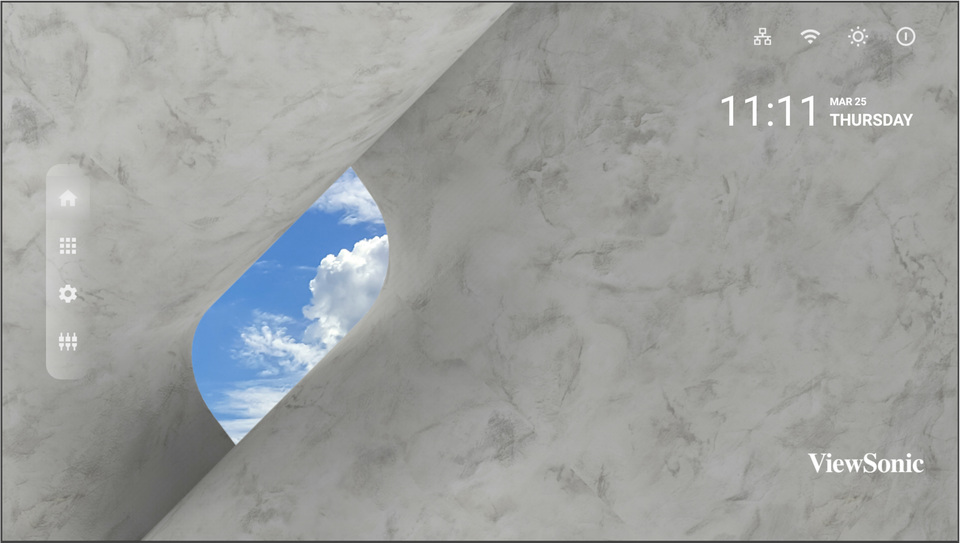

LDP136-071C
المنتج وصف
The ViewSonic LDP136-071C is a 136" enterprise-class All-in-One LED Display designed to elevate visual performance in premium corporate environments. Featuring 4K UHD resolution, Mini LED architecture, 600 nits of brightness and a 10,000:1 contrast ratio, it delivers sharp visuals and vibrant color with ultra-fine detail. Built with Chip-on-Board (COB) technology, the display ensures enhanced durability against impact, dust, and moisture, achieving IP54 and IK08 protection ratings. All-in-One integration simplifies installation by combining power, control, image stitching, and display, allowing two people to complete setup in under two hours. A 31mm ultra-slim profile and near bezel-free design create a premium aesthetic that complements any professional space. Powered by a common cathode LED design and smart driving ICs, the display reduces power consumption while supporting long-term energy efficiency. Designed for seamless collaboration, it features PIP/PBP screen-split modes, LAN control, and optional wireless content sharing via ViewShare (sold separately) and AirSync—making it a smart, future-ready LED video wall solution for high-end meeting spaces, training rooms, and executive boardrooms.
  1. Speakers
  2. HDMI 2.0 x3
  3. RJ45 (Internet, Control) x2
  4. Audio Out x1
  5. IR Out x1
  6. USB-A (Power) x1
  7. HDMI 2.0 x1
  8. RS232 x1
  9. Audio Out x1
  10. Wireless/ Bluetooth Antenna
  11. USB-C (Data only) x1
  12. USB-A (2.0, 3.0) x2
  13. Keypad
  14. Power Button
  15. IR Receiver
تفضل بزيارة لنا
  • www.viewsonic.com
  • المواصفات
    حجم الشاشة: 136"
    منطقة العرض (مم): 3000 (H) x 1687.5 (V)
    الدقة الأصلية: 3840x2160
    تقنية اللوحة: Direct view LED
    نوع حزمة LED: Flip Chip COB
    المسافة بين البكسلات (مم): 0.78
    السطوع (الحد الأقصى): 600 nits (100 levels adjustable)
    نسبة التباين (نموذجي): 10000:1
    درجة حرارة اللون: 3000K -10000K
    الاتجاه: Landscape
    زوايا الرؤية (نموذجي): H = 170, V = 170
    عمر LED (نموذجي): 100,000 Hours
    التخزين المحلي: Total 32GB (26GB available storage)
    نظام التشغيل المدمج: Android 9.0
    الدقة المدعومة: VGA(640 x 480) to 4K(3840 x 2160@60hz)
    التوافق مع HDTV: 480p, 576p, 720p, 1080p, 2160p
    التردد الأفقي: 31K-94kHz
    معدل المسح الرأسي: 56-85Hz
  • الإدخال
    HDMI: 4 (HDMI 2.0/HDCP 2.2) (internal x3, external x1)
    USB Type A: 3 (USB3.0 x1, USB2.0 x2)
    دخل RJ45: 3 (internet x2, control x1)
    دخل الأشعة تحت الحمراء (3.5 مم): 1
    دخل Wi-Fi: 2.4G/5G Hz
    USB Type C: 1 (data only)
  • الإخراج
    خرج HDMI: 1 (HDMI 2.0, HDCP 2.2) (internal x1)
    مكبر الصوت: 30Wx2
    مخرج الصوت (3.5 ملم): 2
    S/PDIF: 1
    USB Type A (طاقة): Shared with USB A input (USB 3.0 5V/0.9A x1, USB 2.0 5V/0.5A x1, USB 2.0 5V/2A x1)
    USB Type C (طاقة): Shared with USB Type C input (5V/1A x1)
  • التحكم
    RJ45 (التحكم عبر LAN): 1(shared with internet)
    USB Type A (للصيانة): 1(shared with USB A input)
    RS232 (DB ذو 9 سنون - أنثى): 1
    مستقبل الأشعة تحت الحمراء: 1
    مستشعر الضوء: 1
  • أخرى
    جهد مصدر الطاقة: 100-240V ~ 50/60Hz (vary by country)
    استهلاك الطاقة (واط/وحدة): 680W (typ), 2031W (max) < 0.5W (Hibernate)
    تبديد الحرارة (BTU/ساعة): 2320 (typ), 6930 (max)
    تبديد الحرارة لكل وحدة مساحة (BTU/ساعة/م²): 458.3 (typ), 1368.8 (max)
    درجة حرارة التشغيل: 0~40℃
    إجمالي عدد وحدات LED: 200
    تصنيف الحماية من الدخول (IP): IP54(Front)
    تصنيف الحماية من الصدمات (IK): IK08(Front)
    الوزن الصافي (بدون حامل الحائط): 276.68 lbs (125.5 kg)
    الوزن الصافي (مع حامل الحائط): 307.54 lbs (139.5 kg)
    الوزن الإجمالي: 656.98 lbs (298 kg)
    أبعاد المنتج (العرض × الارتفاع × العمق): 118.58 x 72.22 x 1.61 inches (3012 x 1834.5 x 41 mm)
    أبعاد المنتج (العرض × الارتفاع × العمق) مع حامل الحائط: 118.58 x 72.22 x 2.35 inches (3012 x 1834.5 x 59.8 mm)
    Packing Dimensions (WxHxD): 77.95 x 40.16 x 48.03 inches (1980 x 1020 x 1220 mm)
  • الملحقات القياسية
    صندوق التحكم: 1
    سلك الطاقة: 1
    كابل LAN (Cat 5E): 1
    كابل تمديد الأشعة تحت الحمراء: 1
    جهاز التحكم عن بُعد: 1(Bluetooth & IR)
    دليل التركيب: 1
    التثبيت على الحائط: 1
    قطع الغيار: LED module x14 2 in 1 hub board x1 Receiving board x1
    أداة الصيانة: LD-MK-004 x1 LD-MK-006 x1
  • الملحقات الاختيارية
    أداة الصيانة: LD-MK-004 LD-MK-006
    حامل أرضي: LD-STND-009
