الميزات الرئيسية
  • Expansive 136-inch display with 600 nits brightness and dual 30W speakers delivers vivid visuals and powerful sound for any space
  • Advanced COB technology ensures enhanced durability with water, dust, and impact resistance—ideal for high-traffic professional spaces
  • All-in-One integration simplifies installation by combining power, control, image stitching, and display
  • Energy-efficient design with common cathode LEDs and smart ICs reduces power consumption and supports sustainable operation
  • Smart collaboration tools include PIP/PBP screen-split modes, LAN control, and wireless content sharing via ViewShare and AirSync

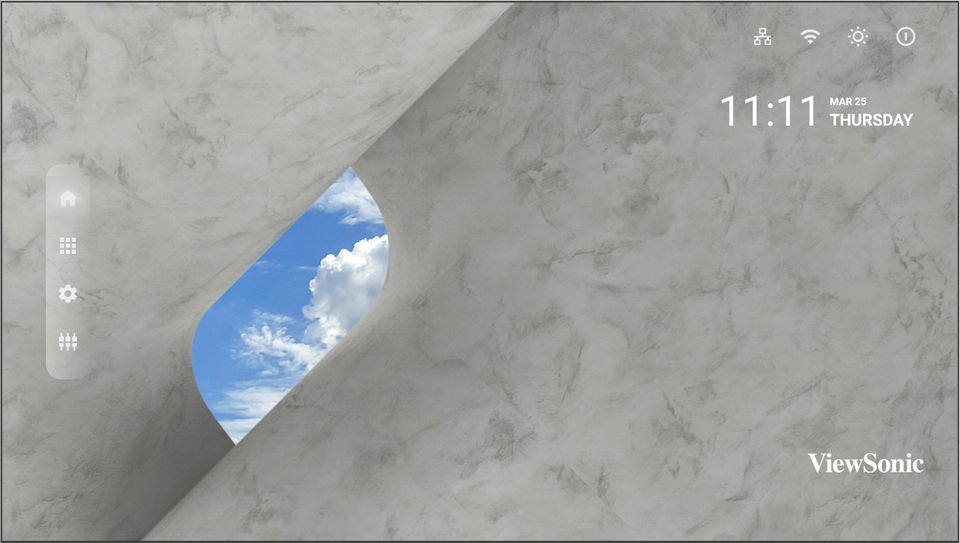

LDP136-151C
المنتج وصف
The ViewSonic LDP136-151C is a 136" enterprise-class All-in-One LED Display designed to elevate visual performance for business presentations, corporate communications, and collaborative environments. Featuring Full HD (1080p) resolution, 600 nits of brightness, a 10,000:1 contrast ratio, and dual 30W speakers, it delivers sharp visuals, vibrant color, and powerful sound for impactful presentations. Ideal for mid to large conference rooms, C-level boardrooms, and corporate lobbies, the display is built with Chip-on-Board (COB) technology for enhanced durability against impact, dust, and moisture, achieving IP54 and IK08 protection ratings. All-in-One integration simplifies installation by combining power, control, image stitching, and display, allowing two people to complete setup in under two hours. A 31mm ultra-slim profile and near bezel-free design create a premium aesthetic that complements any professional space. Powered by a common cathode LED design and smart driving ICs, the display reduces power consumption while supporting long-term energy efficiency. Designed for seamless collaboration, it features PIP/PBP screen-split modes, LAN control, and optional wireless content sharing via ViewShare (sold separately) and AirSync—making it a smart, future-ready LED video wall solution for corporate and educational environments.

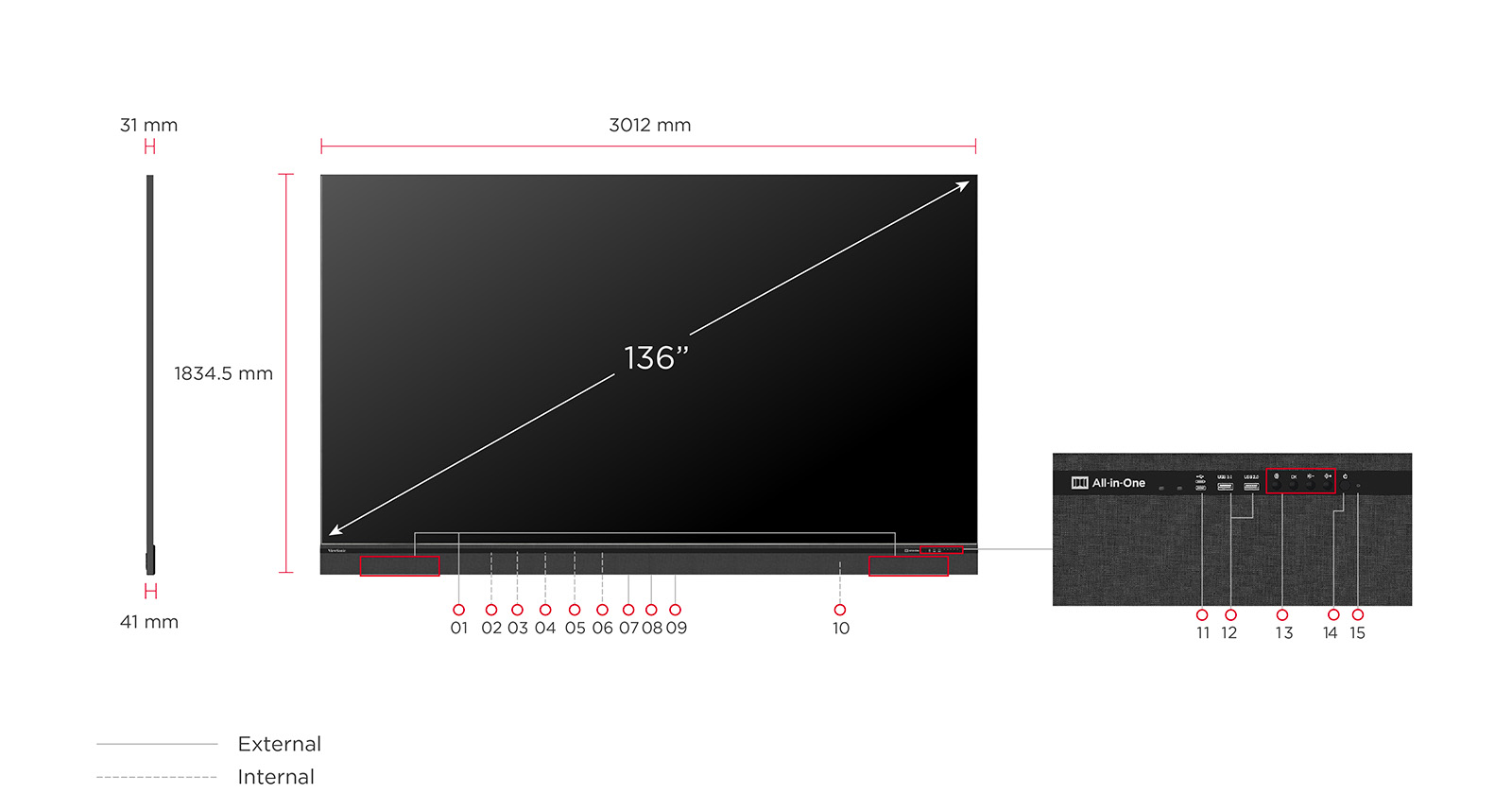

  1. Speakers
  2. HDMI 2.0 x3
  3. RJ45 (Internet, Control) x2
  4. Audio Out x1
  5. IR Out x1
  6. USB-A (Power) x1
  7. HDMI 2.0 x1
  8. RS232 x1
  9. Audio Out x1
  10. Wireless/ Bluetooth Antenna
  11. USB-C (Data only) x1
  12. USB-A (2.0, 3.0) x2
  13. Keypad
  14. Power Button
  15. IR Receiver
تفضل بزيارة لنا
  • www.viewsonic.com
  • المواصفات
    حجم الشاشة: 136"
    منطقة العرض (مم): 3000 (H) x 1687.5 (V)
    الدقة الأصلية: 1920x1080
    تقنية اللوحة: Direct view LED
    نوع حزمة LED: Flip Chip COB
    المسافة بين البكسلات (مم): 1.56
    السطوع (الحد الأقصى): 600 nits (100 levels adjustable)
    نسبة التباين (نموذجي): 10000:1
    درجة حرارة اللون: 3000K -10000K
    الاتجاه: Landscape
    زوايا الرؤية (نموذجي): H = 170, V = 170
    عمر LED (نموذجي): 100,000 Hours
    التخزين المحلي: Total 32GB (26GB available storage)
    نظام التشغيل المدمج: Android 9.0
    الدقة المدعومة: VGA(640 x 480) to 4K(3840 x 2160@60hz)
    التوافق مع HDTV: 480p, 576p, 720p, 1080p, 2160p
    التردد الأفقي: 31K-94kHz
    معدل المسح الرأسي: 56-85Hz
  • الإدخال
    HDMI: 4 (HDMI 2.0/HDCP 2.2) (internal x3, external x1)
    USB Type A: 3 (USB3.0 x1, USB2.0 x2)
    دخل RJ45: 3 (internet x2, control x1)
    دخل الأشعة تحت الحمراء (3.5 مم): 1
    دخل Wi-Fi: 2.4G/5G Hz
    USB Type C: 1 (data only)
  • الإخراج
    خرج HDMI: 1 (HDMI 2.0/HDCP 2.2) (internal x1)
    مكبر الصوت: 30Wx2
    مخرج الصوت (3.5 ملم): 2
    S/PDIF: 1
    USB Type A (طاقة): Shared with USB A input (USB 3.0 5V/0.9A x1, USB 2.0 5V/0.5A x1, USB 2.0 5V/2A x1)
    USB Type C (طاقة): Shared with USB Type C input (5V/1A x1)
  • التحكم
    RJ45 (التحكم عبر LAN): 1(shared with internet)
    USB Type A (للصيانة): 1(shared with USB A input)
    RS232 (DB ذو 9 سنون - أنثى): 1
    مستقبل الأشعة تحت الحمراء: 1
    مستشعر الضوء: 1
  • أخرى
    جهد مصدر الطاقة: 100-240V ~ 50/60Hz (vary by country)
    استهلاك الطاقة (واط/وحدة): 400W (typ), 1095W (max) < 0.5W (Hibernate)
    تبديد الحرارة (BTU/ساعة): 1365 (typ), 3736 (max)
    تبديد الحرارة لكل وحدة مساحة (BTU/ساعة/م²): 269.6 (typ), 738 (max)
    درجة حرارة التشغيل: 0~40℃
    إجمالي عدد وحدات LED: 200
    تصنيف الحماية من الدخول (IP): IP54(Front)
    تصنيف الحماية من الصدمات (IK): IK08(Front)
    الوزن الصافي (بدون حامل الحائط): 270.51 lbs (122.7 kg)
    الوزن الصافي (مع حامل الحائط): 301.37 lbs (136.7 kg)
    الوزن الإجمالي: 599.66 lbs (272 kg)
    أبعاد المنتج (العرض × الارتفاع × العمق): 118.58 x 72.22 x 1.61 inches (3012 x 1834.5 x 41 mm)
    أبعاد المنتج (العرض × الارتفاع × العمق) مع حامل الحائط: 118.58 x 72.22 x 2.35 inches (3012 x 1834.5 x 59.8 mm)
    Packing Dimensions (WxHxD): 77.95 x 40.16 x 48.03 inches (1980 x 1020 x 1220 mm)
  • الملحقات القياسية
    صندوق التحكم: 1
    سلك الطاقة: 1
    كابل LAN (Cat 5E): 1
    كابل تمديد الأشعة تحت الحمراء: 1
    جهاز التحكم عن بُعد: 1(Bluetooth & IR)
    دليل التركيب: 1
    التثبيت على الحائط: 1
    قطع الغيار: LED module x14 2 in 1 hub board x1 Receiving board x1
    أداة الصيانة: LD-MK-004 x1 LD-MK-006 x1
  • الملحقات الاختيارية
    أداة الصيانة: LD-MK-004 LD-MK-006
    حامل أرضي: LD-STND-009
