الميزات الرئيسية
  • Pre-assembled kit, ready for immediate use—no installation required
  • Foldable screen that fits easily into large passenger elevators for convenient transport
  • Shockproof, dustproof, and moisture-resistant with GOB surface treatment
  • Built-in stand with an integrated control box and motorized height adjustment
  • Seamless large display designed to captivate audiences in any space

LDS138-151
المنتج وصف

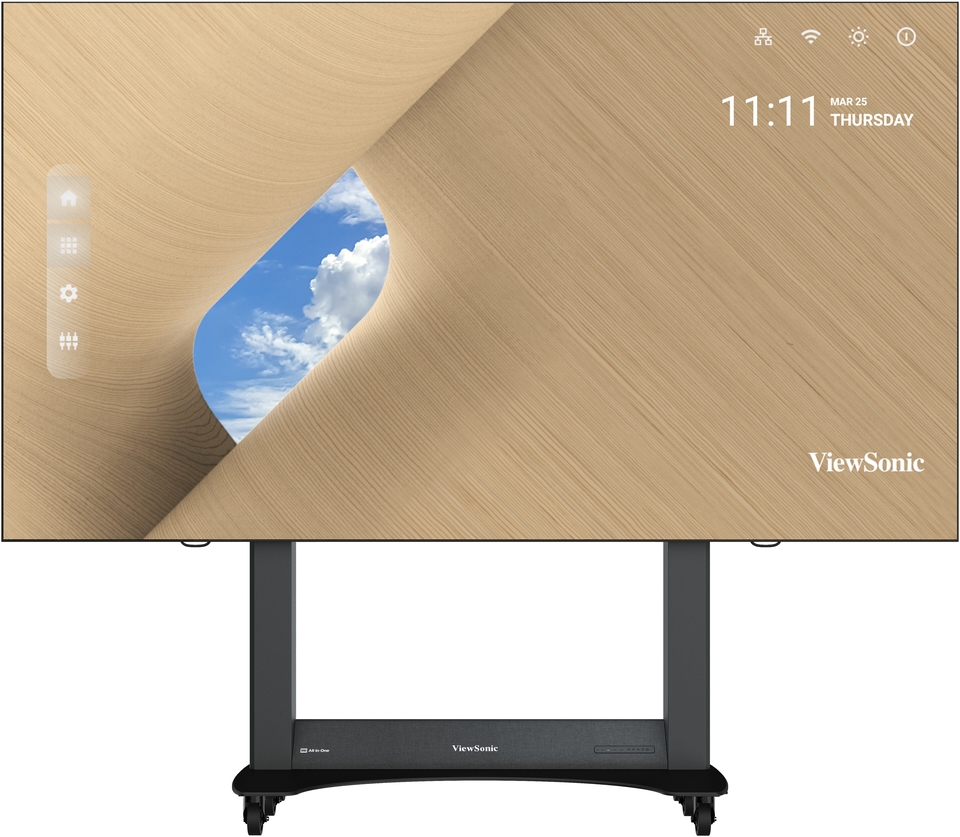

The ViewSonic® LDS138-151 is a foldable 138” All-in-One LED display that provides instant use, easy transport, and convenient operation. With a pre-assembled design and built-in motorized height adjustment, this display can be set up in just 10 minutes without wall mounting, making it ideal for large venues or spaces where renovations are not feasible. The foldable screen design significantly reduces packaging size, cutting shipping costs, improving delivery efficiency, and enabling easy transport between locations. The integrated system control box on the floor stand ensures tidy cable management and a premium, frameless visual experience. Featuring Glue-on-Board (GOB) surface treatment technology, the IP54-rated LED modules offer enhanced protection against impacts, dust, and moisture during installation and use. With its seamless large screen and dual 30W speakers, the LDS138-151 is ready to captivate audiences in environments such as high-end boardrooms, receptions, galleries, auditoriums, and other large venues.
تفضل بزيارة لنا
  • www.viewsonic.com
  • المواصفات
    حجم الشاشة: 138"
    منطقة العرض (مم): 3050 (H) x 1715 (V)
    الدقة الأصلية: 1920x1080
    تقنية اللوحة: Direct view LED
    نوع حزمة LED: SMD 3 in 1 (GOB)
    سلك الربط: Copper
    المسافة بين البكسلات (مم): 1.588
    السطوع (الحد الأقصى): 600 nits (100 levels adjustable)
    نسبة التباين (نموذجي): 6500:1
    درجة حرارة اللون: 3000K -10000K
    الاتجاه: Landscape
    زوايا الرؤية (نموذجي): H = 170, V = 170
    عمر LED (نموذجي): 100,000 Hours
    التخزين المحلي: Total 32GB (26GB available storage)
    نظام التشغيل المدمج: Android 9.0
    الدقة المدعومة: VGA(640 x 480) to 4K(3840 x 2160@60hz)
    التوافق مع HDTV: 480p, 576p, 720p, 1080p, 2160p
    التردد الأفقي: 31K-94kHz
    معدل المسح الرأسي: 56-85Hz
  • الإدخال
    HDMI: 4 (HDMI 2.0/HDCP 2.2) (internal x3, external x1)
    USB Type A: 3 (USB3.0 x1, USB2.0 x2)
    دخل RJ45: 3 (internet x2, control x1)
    دخل الأشعة تحت الحمراء (3.5 مم): 1
    دخل Wi-Fi: 2.4G/5G Hz
    USB Type C: 1 (data only)
  • الإخراج
    خرج HDMI: 1 (HDMI 1.4/HDCP 1.4) (internal x1)
    مكبر الصوت: 30Wx2
    مخرج الصوت (3.5 ملم): 2
    S/PDIF: 1
    USB Type A (طاقة): Shared with USB A input (USB 3.0 5V/0.9A x1, USB 2.0 5V/0.5A x1, USB 2.0 5V/2A x1)
    USB Type C (طاقة): Shared with USB Type C input (5V/1A x1)
  • التحكم
    RJ45 (التحكم عبر LAN): 1(shared with internet)
    USB Type A (للصيانة): 1(shared with USB A input)
    RS232 (DB ذو 9 سنون - أنثى): 1
    مستقبل الأشعة تحت الحمراء: 1
    مستشعر الضوء: 1
  • أخرى
    جهد مصدر الطاقة: 100-240V ~ 50/60Hz (vary by country)
    استهلاك الطاقة (واط/وحدة): 581W (typ), 1745W (max) < 0.5W (Hibernate) Inrush Current: 220V: 84A / 110V: 58A
    تبديد الحرارة (BTU/ساعة): 1982 (typ), 5954 (max)
    تبديد الحرارة لكل وحدة مساحة (BTU/ساعة/م²): 379 (typ), 1138.3 (max)
    درجة حرارة التشغيل: 0~40℃
    إجمالي عدد وحدات LED: 200
    تصنيف الحماية من الدخول (IP): IP54(Front)
    تصنيف الحماية من الصدمات (IK): IK06(Front)
    الوزن الصافي (بدون حامل الحائط): 676.82 lbs (307 kg)
    الوزن الإجمالي: 1044.99 lbs (474 kg)
    أبعاد المنتج (العرض × الارتفاع × العمق): 72.87x76.71x30.71 inches (min.) (1850.81x1948.4x780 mm (min.)) 120.63x102.28x30.71 inches (max.) (3064x2598x780 mm (max.))
    Packing Dimensions (WxHxD): 81.5x78.58x33.35 inches (2070x1996x847 mm)
  • الملحقات القياسية
    صندوق التحكم: 1
    سلك الطاقة: 1
    كابل LAN (Cat 5E): 1
    كابل تمديد الأشعة تحت الحمراء: 1
    جهاز التحكم عن بُعد: 1(Bluetooth & IR)
    دليل البدء السريع (QSG): 1
    قطع الغيار: LED module x14 3 in 1 hub board x3
    أداة الصيانة: LD-MK-006 x1
  • الملحقات الاختيارية
    أداة الصيانة: LD-MK-006
