الميزات الرئيسية
  • 3rd generation LED technology for greater sustainability​​
  • Maintenance free: 30,000-hour light source life and less power consumption​​
  • 3,800 ANSI Lumens offering bright images in any environment​​
  • Ease of use: instant power on/off and convenient software update​
  • Wide color gamut to present the best

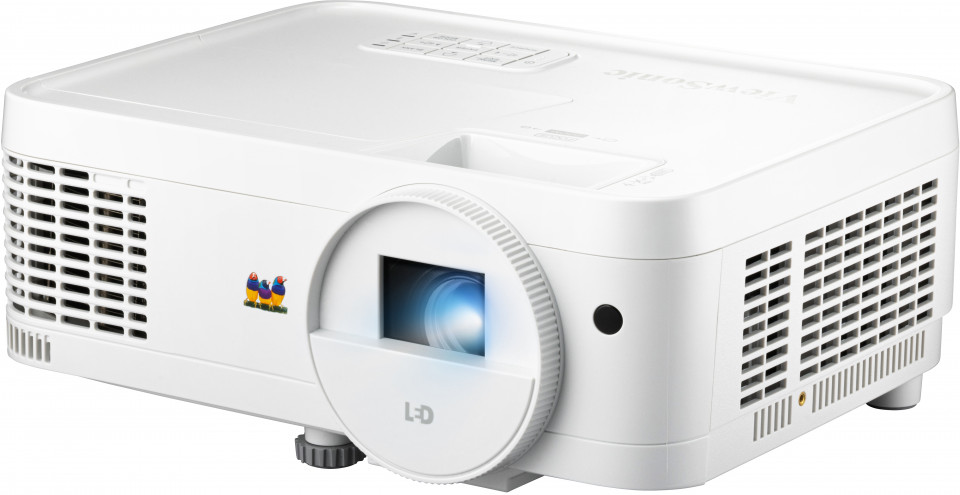

LS510WE
المنتج وصف
The LS510WE is ViewSonic’s lamp-free high brightness WXGA projector for business and education. Adopting industry-leading 3rd generation LED technology, the LS510WE delivers 3,800 ANSI Lumens while eliminating the use of toxic mercury, reducing the cost and effort of frequent lamp replacement and lowering the total cost of ownership. The lamp-free light source offers enhanced sustainability for a greener environment while delivering a wider color gamut for bright and vivid images in a meeting room, classroom, or any other environment. The projector boasts efficient use with instant power on/off, convenient projector software update, and vertical keystone correction along with 360° tilt angle projection for flexible applications. ​
  1. LED Indicator
  2. Keypad
  3. Power Button
  4. Zoom/Focus Ring
  5. Front IR
  6. Lens
  7. Audio In
  8. Audio Out
  9. HDMI
  10. USB-A (5V/2A, Service)
  11. Computer In
  12. Monitor Out
  13. RS232
تفضل بزيارة لنا
  • www.viewsonic.com
  • المواصفات
    نظام الإسقاط: 0.65'' WXGA
    الدقة الأصلية: 1280x800
    نوع DMD: DC3
    السطوع: 3800 (ANSI Lumens)
    نسبة التباين: 3000000:1
    ألوان العرض: 1.07 Billion Colors
    نوع مصدر الضوء: LED
    عمر مصدر الضوء (ساعات) في الوضع العادي: 30000
    العدسة: F=2.56-2.68, f=22-24.1mm
    إزاحة الإسقاط: 100%+/-5%
    نسبة الإسقاط: 1.55-1.70
    التكبير البصري: 1.1X
    تقريب رقمي: 0.8x-2.0x
    حجم الصورة: 30"-300"
    مسافة الإسقاط: 1m-10.98m
    (100"@3.34m)
    تصحيح شبه المنحرف (Keystone): +/- 40° (V)
    ضوضاء مسموعة (عادية): 34dB
    مستوى الضوضاء المسموعة (الوضع الاقتصادي): 28dB
    تأخر الإدخال: 16ms
    الدقة المدعومة: VGA(640 x 480) to FullHD(1920 x 1080)
    التوافق مع HDTV: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    التردد الأفقي: 15K-102KHz
    معدل المسح الرأسي: 23-120Hz
  • الإدخال
    الكمبيوتر في (مشاركة مع المكون): 1
    HDMI: 1
    (HDMI 1.4/ HDCP 1.4)
    مدخل الصوت (3.5 ملم): 1
  • الإخراج
    خرج الشاشة: 1
    خرج الصوت (3.5 مم): 1
    مكبر الصوت: 2W
    USB Type A (طاقة): 1 (5V/2A)
  • التحكم
    RS232 (DB ذو 9 سنون - ذكر): 1
    USB Type A (للصيانة): 1
    (share with USB A Output)
  • أخرى
    جهد مصدر الطاقة: 100-240V+/- 10%, 50/60Hz
    (AC in)
    استهلاك الطاقة: Normal: 240W
    Standby: <0.5W
    درجة حرارة التشغيل: 0~40℃
    الكرتونة: Brown
    الوزن الصافي: 2.65kg
    الوزن الإجمالي: 3.85kg
    المقاسات (عرض × ارتفاع × عمق) مع تعديل القاعدة: 293x221x115mm
    أبعاد التغليف: 365x300x188mm
    لغة قائمة OSD: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Greek, Hungarian. Total 24 languages
    لغة دليل المستخدم: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages
  • الملحقات القياسية
    سلك الطاقة: 1
    جهاز التحكم عن بُعد: 1
    دليل البدء السريع (QSG): Yes
    بطاقة الضمان: Yes (CN Only)
  • ملحق اختياري
    التثبيت على الحائط/السقف: PJ-WMK-007
    حقيبة الحمل: PJ-CASE-008
