الميزات الرئيسية
  • 3rd generation LED technology with 30,000 hour lifespan
  • 3,000 ANSI Lumens offering bright images in any environment
  • Instant power on/off for efficient use
  • 0.49 short throw ratio for minimal space consumption
  • 360° projection and H/V keystone for easy installation
  • Comprehensive LAN control for efficient management

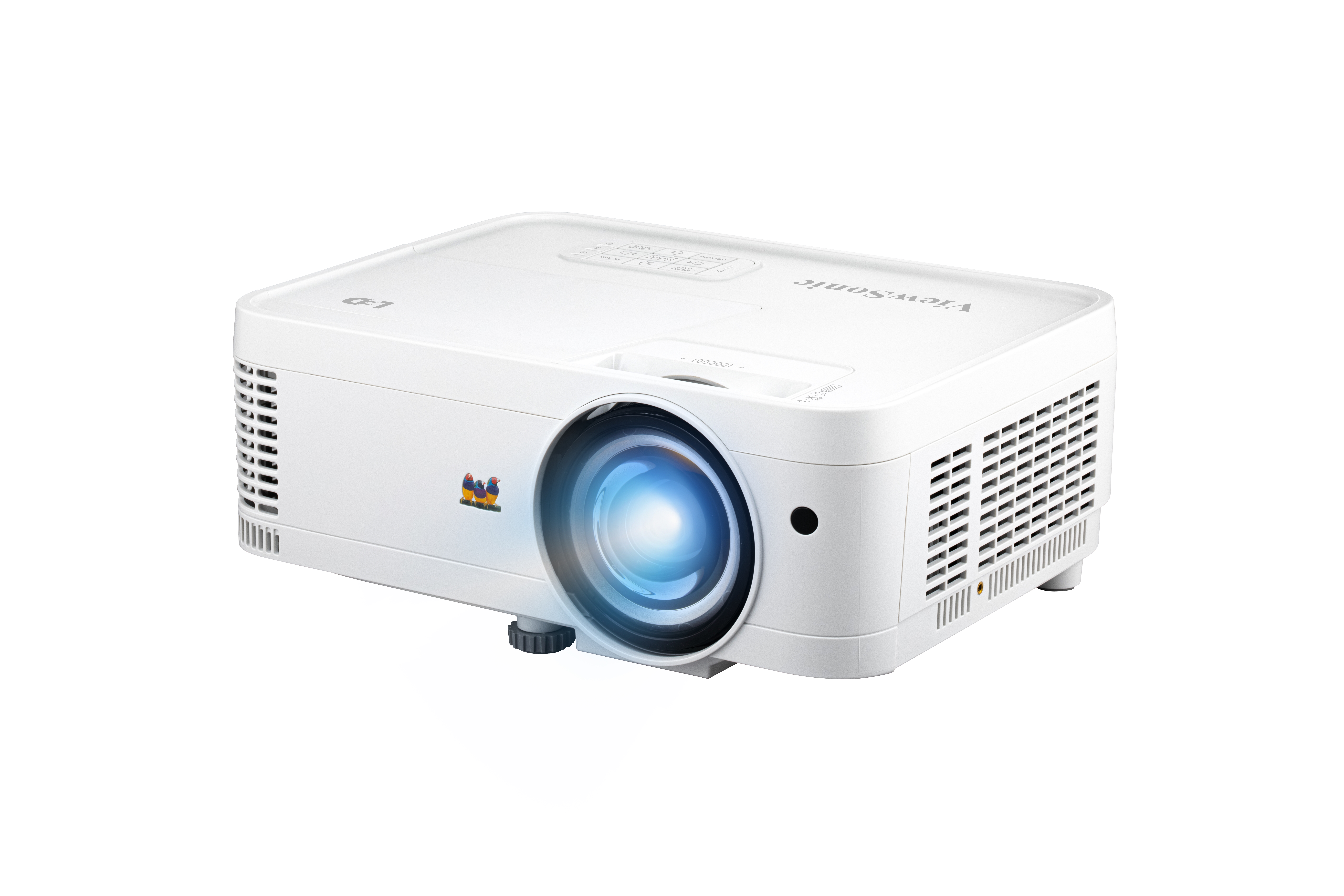

LS550WHE
المنتج وصف
The LS550WHE is ViewSonic’s first lamp-free high brightness WXGA short throw projector for business and education. Built with advanced 3rd generation LED technology, the LS550WHE provides 3,000 ANSI Lumens and eliminates frequent lamp replacement and toxic mercury for a safer and greener environment, offering a phenomenal lifespan of 30,000 hours, less power consumption, true-to-life colors with 125% Rec.709, and instant power on/off capability for efficient use. The 0.49 short throw lens provides a 100” screen from just 1.06m away, delivering exceptional space efficiency and freeing presenters from blinding lights. Installation and setup are hassle-free with 360° tilt angle projection, H/V Keystone, and 4 corner adjustment capabilities while its comprehensive LAN control eases multiple device management and is compatible with Crestron, AMX, Extron, PJ Link, ATEN, and ViewSonic’s vController.
  1. LED Indicator
  2. Keypad
  3. Power Button
  4. Focus Ring
  5. Lens
  6. Front IR
  7. Audio In
  8. Audio Out
  9. HDMI
  10. USB Type A(5V/2A,Service)
  11. LAN
  12. RS-232
تفضل بزيارة لنا
  • www.viewsonic.com
  • المواصفات
    نظام الإسقاط: 0.65'' WXGA
    الدقة الأصلية: 1280x800
    نوع DMD: DC3
    السطوع: 3000 (ANSI Lumens)
    نسبة التباين: 3000000:1
    ألوان العرض: 1.07 Billion Colors
    نوع مصدر الضوء: LED
    عمر مصدر الضوء (ساعات) في الوضع العادي: up to 30000
    قدرة المصباح (واط): RGB LED
    العدسة: F=2.6, f=6.9mm
    إزاحة الإسقاط: 110%+/-5%
    نسبة الإسقاط: 0.49
    التكبير البصري: Fixed
    تقريب رقمي: 0.8x-2.0x
    حجم الصورة: 60"-300"
    مسافة الإسقاط: 0.63m-1.58m (87"@0.92m)
    تصحيح شبه المنحرف (Keystone): H:+/-40° , V:+36°/-40°
    ضوضاء مسموعة (عادية): 30dB
    مستوى الضوضاء المسموعة (الوضع الاقتصادي): 26dB
    تأخر الإدخال: 16ms
    الدقة المدعومة: VGA(640 x 480) to FullHD(1920 x 1080)
    التوافق مع HDTV: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    التردد الأفقي: 15K-102KHz
    معدل المسح الرأسي: 23-120Hz
    كاميرا تفاعلية: Optional (vTouch-10s)
  • الإدخال
    HDMI: 1(HDMI 1.4/ HDCP 1.4)
    مدخل الصوت (3.5 ملم): 1
  • الإخراج
    خرج الصوت (3.5 مم): 1
    مكبر الصوت: 2W
    USB Type A (طاقة): 1 (5V/2A)
  • التحكم
    RS232 (DB ذو 9 سنون - ذكر): 1
    RJ45 (التحكم عبر LAN): 1
    USB Type A (للصيانة): 1(share with USB A Output)
  • أخرى
    جهد مصدر الطاقة: 100-240V+/- 10%, 50/60Hz(AC in)
    استهلاك الطاقة: Normal: 157W Standby: <0.5W
    درجة حرارة التشغيل: 0~40℃
    الكرتونة: Brown
    الوزن الصافي: 2.45kg
    الوزن الإجمالي: 3.55kg
    المقاسات (عرض × ارتفاع × عمق) مع تعديل القاعدة: 293x221x115mm
    أبعاد التغليف: 365x300x188mm
    لغة قائمة OSD: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Greek, Hungarian. Total 24 languages
    لغة دليل المستخدم: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages
  • الملحقات القياسية
    سلك الطاقة: 1
    جهاز التحكم عن بُعد: 1
    دليل البدء السريع (QSG): Yes
    غطاء العدسة: Yes
    بطاقة الضمان: Yes (CN Only)
  • ملحق اختياري
    التثبيت على الحائط/السقف: PJ-WMK-305PJ-WMK-007
    حقيبة الحمل: PJ-CASE-008
