الميزات الرئيسية
  • 3rd generation laser phosphor technology with up to a 30,000-hour lifespan
  • 5,000 ANSI Lumens offering bright images in any environment
  • Up to 300" ultra large screen with lower cost-per-inch
  • Compact size and light weight reducing cost of transportation and installation
  • Installation flexibility: 1.3x optical zoom, H/V keystone, 360° projection, and portrait mode

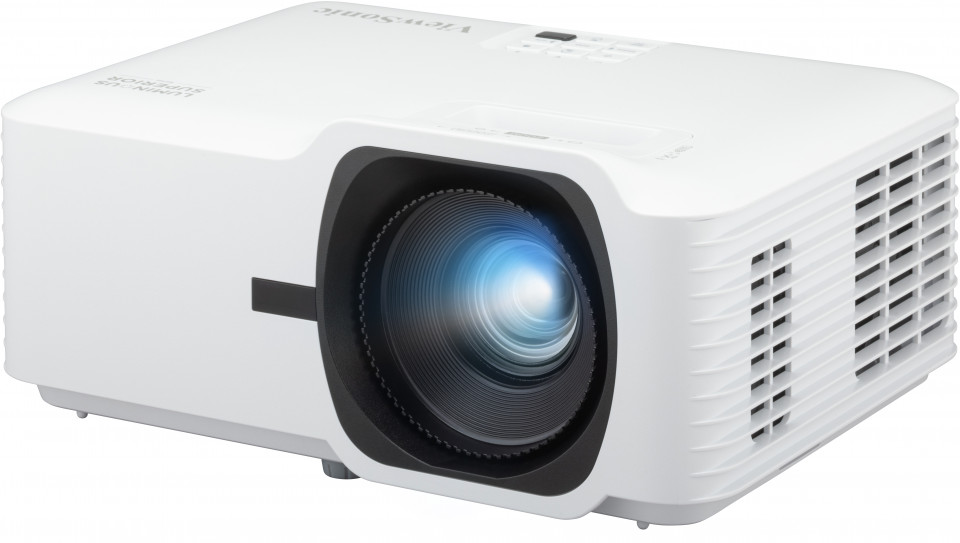

LS740W
المنتج وصف
The LS740W belongs to ViewSonic’s Luminous Superior series, a lamp-free high-brightness projector line up designed for commercial and educational spaces. With its adoption of the 3rd generation laser phosphor technology, it delivers 5,000 ANSI Lumens for up to 30,000 hours, ensuring bright and vivid images without lamp replacement. The lamp-free design offers an eco-friendly and cost-effective solution, while the projector‘s light weight and compact design reduces transportation costs. With up to 300“ projection and high native contrast, it is well-suited for boardrooms, lecture halls, and public spaces. This projector features a 1.3x optical zoom, H/V keystone, 4 corner adjustment, 360° projection, and a portrait mode for easy setup and versatile applications.

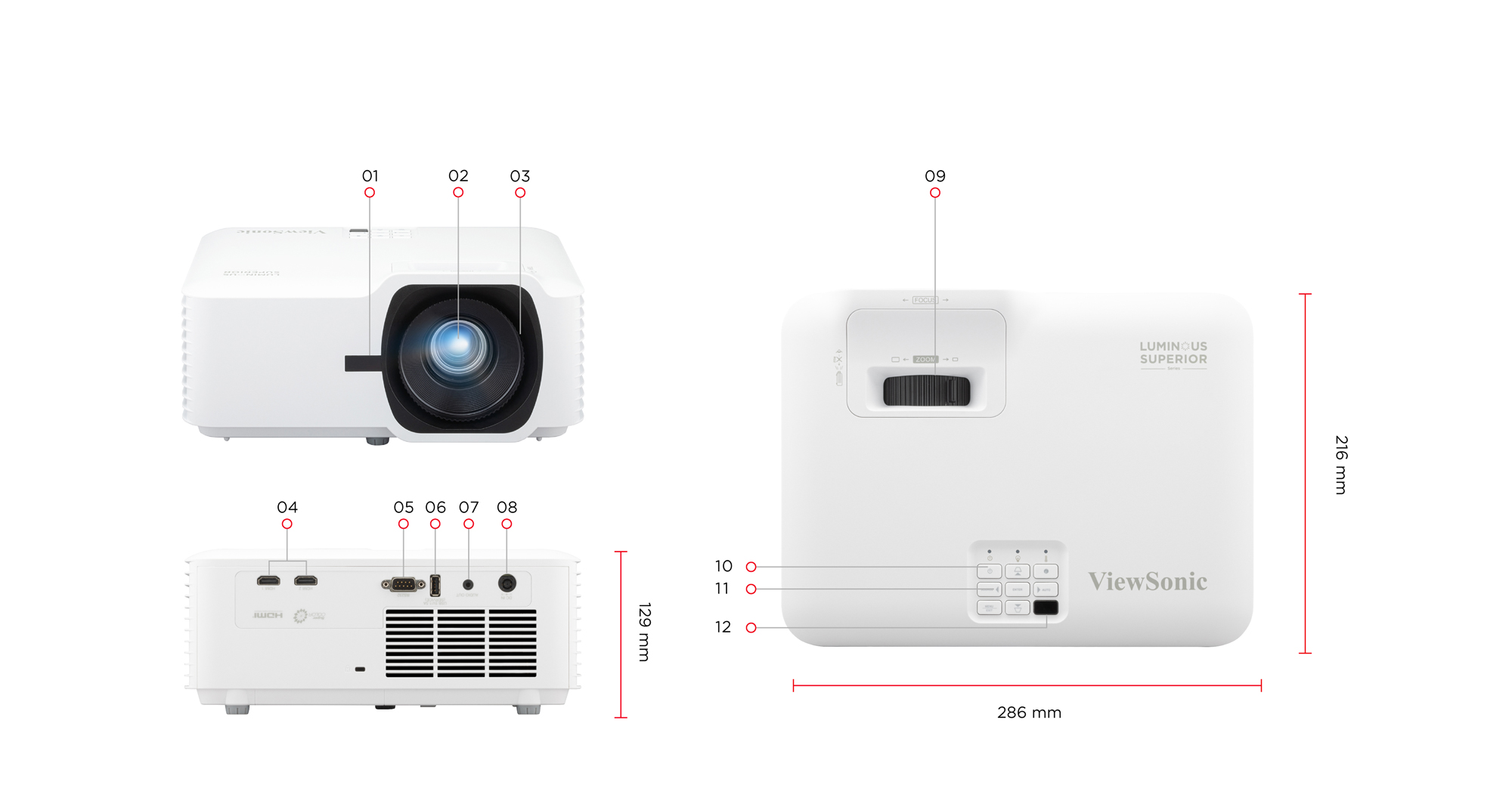

  1. Front IR
  2. Lens
  3. Focus Ring
  4. HDMI x2
  5. RS232
  6. USB-A (5V/1.5A, Service)
  7. Audio Out
  8. DC In
  9. Zoom Ring
  10. Power Button
  11. Keypad
  12. Top IR
تفضل بزيارة لنا
  • www.viewsonic.com
  • المواصفات
    نظام الإسقاط: 0.65" WXGA
    الدقة الأصلية: 1280x800
    السطوع: 5000 (ANSI Lumens)
    السطوع (لومن في المركز): 6000
    نسبة التباين: 3000000:1
    ألوان العرض: 1.07 Billion Colors
    نوع مصدر الضوء: Laser Phosphor
    عمر مصدر الضوء (ساعات) في الوضع العادي: 20000
    عمر مصدر الضوء (ساعات) في وضع SuperEco: 30000 (Eco)
    العدسة: F=2.43-2.78, f=16.90-21.61mm
    إزاحة الإسقاط: 124%+/-10%
    نسبة الإسقاط: 1.18-1.54
    التكبير البصري: 1.3X
    تقريب رقمي: 0.8x-2.0x
    حجم الصورة: 30"-300"
    مسافة الإسقاط: 0.77-9.98m (100"@2.54m)
    تصحيح شبه المنحرف (Keystone): H:+/-30° , V:+/-30°
    ضوضاء مسموعة (عادية): 30dB
    ضوضاء مسموعة (صدا): 24dB
    تأخر الإدخال: 49.5ms
    الدقة المدعومة: VGA(640 x 480) to WUXGA RB(1920 x 1200) *RB-Reduced Blanking
    التوافق مع HDTV: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    التردد الأفقي: 15K-102KHz
    معدل المسح الرأسي: 24-120Hz
  • الإدخال
    HDMI: 2 (HDMI 1.4, HDCP 1.4)
  • الإخراج
    خرج الصوت (3.5 مم): 1
    مكبر الصوت: 15W
    USB Type A (طاقة): 1 (5V/1.5A)
  • التحكم
    RS232 (DB ذو 9 سنون - ذكر): 1
    USB Type A (للصيانة): 1 (share with USB A Output)
  • أخرى
    جهد مصدر الطاقة: Power adaptor: Input: 100~240V Output: 19.5VDC / 11.79A
    استهلاك الطاقة: Normal: 210W Standby: <0.5W
    درجة حرارة التشغيل: 0~40℃
    الكرتونة: Brown
    الوزن الصافي: 3kg (6.61 lbs)
    الوزن الإجمالي: 4.7kg (10.36 lbs)
    المقاسات (عرض × ارتفاع × عمق) مع تعديل القاعدة: 286x216x129mm (11.3x8.5x5.1 in)
    أبعاد التغليف: 400x280x155mm (15.7x11x6.1 in)
    لغة قائمة OSD: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese,Japanese, Turkish, Portuguese, Finnish, Indonesian, Arabic, Vietnamese, Hungarian, Norsk, total 23 languages
    لغة دليل المستخدم: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages
  • الملحقات القياسية
    سلك الطاقة: 1
    جهاز التحكم عن بُعد: 1
    دليل البدء السريع (QSG): Yes
    بطاقة الضمان: Yes (CN Only)
  • ملحق اختياري
    التثبيت على الحائط/السقف: PJ-WMK-007
    حقيبة الحمل: PJ-CASE-008
