الميزات الرئيسية
  • 6,000 ANSI Lumens offering bright images in any environment
  • Up to a 300" ultra-large screen with a lower cost-per-inch
  • Supports a 21:9 aspect ratio, ideal for Microsoft Teams Rooms
  • Installation flexibility: H/V lens shift, 1.6x optical zoom, and H/V keystone correction
  • 2nd generation laser phosphor technology with a lifespan up to 30,000 hours
  • Centralized LAN control for efficient management

LSC601WU
المنتج وصف

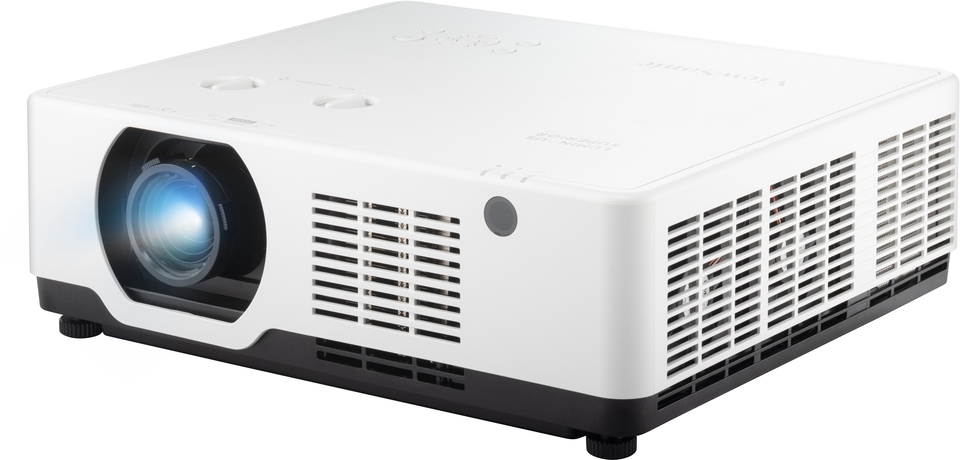

The LSC601WU is a lamp-free, high-brightness projector designed for commercial, educational, and public spaces. Utilizing 2nd generation laser phosphor technology, this projector delivers 6,000 ANSI Lumens of brightness for up to 30,000 hours and can project an ultra-large screen up to 300” in WUXGA resolution. Ideal for modern workplaces, its 21:9 aspect ratio is optimized for Microsoft Teams Rooms applications, enhancing collaborative environments. Equipped with features like H/V lens shift, 1.6x optical zoom, H/V keystone correction, and 360° projection capabilities, the LSC601WU offers flexible setup possibilities. Additionally, its comprehensive LAN control ensures seamless integration into existing device management networks.
  1. Zoom Ring
  2. Focus Ring
  3. Front IR
  4. Rear IR
  5. RJ45
  6. Service
  7. USB-A (5V/2A)
  8. HDMI x2
  9. Computer
  10. HDBaseT
  11. Monitor Out
  12. Audio Out
  13. Audio In
  14. RS232
  15. AC In
  16. LED Indicator
  17. Keypad
  18. Lens Shift Control Knob x2
تفضل بزيارة لنا
  • www.viewsonic.com
  • المواصفات
    نظام الإسقاط: 3LCD (3x0.64" with MLA)
    الدقة الأصلية: 1920x1200
    السطوع: 6000 (ANSI Lumens)
    السطوع (لومن في المركز): 6500
    نسبة التباين: 3000000:1
    ألوان العرض: 1.07 Billion Colors
    نوع مصدر الضوء: Laser Phosphor
    عمر مصدر الضوء (ساعات) في الوضع العادي: 20000
    عمر مصدر الضوء (ساعات) في وضع SuperEco: 30000 (Eco)
    العدسة: F=1.58-2.02, f=15.3-24.6mm
    إزاحة الإسقاط: 0%+/-5%
    نسبة الإسقاط: 1.08-1.76
    التكبير البصري: 1.6X
    تقريب رقمي: 1.0x-4.0x
    حجم الصورة: 30"-300"
    مسافة الإسقاط: 0.70-11.37m (100"@2.33m)
    تصحيح شبه المنحرف (Keystone): H:+/-30° , V:+/-30°
    تصحيح شبه المنحرف التلقائي: +/- 30° (V)
    نطاق إزاحة العدسة الرأسي: +45%, 0%
    نطاق إزاحة العدسة الأفقي: +21%, -21%
    ضوضاء مسموعة (عادية): 35dB
    ضوضاء مسموعة (صدا): 25dB
    تأخر الإدخال: 60ms
    الدقة المدعومة: VGA(640 x 480) to 4K(3840 x 2160)
    التوافق مع HDTV: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
    التردد الأفقي: 15K-100KHz
    معدل المسح الرأسي: 23-85Hz
  • الإدخال
    الكمبيوتر في (مشاركة مع المكون): 1
    HDMI: 2 (HDMI 1.4, HDCP 1.4)
    مدخل الصوت (3.5 ملم): 1
    USB Type A: 1 (5V/2A)
    HDBaseT: 1
  • الإخراج
    خرج الشاشة: 1
    خرج الصوت (3.5 مم): 1
    مكبر الصوت: 16W
    USB Type A (طاقة): 1 (USB2.0 - 5V/2A, share with USB A Input)
  • التحكم
    RS232 (DB ذو 9 سنون - ذكر): 1
    RJ45 (التحكم عبر LAN): 1
    USB Type B (للصيانة): 1
  • أخرى
    جهد مصدر الطاقة: 100-240V+/- 10%, 50/60Hz (AC in)
    استهلاك الطاقة: Normal: 330W Standby: <0.5W
    درجة حرارة التشغيل: 0~40℃
    الكرتونة: Brown
    الوزن الصافي: 7.9kg (17.42 lbs)
    الوزن الإجمالي: 10.1kg (22.27 lbs)
    المقاسات (عرض × ارتفاع × عمق) مع تعديل القاعدة: 405x358x137mm (15.9x14.1x5.4 in)
    أبعاد التغليف: 510x498x260mm (20.1x19.6x10.2 in)
    لغة قائمة OSD: English, German, French, Italian, Spanish, Polish, Swedish, Dutch ,Portugese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak, Vietnamese,Thai, Farsi, total 25 languages
    لغة دليل المستخدم: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages
  • الملحقات القياسية
    سلك الطاقة: 1
    جهاز التحكم عن بُعد: 1
    دليل البدء السريع (QSG): Yes
    منقي الهواء: Yes
    بطاقة الضمان: Yes (CN Only)
  • ملحق اختياري
    منقي الهواء: RSPL
    التثبيت على الحائط/السقف: PJ-WMK-007
