الميزات الرئيسية
  • 8,000 ANSI Lumens offering bright images in any environment
  • Up to a 300" ultra-large screen with a lower cost-per-inch
  • Supports a 21:9 aspect ratio, ideal for Microsoft Teams Rooms
  • Installation flexibility: H/V lens shift, 1.6x optical zoom, and H/V keystone correction
  • 2nd generation laser phosphor technology with a lifespan up to 30,000 hours
  • Centralized LAN control for efficient management

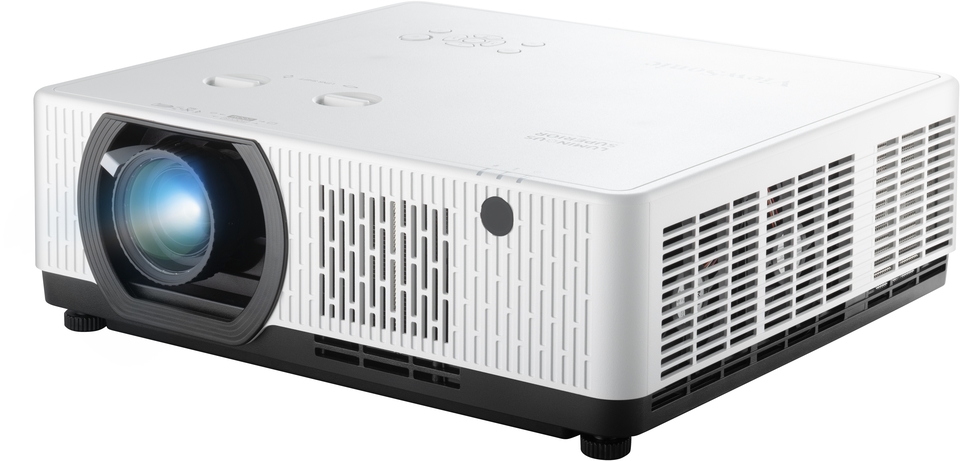

LSC801WU
المنتج وصف
The LSC801WU is a lamp-free, high-brightness projector designed for commercial, educational, and public spaces. Utilizing 2nd generation laser phosphor technology, this projector delivers 8,000 ANSI Lumens of brightness for up to 30,000 hours and can project an ultra-large screen up to 300” in WUXGA resolution. Ideal for modern workplaces, its 21:9 aspect ratio is optimized for Microsoft Teams Rooms applications, enhancing collaborative environments. Equipped with features like H/V lens shift, 1.6x optical zoom, H/V keystone correction, and 360° projection capabilities, the LSC801WU offers flexible setup possibilities. Additionally, its comprehensive LAN control ensures seamless integration into existing device management networks.
  1. Front IR
  2. Service
  3. USB-A (5V/2A)
  4. HDMI x2
  5. Computer
  6. Monitor Out
  7. RS232
  8. Audio Out
  9. Audio In
  10. RJ45
  11. Rear IR
  12. HDBaseT
  13. AC In
  14. LED Indicator
  15. Keypad
  16. Focus Ring
  17. Zoom Ring
  18. Lens Shift Control Knob x2
  19. Power Button
تفضل بزيارة لنا
  • www.viewsonic.com
  • المواصفات
    نظام الإسقاط: 3LCD (3x0.64" with MLA)
    الدقة الأصلية: 1920x1200
    السطوع: 8000 (ANSI Lumens)
    السطوع (لومن في المركز): 8500
    نسبة التباين: 3000000:1
    ألوان العرض: 1.07 Billion Colors
    نوع مصدر الضوء: Laser Phosphor
    عمر مصدر الضوء (ساعات) في الوضع العادي: 20000
    عمر مصدر الضوء (ساعات) في وضع SuperEco: 30000 (Eco)
    العدسة: F=1.5-2.08, f=17.2-27.7mm
    إزاحة الإسقاط: 0%+/-5%
    نسبة الإسقاط: 1.2-2.0
    التكبير البصري: 1.6X
    تقريب رقمي: 1.0x-4.0x
    حجم الصورة: 30"-300"
    مسافة الإسقاط: 0.78-12.99m (100"@2.58m)
    تصحيح شبه المنحرف (Keystone): H:+/-25° , V:+/-30°
    تصحيح شبه المنحرف التلقائي: +/- 30° (V)
    نطاق إزاحة العدسة الرأسي: +60%, 0%
    نطاق إزاحة العدسة الأفقي: +29%, -29%
    ضوضاء مسموعة (عادية): 37dB
    ضوضاء مسموعة (صدا): 27dB
    تأخر الإدخال: 60ms
    الدقة المدعومة: VGA(640 x 480) to 4K(3840 x 2160)
    التوافق مع HDTV: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
    التردد الأفقي: 15K-100KHz
    معدل المسح الرأسي: 23-85Hz
  • الإدخال
    الكمبيوتر في (مشاركة مع المكون): 1
    HDMI: 2 (HDMI 1.4, HDCP 1.4)
    مدخل الصوت (3.5 ملم): 1
    USB Type A: 1 (5V/2A)
    HDBaseT: 1
  • الإخراج
    خرج الشاشة: 1
    خرج الصوت (3.5 مم): 1
    مكبر الصوت: 16W
    USB Type A (طاقة): 1 (USB2.0 - 5V/2A, share with USB A Input)
  • التحكم
    RS232 (DB ذو 9 سنون - ذكر): 1
    RJ45 (التحكم عبر LAN): 1
    USB Type B (للصيانة): 1
  • أخرى
    جهد مصدر الطاقة: 100-240V+/- 10%, 50/60Hz (AC in)
    استهلاك الطاقة: Normal: 385W Standby: <0.5W
    درجة حرارة التشغيل: 0~40℃
    الكرتونة: Brown
    الوزن الصافي: 7.9kg (17.42 lbs)
    الوزن الإجمالي: 10.93kg (24.1 lbs)
    المقاسات (عرض × ارتفاع × عمق) مع تعديل القاعدة: 405x358x137mm (15.9x14.1x5.4 in)
    أبعاد التغليف: 510x498x260mm (20.1x19.6x10.2 in)
    لغة قائمة OSD: English, German, French, Italian, Spanish, Polish, Swedish, Dutch ,Portugese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak, Vietnamese,Thai, Farsi, total 25 languages
    لغة دليل المستخدم: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages
  • الملحقات القياسية
    سلك الطاقة: 1
    جهاز التحكم عن بُعد: 1
    دليل البدء السريع (QSG): Yes
    منقي الهواء: Yes
    بطاقة الضمان: Yes (CN Only)
  • ملحق اختياري
    منقي الهواء: RSPL
    التثبيت على الحائط/السقف: PJ-WMK-007
