الميزات الرئيسية

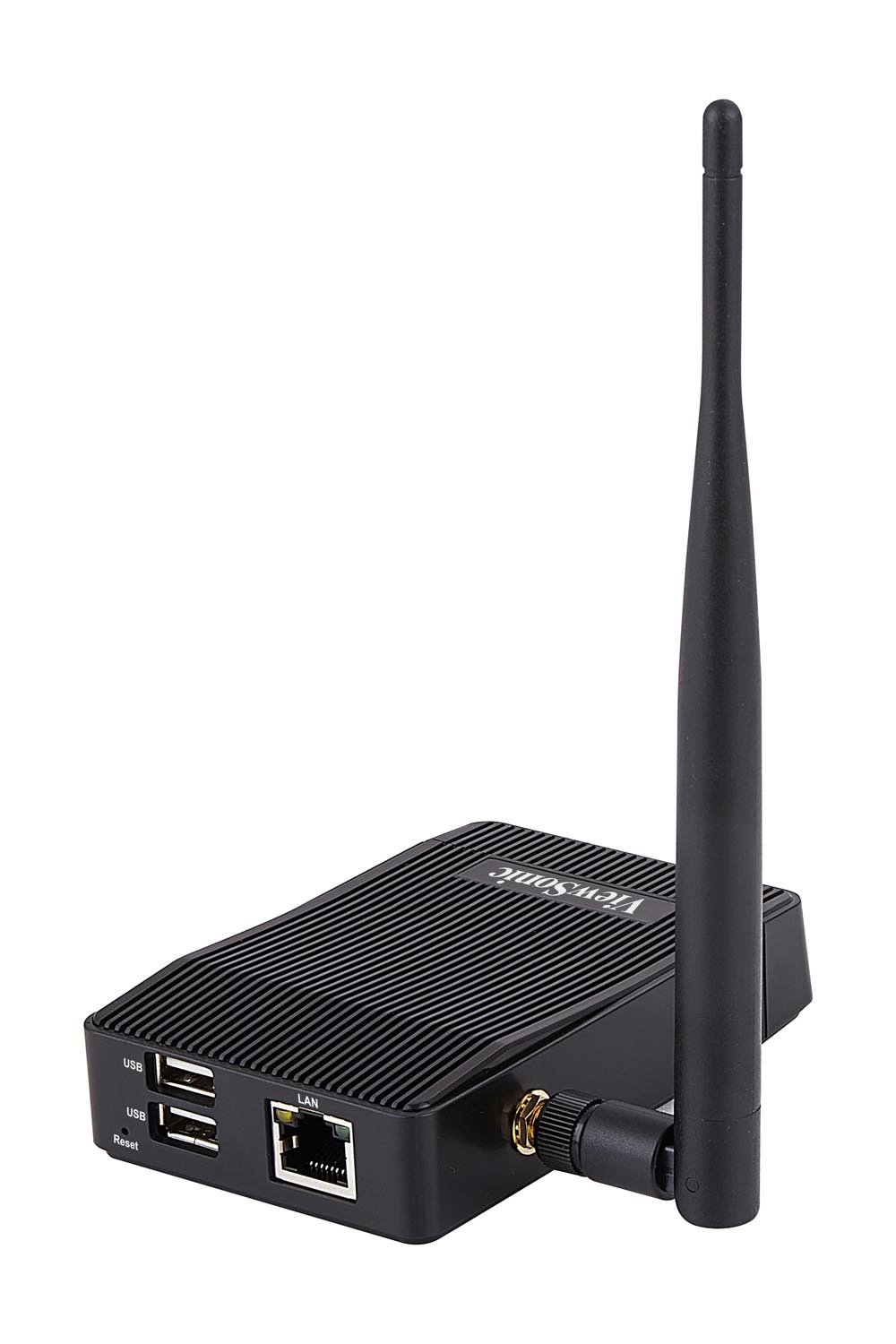

NMP-302W
المنتج وصف
The ViewSonic NMP-302w network media player delivers reliable and stunning 1080p multimedia playback on large format displays and digital signage solutions. With built-in wireless and RJ45 connectivity, along with bundled Signage Manager software, the NMP-302w allows customized multimedia content to be easily produced, scheduled, and loaded to displays from PCs or notebooks. Integrated 8GB on-board memory, as well as dual USB and micro SD card slots, provide direct playback of high-definition content. The NMP-302w also supports the latest HTML5 and SMIL standards, delivering dynamic and informative messaging to your customers. An embedded “fail-safe” function allows the connected display to continue playback of pre-assigned multimedia content even when the media player is not working. The NMP-302w provides a reliable messaging solution for retail, hospitality, point-of-sale advertising, and education environments.
تفضل بزيارة لنا
  • www.viewsonic.com
  • النواة
    وحدة المعالجة المركزية: ARM
  • الذاكرة
    النوع: NAND Flash
    القدرة: 8GB
  • البرامج
    نظام التشغيل: Embedded Linux
  • الإدخال
    SD/SDHC: x1
  • الإخراج
    HDMI: HDMI 1.4 x 1
  • LAN
    RJ45: x1
  • WIRELESS
    802.11 b,g,n
  • USB
    Type A: x2
    Micro USB: x1, (for F/W troubleshooting)
  • تنسيقات الوسائط المدعومة
    تنسيق الفيديو: POPAI Screen Media Standards
    S6 (MPEG-1 SIF, 3Mbps CBR)
    S7 (MPEG-1 480p, 10Mbps CBR)
    S8 (MPEG-1 720p, 15Mbps CBR)
    S9 (MPEG-2 480p, 6Mbps CBR)
    S10 (MPEG-2 720p, 12Mbps CBR)
    S11 (MPEG-4 AVC, 480p, 6Mbps CBR)
    S12 (MPEG-4 AVC, 720p, 10Mbps CBR)
    E4 (VC-1/WMV9, MP@ML, 720p)
    E7 (MPEG-4 ASP, 480p, 10Mbps CBR)
    E8 (H.264/MPEG-4 AVC, 1080p, 20Mbps CBR)
    تنسيق الصورة: POPAI Screen Media Standards
    S1 (JPEG 480p baseline)
    S2 (JPEG 720p baseline)
    S3 (JPEG 1080p baseline)
    E1 (PNG 24bpp+alpha, 480p)
    E2 (PNG 24bpp+alpha, 720p)
    E3 (PNG 24bpp+alpha, 1080p)
    ترميز الصوت: POPAI Screen Media Standards
    S4 (MPEG L2 audio)
    S5 (MP3 audio, 320Kbps)
    محتوى ديناميكي: W3C HTML5 (HTML, CSS, JavaScript)
    W3C SMIL 3.0 instructions (sub-set)
  • حزمة البرامج
    Signage Manager
  • الطاقة
    الجهد: DC 5V 2A
    الاستهلاك: 6W
  • ظروف التشغيل
    Temperature (º C): 0°C to 40°C
    الرطوبة: 30% ~ 80% non-condensing
  • DIMENSIONS
    (W X H X D)
    الأبعاد الفعلية (بوصة / مم): 4.21x1.00x2.68 / 107x25.3x68
    العبوة (بوصة / مم): 8.86x3.11x6.69 / 225 x 79 x 170
  • الوزن
    الوزن الصافي (رطل / كجم): 0.24 / 0.1081
    الوزن الإجمالي (رطل / كجم): 1.28 / 0.58
  • اللوائح التنظيمية
    CE/ CE LVD /FCC class B
  • محتويات العبوة
    Standard package
    1. HDMI cable (male to female, 35cm)
    2. External WiFi antenna @5db
    3. AC Adapter
    4. Power plug (US/EU/EU/UK)
    5. USB power cable (1.2M)
    6. Velcro
    7. VESA mount (100 x 100 mm)
    8. Hardware Quick Start Guide
    9. Software Quick Start Guide
    10. Documentation CD
    Optional accessory
    1. Micro USB to USB Y cable (1M)
