الميزات الرئيسية
  • Intuitive 10-point touchscreen
  • Finger, stylus, and glove touch compatible
  • Magnetic pen placeholder
  • Adjustable back tilt up to 40-degrees
  • Scratch-resistant 7H hardness screen

TD2223-2
المنتج وصف

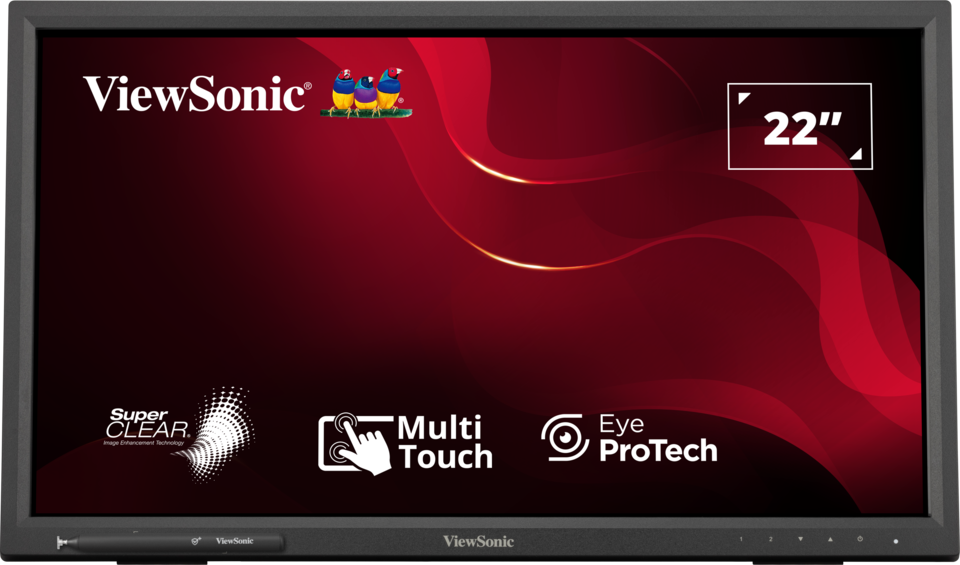

The ViewSonic® TD2223 is a 22” IR touch display designed for intuitive multi-touch use. Infrared (IR) touchscreen can detect up to 10 points of contact compared to optical touchscreens and can be operated by a stylus, fingers and gloved hands. The multi-touch input is more accurate, and the display is faster. Coupled with an adjustable tilt, you can easily interact with the TD2223 at an ideal position. This monitor features Full HD resolution to give you clear images and is built with scratch-resistant 7H hardness screen to surface damage. To support your work, the TD2223 is equipped with VGA, HDMI, DVI and USB connectivity.
  1. Menu Control Panel
  2. Power In
  3. VESA Compatible(Wall Mount 100 x 100mm)
  4. HDMI
  5. DVI
  6. VGA
  7. Audio In
  8. Audio Out
  9. USB Downstream
  10. USB Upstream
تفضل بزيارة لنا
  • www.viewsonic.com
  • الشاشة
    حجم الشاشة (بوصة): 22
    Viewable Area (in.): 21.5
    Panel Type: VA Technology
    Resolution: 1920 x 1080
    Resolution Type: FHD (Full HD)
    Static Contrast Ratio: 3,000:1 (typ)
    Dynamic Contrast Ratio: 20M:1
    Light Source: LED
    السطوع: 250 cd/m² (typ)
    Colors: 16.7M
    Color Space Support: 8 bit true
    الابعاد المتزنة: 16:9
    Response Time (Typical GTG): 6.5ms
    Response Time (GTG w/OD): 6.5ms
    زوايا النظر: 178º horizontal, 178º vertical
    عمر الإضاءة الخلفية (ساعات): 30000 Hrs (Min)
    انحناء: Flat
    Refresh Rate (Hz): 75
    فلتر الضوء الأزرق: Yes
    Low Blue Light: Software solution
    Flicker-Free: Yes
    Color Gamut: NTSC: 72% size (Typ) sRGB: 104% size (Typ)
    Pixel Size: 0.249 mm (H) x 0.241 mm (V)
    Touch Screen: IR, 10-point multi-touch
    Surface Treatment: Glossy, Hard Coating (7H)
    Cover Glass Thickness: 2mm
  • التوافق
    PC Resolution (max): 1920x1080
    Mac® Resolution (max): 1920x1080
    PC Operating System: Windows 10/11 certified; macOS tested
    Mac® Resolution (min): 1920x1080
  • موصل
    VGA: 1
    USB 2.0 Type A: 2
    USB 2.0 Type B: 1
    3.5mm Audio In: 1
    مخرج صوت 3.5 ملم: 1
    HDMI 1.4: 1
    DVI-D: 1
    Power in: 3-pin Socket (IEC C14 / CEE22)
  • الصوت
    Internal Speakers: 2Watts x2
  • POWER
    Eco Mode (Conserve): 13W
    Eco Mode (optimized): 16W
    الاستهلاك (نموذجي): 18.5W
    الاستهلاك (الحد الأقصى): 21.8W
    Voltage: AC 100-240V
    Stand-by: 0.5W
    Power Supply: Internal Power Supply
  • أجهزة إضافية
    Kensington Lock Slot: 1
    Cable Organization: Yes
  • ادواة التحكم
    Physical Controls: 1, 2, Up, Down, Power
    On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
  • OPERATING CONDITIONS
    Temperature: 32°F to 104°F (0°C to 40°C)
    Humidity (non-condensing): 20% to 90%
  • WALL MOUNT
    VESA Compatible: 100 x 100 mm
  • INPUT SIGNAL
    Frequency Horizontal: RGB Analog: 24 ~ 82KHz, DVI-D: 24 ~ 82KHz, HDMI (v1.4): 25 ~ 85KHz
    Frequency Vertical: RGB Analog: 50 ~ 75Hz, DVI-D: 50 ~ 75Hz, HDMI (v1.4): 50 ~ 75Hz
  • VIDEO INPUT
    مزامنة رقمية: TMDS - DVI-D, TMDS - HDMI (v1.4)
    Analog Sync: Separate/Composite/SOG - RGB Analog
  • ERGONOMICS
    Tilt (Forward/Back): 20º / 40º
  • WEIGHT (IMPERIAL)
    Net (lbs): 9.3
    Net Without Stand (lbs): 8
    Gross (lbs): 12.6
  • WEIGHT (METRIC)
    Net (kg): 4.2
    Net Without Stand (kg): 3.7
    Gross (kg): 5.7
  • المقاسات (عرض × ارتفاع × عمق)
    Packaging (in.): 22.8 x 15.9 x 6.4
    Physical (in.): 20.4 x 12.9 x 4
    Physical Without Stand (in.): 20.4 x 12.1 x 2.4
  • المقاسات (متري) (عرض × ارتفاع × عمق)
    Packaging (mm): 580 x 405 x 162
    Physical (mm): 519 x 329 x 101
    Physical Without Stand (mm): 519 x 308 x 61
  • GENERAL
    Regulations: cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, NOM, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, VCCI, PSE, KC, K-MEPS, BIS, CCC, China RoHS, China Energy Label, CECP
    PACKAGE CONTENTS: TD2223-2 x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, USB A/B Cable (v2.0; Male-Male) x1, Audio Cable (Male-Male) x1, Quick Start Guide x1
    Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
    Warranty: *Warranty offered may differ from market to market
    Power Management: Energy Star standards, EPEAT
