شاشات ال سي دي
TD2423
الميزات الرئيسية
- Intuitive 10-point touchscreen
- Finger, stylus, and glove touch compatible
- Magnetic pen placeholder
- Adjustable back tilt up to 40-degrees
- Scratch-resistant 7H hardness screen
المنتج وصف

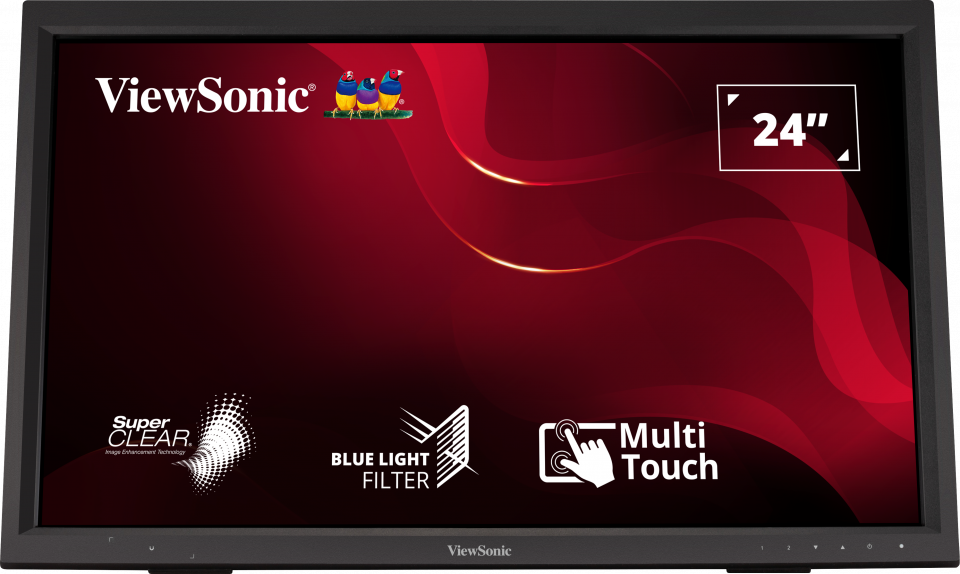

The ViewSonic® TD2423 is a 24” IR touch display designed for intuitive multi-touch use. Infrared (IR) touchscreen can detect up to 10 points of contact compared to optical touchscreens and can be operated by a stylus, fingers and gloved hands. The multi-touch input is more accurate, and the display is faster. Coupled with an adjustable tilt, you can easily interact with the TD2423 at an ideal position. This monitor features Full HD resolution to give you clear images and is built with scratch-resistant 7H hardness screen to surface damage. To support your work, the TD2423 is equipped with VGA, HDMI, DVI and USB connectivity.
- Menu Control Panel
- USB Down Stream x 2
- USB UP Stream
- AC In
- HDMI
- VESA Compatible(Wall Mount 100 x 100mm)
- Earphone Out
- Audio In
- VGA
- DVI
تفضل بزيارة لنا
- www.viewsonic.com
-
الشاشة
حجم الشاشة (بوصة): 24 Viewable Area (in.): 23.6 Panel Type: VA Technology Resolution: 1920 x 1080 Resolution Type: FHD (Full HD) Static Contrast Ratio: 3,000:1 (typ) Dynamic Contrast Ratio: 20M:1 Light Source: LED السطوع: 250 cd/m² (typ) Colors: 16.7M Color Space Support: 8 bit (6 bit + Hi-FRC) الابعاد المتزنة: 16:9 Response Time (Typical GTG): 7ms Response Time (GTG w/OD): 7ms Response Time (Typical Tr+Tf): 25ms زوايا النظر: 178º horizontal, 178º vertical عمر الإضاءة الخلفية (ساعات): 40000 Hrs (Min) انحناء: Flat Refresh Rate (Hz): 75 فلتر الضوء الأزرق: Yes Low Blue Light: Software solution Flicker-Free: Yes Color Gamut: NTSC: 72% size (Typ) sRGB: 104% size (Typ) Pixel Size: 0.272 mm (H) x 0.272 mm (V) Touch Screen: IR, 10-point multi-touch Surface Treatment: Glossy, Hard Coating (7H) Cover Glass Thickness: 1.85mm -
التوافق
PC Resolution (max): 1920x1080 Mac® Resolution (max): 1920x1080 PC Operating System: Windows 7/8.1/10/11 certified; macOS tested Mac® Resolution (min): 1920x1080 -
موصل
VGA: 1 USB 2.0 Type A: 2 USB 2.0 Type B: 1 3.5mm Audio In: 1 مخرج صوت 3.5 ملم: 1 HDMI 1.4: 1 DVI-D: 1 Power in: 3-pin Socket (IEC C14 / CEE22) -
الصوت
Internal Speakers: 2Watts x2 -
POWER
Eco Mode (Conserve): 11.5W Eco Mode (optimized): 13.5W الاستهلاك (نموذجي): 15.5W الاستهلاك (الحد الأقصى): 16.5W Voltage: AC 100-240V Stand-by: 0.5W Power Supply: Internal Power Supply -
أجهزة إضافية
Kensington Lock Slot: 1 Cable Organization: Yes -
ادواة التحكم
Physical Controls: 1, 2, Up, Down, Power On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall -
OPERATING CONDITIONS
Temperature: 32°F to 104°F (0°C to 40°C) Humidity (non-condensing): 20% to 90% -
WALL MOUNT
VESA Compatible: 100 x 100 mm -
INPUT SIGNAL
Frequency Horizontal: 24 ~ 82KHz Frequency Vertical: 50 ~ 75Hz -
VIDEO INPUT
مزامنة رقمية: TMDS - DVI-D, TMDS - HDMI (v1.4) Analog Sync: Separate/Composite/SOG - RGB Analog -
ERGONOMICS
Tilt (Forward/Back): 20º / 40º -
WEIGHT (IMPERIAL)
Net (lbs): 11.5 Net Without Stand (lbs): 10.3 Gross (lbs): 15.4 -
WEIGHT (METRIC)
Net (kg): 5.2 Net Without Stand (kg): 4.7 Gross (kg): 7 -
المقاسات (عرض × ارتفاع × عمق)
Packaging (in.): 25.4 x 16.6 x 6.5 Physical (in.): 22.5 x 13.7 x 4 Physical Without Stand (in.): 22.5 x 13.7 x 2.4 -
المقاسات (متري) (عرض × ارتفاع × عمق)
Packaging (mm): 645 x 422 x 166 Physical (mm): 571 x 348 x 101 Physical Without Stand (mm): 571 x 348 x 61 -
GENERAL
Regulations: cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS, VCCI, PSE, BIS PACKAGE CONTENTS: TD2423 x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, USB A/B Cable (v2.0; Male-Male) x1, Audio Cable (Male-Male) x1, Quick Start Guide x1 Recycle/Disposal: Please dispose of in accordance with local, state or federal laws. Warranty: *Warranty offered may differ from market to market Power Management: Energy Star standards, EPEAT
