الميزات الرئيسية
  • SuperClear® technology
  • Frameless design
  • HDMI, DisplayPort and VGA inputs
  • 7H hardness screen
  • Supports Windows® 7/8/10/11 and selected Android and Linux

TD2430
المنتج وصف

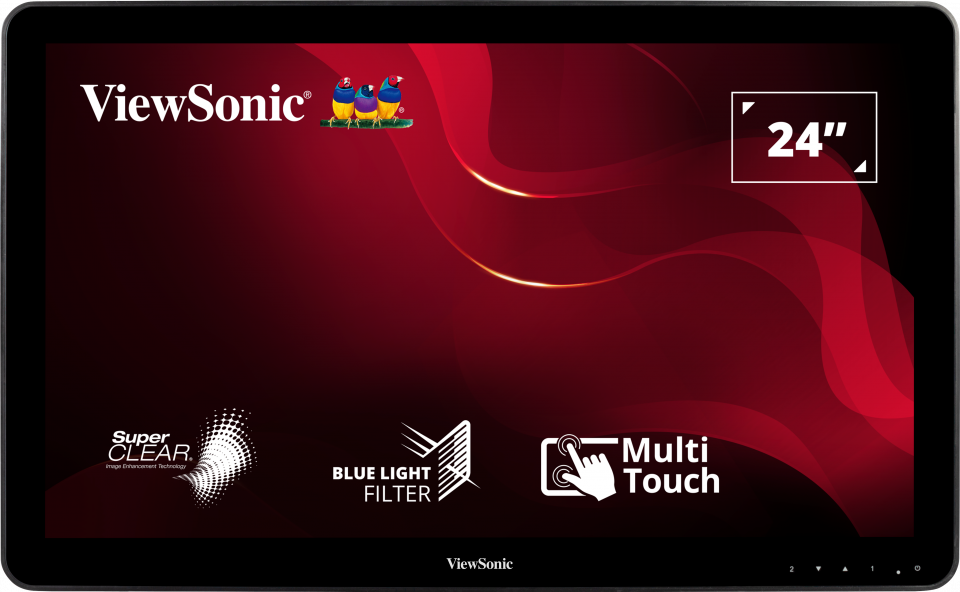

Laid flat or angled for customized comfort, this display delivers touchscreen versatility to the max. Offering fantastic flexibility for retail, education, or business settings, the ViewSonic® TD2430 is a 24” (23.6” viewable) Full HD display with 10-point multi-touch functionality. Delivering adjustable positioning, wide-angle viewing, and a durable design, the TD2430 has everything to accommodate your unique needs. Adding even more convenience, cross-compatibility with a wide range of operating systems includes Windows 10/11, and certain Android and Linux versions.* With a sleek edge-to-edge screen and frameless bezel, this intuitive touchscreen performs like your favorite tablet or smartphone to deliver a highly accurate, ultra-responsive touch experience ideal for interactivity in public environments, kiosk and wayfinding applications, classroom settings, and more. *Supports Windows 7/8/10/11, Linux 2.6.38 or later, and Android 4.0 or later.
  1. Menu Control Panel
  2. VESA Compatible(Wall Mount 100 x 100mm)
  3. Internal Speakers
  4. DisplayPort
  5. VGA
  6. Headphone
  7. Audio In
  8. DC In
  9. HDMI
  10. USB 3.0 Type B
  11. USB 3.0 Type A (x2)
تفضل بزيارة لنا
  • www.viewsonic.com
  • الشاشة
    حجم الشاشة (بوصة): 24
    Viewable Area (in.): 23.6
    Panel Type: VA Technology
    Resolution: 1920 x 1080
    Resolution Type: FHD (Full HD)
    Static Contrast Ratio: 3,000:1 (typ)
    Dynamic Contrast Ratio: 50M:1
    Light Source: LED
    السطوع: 200 cd/m² (typ)
    Colors: 16.7M
    Color Space Support: 8 bit (6 bit + Hi-FRC)
    الابعاد المتزنة: 16:9
    Response Time (Typical GTG): 10ms
    Response Time (GTG w/OD): 10ms
    Response Time (Typical Tr+Tf): 25ms
    زوايا النظر: 178º horizontal, 178º vertical
    عمر الإضاءة الخلفية (ساعات): 40000 Hrs (Min)
    انحناء: Flat
    Refresh Rate (Hz): 60
    فلتر الضوء الأزرق: Yes
    Low Blue Light: Software solution
    Flicker-Free: Yes
    Color Gamut: NTSC: 72% size (Typ) sRGB: 104% size (Typ)
    Pixel Size: 0.272 mm (H) x 0.272 mm (V)
    Touch Screen: Projected Capacitive, 10-point multi-touch
    Surface Treatment: Glossy, Hard Coating (7H)
    Cover Glass Thickness: 1.8mm
  • التوافق
    PC Resolution (max): 1920x1080
    Mac® Resolution (max): 1920x1080
    PC Operating System: Windows 8/10/11 certified; macOS tested
    Mac® Resolution (min): 1920x1080
  • موصل
    VGA: 1
    USB 3.2 Type A Down Stream: 2
    USB 3.2 Type B Up Stream: 1
    3.5mm Audio In: 1
    مخرج صوت 3.5 ملم: 1
    HDMI 1.4: 1
    منفذ الشاشة: 1
    Power in: DC Socket (Center Positive)
  • الصوت
    Internal Speakers: 2Watts x2
  • POWER
    Eco Mode (Conserve): 19W
    Eco Mode (optimized): 22W
    الاستهلاك (نموذجي): 25W
    الاستهلاك (الحد الأقصى): 28W
    Voltage: AC 100-240V
    Stand-by: 0.5W
    Power Supply: External Power Adaptor
  • أجهزة إضافية
    Kensington Lock Slot: 1
  • ادواة التحكم
    Physical Controls: 1, 2, Up, Down, Power
    On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
  • OPERATING CONDITIONS
    Temperature: 32°F to 104°F (0°C to 40°C)
    Humidity (non-condensing): 20% to 90%
  • WALL MOUNT
    VESA Compatible: 100 x 100 mm
  • INPUT SIGNAL
    Frequency Horizontal: RGB Analog: 24 ~ 82KHz, HDMI (v1.4): 15 ~ 82KHz, DisplayPort (v1.2): 15 ~ 82KHz
    Frequency Vertical: RGB Analog: 50 ~ 75Hz, HDMI (v1.4): 24 ~ 75Hz, DisplayPort (v1.2): 24 ~ 75Hz
  • VIDEO INPUT
    مزامنة رقمية: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2)
    Analog Sync: Separate/Composite/SOG - RGB Analog
  • ERGONOMICS
    Tilt (Forward/Back): 20º / 53º
  • WEIGHT (IMPERIAL)
    Net (lbs): 12.1
    Net Without Stand (lbs): 12.1
    Gross (lbs): 15.6
  • WEIGHT (METRIC)
    Net (kg): 5.5
    Net Without Stand (kg): 5.5
    Gross (kg): 7.1
  • المقاسات (عرض × ارتفاع × عمق)
    Packaging (in.): 25.3 x 17.1 x 5.5
    Physical (in.): 22.6 x 13.9 x 1.9
    Physical Without Stand (in.): 22.6 x 13.9 x 1.9
  • المقاسات (متري) (عرض × ارتفاع × عمق)
    Packaging (mm): 643 x 435 x 140
    Physical (mm): 573 x 353 x 47
    Physical Without Stand (mm): 573 x 353 x 47
  • GENERAL
    Regulations: cTUVus, FCC-B, ICES003, Energy Star, CEC, Adaptor AR Certified, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO
    PACKAGE CONTENTS: TD2430 x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, Audio Cable (Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1
    Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
    Warranty: *Warranty offered may differ from market to market
    Power Management: Energy Star standards
