الميزات الرئيسية
  • Touch function for wet hands and multiple types of glove
  • Pen clicks & Palm rejection technology
  • 4-sides frameless design and optional stand for flexibility
  • Friendly touch mode setting
  • Intuitive touch OSD with ViewSonic Touch Controller

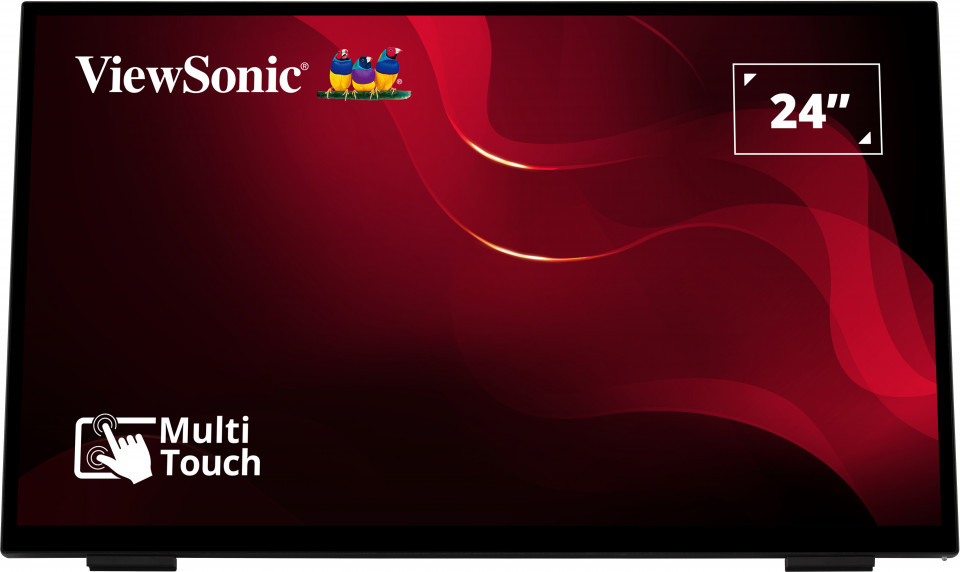

TD2465
المنتج وصف
The ViewSonic's TD2465 is the ideal solution for commercial and industrial spaces. Designed for wet hands touch, glove touch, and for any conductive stylus’ tip touch including pencil. The TD2465 delivers an intuitive 10-point PCAP touch technology for maximum interactivity. Featuring ViewSonic Touch Controller software, allowing you to control the device intuitively. Connection options include HDMI and DisplayPort inputs for effortless sharing capabilities. Equipped with VESA mounting design for any surface and Kiosk, the touch screen is the perfect display for various.
  1. Menu Control
  2. Speakers
  3. VESA Compatible(Wall Mount 100 x 100 mm)
  4. USB-A *2 (Downstream)
  5. USB-B (Upstream)
  6. Earphone
  7. Audio in
  8. VGA
  9. HDMI
  10. DP in
  11. AC in
تفضل بزيارة لنا
  • www.viewsonic.com
  • الشاشة
    حجم الشاشة (بوصة): 24
    Viewable Area (in.): 23.8
    Panel Type: VA Technology
    Resolution: 1920 x 1080
    Resolution Type: FHD (Full HD)
    Static Contrast Ratio: 4,000:1 (typ)
    Dynamic Contrast Ratio: 20M:1
    Light Source: LED
    السطوع: 250 cd/m² (typ)
    Colors: 16.7M
    Color Space Support: 8 bit (6 bit + Hi-FRC)
    الابعاد المتزنة: 16:9
    Response Time (Typical GTG): 7ms
    Response Time (GTG w/OD): 6.969ms
    زوايا النظر: 178º horizontal, 178º vertical
    عمر الإضاءة الخلفية (ساعات): 30000 Hrs (Min)
    انحناء: Flat
    Refresh Rate (Hz): 100
    فلتر الضوء الأزرق: Yes
    Low Blue Light: Software solution
    Flicker-Free: Yes
    Color Gamut: NTSC: 86% size (Typ) sRGB: 122% size (Typ)
    Pixel Size: 0.275 mm (H) x 0.275 mm (V)
    Touch Screen: Projected Capacitive, 10-point multi-touch
    Surface Treatment: Glossy, Hard Coating (7H)
    Cover Glass Thickness: 1.2mm
  • التوافق
    PC Resolution (max): 1920x1080
    Mac® Resolution (max): 1920x1080
    PC Operating System: Windows 10/11 certified; macOS tested
    Mac® Resolution (min): 1920x1080
  • موصل
    VGA: 1
    USB 3.2 Type A Down Stream: 2
    USB 3.2 Type B Up Stream: 1
    3.5mm Audio In: 1
    مخرج صوت 3.5 ملم: 1
    HDMI 1.4: 1
    منفذ الشاشة: 1
    Power in: 3-pin Socket (IEC C14 / CEE22)
  • الصوت
    Internal Speakers: 2Watts x2
  • POWER
    Eco Mode (Conserve): 20W
    Eco Mode (optimized): 22W
    الاستهلاك (نموذجي): 24W
    الاستهلاك (الحد الأقصى): 26W
    Voltage: AC 100-240V
    Stand-by: 0.5W
    Power Supply: Internal Power Supply
  • أجهزة إضافية
    Kensington Lock Slot: 1
    Cable Organization: Yes
  • ادواة التحكم
    Physical Controls: 1, 2, Up, Down, Power
    On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
  • OPERATING CONDITIONS
    Temperature: 32°F to 104°F (0°C to 40°C)
    Humidity (non-condensing): 20% to 90%
  • WALL MOUNT
    VESA Compatible: 100 x 100 mm
  • INPUT SIGNAL
    Frequency Horizontal: RGB Analog: 24 ~ 82KHz, HDMI (v1.4): 24 ~ 120KHz, DisplayPort (v1.2): 24 ~ 120KHz
    Frequency Vertical: RGB Analog: 50 ~ 75Hz, HDMI (v1.4): 50 ~ 100Hz, DisplayPort (v1.2): 50 ~ 100Hz
  • VIDEO INPUT
    مزامنة رقمية: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2)
    Analog Sync: Separate/Composite/SOG - RGB Analog
  • ERGONOMICS
    Tilt (Forward/Back): -5º / 20º
  • WEIGHT (IMPERIAL)
    Net (lbs): 11.9
    Net Without Stand (lbs): 9.7
    Gross (lbs): 14.8
  • WEIGHT (METRIC)
    Net (kg): 5.4
    Net Without Stand (kg): 4.4
    Gross (kg): 6.7
  • المقاسات (عرض × ارتفاع × عمق)
    Packaging (in.): 25.5 x 16.8 x 5.4
    Physical (in.): 21.6 x 15.8 x 7.8
    Physical Without Stand (in.): 21.6 x 12.8 x 1.9
  • المقاسات (متري) (عرض × ارتفاع × عمق)
    Packaging (mm): 647 x 426 x 138
    Physical (mm): 550 x 401 x 198
    Physical Without Stand (mm): 550 x 326 x 49
  • GENERAL
    Regulations: cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, NOM, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS
    PACKAGE CONTENTS: TD2465 x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, Quick Start Guide x1
    Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
    Warranty: *Warranty offered may differ from market to market
    Power Management: Energy Star standards, EPEAT
