الميزات الرئيسية
  • SuperClear® technology
  • Advanced ergonomic stand for tilt or flat
  • HDMI, DisplayPort and VGA inputs
  • 50M:1 dynamic contrast ratio
  • Supports Windows® 7/8/10/11 and selected Linux, Chrome, and Android

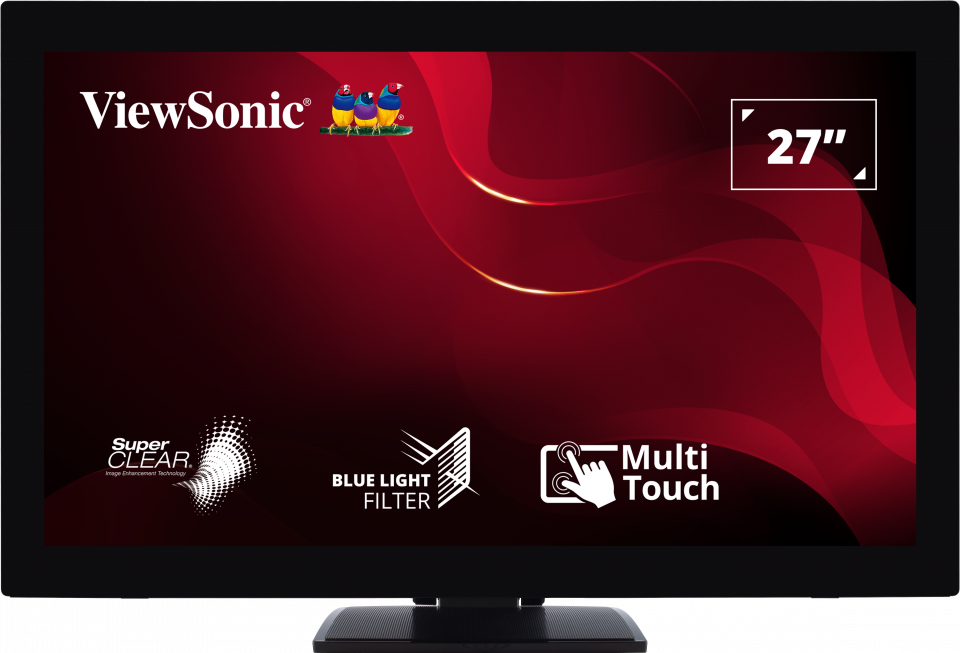

TD2760
المنتج وصف
The ViewSonic TD2760 is an ideal solution for both commercial and consumer touch screen applications. With an intuitive 10-point multi-touch display and a full 1080p HD resolution, the 27-inch TD2760 delivers a versatile solution for use in the office or at home, as well as for use as an information kiosk in public areas, retail, and corporate sectors. SuperClear® technology with ultra-wide viewing angles and 50M:1 MEGA Dynamic Contrast Ratio bring greater definition and clarity to multimedia content. For added convenience, cross-platform compatibility works with operating systems such as Windows 10/11, Linux, Chrome, and Android.* Built-in connectivity options include DisplayPort, HDMI, and VGA ports along with a VESA mount design, offering additional convenience for use as a wall-mount display. Additionally, the RS232 port provides local control for other RS232 connected devices, while HDMI CEC offers local control of multiple connected devices such as HD set-top boxes, media players, and sound systems. Even more, the ergonomic stand makes it easy for the user to tilt and raise the monitor, or lay it flat for the most natural position, and create a comfortable working environment. Lastly, low power consumption with Energy Star certification saves energy costs while reducing carbon emission. *Supports Windows 7/8/10/11, the latest Linux Kernel 4.X/3.X, the latest Chrome version, and Android 6.0 & 7.0
تفضل بزيارة لنا
  • www.viewsonic.com
  • الشاشة
    حجم الشاشة (بوصة): 27
    المساحة المرئية (بوصة): 27
    نوع اللوحة: VA Technology
    الدقة: 1920 x 1080
    نوع الدقة: FHD (Full HD)
    نسبة التباين الثابت: 3,000:1 (typ)
    نسبة التباين الديناميكي: 50M:1
    مصدر الضوء: LED
    السطوع: 250 cd/m² (typ)
    الألوان: 16.7M
    مساحات الألوان المدعومة: 8 bit (6 bit + Hi-FRC)
    الابعاد المتزنة: 16:9
    زمن الاستجابة (GTG النموذجي): 6ms
    زمن الاستجابة (GTG مع OD): 6ms
    زمن الاستجابة (Tr+Tf النموذجي): 12ms
    زوايا النظر: 178º horizontal, 178º vertical
    عمر الإضاءة الخلفية (ساعات): 30000 Hrs (Min)
    سُمك الزجاج: 1.88mm
    صلابة الزجاج: ≧6H
    انحناء: Flat
    معدل التحديث (هرتز): 60
    فلتر الضوء الأزرق: Yes
    إضاءة زرقاء منخفضة: Software solution
    خالٍ من الوميض: Yes
    نطاق الألوان: NTSC: 72% size (Typ) sRGB: 102% size (Typ)
    حجم البكسل: 0.311 mm (H) x 0.311 mm (V)
    شاشة اللمس: Projected Capacitive, 10-point multi-touch
    معالجة السطح: Anti-Glare, Hard Coating (≧6H)
    سُمك الزجاج الواقي: 1.88mm
  • التوافق
    دقة الكمبيوتر (الحد الأقصى): 1920x1080
    دقة Mac® (الحد الأقصى): 1920x1080
    نظام تشغيل الكمبيوتر: Windows 7/8/8.1/10/11 certified; macOS tested
    دقة Mac® (الحد الأدنى): 1920x1080
  • موصل
    VGA: 1
    USB 3.2 Type A تدفق هابط: 2
    USB 3.2 Type B تدفق صاعد: 1
    دخل صوت 3.5 مم: 1
    مخرج صوت 3.5 ملم: 1
    HDMI 1.4: 1
    منفذ الشاشة: 1
    دخل الطاقة: 3-pin Socket (IEC C14 / CEE22)
    دخل RS232: 1
  • الصوت
    مكبرات صوت داخلية: 2Watts x2
  • الطاقة
    الوضع الاقتصادي (توفير): 19W
    الوضع الاقتصادي (مُحسّن): 22W
    الاستهلاك (نموذجي): 26W
    الاستهلاك (الحد الأقصى): 28W
    الجهد: AC 100-240V
    وضع الاستعداد: 0.3W
    مصدر الطاقة: Internal Power Supply
  • أجهزة إضافية
    فتحة قفل Kensington: 1
  • ادواة التحكم
    أزرار التحكم المادية: 1, 2, Up, Down, Power
    قائمة العرض على الشاشة (OSD): Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
  • ظروف التشغيل
    درجة الحرارة: 32°F to 104°F (0°C to 40°C)
    الرطوبة (بدون تكثّف): 20% to 90%
  • WALL MOUNT
    متوافق مع VESA: 100 x 100 mm
  • إشارة الإدخال
    التردد الأفقي: 15 ~ 90KHz
    التردد الرأسي: 50 ~ 76Hz
  • دخل الفيديو
    مزامنة رقمية: TMDS - HDMI (v1.4), Micro-Packet - DisplayPort (v1.2)
    المزامنة التناظرية: Separate/Composite/SOG - RGB Analog
  • التصميم المريح
    الإمالة (للأمام/للخلف): -4º / 90º
  • الوزن (إمبراطوري)
    الوزن الصافي (رطل): 17.4
    الوزن الصافي بدون الحامل (رطل): 12.2
    الوزن الإجمالي (رطل): 22.6
  • WEIGHT (METRIC)
    الوزن الصافي (كجم): 7.9
    الوزن الصافي بدون الحامل (كجم): 5.5
    الوزن الإجمالي (كجم): 10.2
  • المقاسات (عرض × ارتفاع × عمق)
    العبوة (بوصة): 29.6 x 20.7 x 8
    الأبعاد الفعلية (بوصة): 26 x 17.5 x 9.4
    الأبعاد الفعلية بدون الحامل (بوصة): 26 x 16.2 x 2.3
  • المقاسات (متري) (عرض × ارتفاع × عمق)
    العبوة (مم): 753 x 525 x 204
    الأبعاد الفعلية (مم): 660 x 443 x 239
    الأبعاد الفعلية بدون الحامل (مم): 660 x 410 x 58
  • عام
    اللوائح التنظيمية: cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BIS
    محتويات العبوة: TD2760 x1, 3-pin Plug (IEC C13 / CEE22) x1, VGA Cable (Male-Male) x1, HDMI Cable (v1.4; Male-Male) x1, Audio Cable (Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, Quick Start Guide x1
    إعادة التدوير/التخلص: Please dispose of in accordance with local, state or federal laws.
    الضمان: *Warranty offered may differ from market to market
    إدارة الطاقة: Energy Star standards, EPEAT
