الميزات الرئيسية
  • SuperClear® VA panel
  • 100Hz Variable Refresh rate delivers fluid visuals
  • Eye-care technology for comfortable viewing
  • Various ViewMode color rendering options
  • HDMI and VGA Input for flexible connectivity

VA2201-H
المنتج وصف

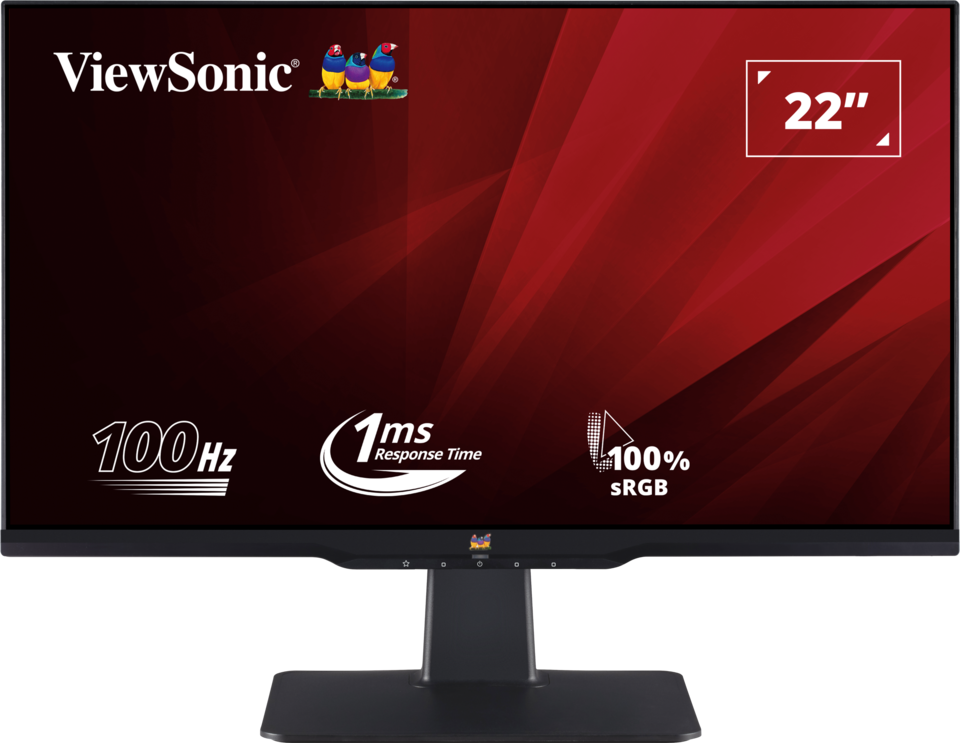

The ViewSonic VA2201-H is a 22” Full HD monitor featuring HDMI and VGA input for business or home usage. The optimal screen performance and comfortable viewing without tearing or stuttering is delivered through variable refresh rate, eye-care technology, and various ViewMode presets. Experience truly seamless multitasking on just one screen with a VESA-compatible mount at a low power consumption.
  1. Menu Control Panel
  2. VESA Compatible(Wall Mount 100 x 100mm)
  3. HDMI
  4. VGA
  5. DC in
تفضل بزيارة لنا
  • www.viewsonic.com
  • الشاشة
    حجم الشاشة (بوصة): 22
    Viewable Area (in.): 21.5
    Panel Type: VA Technology
    Resolution: 1920 x 1080
    Resolution Type: FHD (Full HD)
    Static Contrast Ratio: 3,000:1 (typ)
    Dynamic Contrast Ratio: 50M:1
    Light Source: LED
    السطوع: 250 cd/m² (typ)
    Colors: 16.7M
    Color Space Support: 8 bit true
    الابعاد المتزنة: 16:9
    Response Time (MPRT): 1ms
    زوايا النظر: 178º horizontal, 178º vertical
    عمر الإضاءة الخلفية (ساعات): 30000 Hrs (Min)
    انحناء: Flat
    Refresh Rate (Hz): 100
    Variable Refresh Rate Technology: Yes
    فلتر الضوء الأزرق: Yes
    Low Blue Light: Software solution
    Flicker-Free: Yes
    Color Gamut: NTSC: 72% size (Typ) sRGB: 104% size (Typ)
    Pixel Size: 0.249 mm (H) x 0.241 mm (V)
    Surface Treatment: Anti-Glare, Hard Coating (3H)
  • التوافق
    PC Resolution (max): 1920x1080
    Mac® Resolution (max): 1920x1080
    PC Operating System: Windows 10/11 certified; macOS tested
    Mac® Resolution (min): 1920x1080
  • موصل
    VGA: 1
    مخرج صوت 3.5 ملم: 1
    HDMI 1.4: 1
    Power in: DC Socket (Center Positive)
  • POWER
    Eco Mode (Conserve): 15W
    Eco Mode (optimized): 18W
    الاستهلاك (نموذجي): 22W
    الاستهلاك (الحد الأقصى): 24W
    Voltage: AC 100-240V
    Stand-by: 0.5W
    Power Supply: External Power Adaptor
  • أجهزة إضافية
    Kensington Lock Slot: 1
  • ادواة التحكم
    Physical Controls: Key 1 (favorite), Key 2, Key 3 (power), Key 4, Key 5
    On Screen Display: Input Select, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
  • OPERATING CONDITIONS
    Temperature: 32°F to 104°F (0°C to 40°C)
    Humidity (non-condensing): 20% to 90%
  • WALL MOUNT
    VESA Compatible: 100 x 100 mm
  • INPUT SIGNAL
    Frequency Horizontal: RGB Analog: 24 ~ 86KHz, HDMI (v1.4): 30 ~ 115KHz
    Frequency Vertical: RGB Analog: 48 ~ 75Hz, HDMI (v1.4): 48 ~ 100Hz
  • VIDEO INPUT
    مزامنة رقمية: TMDS - HDMI (v1.4)
    Analog Sync: Separate - RGB Analog
  • ERGONOMICS
    Tilt (Forward/Back): -3º / 20º
  • WEIGHT (IMPERIAL)
    Net (lbs): 5.3
    Net Without Stand (lbs): 4.9
    Gross (lbs): 7.7
  • WEIGHT (METRIC)
    Net (kg): 2.4
    Net Without Stand (kg): 2.2
    Gross (kg): 3.5
  • المقاسات (عرض × ارتفاع × عمق)
    Packaging (in.): 21.9 x 13.8 x 4.7
    Physical (in.): 19.4 x 14.4 x 6.5
    Physical Without Stand (in.): 19.4 x 11.3 x 1.6
  • المقاسات (متري) (عرض × ارتفاع × عمق)
    Packaging (mm): 555 x 350 x 120
    Physical (mm): 492 x 367 x 165
    Physical Without Stand (mm): 492 x 288 x 40
  • GENERAL
    PACKAGE CONTENTS: VA2201-H x1, HDMI Cable (v1.4; Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1
    Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
    Warranty: *Warranty offered may differ from market to market
