الميزات الرئيسية

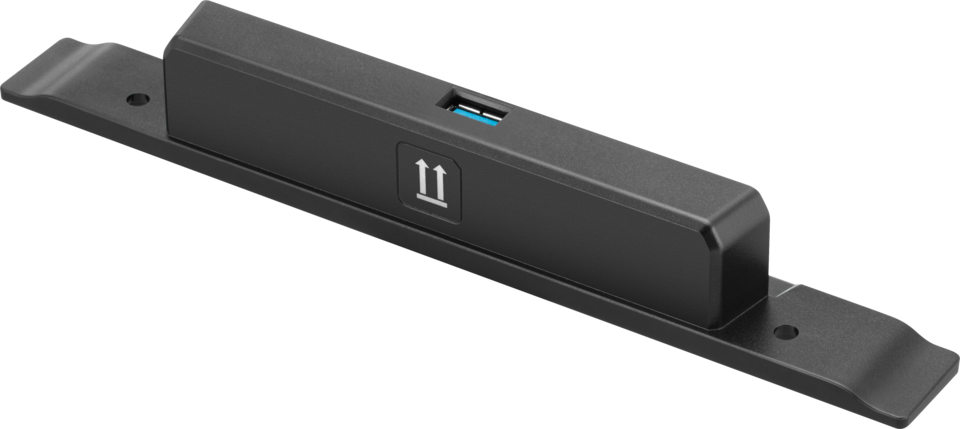

VB-WIFI-006
المنتج وصف
The ViewSonic® VB-WIFI-006 Wireless Module delivers a faster and more reliable wireless internet connection for ViewBoard and Presentation Display*. It supports tri-frequency bands—2.4GHz, 5GHz, and 6GHz—along with Wi-Fi 6E (802.11ax standard). Ideal for high-bandwidth applications such as video streaming, videoconferencing, and voice calls, it ensures each connected device performs at an optimal level.*Compatible with selected models, please check with your local sales representatives.
تفضل بزيارة لنا
  • www.viewsonic.com
  • معيار WIFI
    802.11a/b/g/n/ac/ax
  • تردد التشغيل
    WIFI: 2.4GHz & 5GHz & 6GHz
    BT: 2.4GHz AP: 2.4GHz & 5GHz
  • التضمين
    WiFi: 2.4G : 2412-2484MHz (18.98 dBm)
    5G : 5180-5825MHz (13.93dBm)
    6G : 5930-7110MHz (15 dBm)
    *The 6E frequency band varies based on the national regulations for open frequency bands.
    Bluetooth: Support 2.1/3.0/4.0/5.3 BLE
  • الطاقة
    المتطلبات: 5V/1A
    الاستهلاك: <5W
  • المقاس
    الأبعاد الفعلية: 224 (L) x 32 (H) x 25 (D) mm/ 8.82 (L) x 1.26 (H) x 0.98 (D) in
    العبوة: 447 (L) x 300 (H) x 382 (D) mm/ 17.6 (L) x 11.81 (H) x 15.04 (D) in
  • الوزن
    الوزن الصافي: 93g/ 0.21lb
    الوزن الإجمالي: 113g/ 0.25lb
  • ظروف التشغيل
    درجة الحرارة: 32°F to 104°F (0°C to 40°C)
    الرطوبة: 10% ~ 90% non-condensing
  • ظروف التخزين / الشحن
    درجة الحرارة: -4°F to 140°F (-20°C to 60°C)
    الرطوبة: 10% ~ 90% non-condensing
  • المطابقة
    NCC,RoHS, DoC
  • محتويات العبوة
    1. VB-WIFI-006
    2. QSG
