شاشات ال سي دي
VG2448
الميزات الرئيسية
- vDisplay Manager (free download)
- Narrow bezel
- HDMI, DisplayPort and VGA inputs
- SuperClear® IPS technology
- Versatile stand design
المنتج وصف

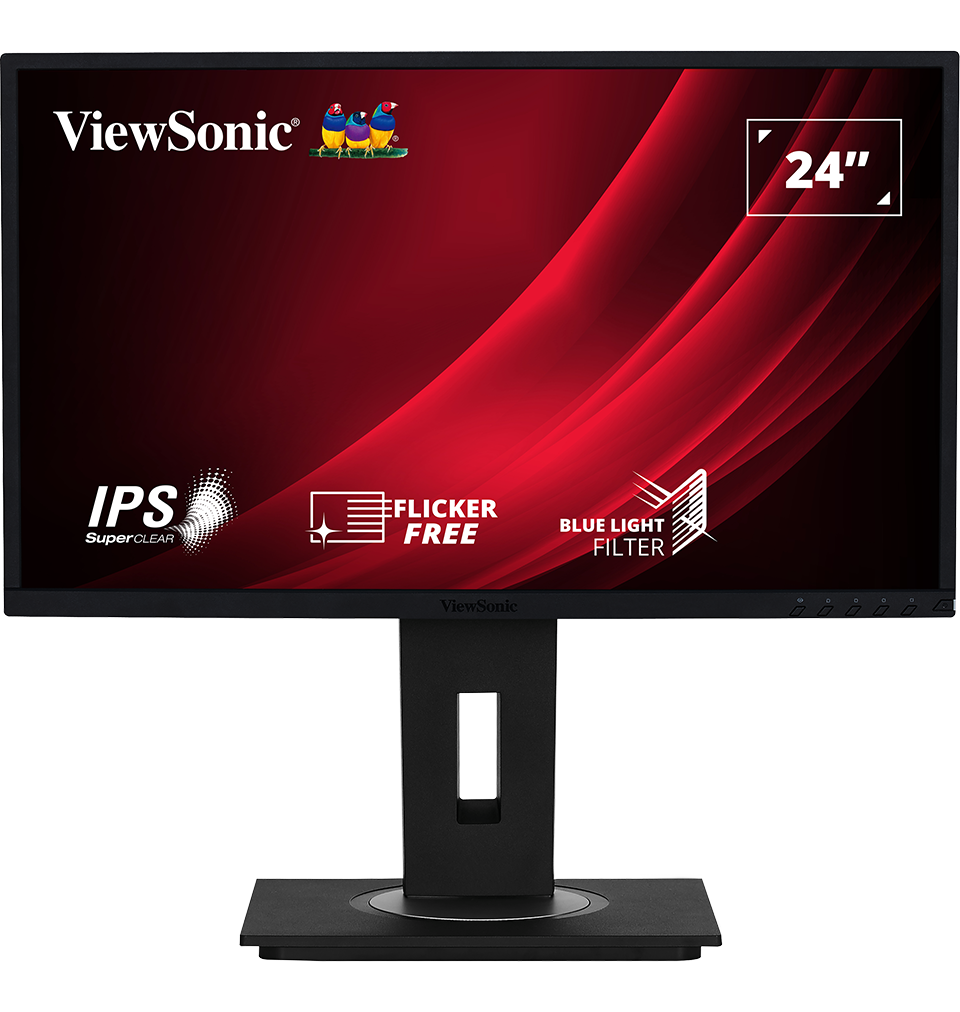

ViewSonic VG2448 is a 24” (23.8’’ viewable) 1080p monitor with productivity enhancing features including IPS technology and an advanced ergonomic design for the modern day office. Utilising SuperClear® IPS technology and 1080p resolution, VG2448 delivers a crisp, clear image from any viewing angle. An advanced ergonomic design offers the widest range of customisable adjustments currently available to provide maximum comfort, including dual direction pivot, swivel, height adjustment, and an impressive 40° tilt, which enables you to use the monitor while standing and to have strategic group discussions around the screen. VG2448 uses environmentally friendly packaging and offers quick and easy out-of-the-box set-up via the Quick Release stand. The cloud client mountable stand coupled with cable management design features, makes VG2448 perfect for deployment in cloud-based environments. Versatile connectivity options include HDMI, DisplayPort, VGA, and USB 3.2 inputs.

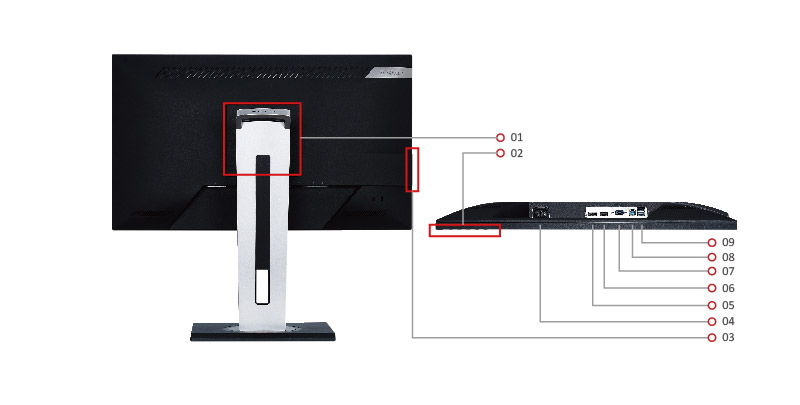

- VESA Compatible(Wall mount 100mm x 100mm)
- Menu Control Panel
- USB down stream x 2
- AC In
- DisplayPort
- HDMI
- VGA
- USB up stream
- USB down stream x 2
تفضل بزيارة لنا
- www.viewsonic.com
-
الشاشة
حجم الشاشة (بوصة): 24 Viewable Area (in.): 23.8 Panel Type: IPS Technology Resolution: 1920 x 1080 Resolution Type: FHD (Full HD) Static Contrast Ratio: 1,000:1 (typ) Dynamic Contrast Ratio: 50M:1 Light Source: LED السطوع: 250 cd/m² (typ) Colors: 16.7M Color Space Support: 8 bit (6 bit + Hi-FRC) الابعاد المتزنة: 16:9 Response Time (Typical GTG): 5ms Response Time (GTG w/OD): 5ms زوايا النظر: 178º horizontal, 178º vertical عمر الإضاءة الخلفية (ساعات): 30000 Hrs (Min) انحناء: Flat Refresh Rate (Hz): 60 فلتر الضوء الأزرق: Yes Low Blue Light: Software solution Flicker-Free: Yes Color Gamut: Adobe RGB: 77% size / 72% coverage (Typ) NTSC: 72% size (Typ) sRGB: 103% size / 92% coverage (Typ) Pixel Size: 0.275 mm (H) x 0.275 mm (V) Surface Treatment: Anti-Glare, Hard Coating (3H) -
التوافق
PC Resolution (max): 1920x1080 Mac® Resolution (max): 1920x1080 PC Operating System: Windows 7/8/8.1/10/11 certified; macOS tested Mac® Resolution (min): 1920x1080 -
موصل
VGA: 1 USB 3.2 Type A Down Stream: 4 USB 3.2 Type B Up Stream: 1 HDMI 1.4: 1 منفذ الشاشة: 1 Power in: 3-pin Socket (IEC C14 / CEE22) -
الصوت
Internal Speakers: 2Watts x2 -
POWER
Eco Mode (Conserve): 14.62W Eco Mode (optimized): 17.42W الاستهلاك (نموذجي): 20.82W الاستهلاك (الحد الأقصى): 25W Voltage: AC 100-240V Stand-by: 0.5W Power Supply: Internal Power Supply -
أجهزة إضافية
Kensington Lock Slot: 1 Cable Organization: Yes -
ادواة التحكم
Physical Controls: Key 1 (eye), Key 2, Key 3, Key 4, Key 5, Key 6 (power) On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu -
OPERATING CONDITIONS
Temperature: 32°F to 104°F (0°C to 40°C) Humidity (non-condensing): 20% to 90% -
WALL MOUNT
VESA Compatible: 100 x 100 mm -
INPUT SIGNAL
Frequency Horizontal: 24 ~ 82KHz Frequency Vertical: 50 ~ 75Hz -
VIDEO INPUT
مزامنة رقمية: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2) Analog Sync: Separate/Composite/SOG - RGB Analog -
ERGONOMICS
Height Adjust (mm): 130 Swivel: 120º Tilt (Forward/Back): -5º / 40º Pivot (Right/Left): 90º / 90º -
WEIGHT (IMPERIAL)
Net (lbs): 12.8 Net Without Stand (lbs): 7.6 Gross (lbs): 19.2 -
WEIGHT (METRIC)
Net (kg): 5.8 Net Without Stand (kg): 3.4 Gross (kg): 8.7 -

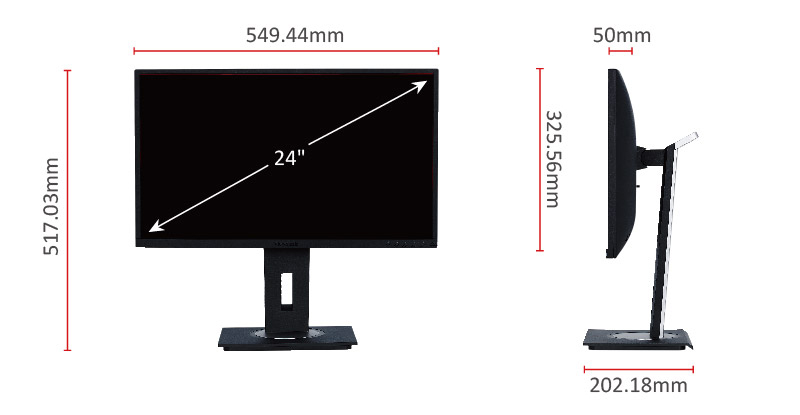

المقاسات (عرض × ارتفاع × عمق)
Packaging (in.): 23.8 x 15.2 x 8.3 Physical (in.): 21.6 x 15.24~20.37 x 8 Physical Without Stand (in.): 21.6 x 12.8 x 2 -
المقاسات (متري) (عرض × ارتفاع × عمق)
Packaging (mm): 604 x 385 x 210 Physical (mm): 549 x 387.03~517.03 x 202 Physical Without Stand (mm): 549 x 326 x 50 -
GENERAL
Regulations: cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS, VCCI, PSE, BIS, CCC, China RoHS, China Energy Label PACKAGE CONTENTS: VG2448 x1, 3-pin Plug (IEC C13 / CEE22) x1, DisplayPort Cable (v1.2; Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, Quick Start Guide x1 Recycle/Disposal: Please dispose of in accordance with local, state or federal laws. Warranty: *Warranty offered may differ from market to market Power Management: Energy Star standards, EPEAT
