الميزات الرئيسية
  • Bundled with myViewboard and vCast software
  • Powerful system with Intel® Core™ i5-8400 processor, 8GB DDR4 memory, and 128GB SSD storage
  • Complete network support, including dual-band Wi-Fi, Bluetooth, and Gigabit LAN RJ45

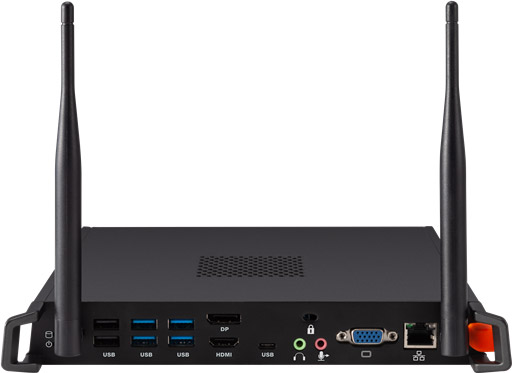

VPC15-WP-3
المنتج وصف
The ViewSonic® VPC15-WP-3 Windows slot-in PC is the ideal integrated solution for the ViewBoard® interactive flat panel IFP50 series. This slot-in PC module supports high-definition audio and video, and is bundled with myViewboard and vCast software. Wired connectivity options, including 4K HDMI, VGA, USB 3.0, and Gigabit LAN RJ45, ensure that you stay connected to your peripheral devices. With dual-band Wi-Fi and Bluetooth, a powerful Intel® Core™ i5 processor, 8GB DDR4 memory, and 128GB SSD storage, the VPC15-WP-3 contains the computing power needed to operate CPU intensive applications.
تفضل بزيارة لنا
  • www.viewsonic.com
  • النواة
    وحدة المعالجة المركزية: Intel 8th Gen. Coffee Lake series i5-8400
    الرسومات: Intel® UHD Graphics 630
    Total Available Graphics Memory: 64GB
    Max Resolution up to 4096x2304@60Hz
  • الذاكرة
    النوع: 260-pin DDR4 SO-DIMM x 2
    القدرة: 8GB
  • البرامج
    نظام التشغيل: Windows 10 Pro 64 bit
  • التخزين
    المقاس: M.2 -2242(22 x 42 mm) / 2280(22 x 80 mm)
    القدرة: 128GB SSD
    الواجهة: M.2 -2242/2280
  • الإدخال
    MIC (الميكروفون): x1
  • الإخراج
    RGB / VGA: x1
    منفذ الشاشة: x1 (max. resolution 4096x2304@60Hz)
    HDMI: x1 (max. resolution 3840x2160@24Hz)
    الصوت: x1 Earphone Out
  • LAN
    RJ45: 1 x RTL8111(Gigabit)
  • لاسلكي / BLUETOOTH
    لاسلكي / Bluetooth: Intel 3165
    802.11 a/b/g/n/ac (2.4GHz/5GHz) / BT4.2 ; BLE
  • USB
    Type A: USB 3.0 x 4, USB 2.0 x 2
  • تنسيقات الوسائط المدعومة
    تنسيق الفيديو: Container: ASF, WMA, WMV, WM, ASX, WAX, WVX , WMX, WPL, WMD, AVI, MPG, MPEG, M1V, MP2, MP3, MPA, MPE, M3U
    تنسيق الصورة: Container: JPG, JPEG, JPE, JFIF, BMP, , DIB, PNG, GIF, TIF, TIFF
    ترميز الصوت: Container: MID, MIDI, RMI, AIF, AIFC, AIFF, WAV, CDA
  • حزمة البرامج
    حزمة البرامج: myViewBoard for windows,
    vCast for Windows
  • الطاقة
    الجهد: AC 110-240V 50 / 60Hz
    الاستهلاك: 95W
  • ظروف التشغيل
    درجة الحرارة (º م): -5°C to 45°C
    الرطوبة: 10% ~ 90% @ 40°C Non-condensing.
  • المقاسات (العرض × الارتفاع × العمق)
    الأبعاد الفعلية (بوصة / مم): 246.2*265.4*32.2mm
    العبوة (بوصة / مم): 350*310*90mm (1pc)
    495*370*340mm (5pcs)
  • الوزن
    الوزن الصافي (رطل / كجم): 4.3lb / 1.95kg
    الوزن الإجمالي (رطل / كجم): 4.63lb / 2.1kg
  • اللوائح التنظيمية
    اللوائح التنظيمية: CE, R&TTE, FCC, FCC-IC-ID, cTUVus, , RCM, BSMI, NCC (TBD)
  • محتويات العبوة
    محتويات العبوة: 1. VPC15-WP
    2. ViewSonic Wizard CD
    3. QSG
