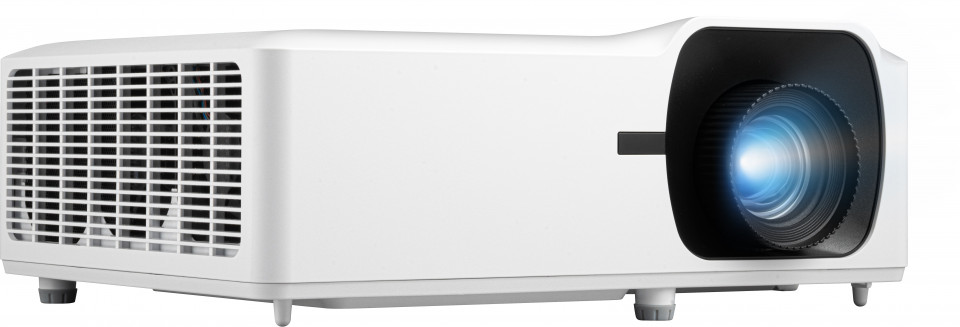

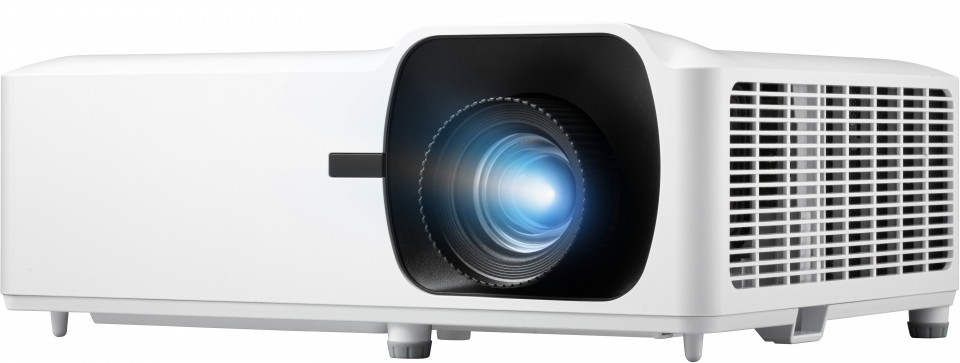

LS751HD

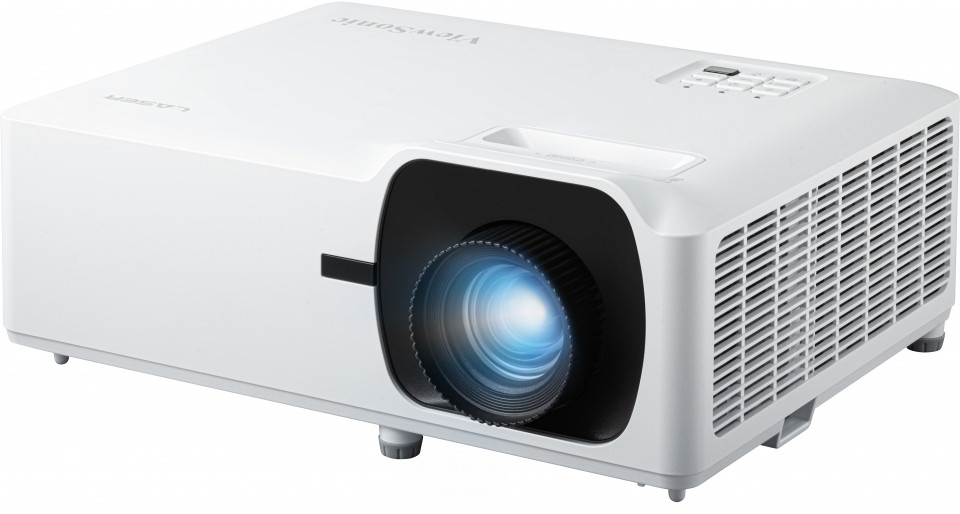

5,000 ANSI Lumens 1080p Laser Installation Projector

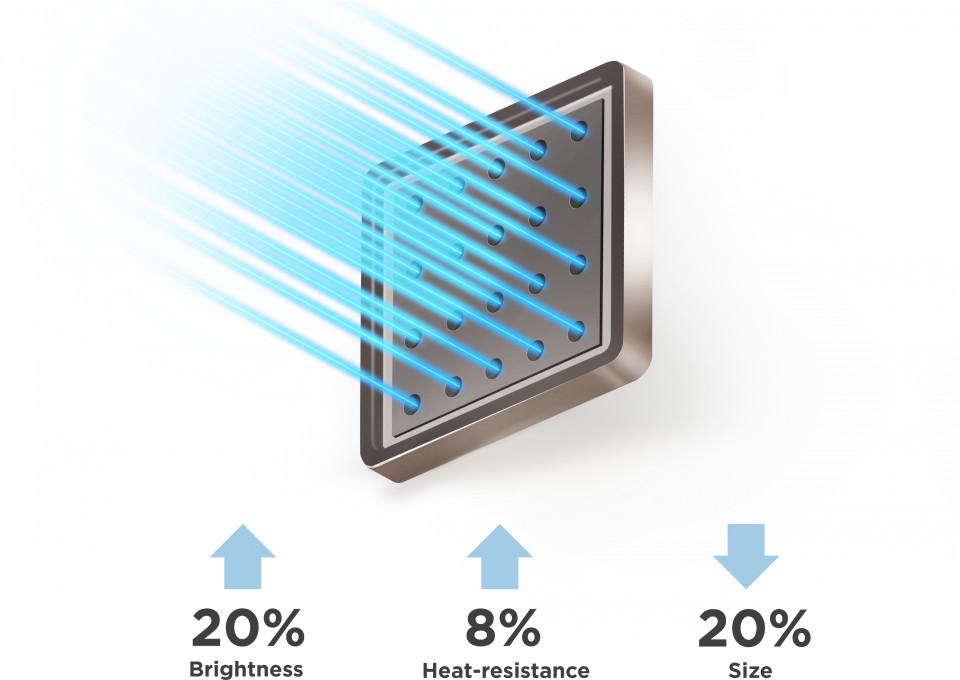

- 2nd generation laser phosphor technology with up to 30,000 hours lifespan

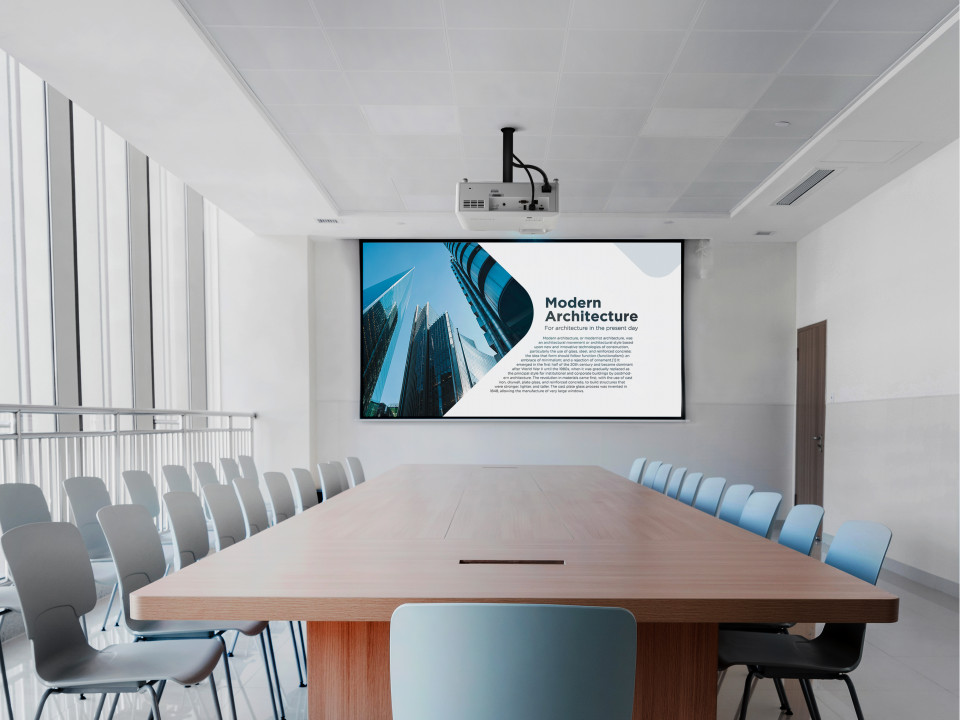

- 5,000 ANSI Lumens offering bright images in any environment
- Up to 300" ultra large screen with lower cost-per-inch

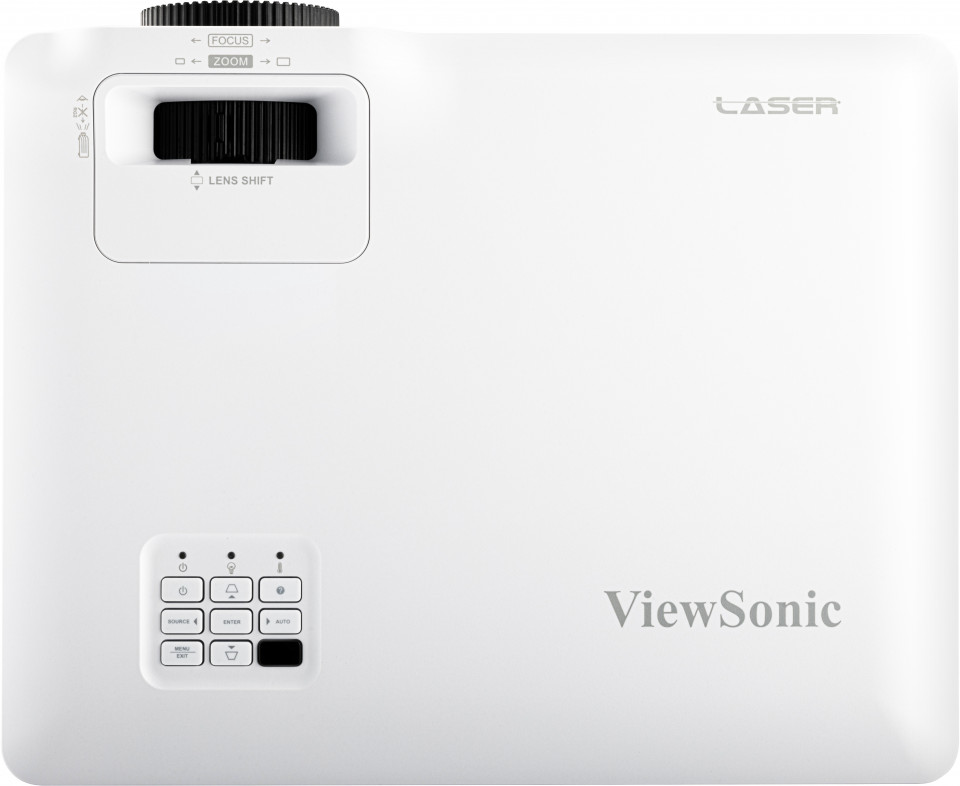

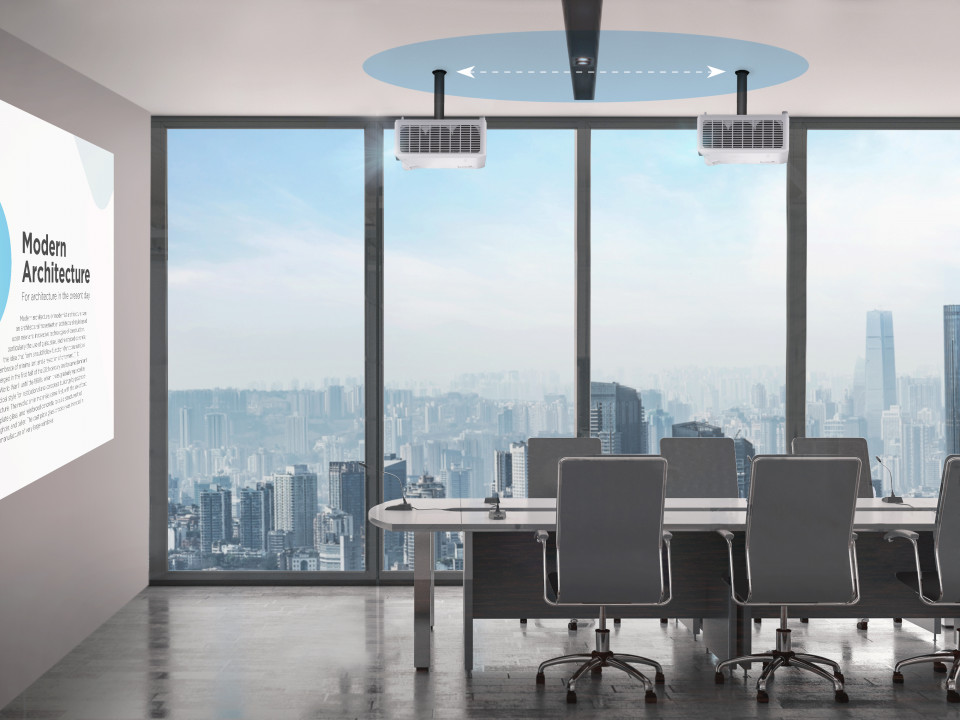

- Installation flexibility: V lens shift, 1.6x optical zoom, H/V keystone
- Versatile application: 360° projection, portrait mode

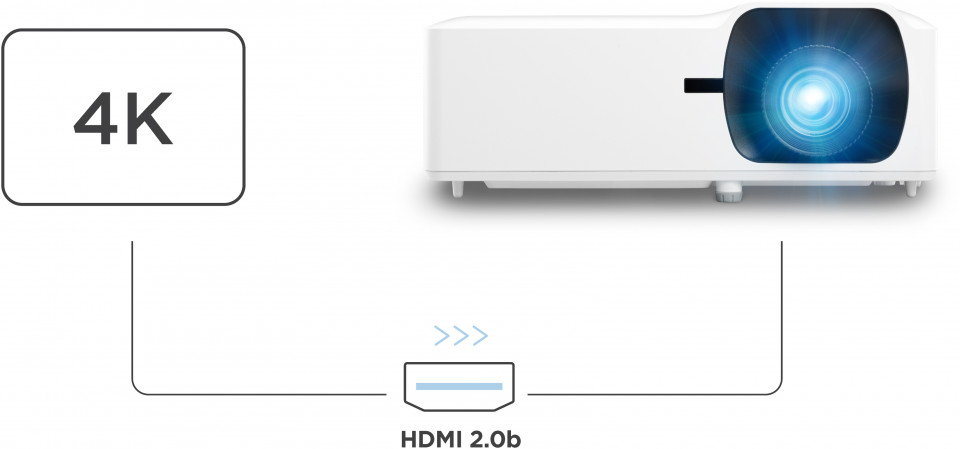

- HDMI 2.0b for accessibility of 4K contents with HDR/HLG support
SPECIFICATIONS
- SpecificationProjection System: 0.65" 1080p
Native Resolution: 1920x1080
Brightness: 5000 (ANSI Lumens)
Brightness (Center Lumens): 5500
Contrast Ratio: 3000000:1
Display Color: 1.07 Billion Colors
Light Source Type: Laser Phosphor
Light Source Life (hours) with Normal Mode: 20000
Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
Lens: F=2.5-3.26, f=20.911-32.62mm
Projection Offset: 136%+/-5%
Throw Ratio: 1.4-2.24
Optical Zoom: 1.6X
Digital Zoom: 0.8x-2.0x
Image Size: 30"-300"
Throw Distance: 0.93-14.88m
(100"@3.10m)

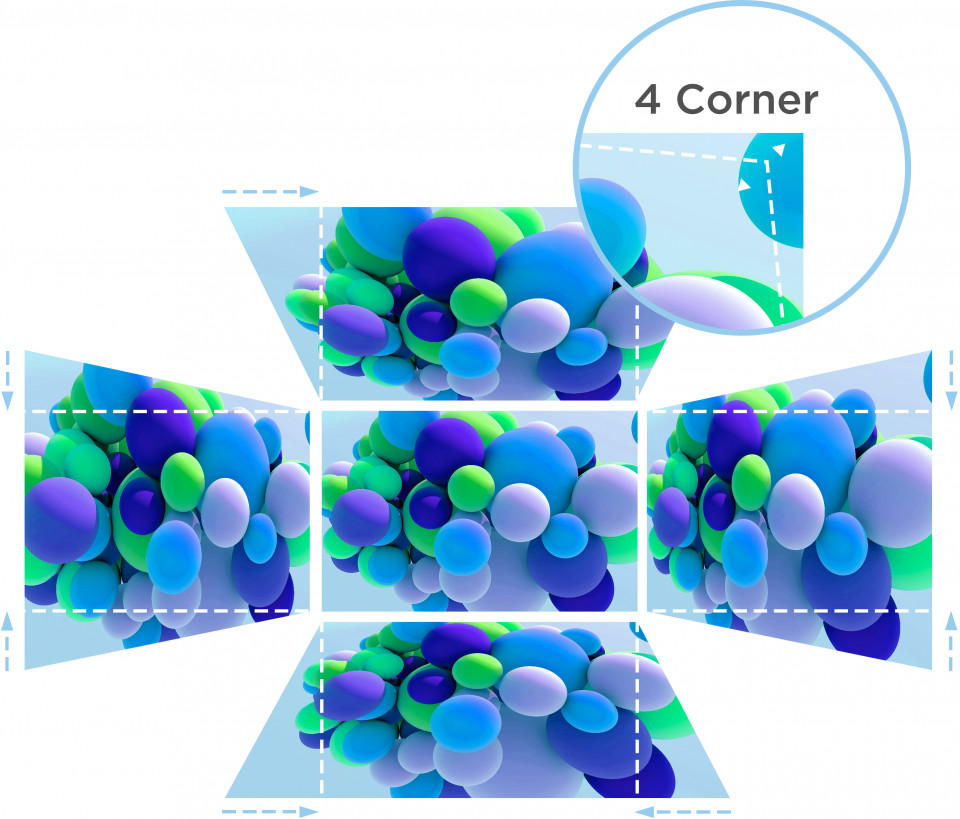

Keystone: H:+/-30° , V:+/-30°

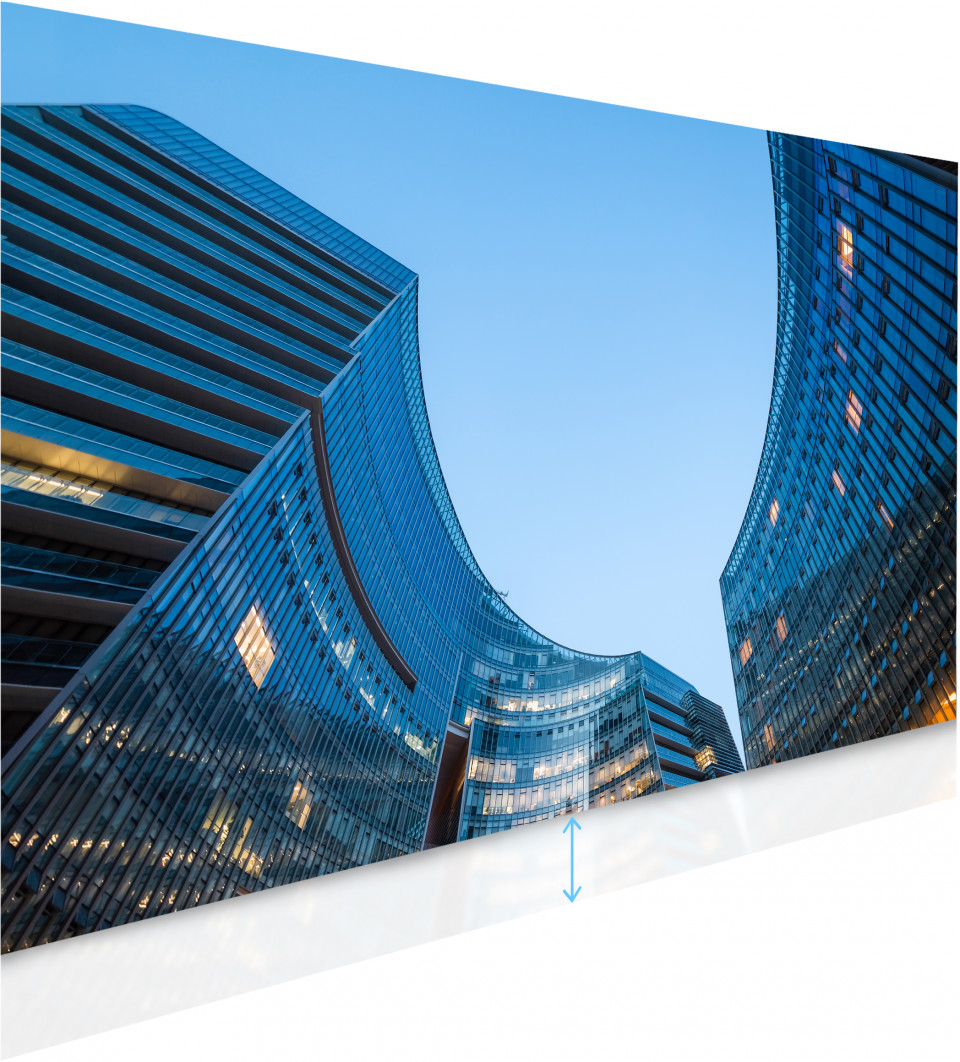

Lens Shift V. Range: +0%, -18%
Audible Noise (Normal): 32dB
Audible Noise (Eco): 29dB
Input Lag: 49.9ms
Resolution Support: VGA(640 x 480) to 4K UHD(3840 x 2160)
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K UHD
Horizontal Frequency: 15K-102KHz

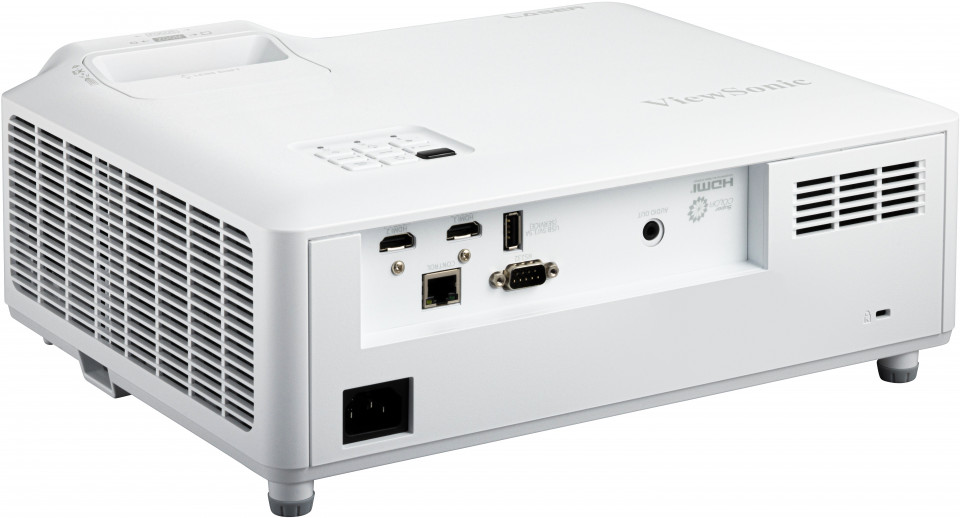

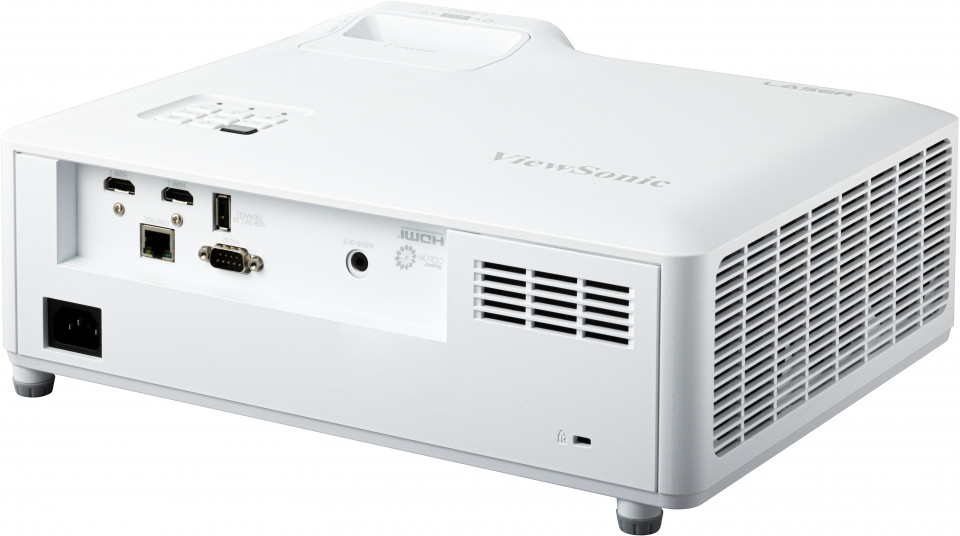

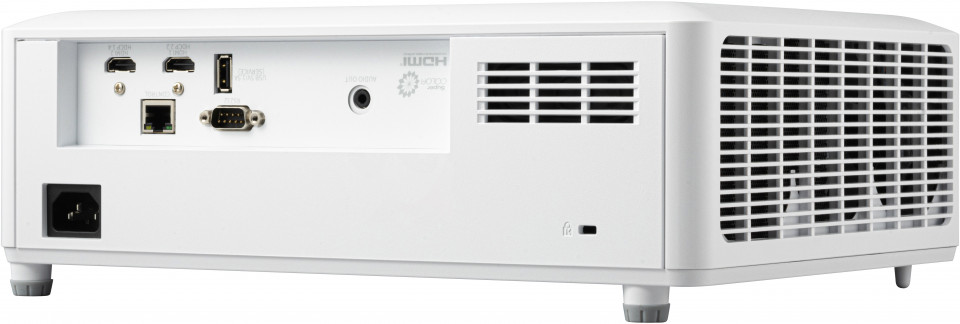

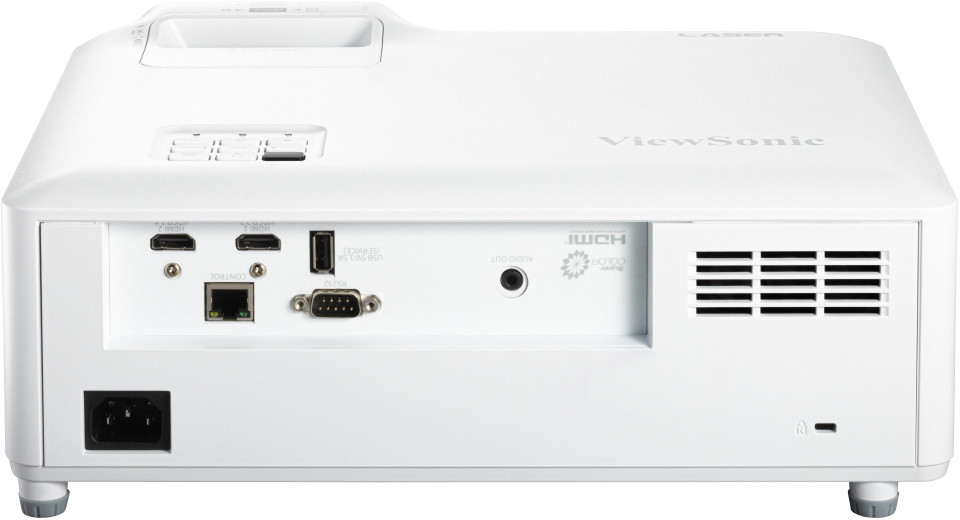

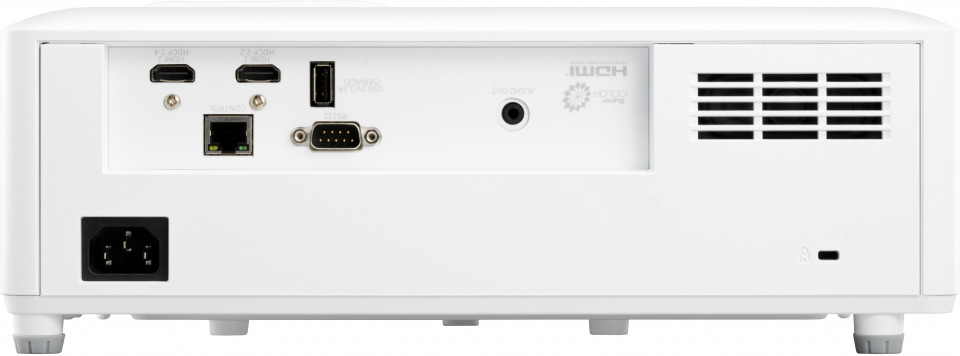

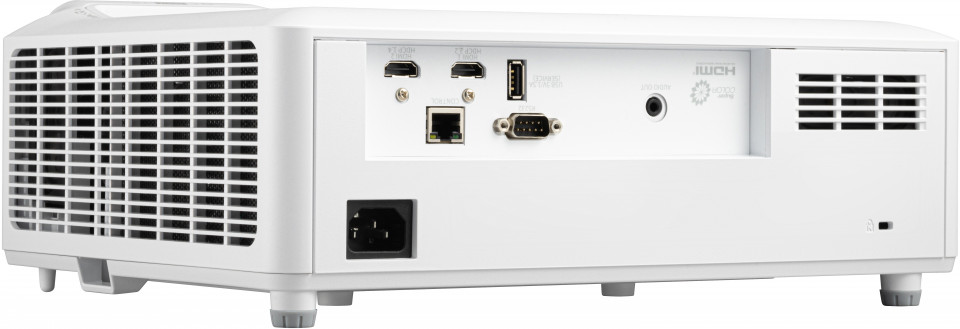

Vertical Scan Rate: 23-120Hz - InputHDMI: 2
(HDMI 2.0/ HDCP 2.2
HDMI 1.4/ HDCP 1.4) - OutputAudio-out (3.5mm): 1
Speaker: 15W x2
USB Type A (Power): 1 (5V/1.5A)
- ControlRS232 (DB 9-pin male): 1

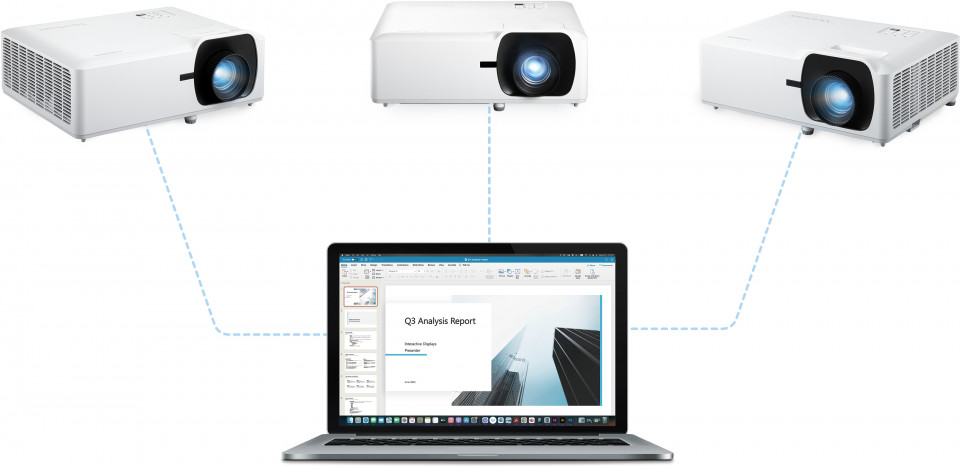

RJ45 (LAN control): 1

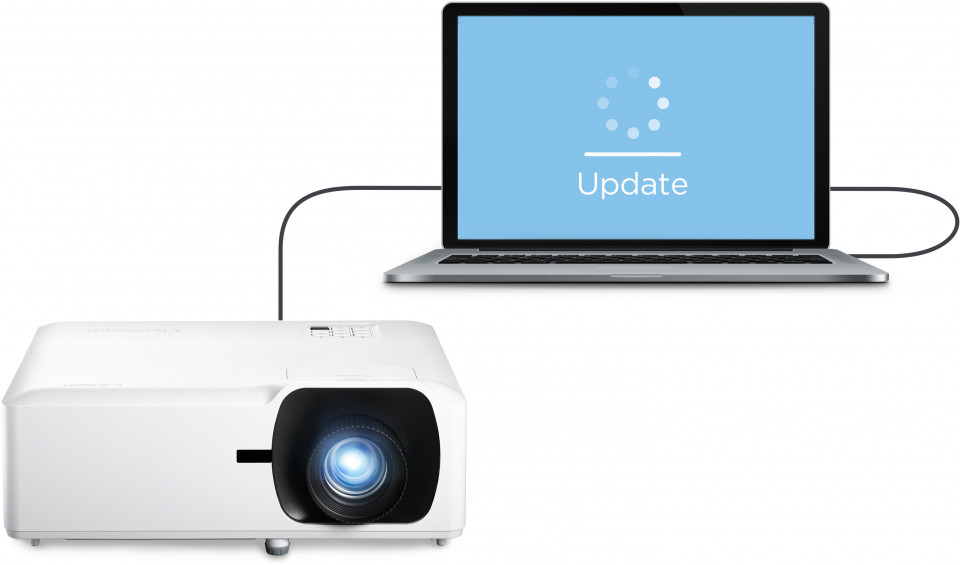

USB Type A (Services): 1
(share with USB A Output) - OthersPower Supply Voltage: 100-240V+/- 10%, 50/60Hz
(AC in)
Power Consumption: Normal: 245W
Standby: <0.5W
Operating Temperature: 0~40℃
Carton: Brown
Net Weight: 4.5kg
Gross Weight: 6.6kg
Dimensions (WxDxH) with Adjustment Foot: 337x265x131.5mm
Packing Dimensions: 496x195x387mm
OSD Language: English, French, German, Spanish, Italian, Portuguese, Dutch, Swedish, Finnish, Greek, Norwegian/Danish, Polish, Russian, Simplified_Chinese, Traditional_Chinese, Korean, Arabic, Japanese, Thai, Hungarian, Czechoslovak,
Turkish, Farsi. Vietnamese, Indonesian, Romanian, Slovakian, total 27 languages
User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages - Standard AccessoryPower Cord: 1

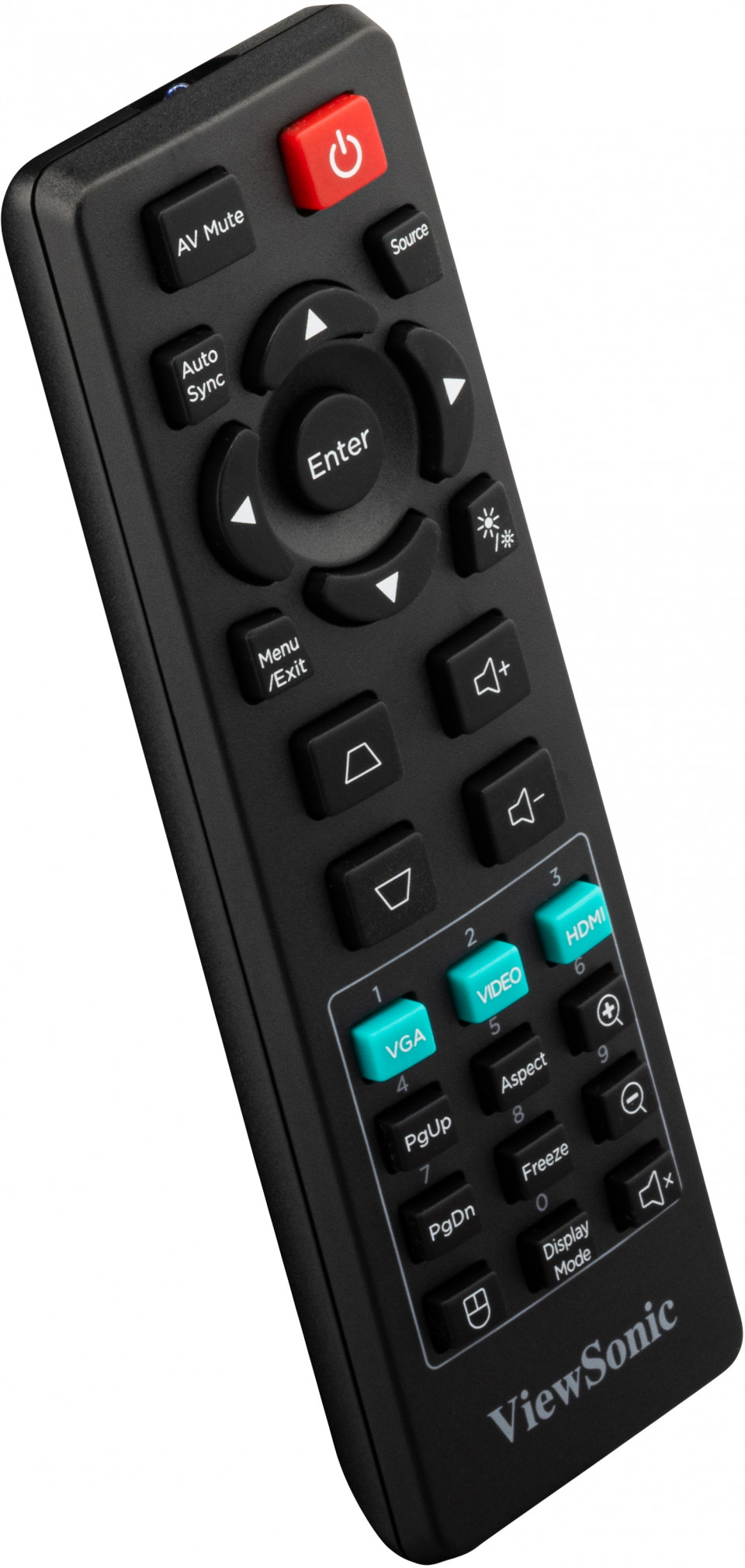

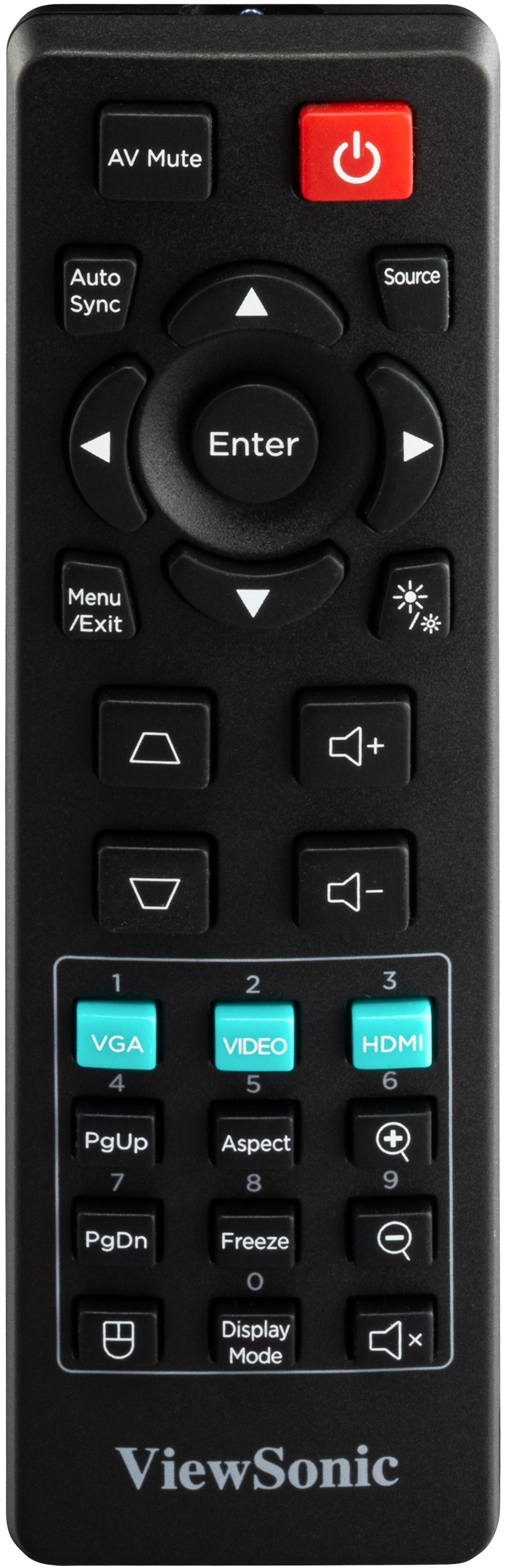

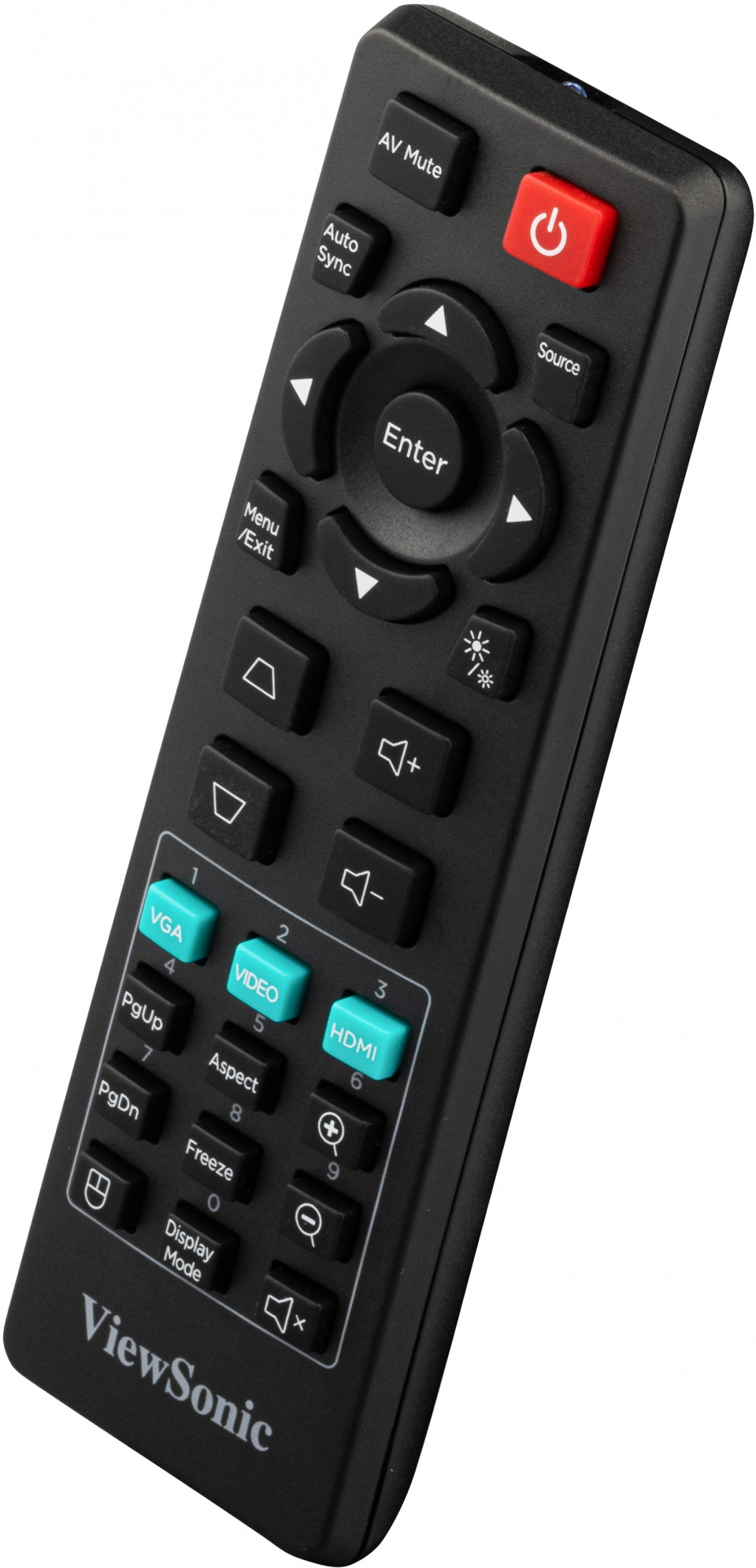

Remote Control: 1
QSG: Yes
Warranty Card: Yes (CN Only) - Optional AccessoryWall/Ceiling Mount: PJ-WMK-007
