Archived

VG2239m-LED

22" Ergonomic LED Monitor, Wide Screen with DisplayPort Input

LCD
Type: 56cm / 22” (55cm / 21.5” viewable) wide
Display Area: 21.5 inch
Optimum Resolution: 1920x1080
Contrast Ratio: 1000 :1 (typical), 20,000,000:1 (DCR)
Brightness: 250 cd/m² (typ)
Viewing Angles: 170º horizontal, 160º vertical
Response Time: 5ms
Panel Surface: Anti-glare, hard-coating (3H)
Light Source: 30,000 hours (min.)
Video Input
Analog: RGB analogue (75 Ω, 0.7 / 1.0 Vp-p)
Digital: DVI-D (TMDS, 100Ω), Display Port
Frequency: Fh: 24-82KHz; Fv: 50-75Hz
Sync: H/V separated (TTL)
Compatibility
PC: VGA up to 1920 x 1080 @ 60Hz (preferred)
Mac: Power Mac (up to 1920 x 1080)

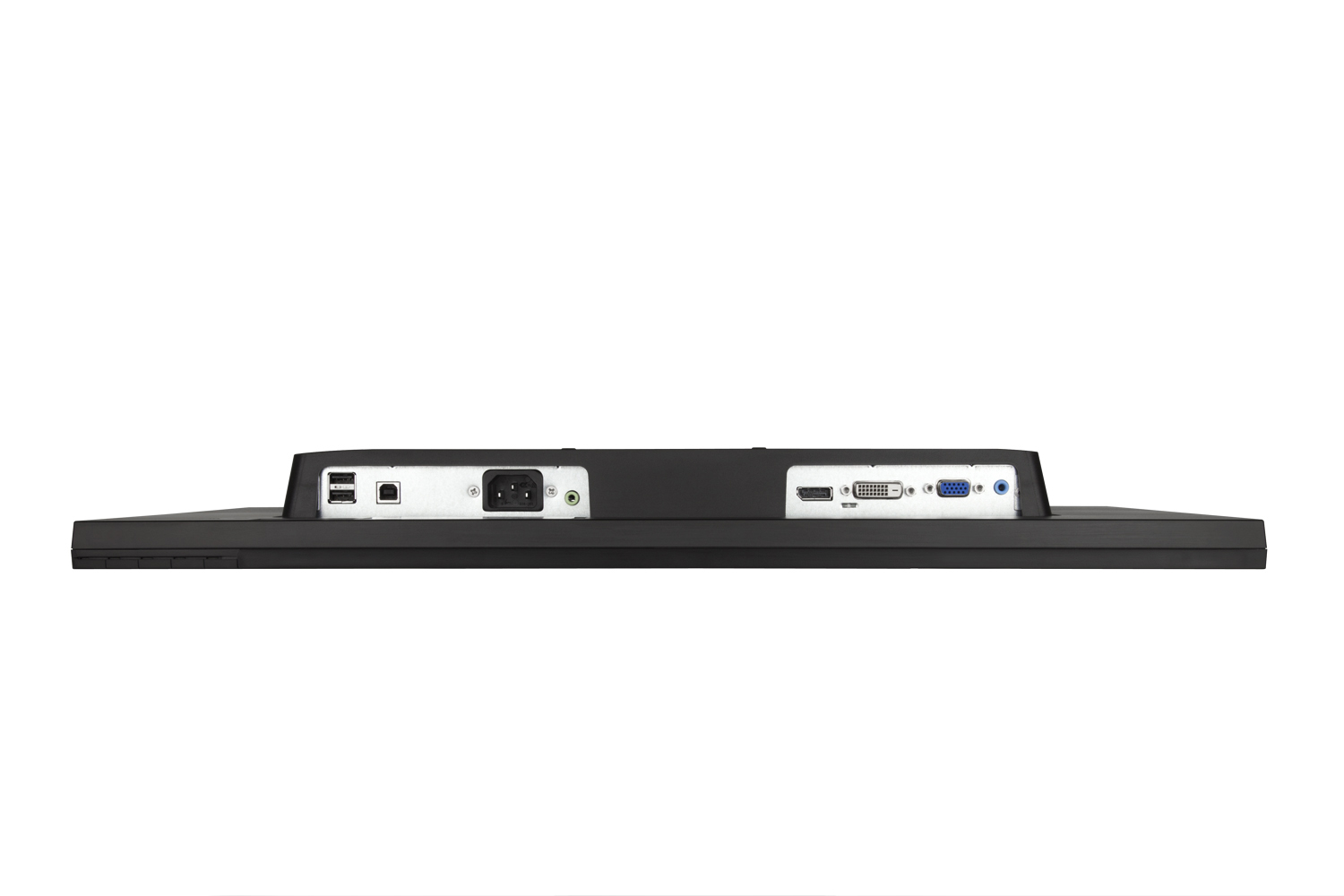

Connector
Analog: 15-pin mini D-sub (VGA)
Digital: DVI-D (with HDCP), DisplayPort
USB: x 2 (V2,0, 1-up / 2-down)
Audio: Out: 3.5mm Headphones; In:3.5mm
Power: Internal Power Board, 3-pin plug (CEE22)
Audio
Speakers: 2 watt (x2)
Power
Voltage: AC 100–240V (universal), +/-10% Wide Range
Consumption: 24W (Typ.); Optimize: 19W (Typ.); Off/Standby <= 0.5W
Controls
Basic: Power, 1, down, up, 2
OSD:
Auto Image Adjust, Contrast/Brightness, Input Select, DisplayPort, Audio Adjust, Audio Input, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
Operating Conditions
Temperature: 32° F to 104° F (0° C to 40° C)
Humidity: 10% to 90% (non-condensing)
Dimensions
Physical: 512.4mm (width) x 418mm (height) x 239.6mm (depth)
Weight
Net: 4.7 kg

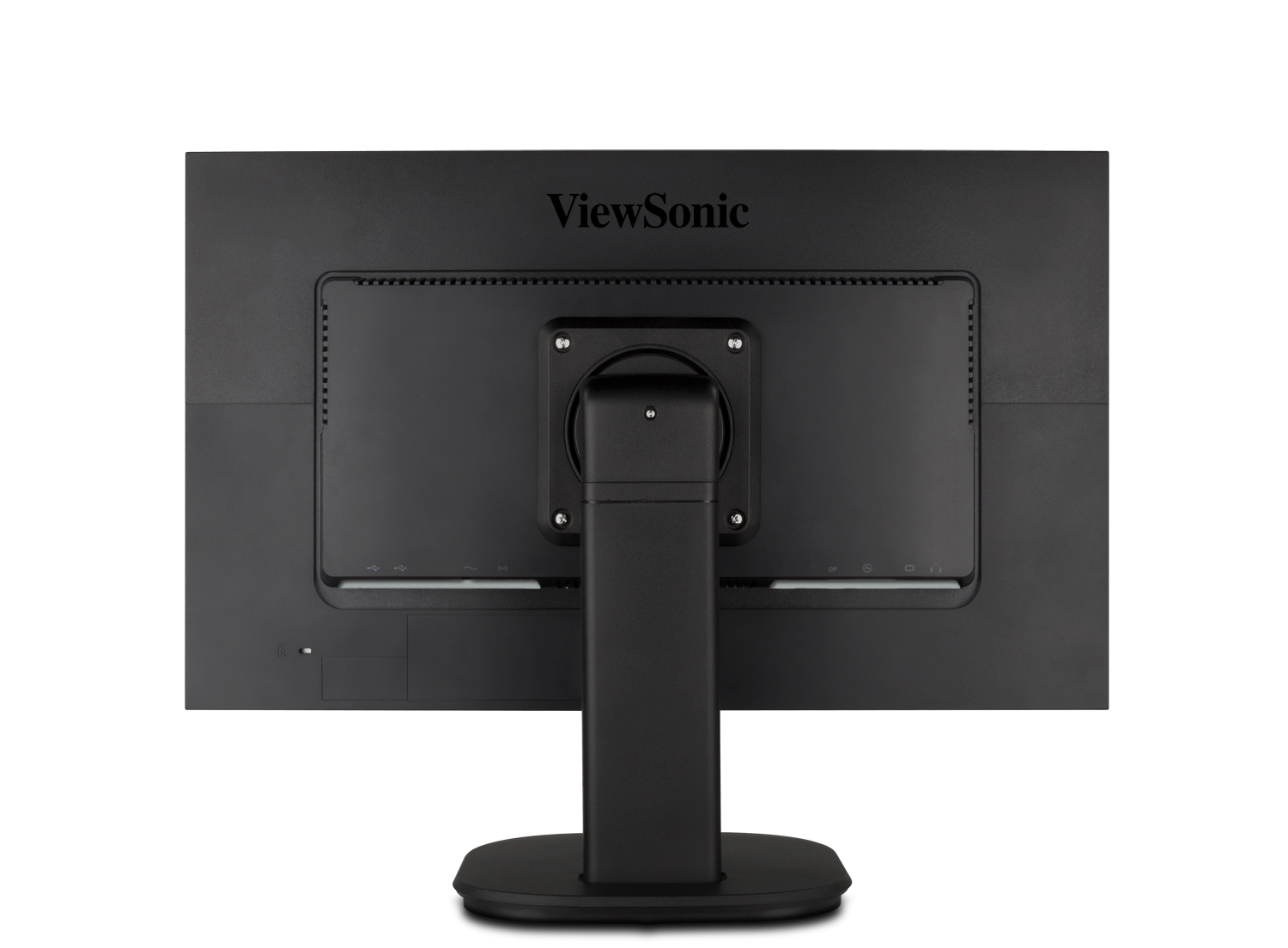

Wall Mount
VESA® 100x100 mm
