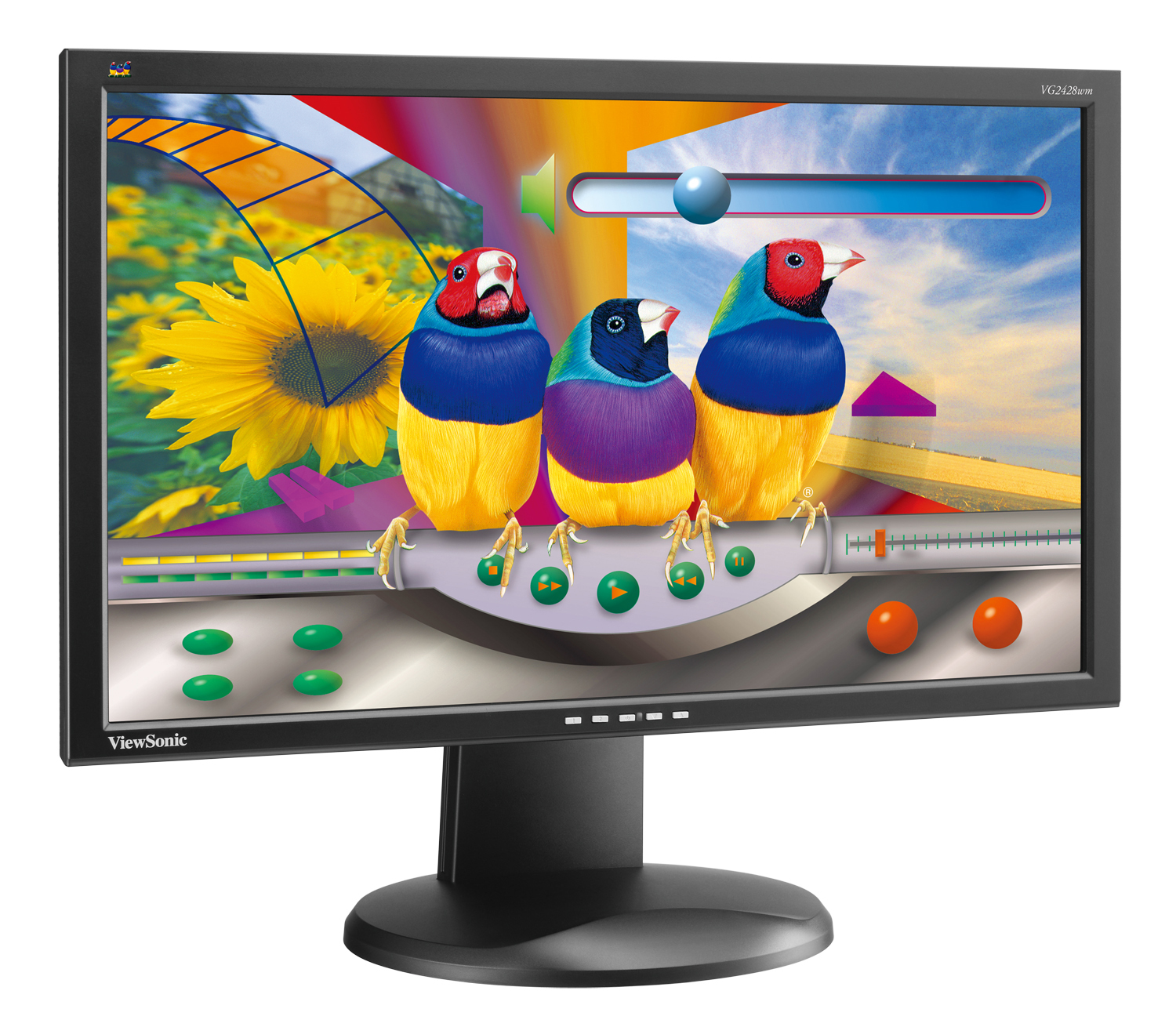

VG2428wm

- 24" (23.6" VIEWABLE) WIDESCREEN LCD

LCD
Type: 23.6" wide Color TFT Active Matrix LCD with 16:9 aspect ratio
Display Area: 23.6 inch
Optimum Resolution: 1920x1080
Contrast Ratio: 1000 :1 (typical), 100,000:1 (DCR)
Brightness: 300 cd/m² (typ)
Viewing Angles: 170°(H), 160°(V)
Response Time: 5ms
Panel Surface: Anti-Glare, hard coating
Video Input
Analog: RGB Analogue (75 ohms, 0.7/1.0 Vp-p)
Digital: DVI-D(TMDS, 100ohms)
Frequency: Fh: 22-82KHz; Fv: 50-75Hz
Sync: H/V Separated
Compatibility
PC: VGA up to 1920Ã—1080 non-interlaced
Mac: Power Mac, up to 1920Ã—1080

Connector
Analog: 15 pin mini D-subÃ—1
Digital: DVI-D
USB: 2.0x2(2 down stream/1 up stream)
Audio: 3.5 mm Audio in
Power: Built-in power Adapter, 3-Pin plug
Audio
Speakers: 2x2 watt
Power
Voltage: AC 100-240V(Universal); 50/60Hz(Switch)
Consumption: 45(typ.)
Controls
Basic: Power, Mute,[1], Up, Down, [2]
OSD:
Auto image adjust, Contrast/Brightness, Audio adjust: Volume, mute, Color adjust: sRGB, 9300K, 7500K, 6500K, 5000K, user color [R, G, B] Information, Manual image adjust: H/V position, Horizontal size, fine tune, sharpness, dynamic contrast, aspect ratio, Eco mode, Setup menu: Language select, resolution notice, OSD position, OSD timeout, OSD background, sleep, memory recall
Operating Conditions
Temperature: 0-40Â°C(32-104Â°F)
Humidity: 20-90%(Non condensed)
Dimensions
Physical: 564mm (width) x 442mm (height) x 250mm (depth)
Weight
Net: 9.6 kg
Wall Mount
100mm x 100mm
