LCD Display

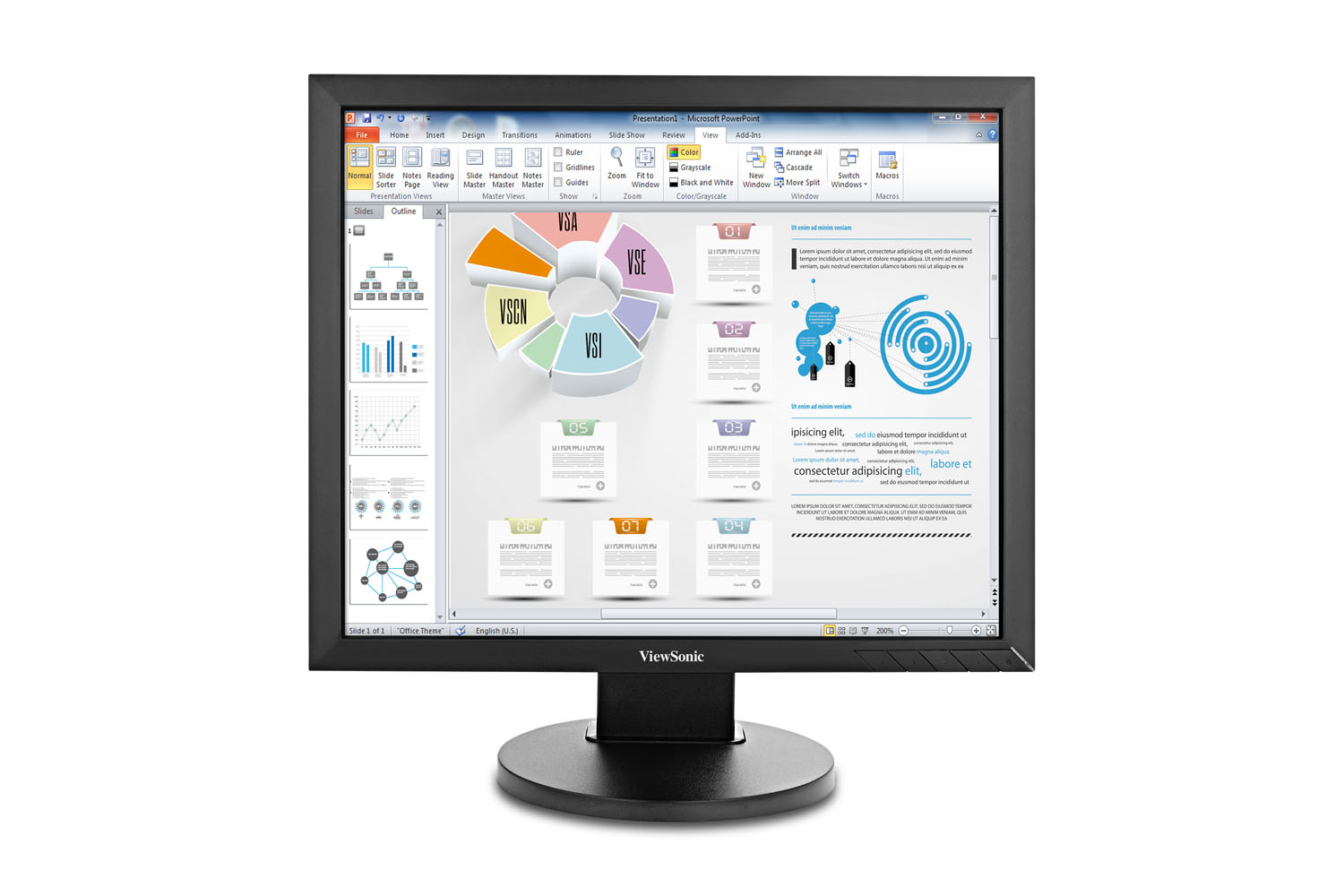

VG939Sm
Key Features
Product Description
The ViewSonic VG939Sm 19’’ ergonomic LED display with 5:4 aspect ratio is a smart investment for legacy or customized applications for corporate, government, educational and other vertical markets. Featuring SuperClear® technology (IPS panel), crystal-clear 1280 x 1024 resolution, 20,000,000:1 DCR and dual stereo speakers, the VG939Sm displays sharp, true and consistent colour performance at 178°/178° wide viewing angles with high-quality sound effects. ViewMode delivers optimized colour rendering for different viewing scenarios, while DVI and D-Sub inputs offer easy connectivity to desktops, laptops and other content sources. In addition to fully ergonomic stand adjustment, the VG939Sm features Flicker-Free and Blue Light Filter eye-care technologies to create a worker-friendly environment that builds up a comfortable working environment and reduces eye strain from daily, long-duration use. Energy-cost friendly, the VG939Sm has a built-in ECO mode that cuts power consumption by up to 50%, and Energy Star certification. A VESA-compliant mount also provides more flexible installation for use in your organization.
Visit Us
- www.viewsonic.com
-
DISPLAY
Display Size (in.): 19 Viewable Area (in.): 18.9 Panel Type: IPS Technology Resolution: 1280 x 1024 Resolution Type: SXGA (Super XGA) Static Contrast Ratio: 1,000:1 (typ) Dynamic Contrast Ratio: 20M:1 Light Source: LED Brightness: 250 cd/m² (typ) Colors: 16.7M Color Space Support: 8 bit (6 bit + Hi-FRC) Aspect Ratio: 5:4 Response Time (Typical GTG): 14ms Response Time (GTG w/OD): 14ms Response Time (Typical Tr+Tf): 16ms Viewing Angles: 178º horizontal, 178º vertical Backlight Life (Hours): 30000 Hrs (Min) Glass Hardness: 3H Curvature: Flat Refresh Rate (Hz): 75 Low Blue Light: Software solution Flicker-Free: Yes Color Gamut: NTSC: 72% size (Typ) sRGB: 103% size (Typ) Pixel Size: 0.293 mm (H) x 0.293 mm (V) -
COMPATIBILITY
PC Resolution (max): 1280x1024 Mac® Resolution (max): 1280x1024 PC Operating System: Windows 7/8 certified; macOS tested Mac® Resolution (min): 1280x1024 -
CONNECTOR
VGA: 1 USB 2.0 Type A: 2 USB 2.0 Type B: 1 3.5mm Audio In: 1 3.5mm Audio Out: 1 DVI-D: 1 Power in: 3-pin Socket (IEC C14 / CEE22) -
POWER
Eco Mode (Conserve): 15W Eco Mode (optimized): 16W Consumption (typical): 18W Consumption (max): 20W Voltage: AC 100-240V Stand-by: 0.5W Power Supply: Internal Power Supply -
ADDITIONAL HARDWARE
Kensington Lock Slot: 1 -
CONTROLS
Physical Controls: 1, 2, Up, Down, Power On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall -
OPERATING CONDITIONS
Temperature: 32°F to 104°F (0°C to 40°C) Humidity (non-condensing): 20% to 90% -
WALL MOUNT
VESA Compatible: 100 x 100 mm -
INPUT SIGNAL
Frequency Horizontal: 24 ~ 82KHz Frequency Vertical: 50 ~ 75Hz -
VIDEO INPUT
Digital Sync: TMDS - DVI-D Analog Sync: Separate - RGB Analog -
ERGONOMICS
Height Adjust (mm): 100 Tilt (Forward/Back): -5º / 25º -
WEIGHT (IMPERIAL)
Net (lbs): 9.5 Net Without Stand (lbs): 6.1 Gross (lbs): 13.3 -
WEIGHT (METRIC)
Net (kg): 4.3 Net Without Stand (kg): 2.8 Gross (kg): 6 -
DIMENSIONS (IMPERIAL) (WXHXD)
Packaging (in.): 19 x 16.5 x 6.7 Physical (in.): 16.4 x 14.8~18.74 x 8 Physical Without Stand (in.): 16.4 x 13.4 x 2.2 -
DIMENSIONS (METRIC) (WXHXD)
Packaging (mm): 483 x 419 x 170 Physical (mm): 416 x 376~476 x 204 Physical Without Stand (mm): 416 x 341 x 55 -
GENERAL
PACKAGE CONTENTS: VG939SM x1, 3-pin Plug (IEC C13 / CEE22) x1, VGA Cable (Male-Male) x1, USB A/B Cable (v2.0; Male-Male) x1, Audio Cable (Male-Male) x1, Quick Start Guide x1 Recycle/Disposal: Please dispose of in accordance with local, state or federal laws. Warranty: *Warranty offered may differ from market to market
