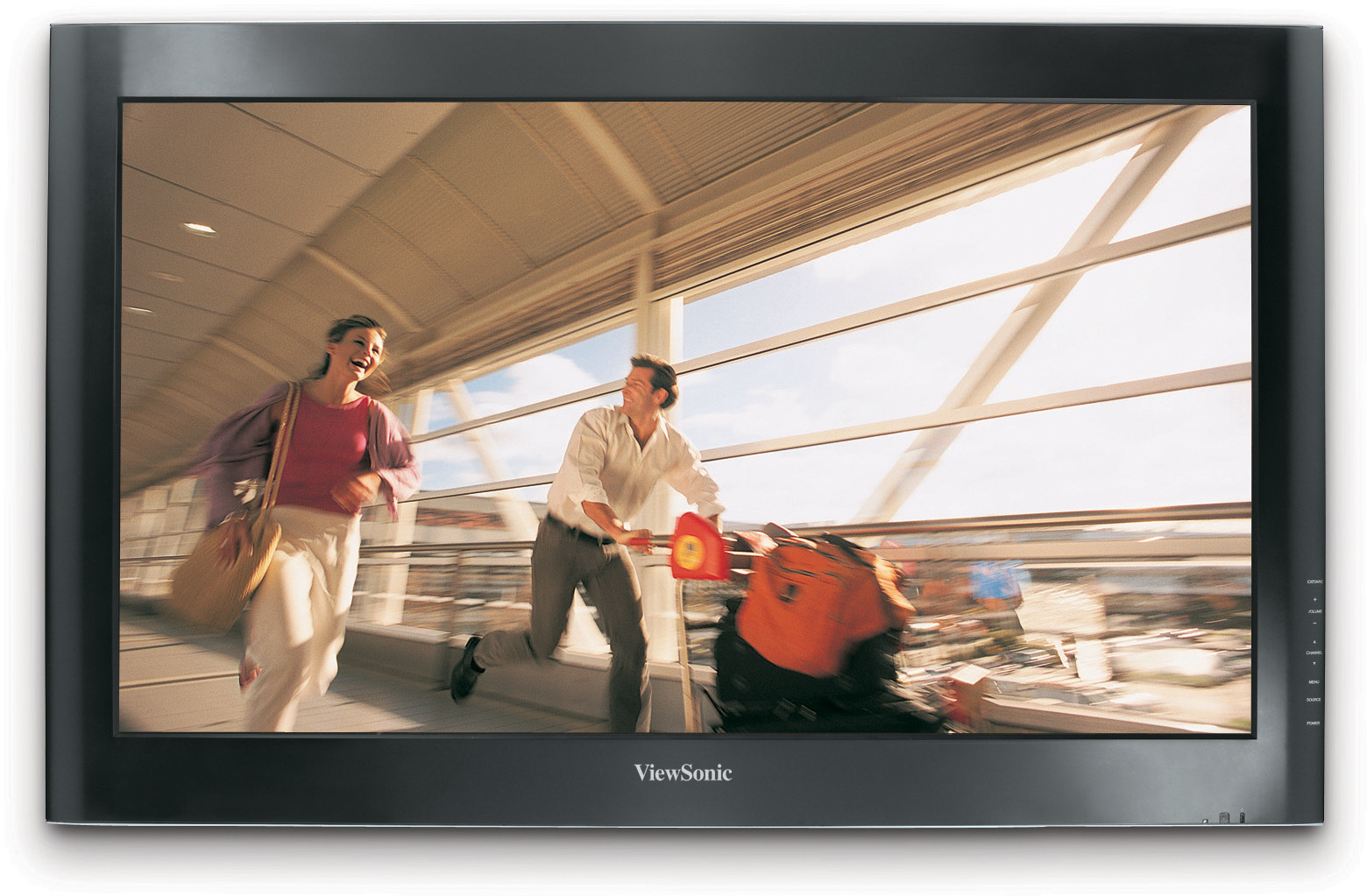

CD3200

81cm / 32" Commerical LCD Display

Pytanie dotyczące sprzedaży

GALERIA

Get your message across, brilliantly

ViewSonic’s 81cm / 32” CD3200 Commercial Display is designed for use in educational, retail, public and commercial signage applications. This widescreen LCD ACCOMMODATES MIXED MEDIA CONTENT with enough room for movies, internet content, digital pictures, PowerPoint, Flash files and much more. Wide viewing angles, high brightness and contrast and 1366 x 768 native resolution display crystal clear images in virtually any room lighting while the fast 8ms response time delivers fast-action video. MULTIPLE INPUTS INCLUDING HDMI, S-video, component, composite and PC VGA, give you plenty of connectivity options for all your digital signage needs.

DANE TECHNICZNE

COLORS
Black
LCD
Typ: 81 cm / 32" colour TFT active matrix, wide XGA 1366 x 768
Współczynnik kontrastu: 1200:1 (typ.)
Kąty widzenia: 176° horizontal, 176° vertical
Jasność: 500cd/m² (typ.)
Glass Surface: Anti-glare, hard coating (3H)
Display Area: 69.8cm (horizontal) x 39.2cm (vertical), 81.3cm diagonal
Czas reakcji: 8ms (grey-to-grey typ.)
Proporcje obrazu: 16:9
Rozdzielczość Natywna: 1366 x 768
DIMENSIONS
Wymiary fizyczne (szer. x wys. x gł.): 828mm x 515 x 99mm (without stand)

REGULATIONS
CE, CB, Gost, UL/cUL, FCC, NOM, WEEE, RoHS
Zawartość opakowania
LCD display, power cable, remote control, batteries, Quick Start Guide, User Guide
AUDIO
Głośnik: 2 x 10-watt (optional)
INPUT
PC: RGB analogue (75 ohms, 0.7 Vp-p), RS232 (control)
Dźwięk: 3.5mm mini stereo audio in/out and RCA (left/right) audio in

1 x RCA R/L Out
Digital: HDMI (with HDCP and audio support)
Tuner: None
Video: 2 x SCART, 1 x Component YPbPr/YCbCr, , 1 x Composite, 1 x S-Video
INPUT SIGNAL
Video: RGB analogue (0.7 Vp-p, 75 ohm), PAL, SECAM, NTSC, SDTV/EDTV (480i/p, 576i/p), HDTV (720p, 1080i)
CONNECTOR
Analogue: 1 x 15-pin mini D-Sub (detachable cable)
Digital: 1 x HDMI (with HDCP)
Moc: 3-pin plug
Composite Video Input: 1 x RCA (CVBS)
S-Video Input: 1 x 4-pin mini DIN jack (Y/C)
Component Video Input: 1 x RCA (YPbPr/YCbCr)
Sterowanie: 1 x D-sub RS-232
Dźwięk: 1 x 3.5mm mini stereo audio in

2 x RCA (left/right) audio in

3 x RCA (left/right/subwoofer) audio line 0ut

1 x SP/DIF (optic) HDMI loop through

2 x speaker connector (for optional speakers)
POWER
Napięcie: AC 100–240V (universal), 50/60Hz
Zużycie energii: < 220watt (typ.)
CONTROLS
Basic: Power, channel +/-, volume +/-, menu, source, exit/wide
AV Mode: Brightness, contrast, colour, hue, sharpness, colour temperature, sound (volume, bass, treble, balance), ARC, OSD language, reset all
OSD: Auto sync, contrast, brightness, H/V position, colour temperature, aspect ratio control (ARC), OSD language, reset all, treble, balance
OPERATING CONDITIONS
Temperatura: 0°C–40°C
Wilgotność powietrza: 10–85% (non-condensing)
WEIGHT
Waga netto: 22.2kg (without stand)
Brutto: 33.0kg (without stand)
VESA MOUNT COMPLIANT
VESA FDMI 100mm x 100mm, 100mm x 200mm
