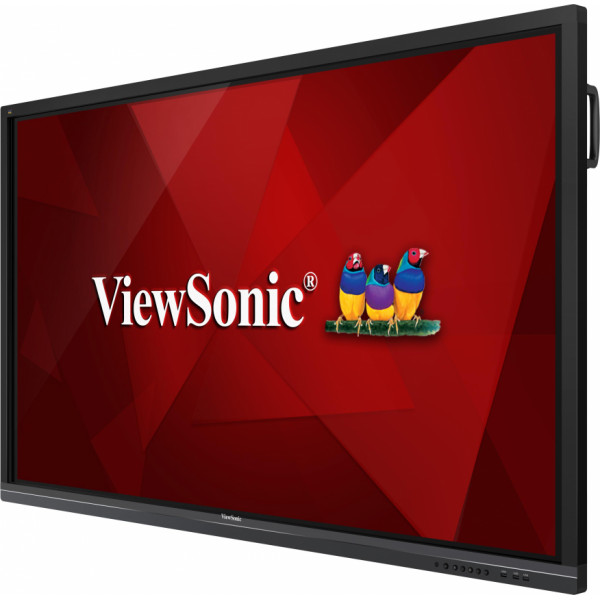

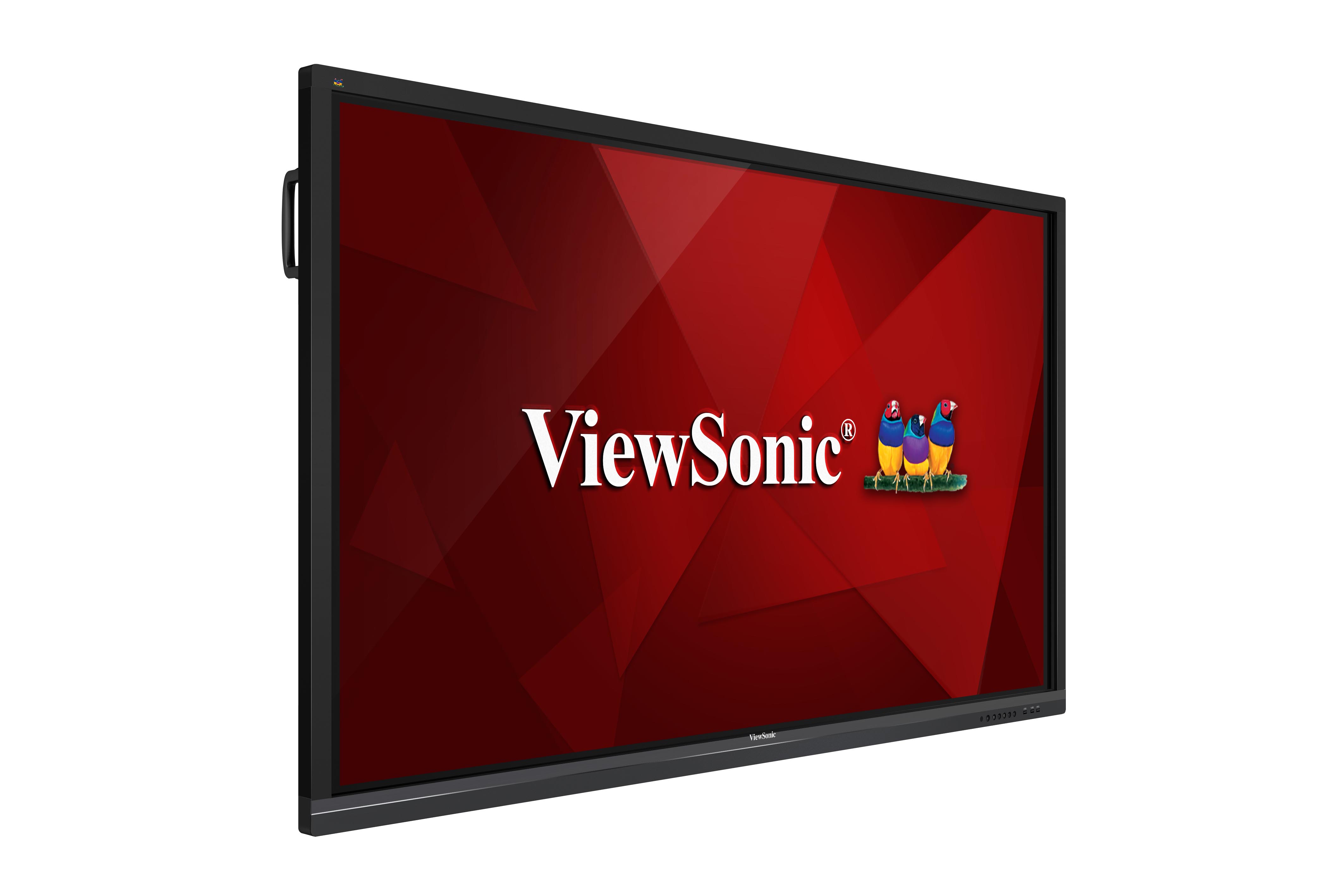

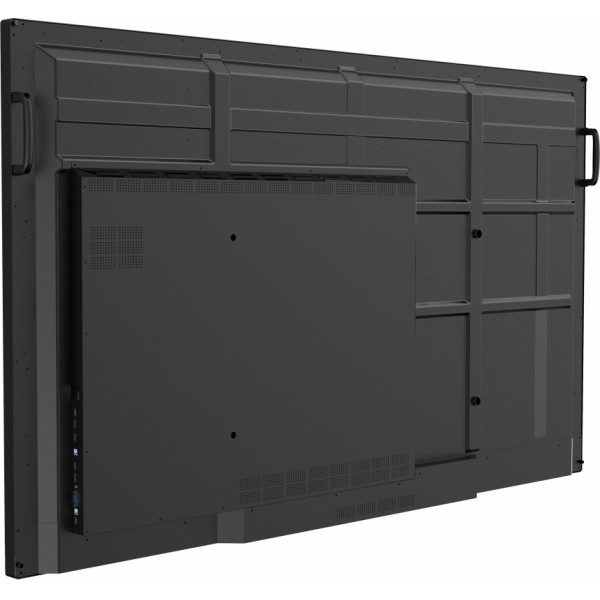

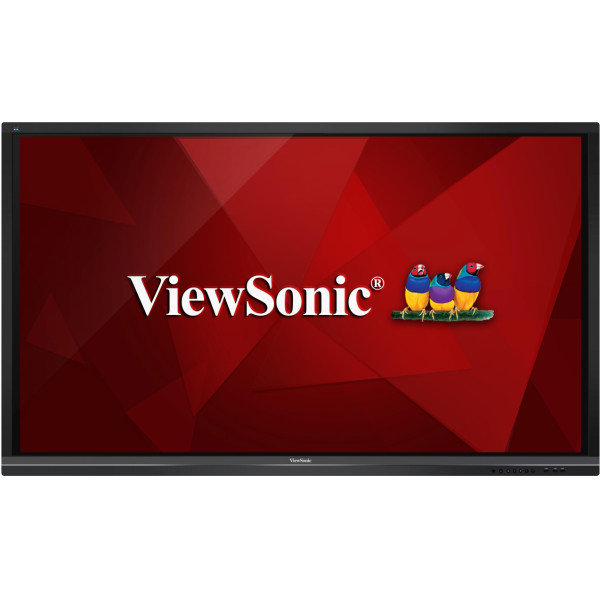

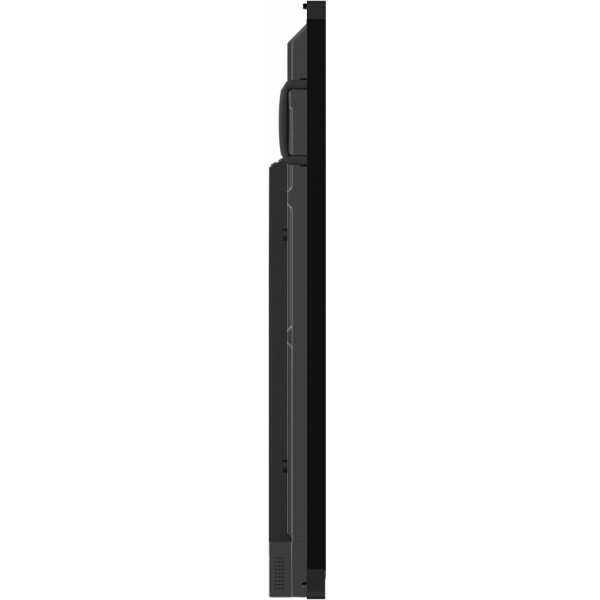

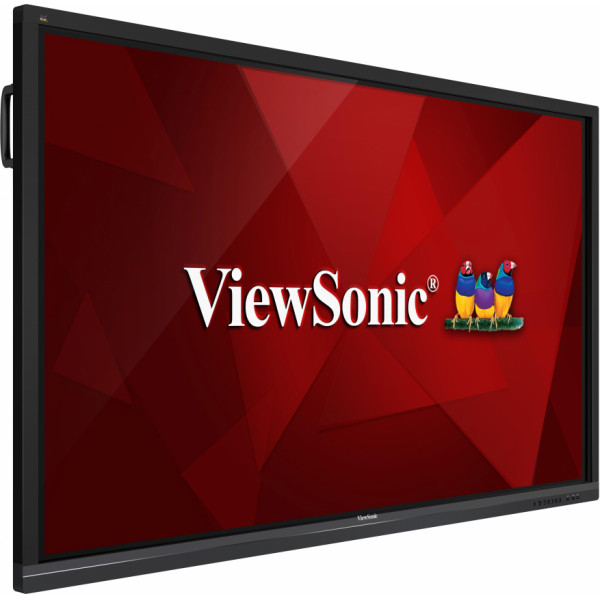

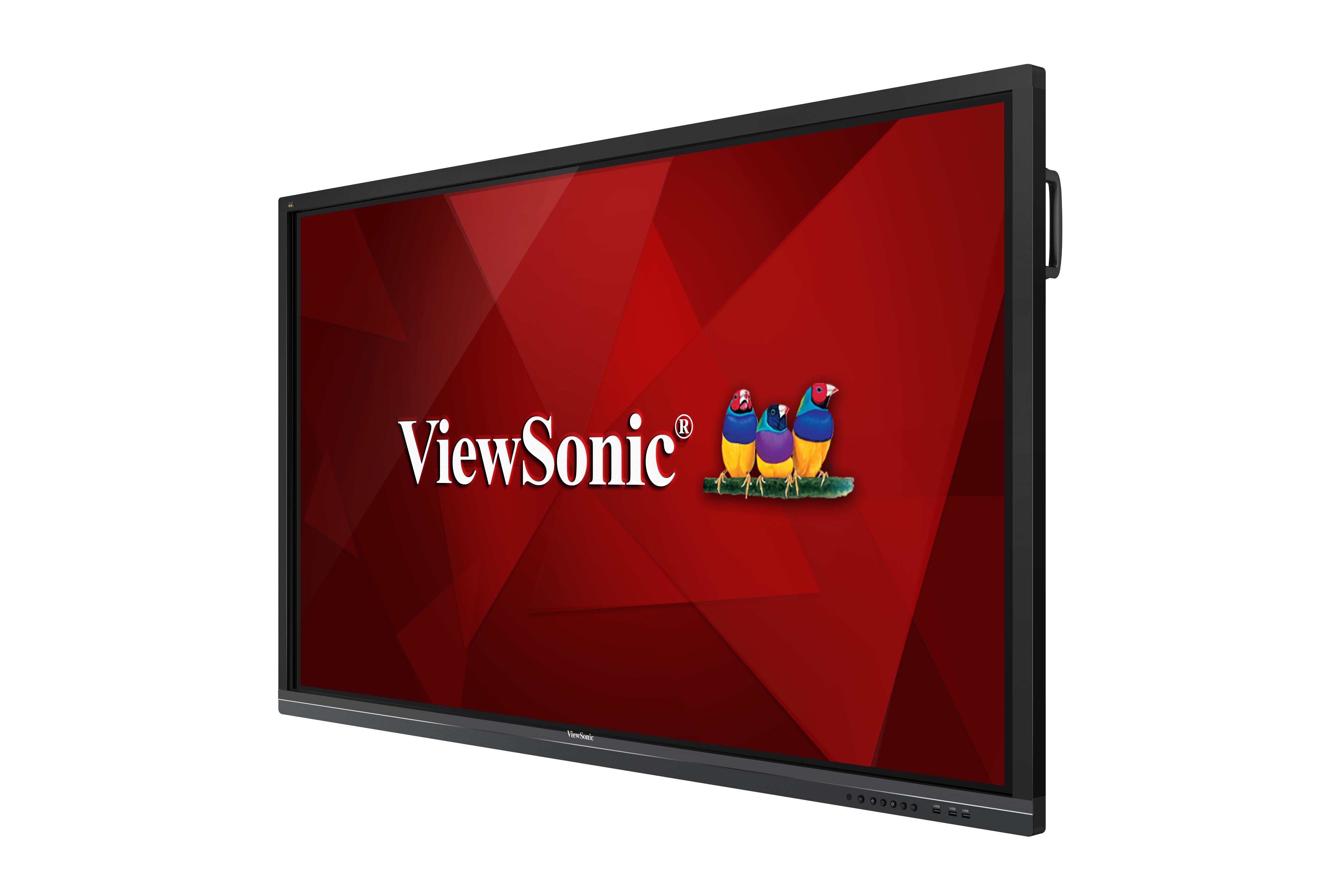

ViewSonic ViewBoard IFP7550

IFP7550

75" 4K Interactive Flat Panel

20-Point Multi-Touch
Floating Pen - Annotation on Demand
ViewBoard^® Cast Content Sharing Software
Built-in ARM Quad-core CPU with 16GB Storage
Out-of-Box Collaboration

DANE TECHNICZNE

LCD PANEL
Rozmiar panelu: 75"
Rodzaj/Technologia: TFT LCD Module with DLED Backlight
Obszar wyświetlania (mm): 1649.66(H) x 927.94(V) (74.5” viewable)
Proporcje obrazu: 16:09
Rozdzielczość: 3840 x 2160
Colors: 1.07B colors (10bit)
Jasność: 350 nits (typ.) 300 nits (min.)
Współczynnik kontrastu: 1200:1 (typ.)
Czas reakcji: 8 ms
Kąty widzenia: H = 178, V = 178 (typ.)
Backlight: DLED
Czas pracy podświetlenia: 30,000 Hours Min.
Hardness: 7H
TOUCH
Rodzaj/Technologia: IR Recognition
Czułość dotyku: 32767 x 32767
Punkt dotyku: 20 points touch, 10 points writing
Czas reakcji: <15ms
System: Windows 10 / Windows 8 / Windows 7 / Windows XP / Vista / Linux / Mac / Android / Wince / Chrome
Life Time: 80,000hrs

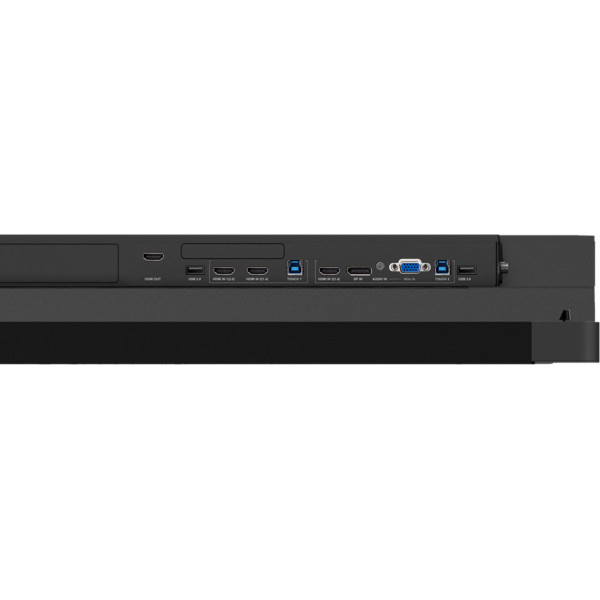

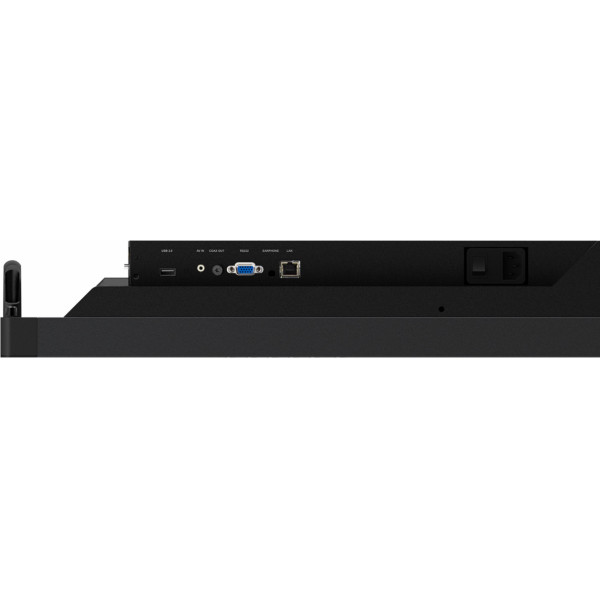

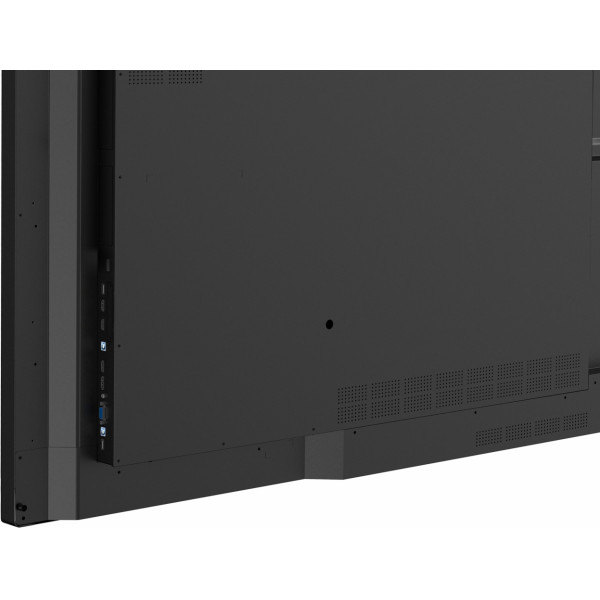

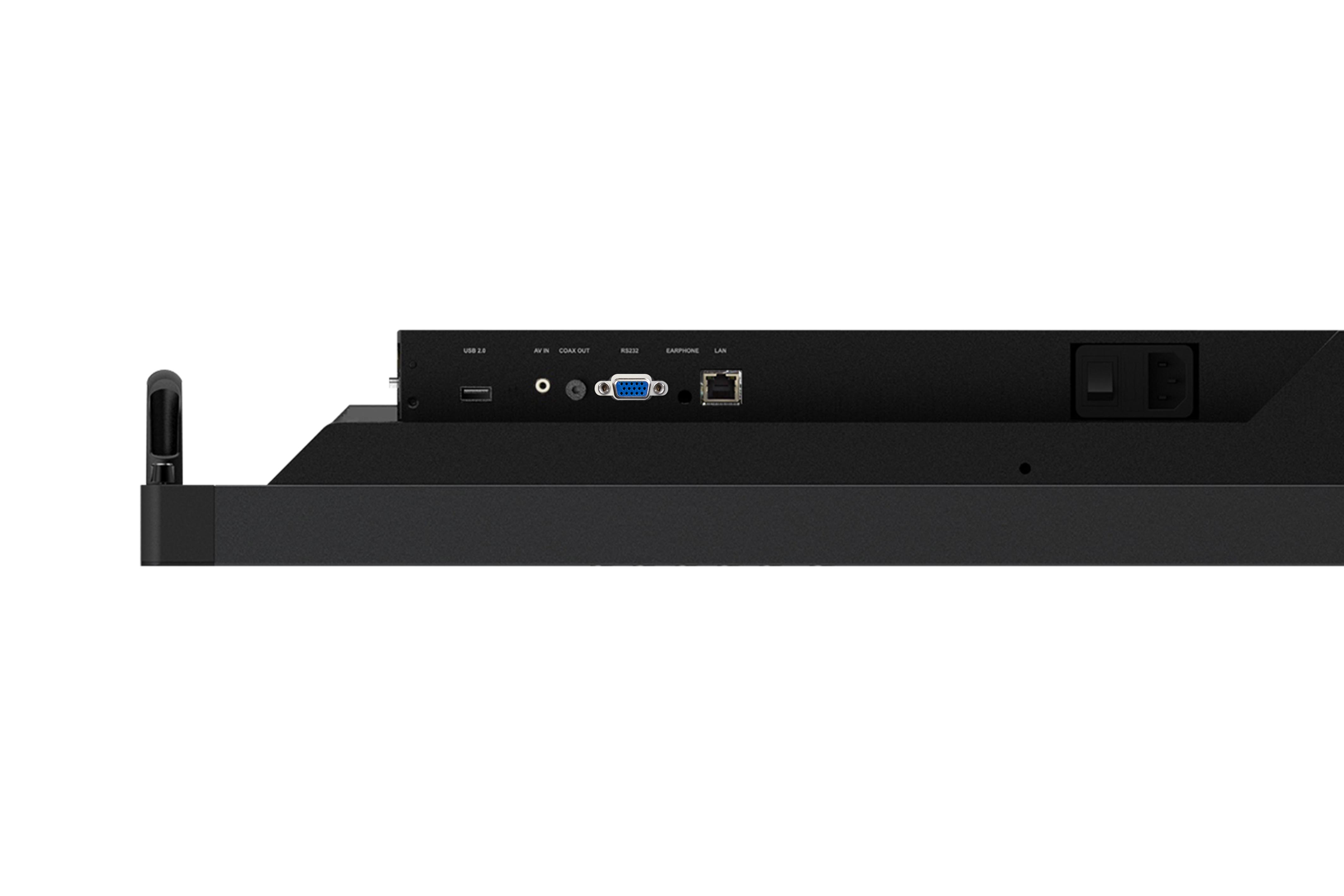

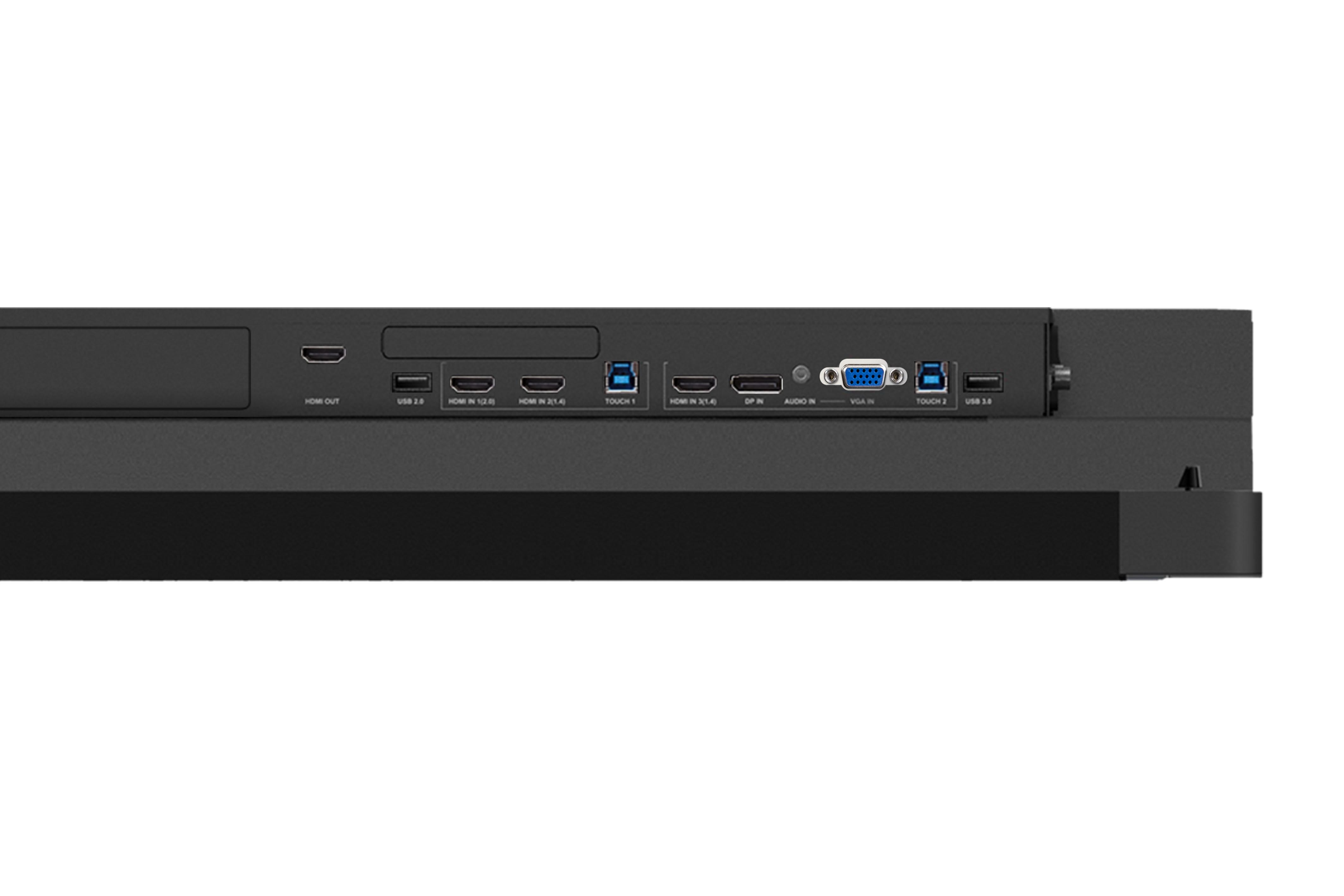

INPUT
HDMI: x 3
RGB / VGA: x 1
DisplayPort: x 1
Dźwięk: x 1
CVBS (AV): x 1
RS232: x 1
PC Slot: x 2

OUTPUT
HDMI: x 1 (for all sources)
Audio (Earphone out): x 1
SPDIF: x 1
Sieć lokalna
RJ45: x 1
USB
2.0 Type A: x 3 (front x 1, for both embedded player and slot-in PC)
3.0 Type A: x 3 (front x 2, for both embedded player and slot-in PC)
2.0 Type B (For touch): x 2
Głośniki
16W x 2
BUILT-IN PC
Procesor: ARM Cortex A53 Quad Core 1.2G Hz CPU
Graphic: ARM Mali-450 Quad Core
Pamięć: 2GB DDR3
Pamięć masowa: 16GB eMMC
Networking: 10/100M auto-identification and DHCP
COMPATIBILITY
VGA: Refer to timing table
HDMI: 3840x2160
DP: 3840x2160
CVBS: 480i
POWER
Napięcie: 100-240VAC +/- 10% Wide Range
Zużycie energii: 292W(Typ, without Slot-In PC); 387W(Typ, Including Slot-In PC)
ERGONOMICS

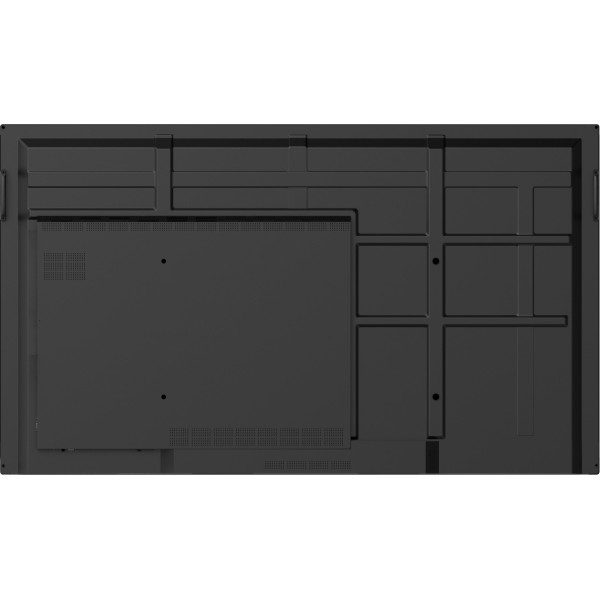

Uchwyt do montażu na ścianie (standard VESA®): 800 x 400mm; Screw: M8 x 25mm
OPERATING CONDITIONS
Temperatura (º C): 32°F to 104°F (0°C to 40°C)
Wilgotność powietrza: 10% ~ 90% non-condensing
DIMENSIONS
Physical w/o Stand (mm / inch): 1763 x 1042 x 99 mm / 69.4 x 41.0 x 3.9 inch
Packaging (mm / inch): 1913 x 1225 x 280 mm / 75.3 x 48.2 x 11.0 inch
WEIGHT
Net (kg / lb): 58.5kg / 128.97lbs
Gross (kg / lb): 76kg / 167.55lbs
What's in the box?
1.VGA cable(5 meters)
2.Power cable(3 meters) x 4
3.Remote control
4.USB cable(5 meters)
5.Audio cable(5 meters)
6.AV cable
7.Touching pen x 3
8.User manual CD wizard
9.Quick Start Guide
10.RS232 adapter
11.Clamp x 5
12.Plate
13.Screw x 3
