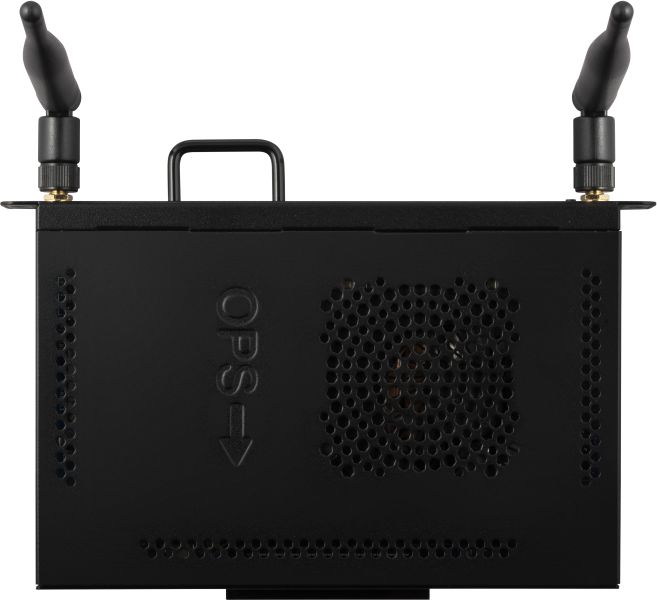

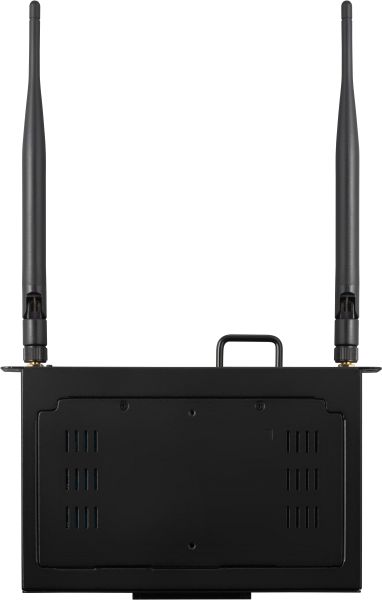

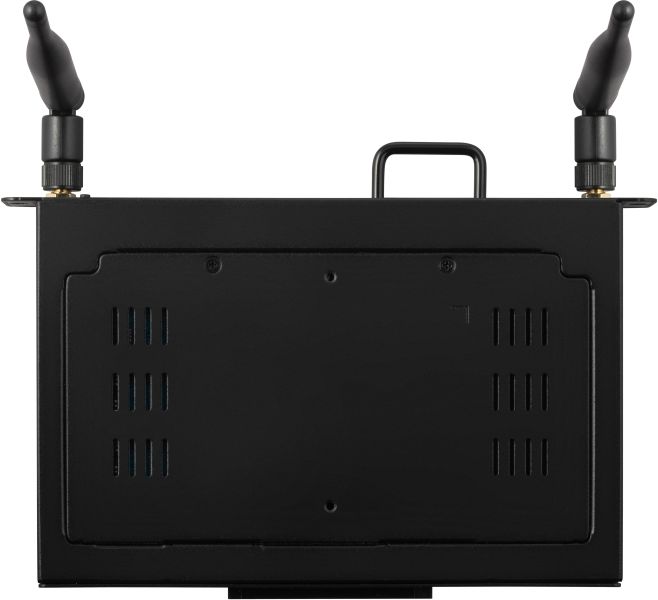

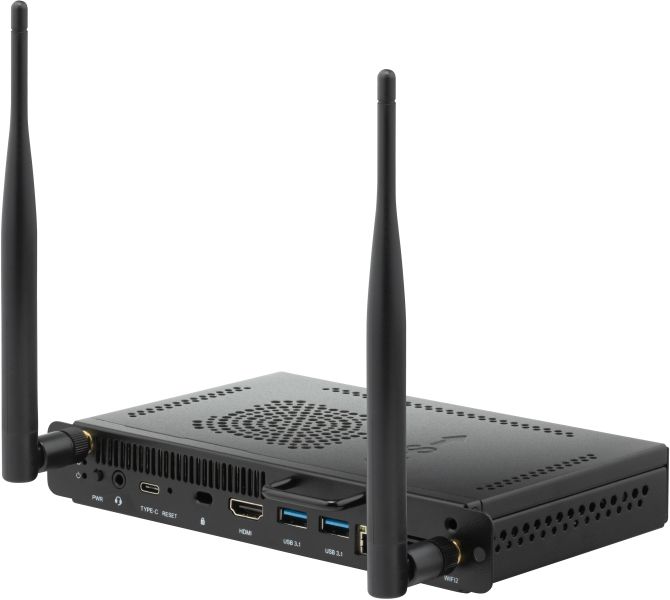

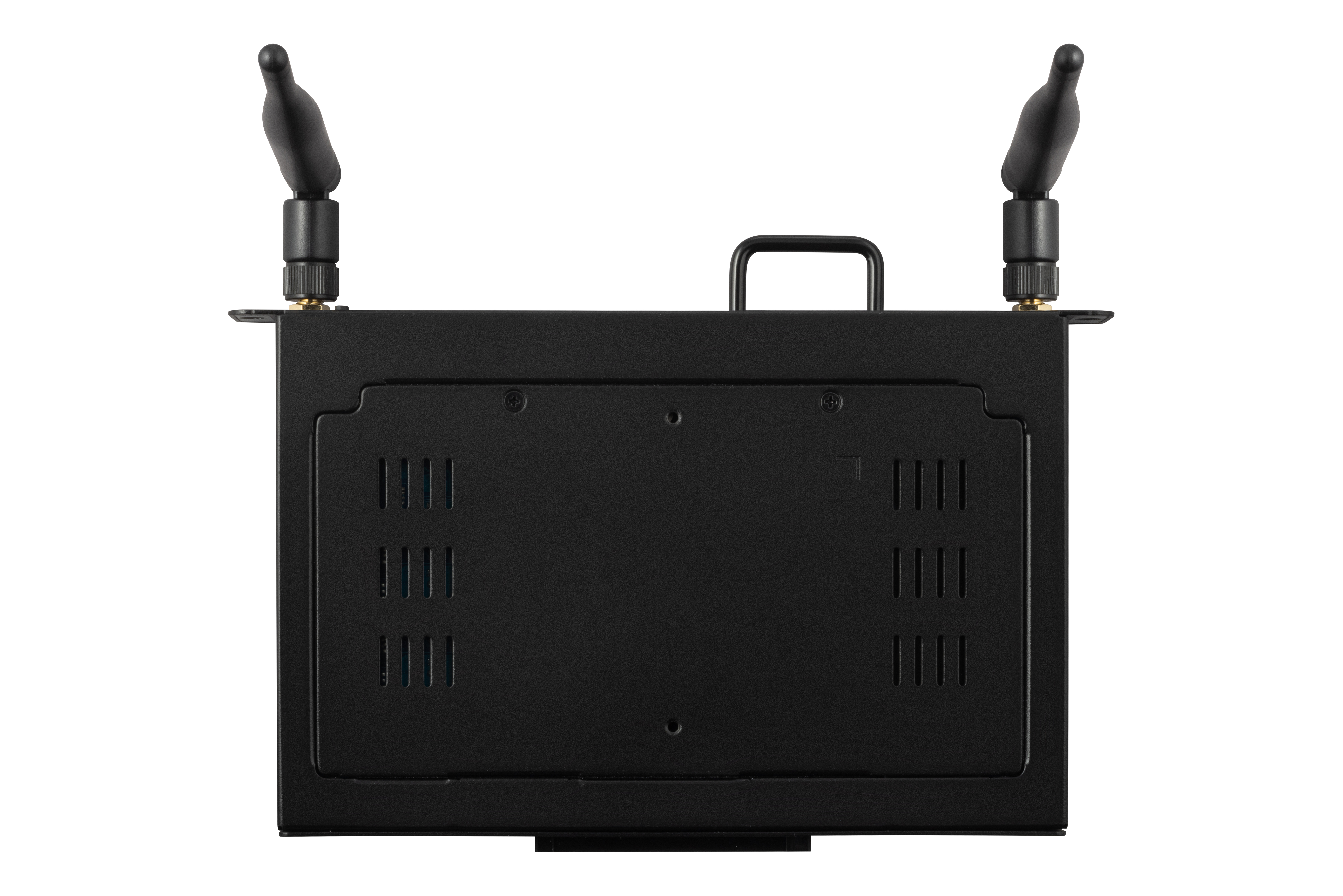

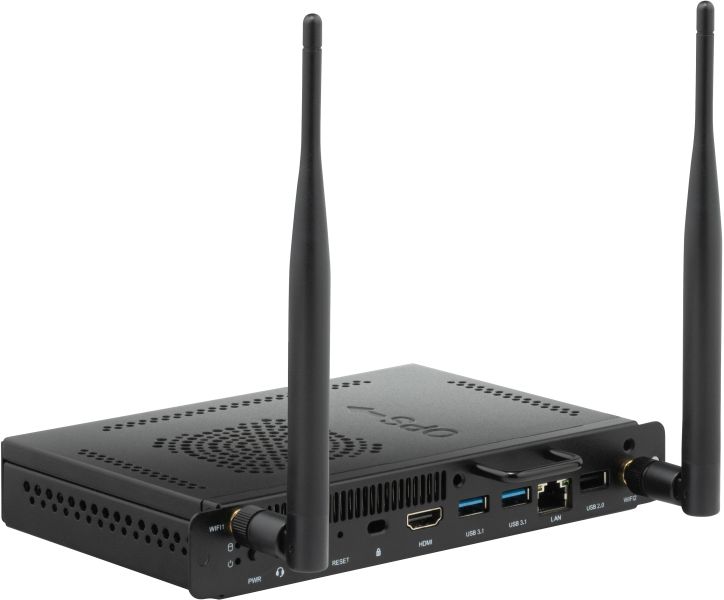

VPCF5-S33-G1
Slot-in PC for ViewBoard®
- Light OS UEFI Shell Allows Scripting, File manipulation, and Obtaining System Information
- Ideal Integrated Solution for ViewBoard® Interactive Displays & Presentation Displays
- Powerful Intel® 11th Core Processors embedded TPM2.0
- Improved System Stability, Security, & Thermal Control
SPECIFICAȚII
- SoftwareSistem de operare: UEFI Shell
- NucleuProcesor: Intel® Tiger Lake Mobile Processor
Intel Gen11th core i5 CPU or later Gen. CPU
Grafică: Integrated Intel® Iris Xe Graphics (96EU)
Total Available Graphics Memory: 32GB
Max Resolution up to 7680x4320@60Hz (DP) - MemorieTip: DDR4
Capacitate: 8GB
- StocareDimensiune: M.2 SSD
Capacitate: 256GB

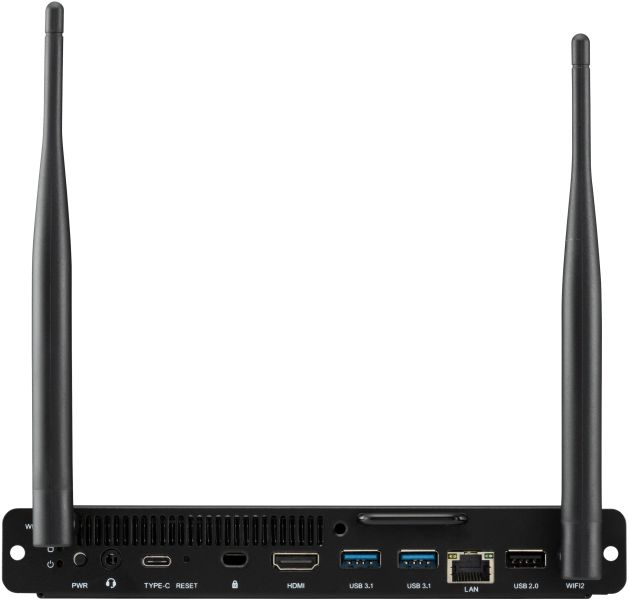

Interfață: PCIE - INPUTMIC (Microfon): MIC-In&Line-Out two in one connector

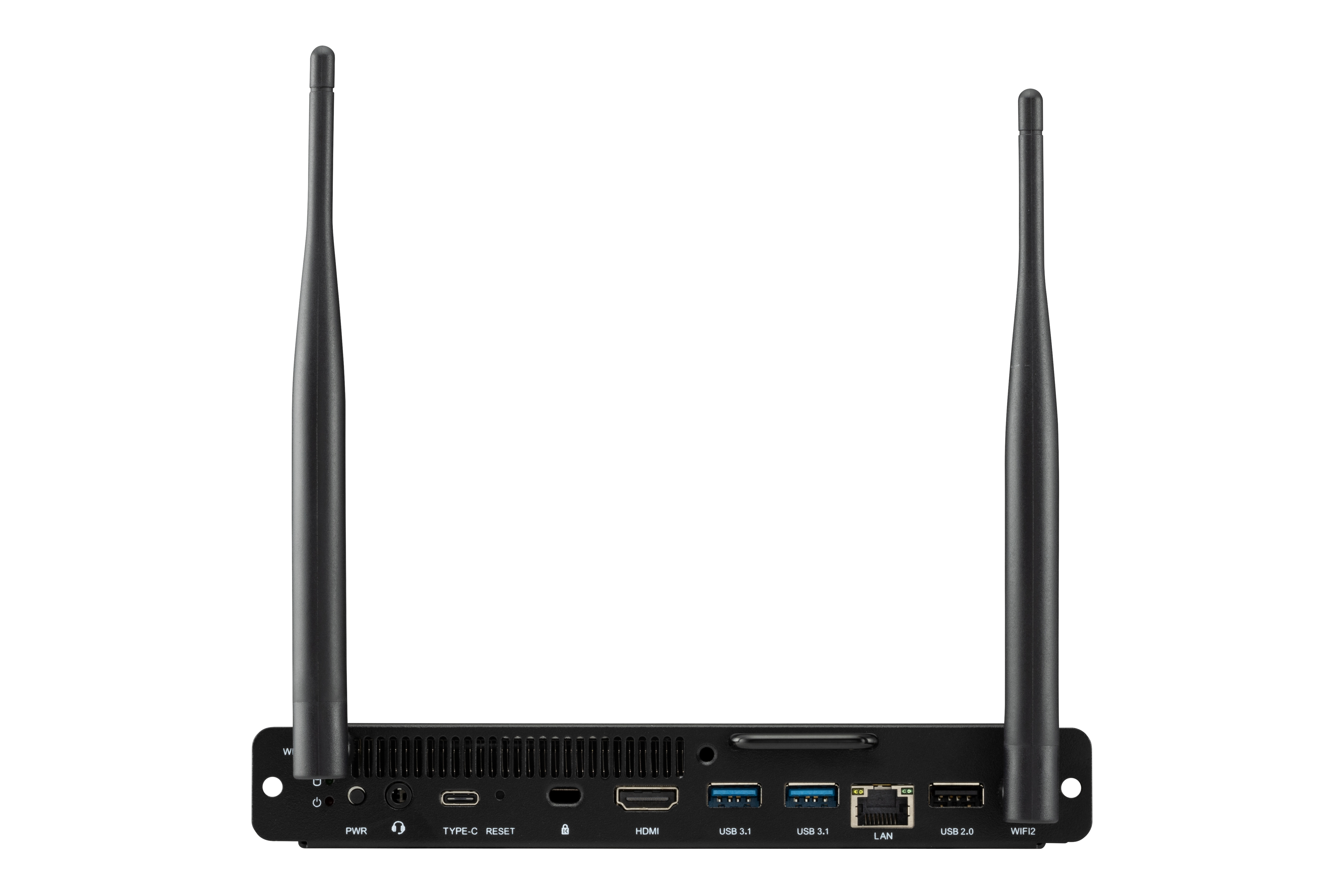

OPS Standard: x1(USB type A 3.1X2, USB type C 3.1 X1 (DATA ONLY), USB 2.0 x1) - OUTPUTHDMI: x1 (Max 3840x2160@30Hz)
Audio: MIC-In&Line-Out two in one connector - LANRJ45: x1 (10M/100M/1000M)
- Wireless/ BluetoothWireless/ Bluetooth: Intel® AX101NGW
WIFI 6 802.11 ax + BT5.2 - USBTip A: USB 3.1 x 2 / USB 2.0 x 1

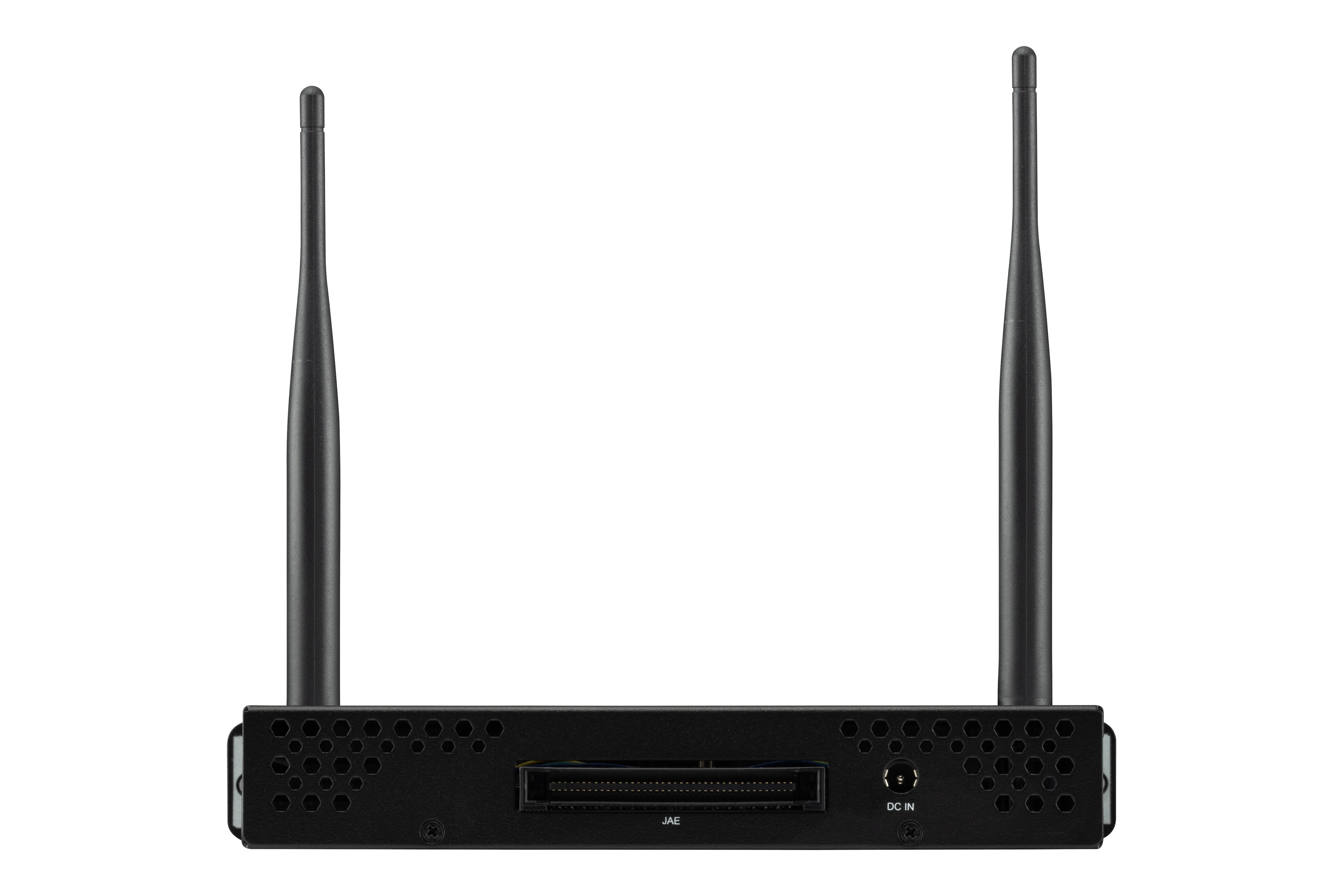

Tip C: USB 3.1 Gen2 x 1 (Data Only) - Power Voltaj: DC 12-19V/8A Max
Consum: Max 90 W - OPERATING CONDITIONSTemperatură (º C): 0℃ ~ 40℃(working)
Umiditate: 10% ~ 90% @ 40°C Non-condensing(working) - DIMENSIUNU (D x Î x A)Dimensiuni (inch/ mm): 7.87 x 4.68 x 1.18 in / 200 x 119 x 30 mm
Ambalare (inch/ mm): 10.23 x 7.87 x 3.15 in / 260 x 200 x 80 mm - WEIGHTMasă (Ib/ kg): 1.54 lb / 0.7 kg
Greutate (Ib/ kg): 2.65 lb / 1.2 kg - CONȚINUT PACHETCONȚINUT PACHET: 1. Quick Start Guide(With Compliance Statement )
2. Screws x 2
3. Antenna x 2
COMPATIBIL CU VPCF5-S33-G1
ViewBoard® 55” 4K Interactive Display
ViewBoard® 65" 4K Interactive Display
ViewBoard® Display Interactiv 4K de 65"
65“ 4K PCAP Touch EDLA Certified Interactive Display
ViewBoard® Display Interactiv 4K de 75"
75“ 4K PCAP Touch EDLA Certified Interactive Display
86“ 4K PCAP Touch EDLA Certified Interactive Display
