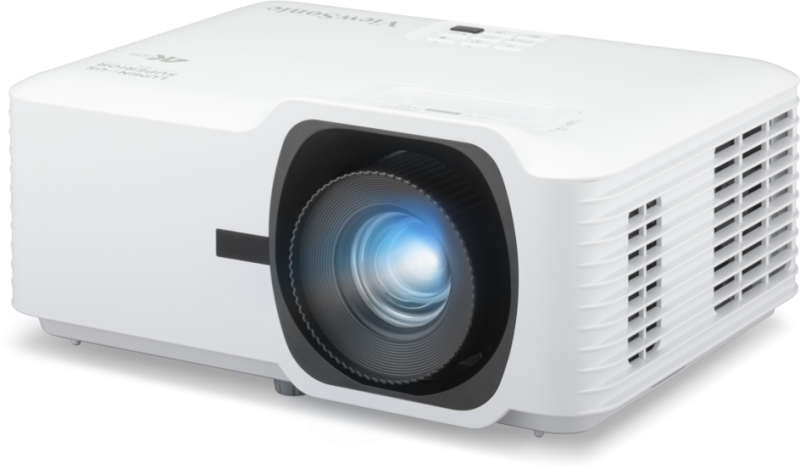

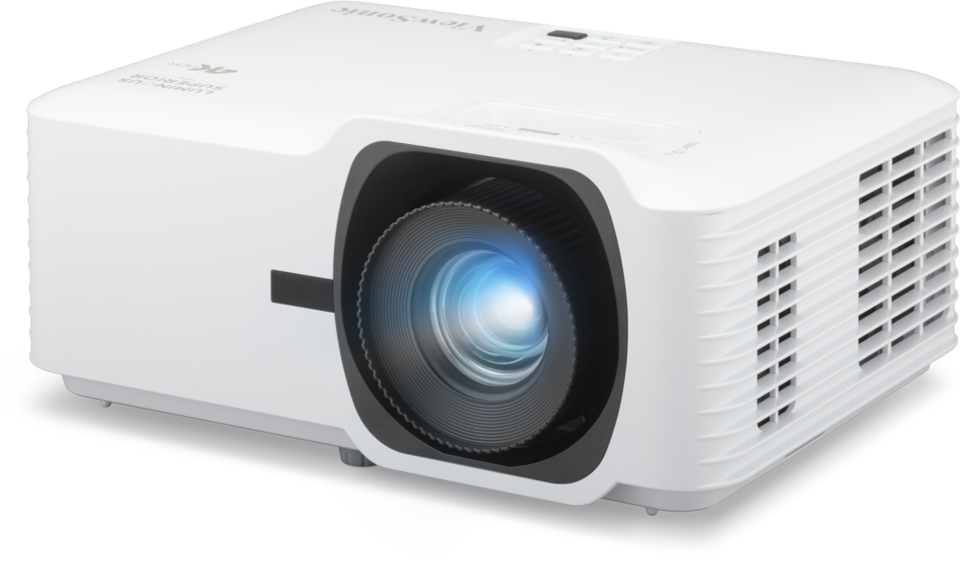

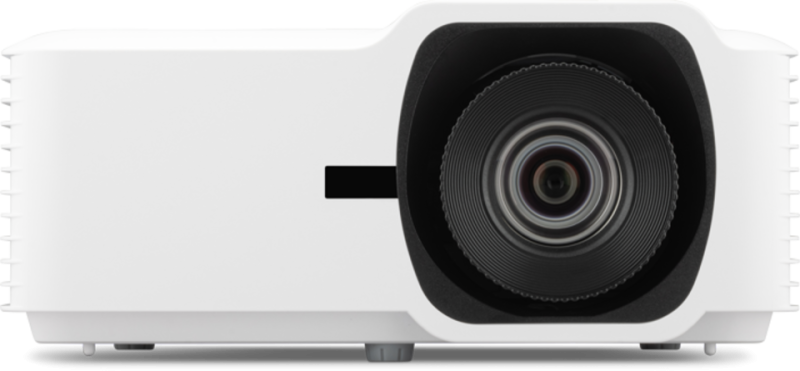

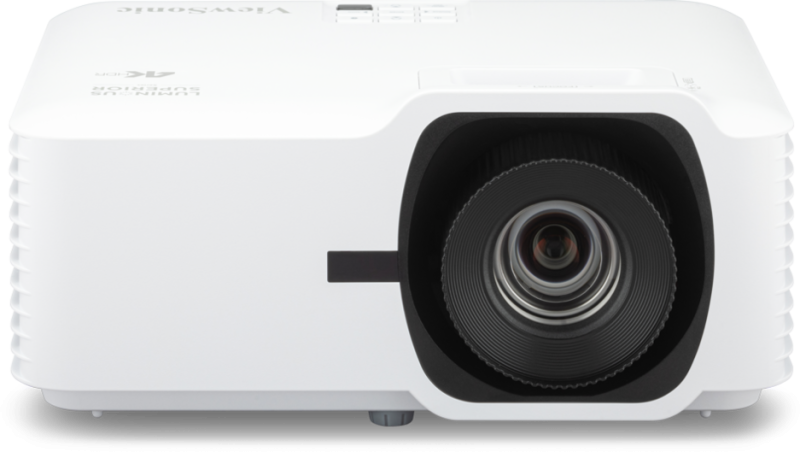

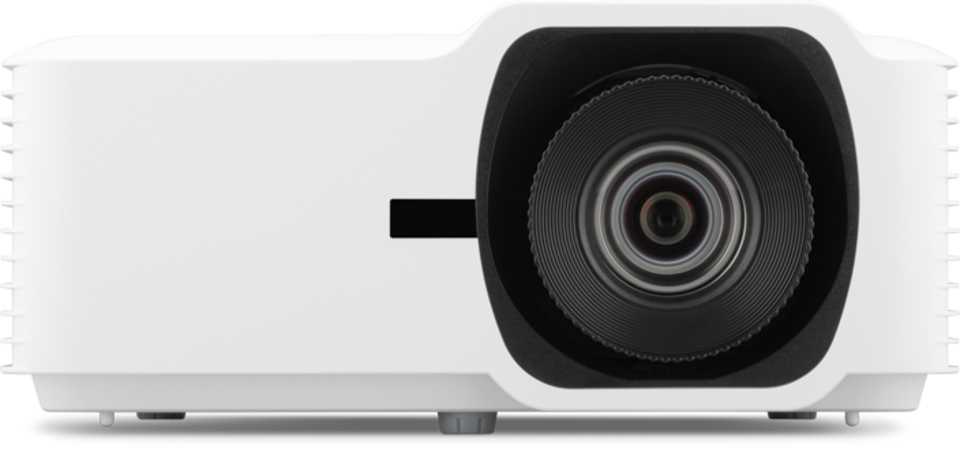

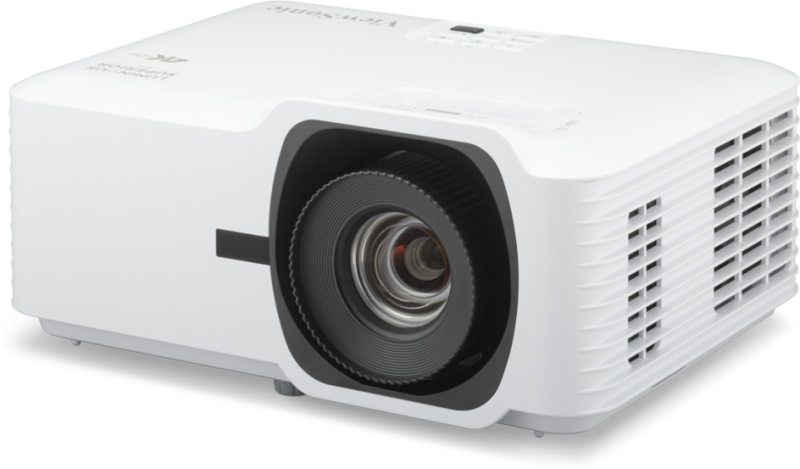

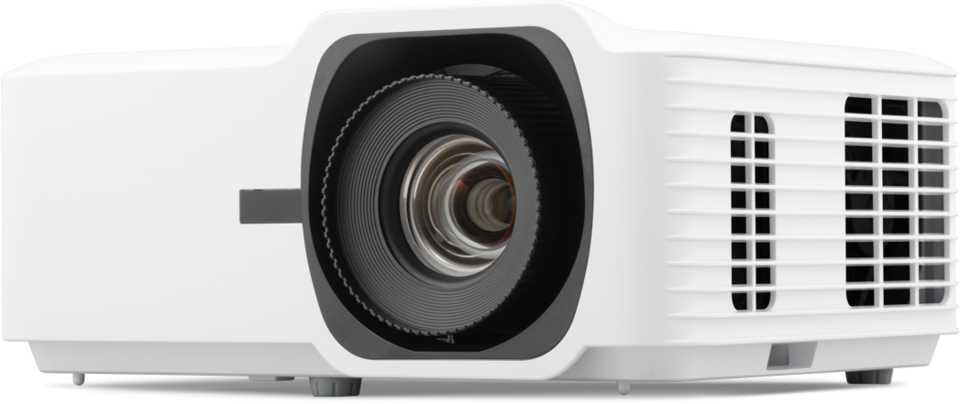

LSD500-4K

5,000 ANSI Lumens 4K Laser Installation Projector

  • True 4K HDR delivers exceptional image clarity and detail​
  • 5,000 ANSI Lumens offering bright images in any environment
  • 3rd generation laser phosphor technology with a lifespan up to 30,000 hours
  • Up to a 300" ultra-large screen with a lower cost-per-inch
  • Centralized LAN control for efficient management
  • Installation flexibility: 1.6x optical zoom, H/V keystone, 360° projection, and portrait mode
Contactează-ne

PREZENTARE GENERALĂ

Introducing the LSD500-4K from ViewSonic’s Luminous Superior Series, tailored for expansive venue displays. Featuring 5,000 ANSI Lumens of brightness and high native contrast provided by a 0.65” DMD chip through DLP technology, it delivers stunning 4K UHD visuals on screens up to 300 inches. Perfect for commercial and educational institutions, the LSD500-4K’s ultra-high resolution with HDR/HLG support ensures every detail is vivid and clear, enhancing viewer engagement. Comprehensive LAN control ensures seamless integration into corporate networks. Its 1.6x optical zoom allows for a flexible setup to suit various installation needs, and H/V keystone adjustment make the process a breeze. Additionally, portrait mode and 360° projection capabilities cater to more advanced requirements. Employing advanced 3rd generation laser phosphor technology, the LSD500-4K boasts a remarkable 30,000-hour lifespan, reducing maintenance costs for businesses and large venues.

Ultimate Viewing Experience with 4K HDR

Experience 4K crystal-clear details and dynamic visuals powered by HDR/HLG support. The projector features HDMI 2.0/HDCP 2.3 ports for original 4K quality content, bringing your presentations, creative works, and sports viewing to life.
4K HDR
Bright, Compact, Durable 1

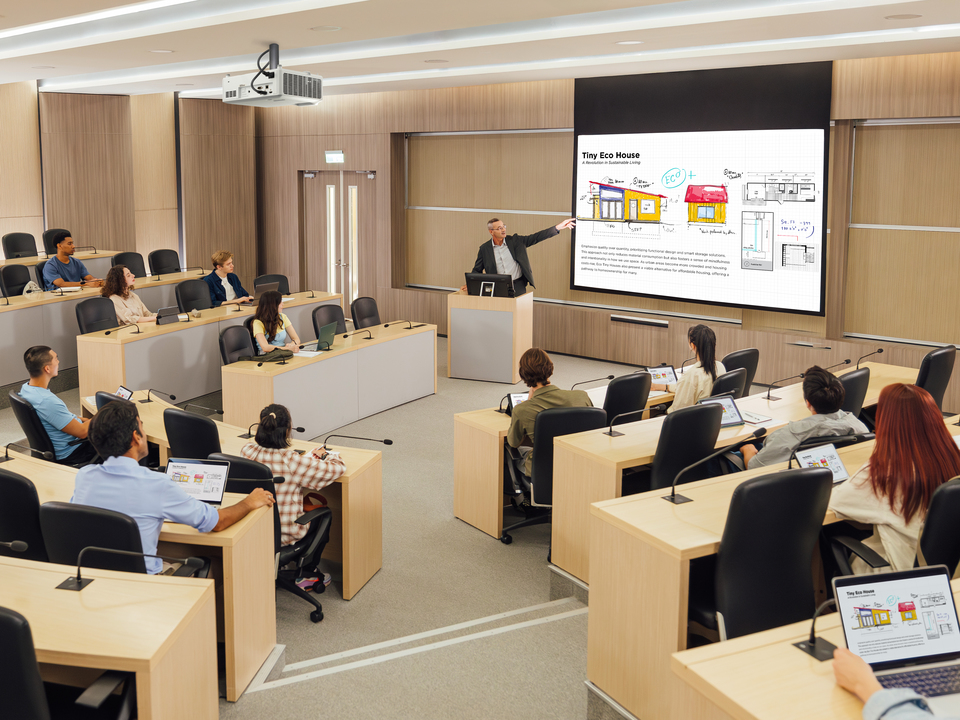

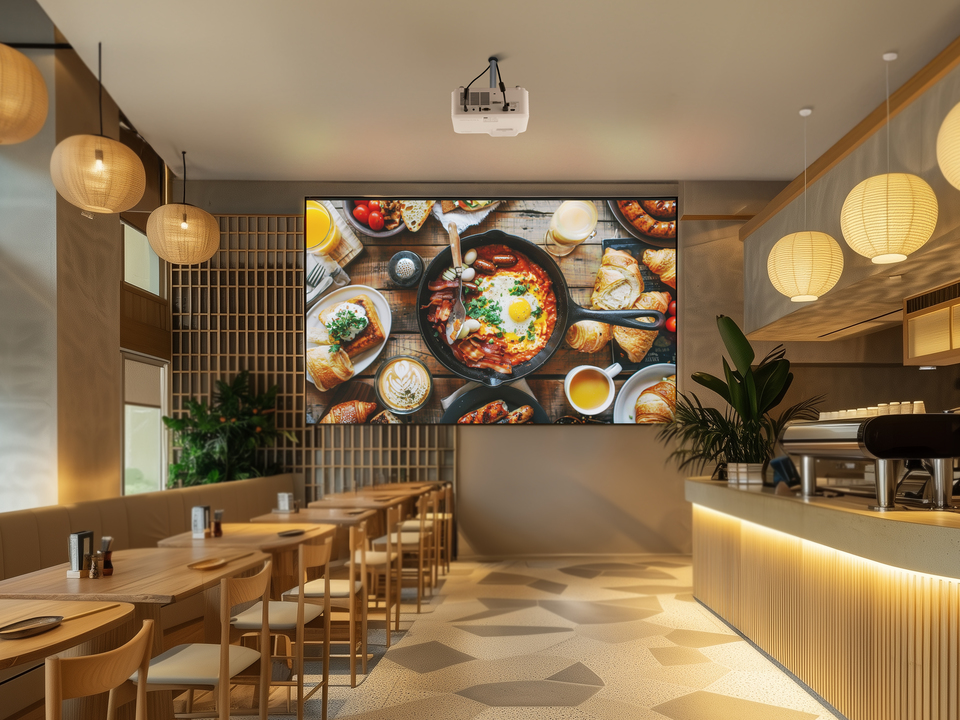

Bright Images for Large Venues

Delivering 5,000 ANSI Lumens, the LSD500-4K provides vibrant and sharp projection in all lighting conditions for auditoriums, boardrooms, lecture halls, public venues, and other expansive spaces.
5,000 ANSI Lumens
Bright Images for Large Venues 1
Bright Images for Large Venues 2

Bright, Compact, Durable

The LSD500-4K incorporates advanced 3rd-gen laser phosphor technology, enhancing brightness by 20% and achieving better luminous efficiency, all while being 32% more compact and accessible than the previous generation. Its lamp-free light source offers instant power on/off and a lifespan of up to 30,000 hours without maintenance, ensuring consistent image quality even during extended periods of use.
3rd Generation Laser Phosphor Technology
Bright, Compact, Durable 1

Unmatched Contrasts, Enhanced Visibility

The projector's high native contrast ratio, achieved through its Texas Instruments 0.65"DMD chip, enables deeper blacks and brighter whites. As a result, it delivers more visual depth, clearer images, and enhanced legibility.
0.65” DMD Chip, High Native Contrast Ratio
Unmatched Contrasts, Enhanced Visibility 1

Ultra-Large Screen with Lower Cost-per-Inch

This easy-to-install projector allows for an image size of up to 300”, offering a lower cost-per-inch compared to other types of commercial displays.​
Up to 300”
Ultra-Large Screen with Lower Cost-per-Inch 1

Centralized Control for Management Efficiency

Master your environment with the LSD500-4K. Certified for Crestron and Q-SYS and fully compatible with AMX, Extron, PJ Link, and ATEN, it brings your entire visual ecosystem into a single interface. Eliminate manual tweaks and drive operational efficiency through seamless, centralized control.
Comprehensive LAN Control
Write with Precision 1

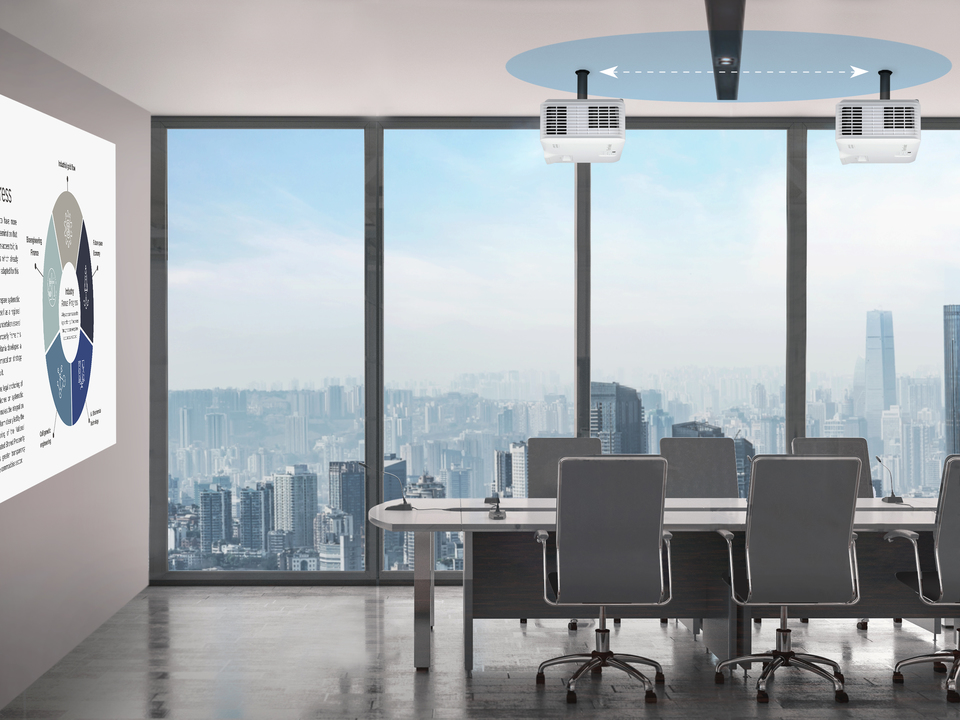

Enhanced Installation Flexibility

Equipped with a 1.6x optical zoom, the projector allows users to choose the ideal setup location within a range, getting the desired image size without needing to change the existing interior design.
1.6x Optical Zoom
Enhanced Installation Flexibility 1

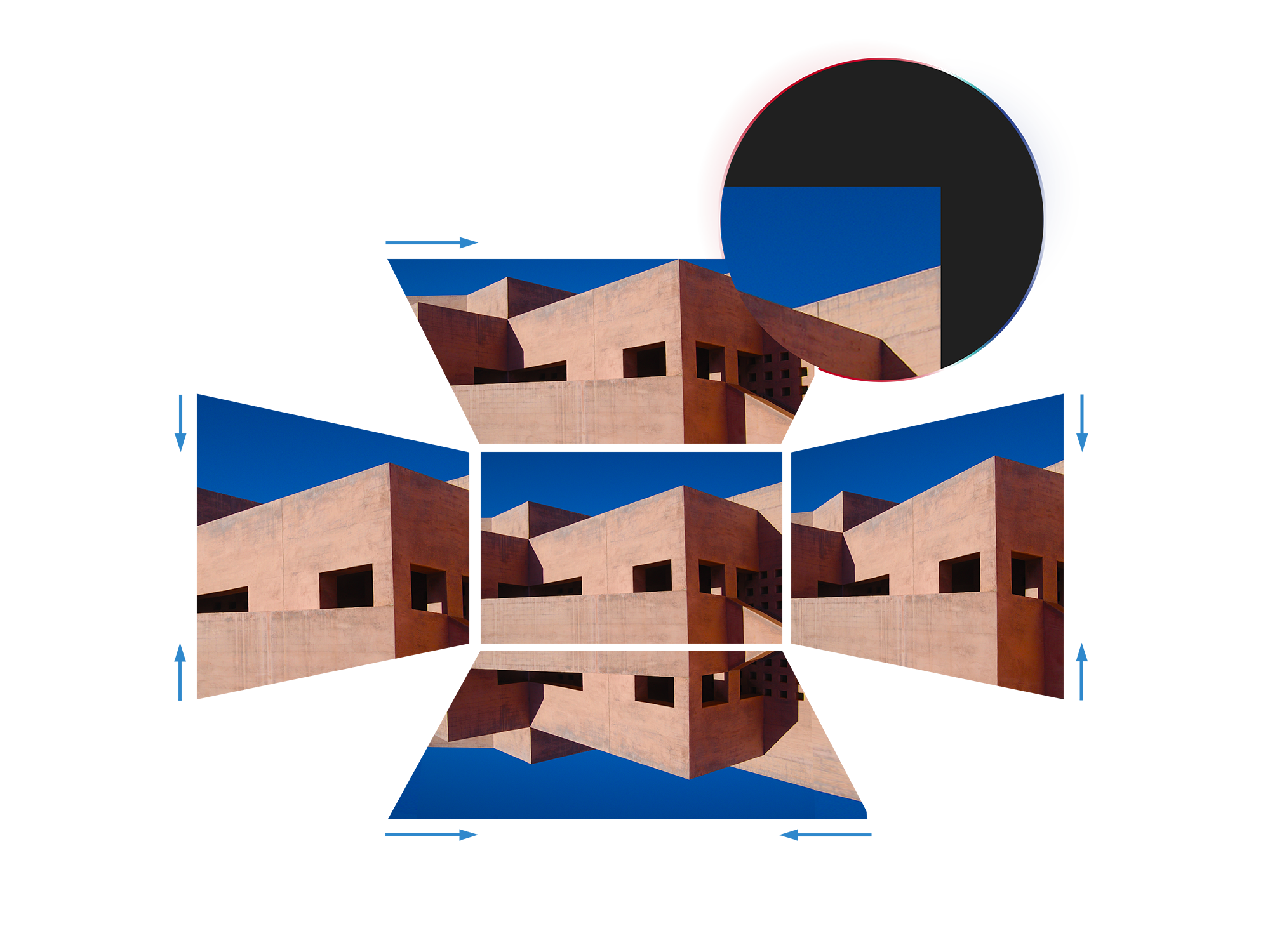

Get ​​Perfectly-Shaped Images Effortlessly

Horizontal and vertical keystone correction, along with 4-corner adjustment features, eliminate crooked or distorted images for a perfectly proportioned picture every time.
H/V Keystone Correction, 4-corner Adjustment
Get ​​Perfectly-Shaped Images Effortlessly 1

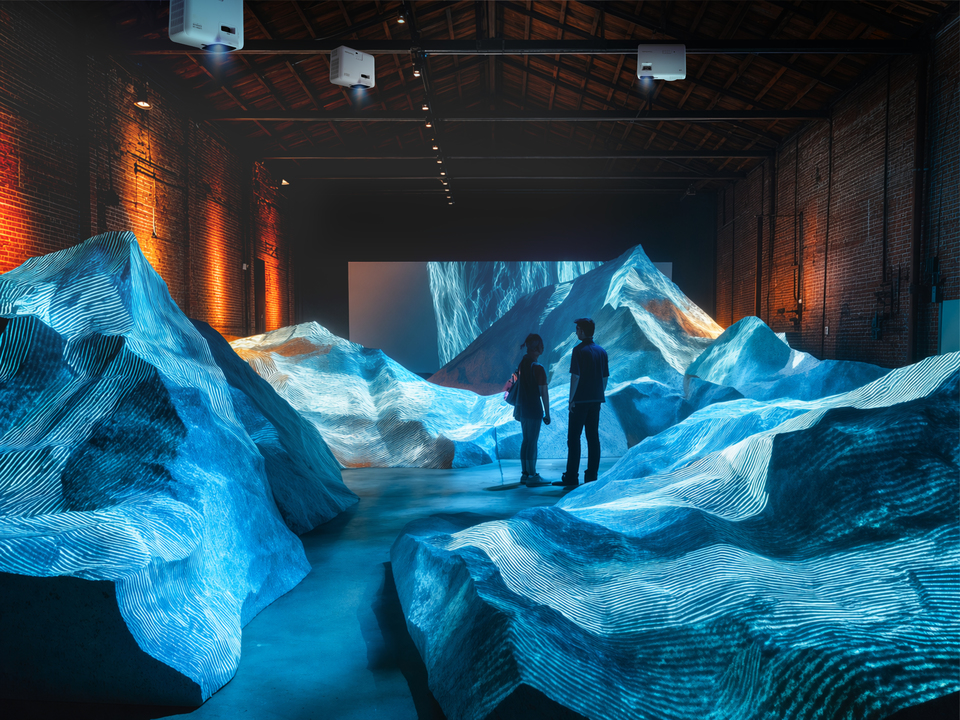

Versatile Creative Application​s

The projector can rotate vertically at any angle, enabling projection onto ceilings, walls, or floors, and its portrait mode further expands its capabilities for projection mapping, staging, and creative advertising applications
360° Projection, 90° Portrait Mode
Versatile Creative Application​s 1

Brilliant Colors for an Authentic Golf Experience

Powered by ViewSonic’s advanced color-tuning technology, the projector features a dedicated Golf Mode that enhances colors, especially greens and blues, more vivid and brings fairways and putting surfaces to life with striking realism, creating a golf experience that feels as close to reality as possible.
Golf Color Mode
Brilliant Colors for an Authentic Golf Experience 1

Save on Costs and Energy

With its advanced lamp-free light source, the LSD500-4K offers a highly energy-efficient and cost-saving display solution by consuming up to 51% less power than competing projectors
Less Power Consumption
Save on Costs and Energy 1

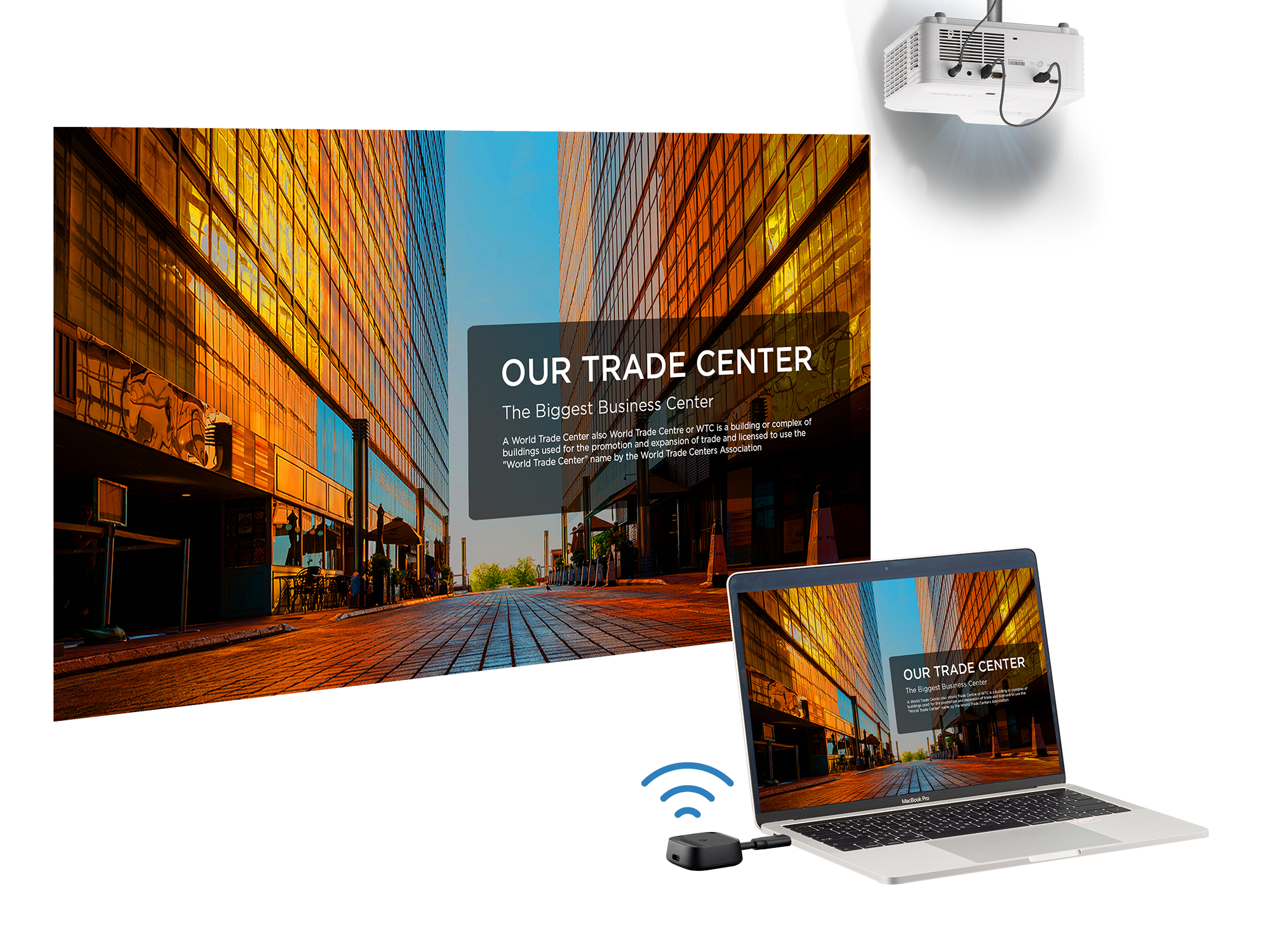

Upgrade Your Projector with Wireless Content Casting

Enhance your projector with the ViewShare Wireless Screen Casting Kit for seamless wireless content sharing. The projector‘s built-in 5V/1.5A USB-A output powers the dongle, enabling simultaneous multimedia streaming and power charging without adapters. *ViewShare sold separately
ViewShare​, USB-A Power Supply
Upgrade Your Projector with Wireless Content Casting 1

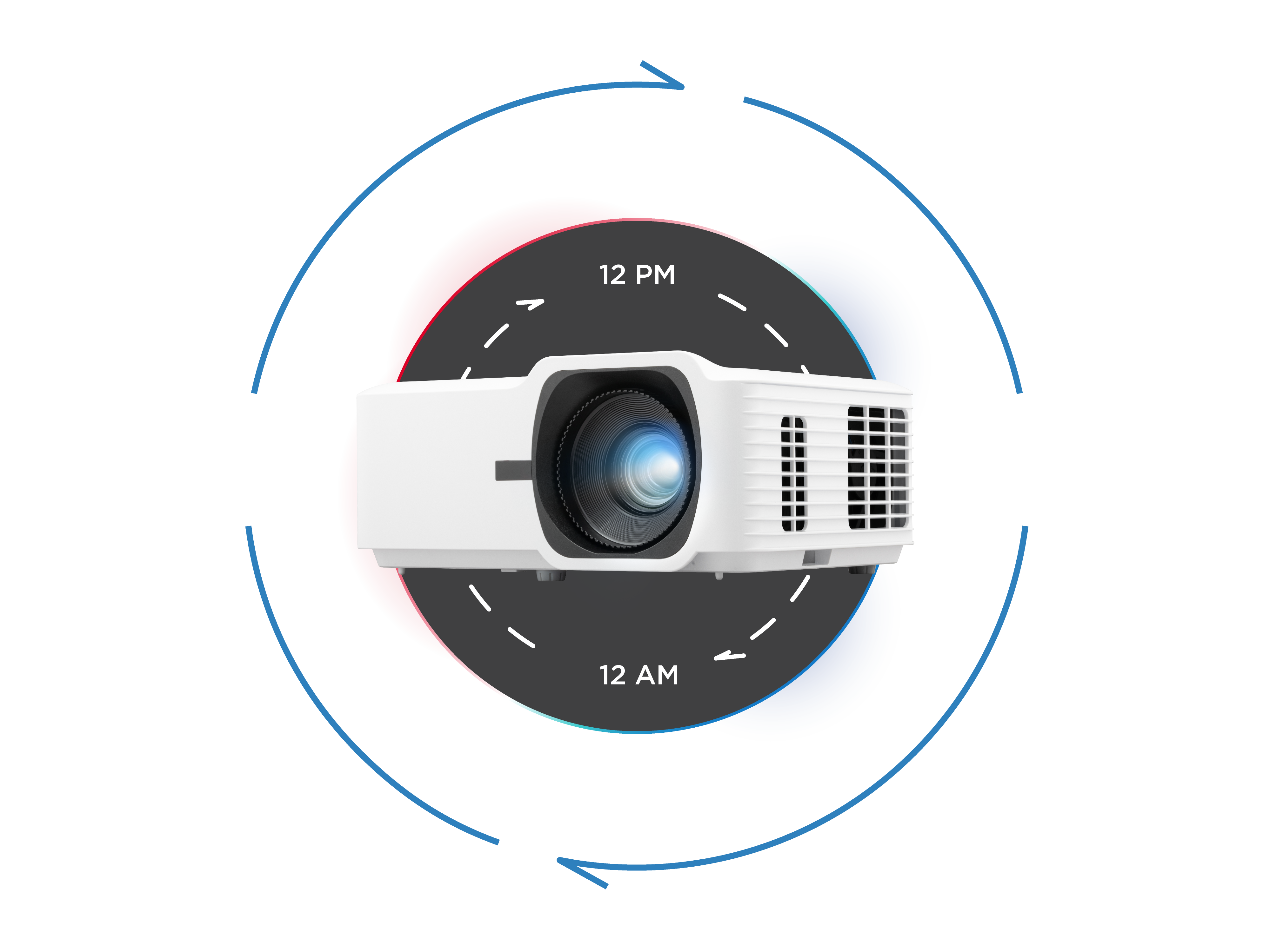

Non-stop 24/7 Operation​​

The projector's advanced cooling design enables 24/7 operation without any degradation in image quality or performance. This makes it the go-to solution for applications that require continuous projection in retail stores, malls, museums, airports, and other public spaces.
Non-stop 24/7 Operation​​ 1

HDR / HLG / 4K UHD supported by HDMI 2.0b

The LSD500-4K is equipped with HDMI 2.0b and HDCP 2.3 ports, delivering full 4K resolution with HDR10 and HLG support at a smooth 60Hz frame rate. Whether streaming via a Roku stick or playing from a 4K Blu-ray player, enjoy brilliant whites, rich blacks, and enhanced detail for a truly cinematic visual experience.
HDR / HLG / 4K UHD supported by HDMI 2.0b 1

A Simpler Way to Update Projector Software

Skip trips to the service center by keeping software up to date easily via USB cable connection with your laptop. This efficient solution, developed exclusively by ViewSonic, ensures optimal performance without the hassle.Learn more: https://youtu.be/irlhJLpDHas*The latest projector software update can be found in the download section at the bottom of the page when available.
Projector Software Update
A Simpler Way to Update Projector Software 1

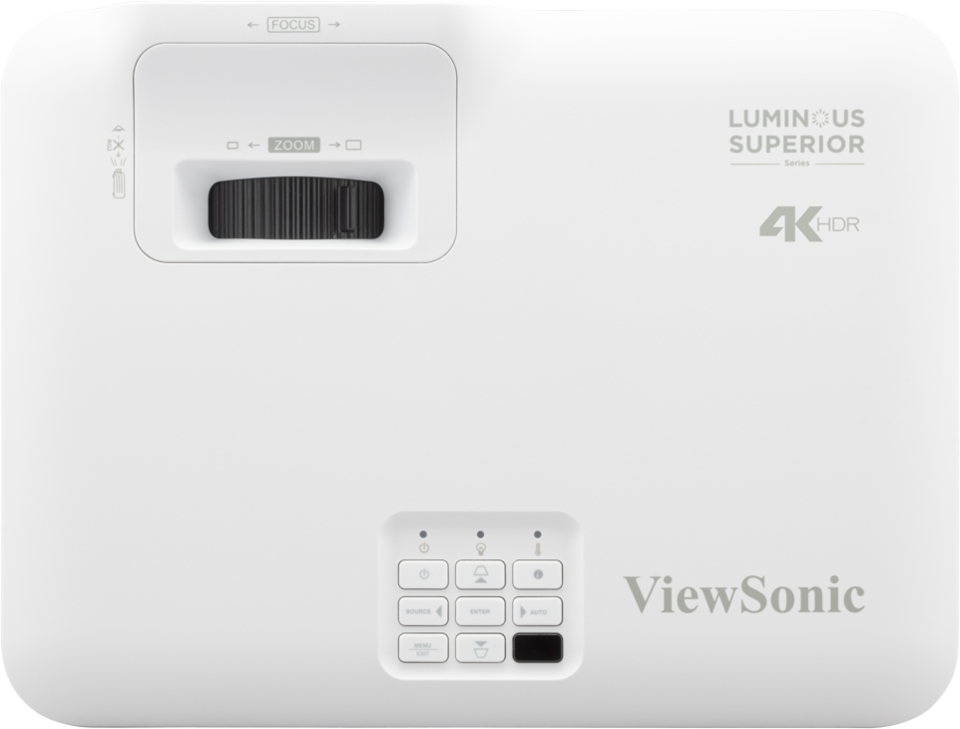

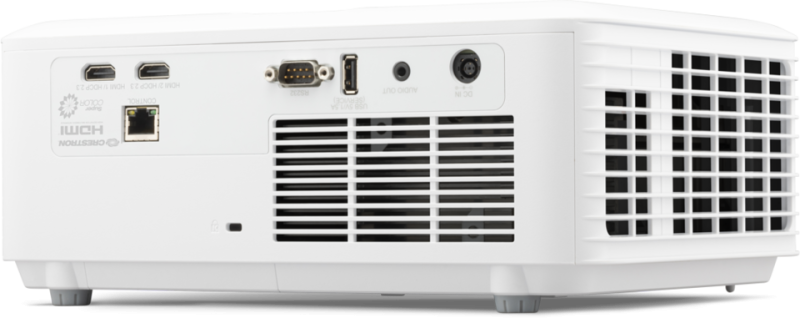

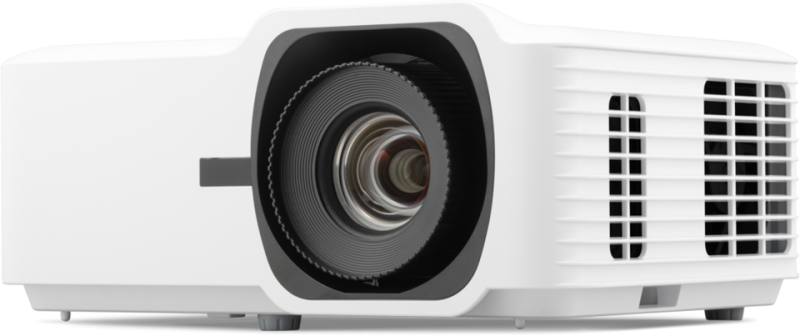

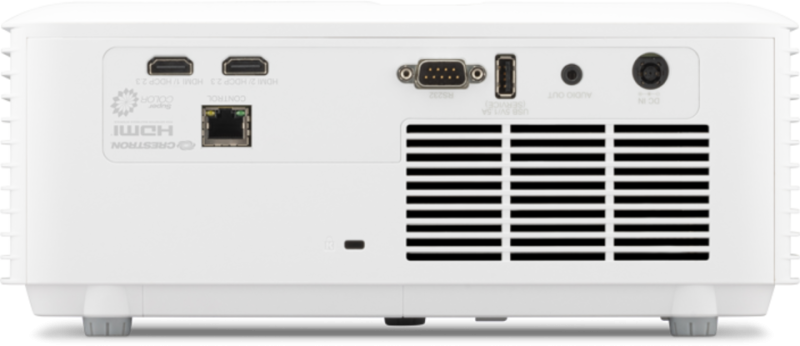

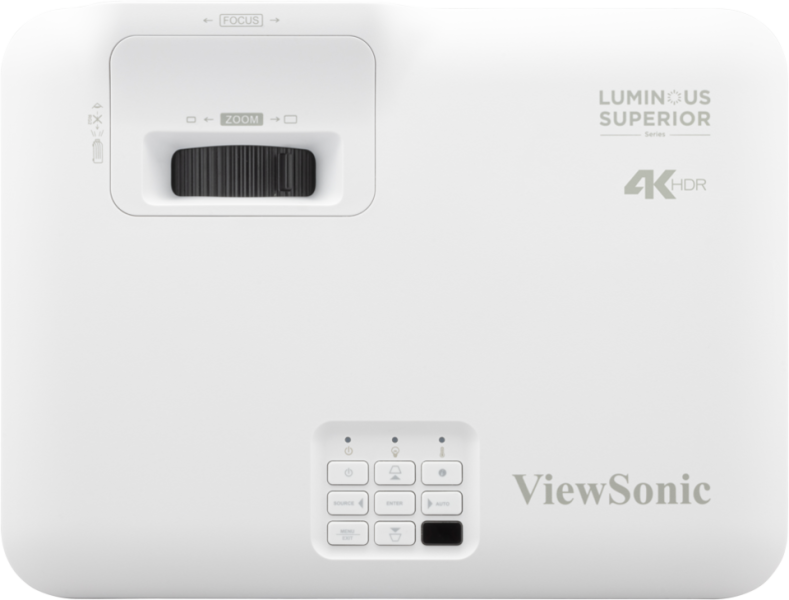

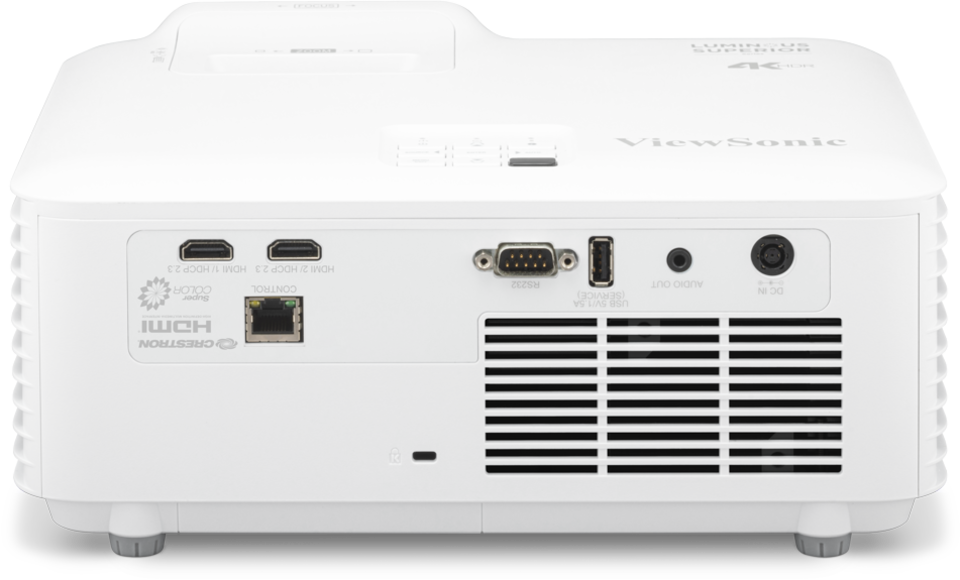

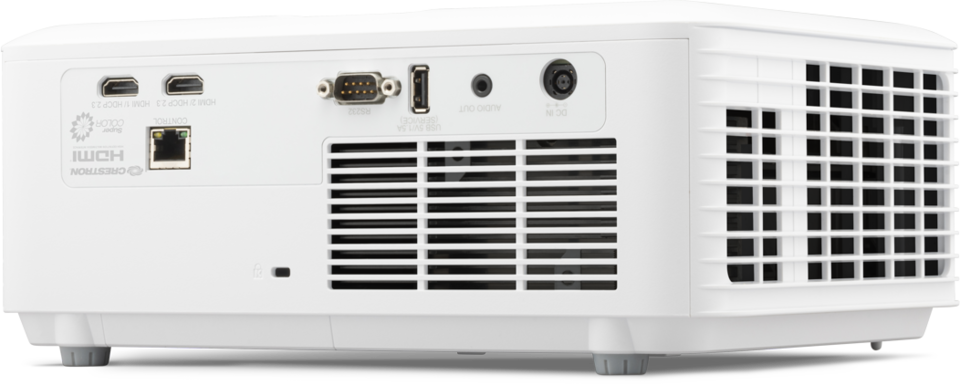

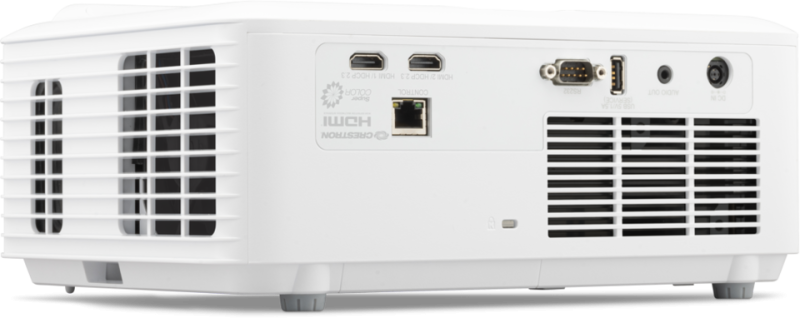

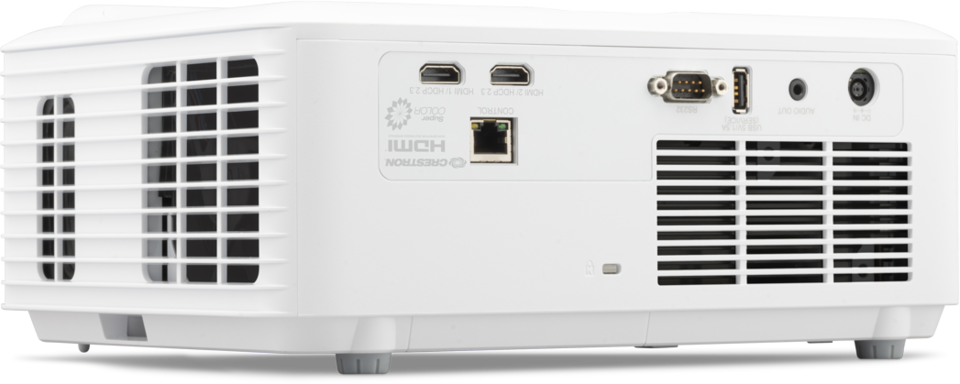

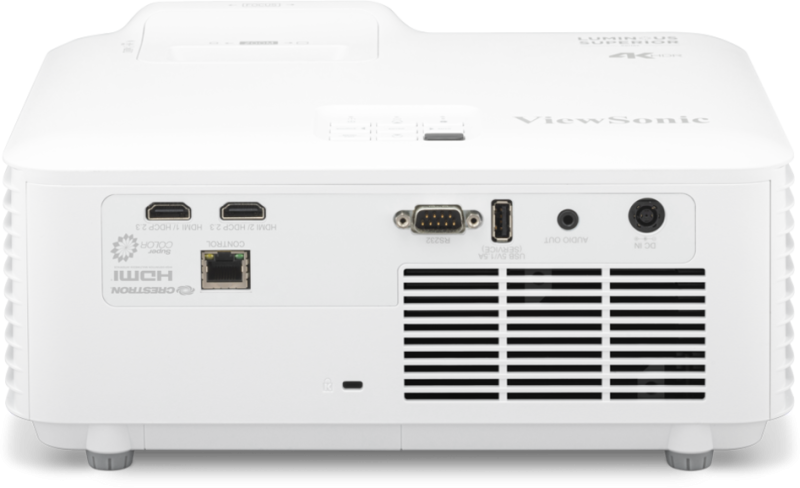

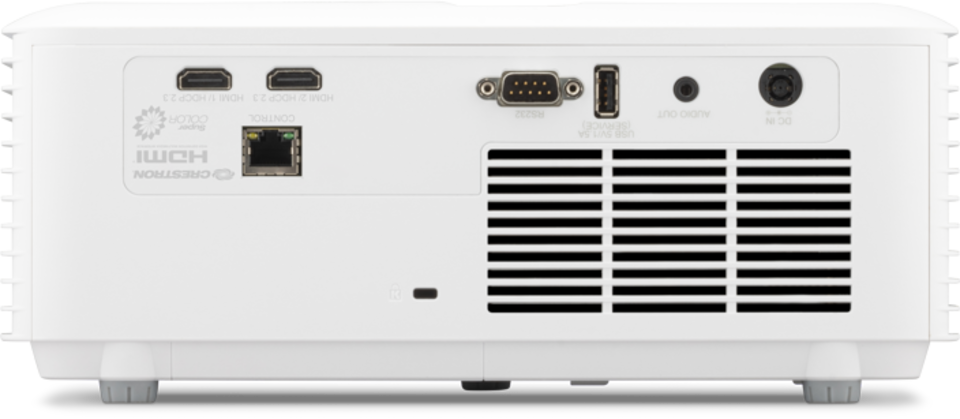

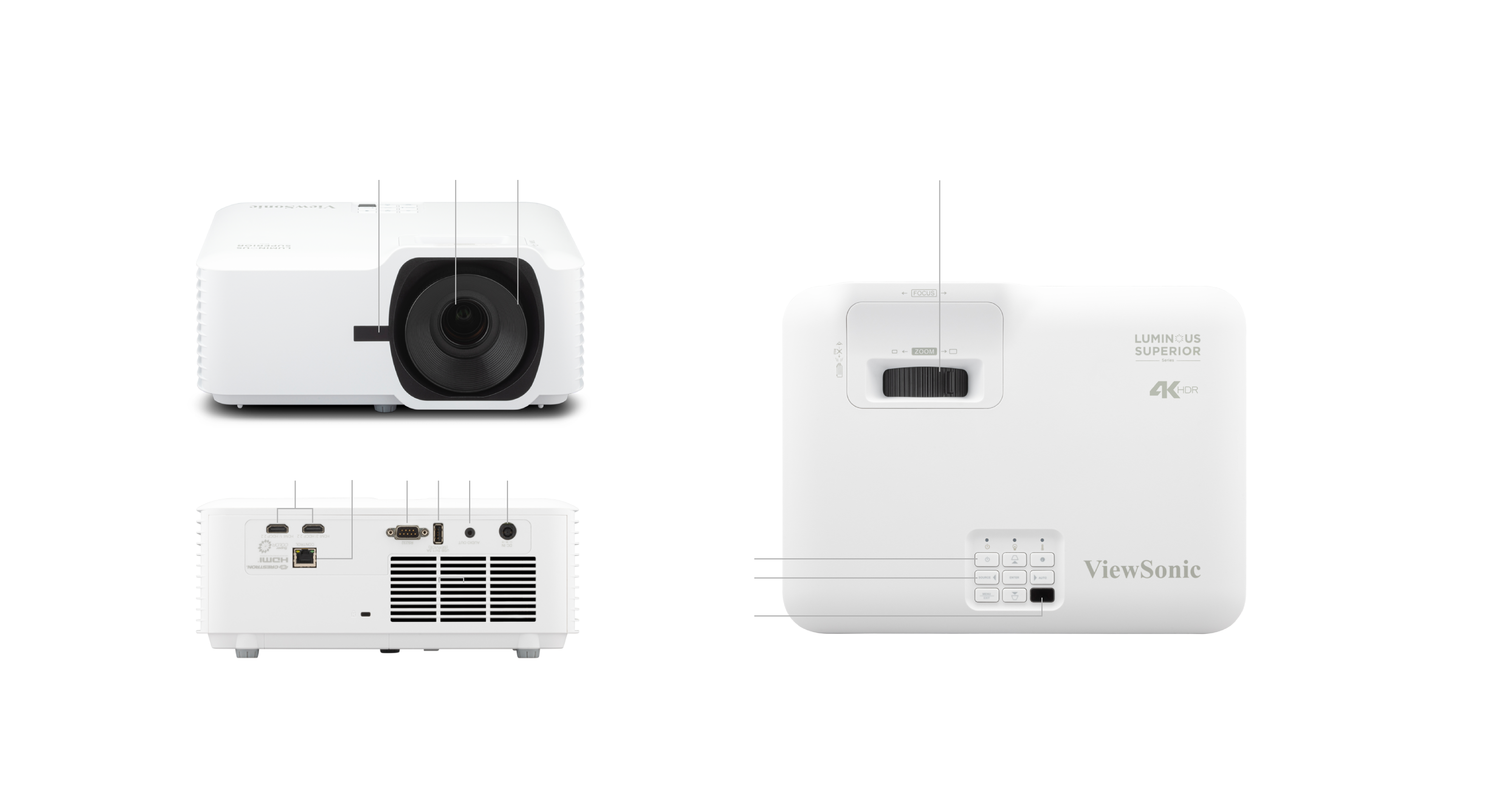

Dimensions & I/O Ports

  1. Front IR
  2. Lens
  3. Focus Ring
  4. HDMI 2.0b/HDCP 2.3
  5. RJ45
  6. RS232
  7. USB-A (5V/1.5A, Service)
  8. Audio Out
  9. DC in
  10. Zoom Ring
  11. Power Button
  12. Keypad
  13. Top IR

SPECIFICAȚII


  • Specificație
    Sistem de proiecție: 0.65" 4K UHD
    Rezoluție Nativă: 3840x2160
    Luminozitate: 5000 (ANSI Lumens)
    Brightness (Center Lumens): 5500
    Rată de contrast: 3000000:1
    Display Color: 1.07 Billion Colors
    Tip sursă de lumină: Laser Phosphor
    Light Source Life (hours) with Normal Mode: 20000
    Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
    Lentile: F=2.5-3.26, f=20.91-32.62mm
    Decalaj de proiecție: 128% +/- 10%
    Raportul de proiectare: 1.4-2.24
    Zoom optic: 1.6X
    Zoom Digital: 0.8x-2.0x
    Dimensiune Imagine: 30"-300"
    Distanță de proiectare: 0.93-14.88m
    (100"@3.10m)
    Intrare Keystone: H:+/-30° , V:+/-30°
    Zgomot perceptibil (funcție Normal): 32dB
    Audible Noise (Eco): 27dB
    Input Lag: 4.2ms
    Suport rezoluție: VGA(640 x 480) to 4K UHD(3840 x 2160)
    Compatibilitate HDTV: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
    Frecvență orizontală: 15K-150KHz
    Rată verticală de scanare: 24-240Hz
  • Input
    HDMI: 2
    (HDMI 2.0, HDCP 2.3)
  • Ieșire
    Audio-out (3.5mm): 1
    Difuzor: 15W
    USB Tip A (Alimentare): 1 (5V/1.5A)
