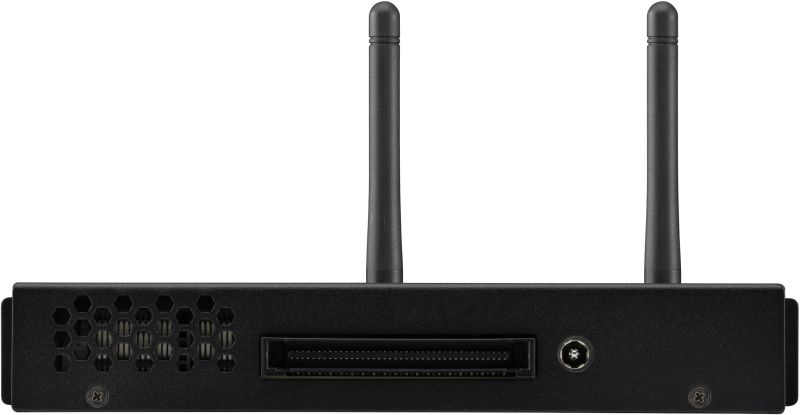

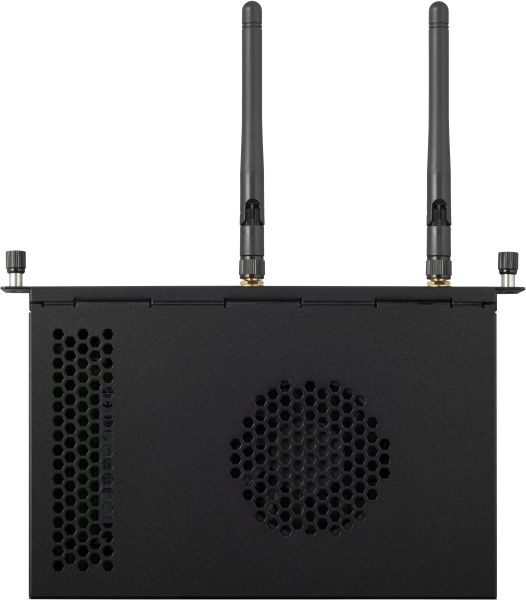

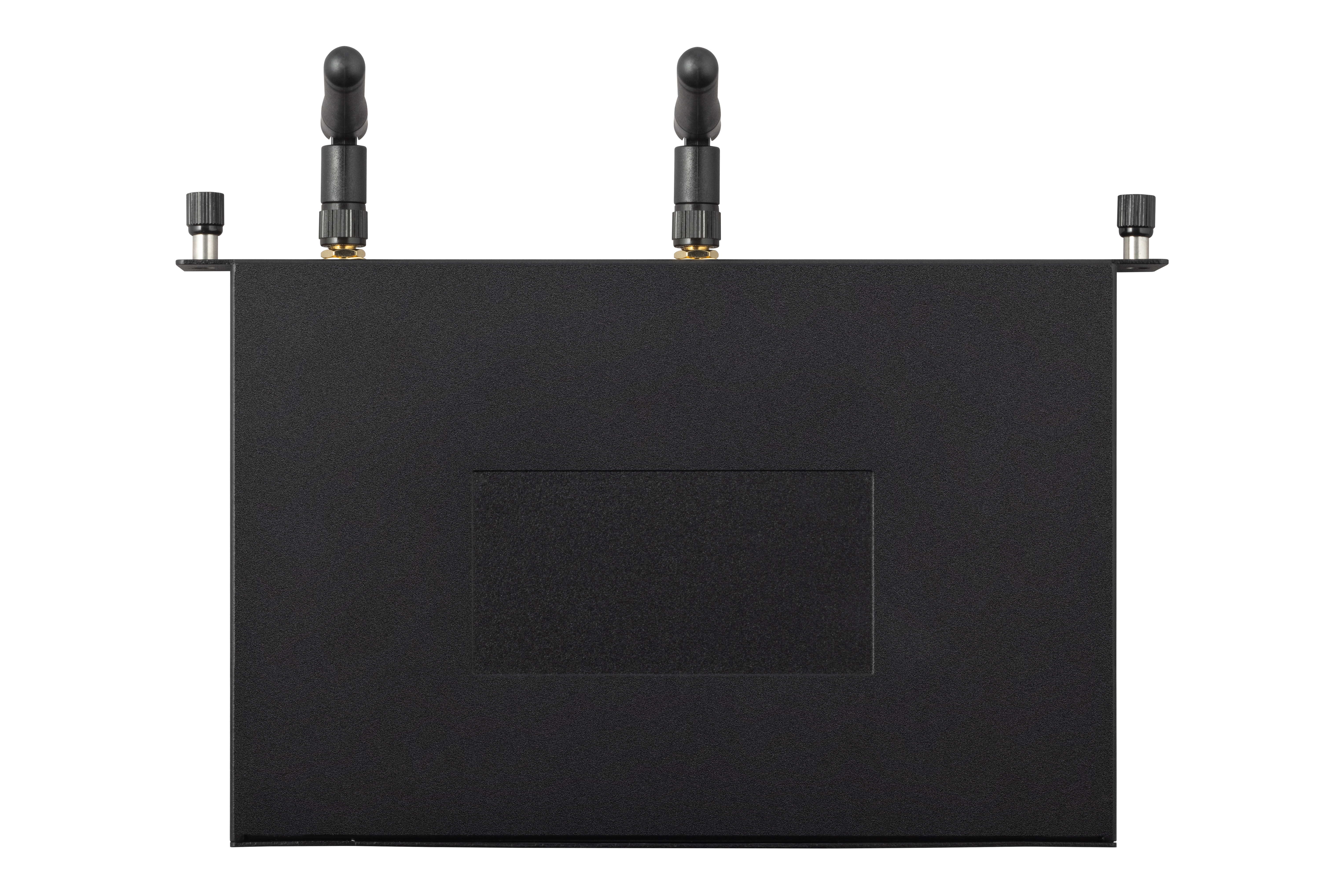

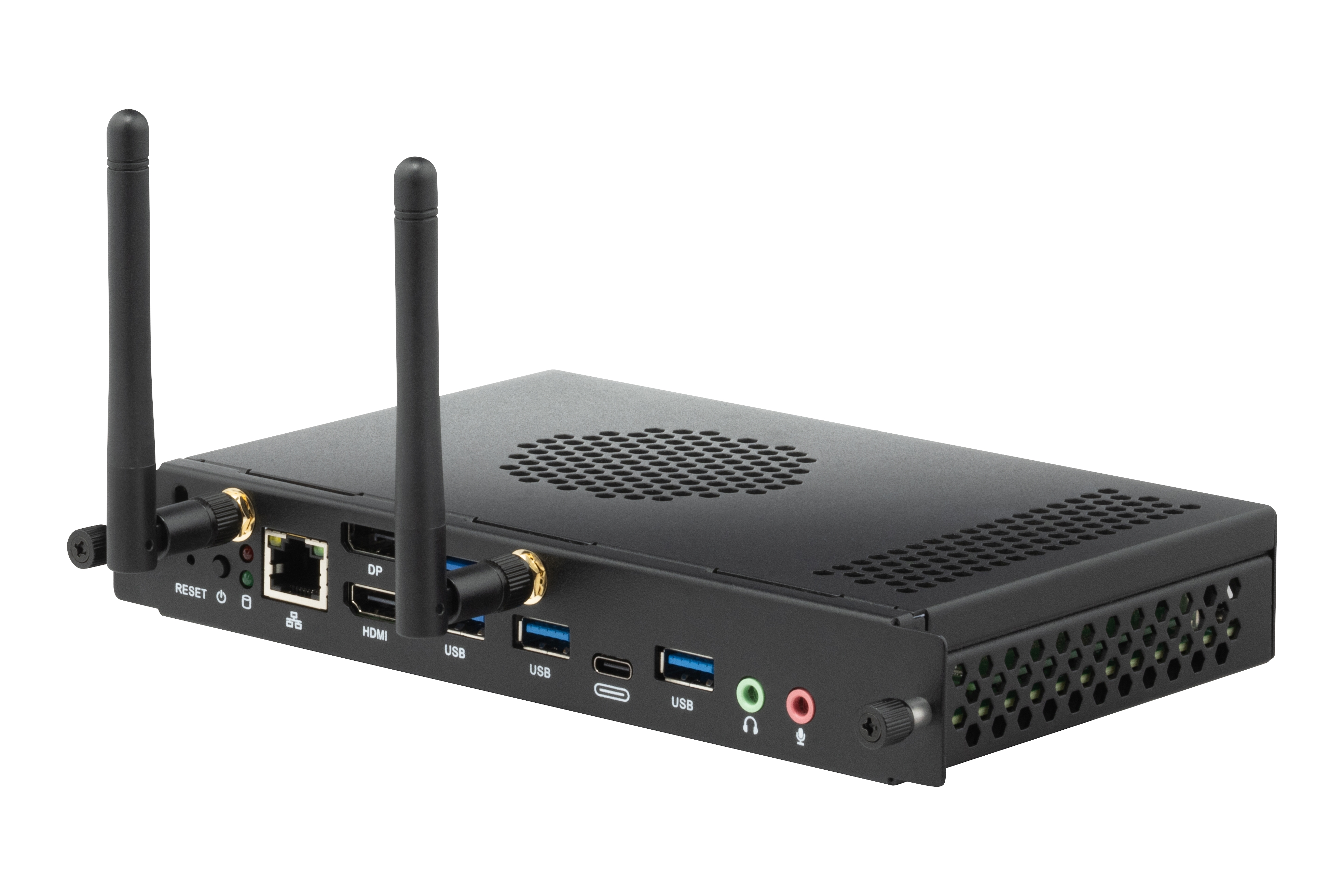

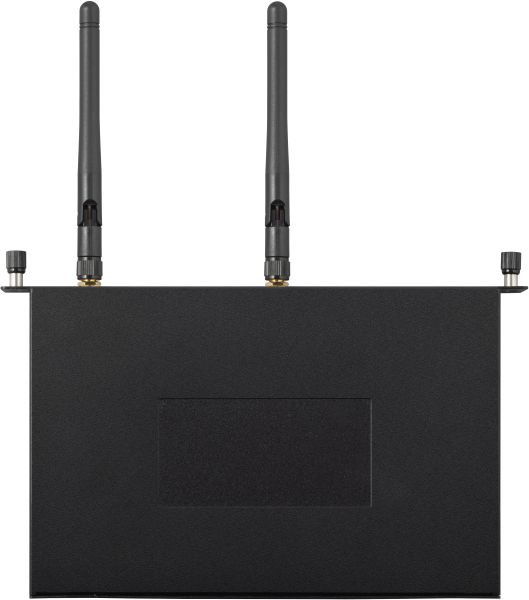

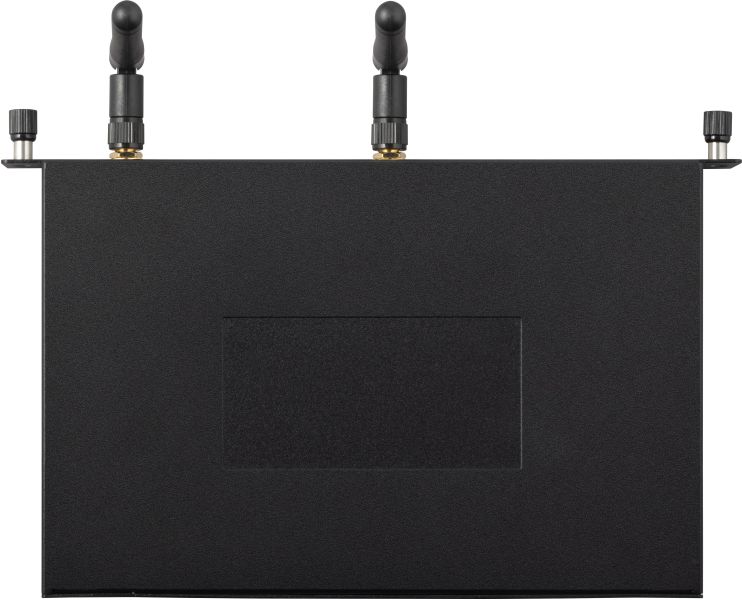

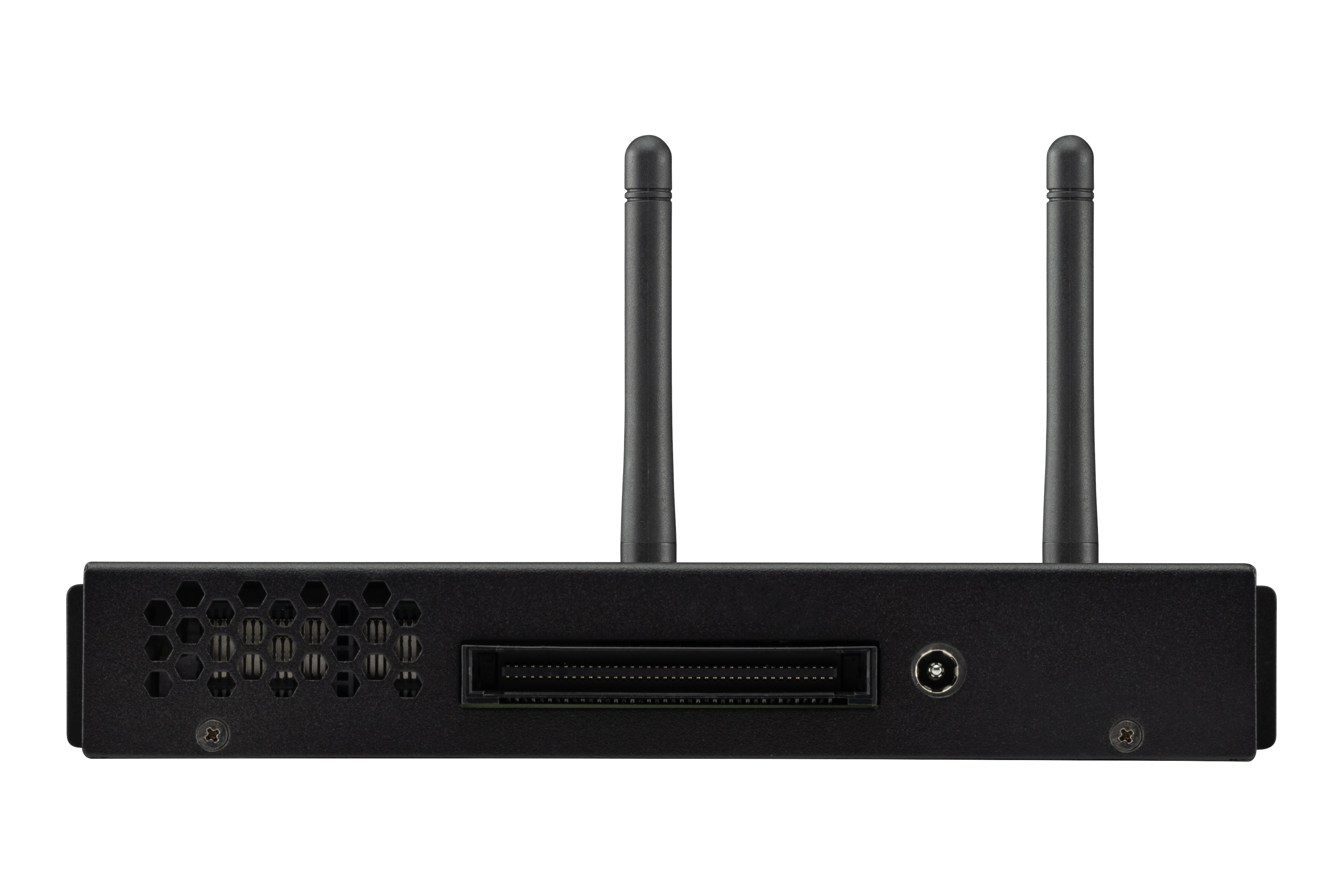

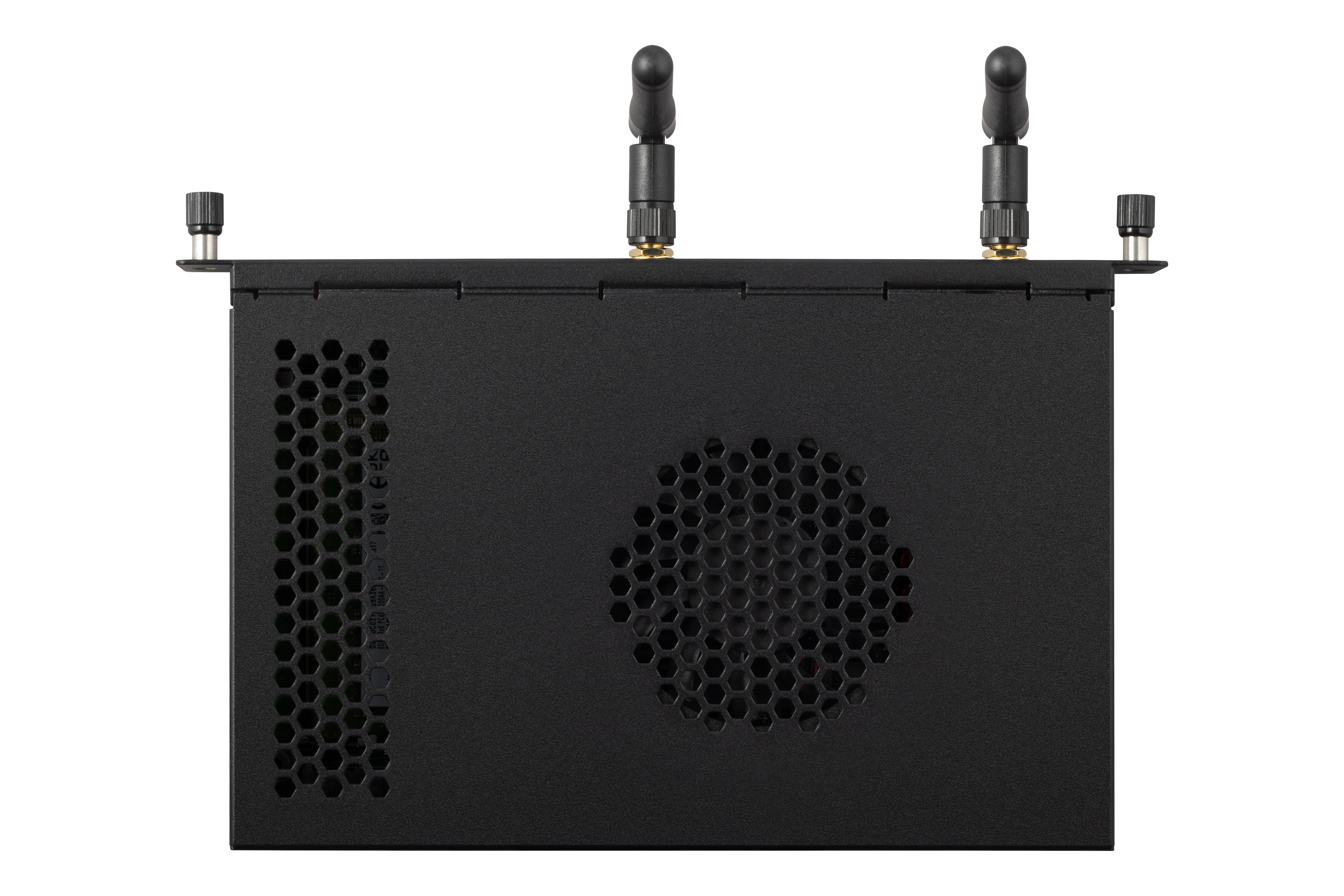

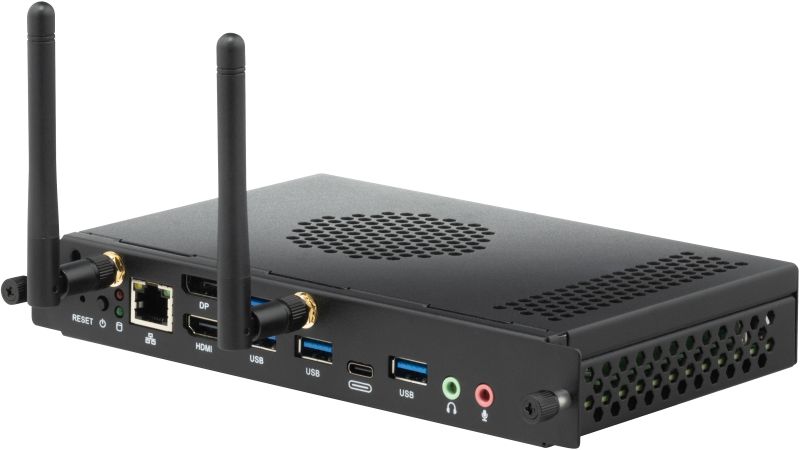

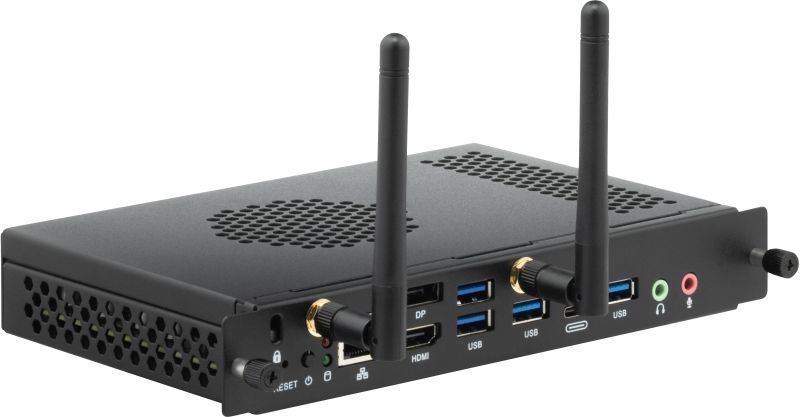

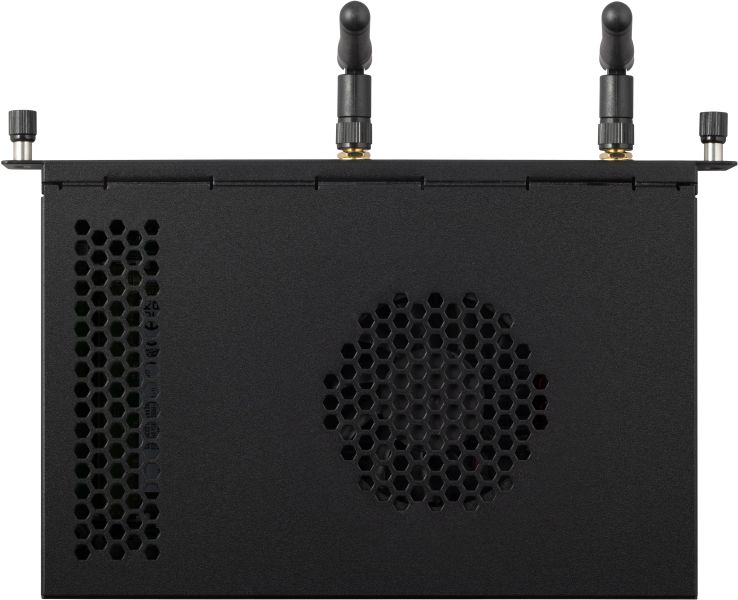

VPC37-W53-G1
Slot-in PC for ViewBoard®
- Windows 11 Pro
- Ideal Integrated Solution for ViewBoard® Interactive Displays & Presentation Displays

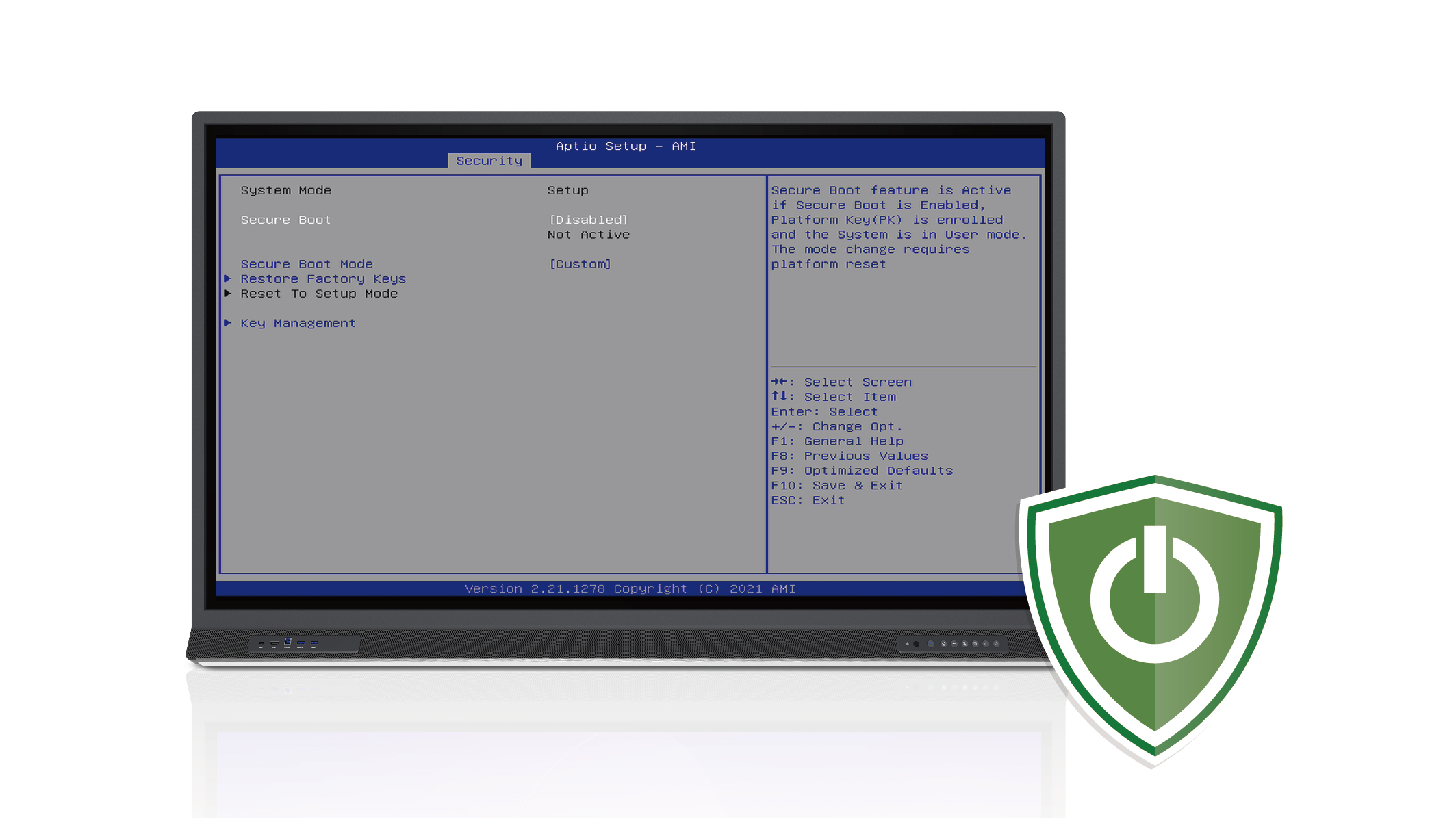

- Powerful Intel® 12th Core Processors embedded TPM2.0
- Improved System Stability, Security, & Thermal Control
SPECIFICAȚII
- SoftwareSistem de operare: Windows 11 Pro
- NucleuProcesor: Intel® Core™ i7-1260P 2.1G Turbo boost 4.7G
Grafică: Integrated Intel® iris Xe Graphics (96EU)
Total Available Graphics Memory: 32GB
Max Resolution up to 7680x4320@60Hz (DP) - MemorieTip: DDR4 SO-DIMM
Capacitate: 16GB (up to 32GB)
- StocareDimensiune: M.2 2280 (22 x 80 mm)
Capacitate: 256GB SSD

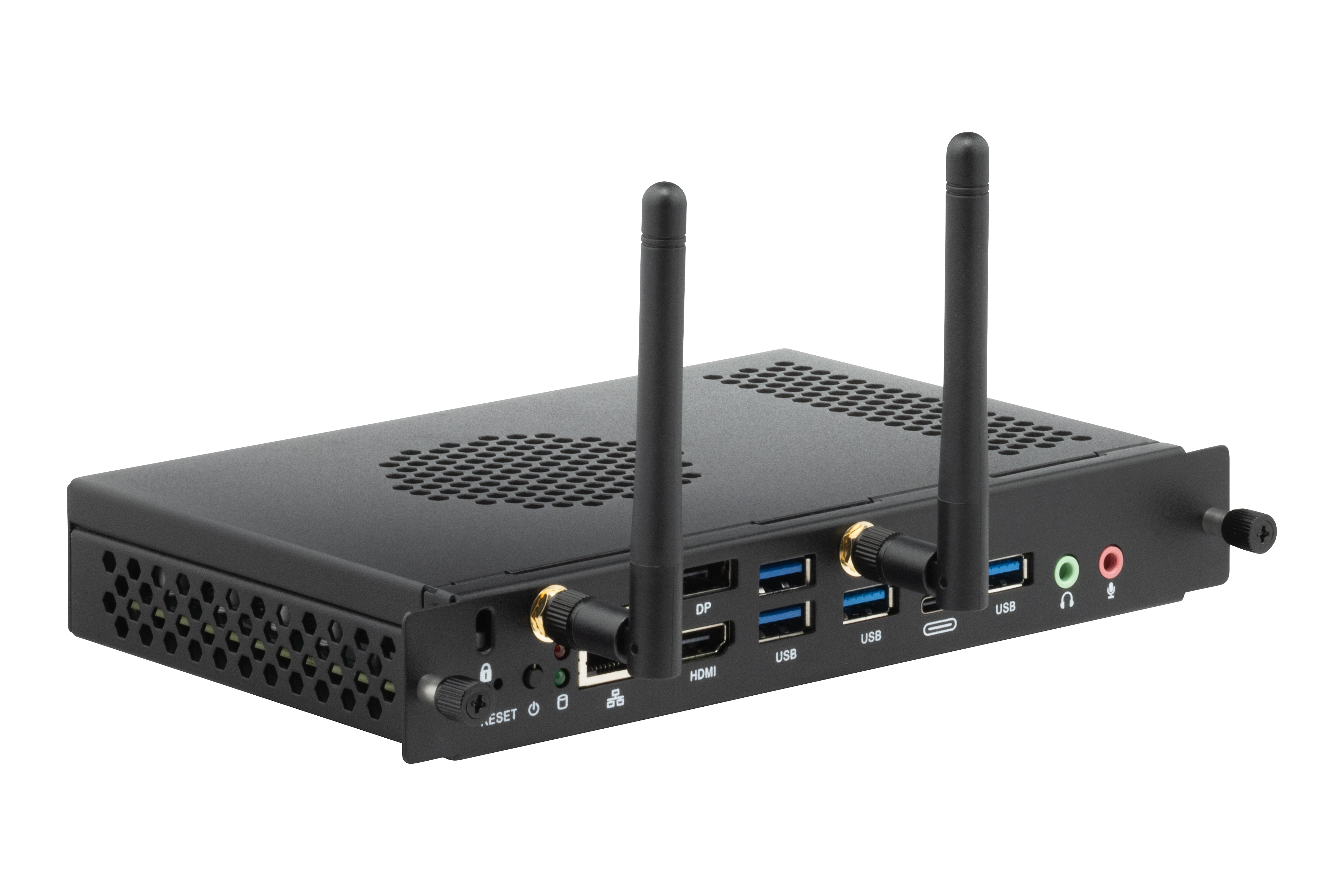

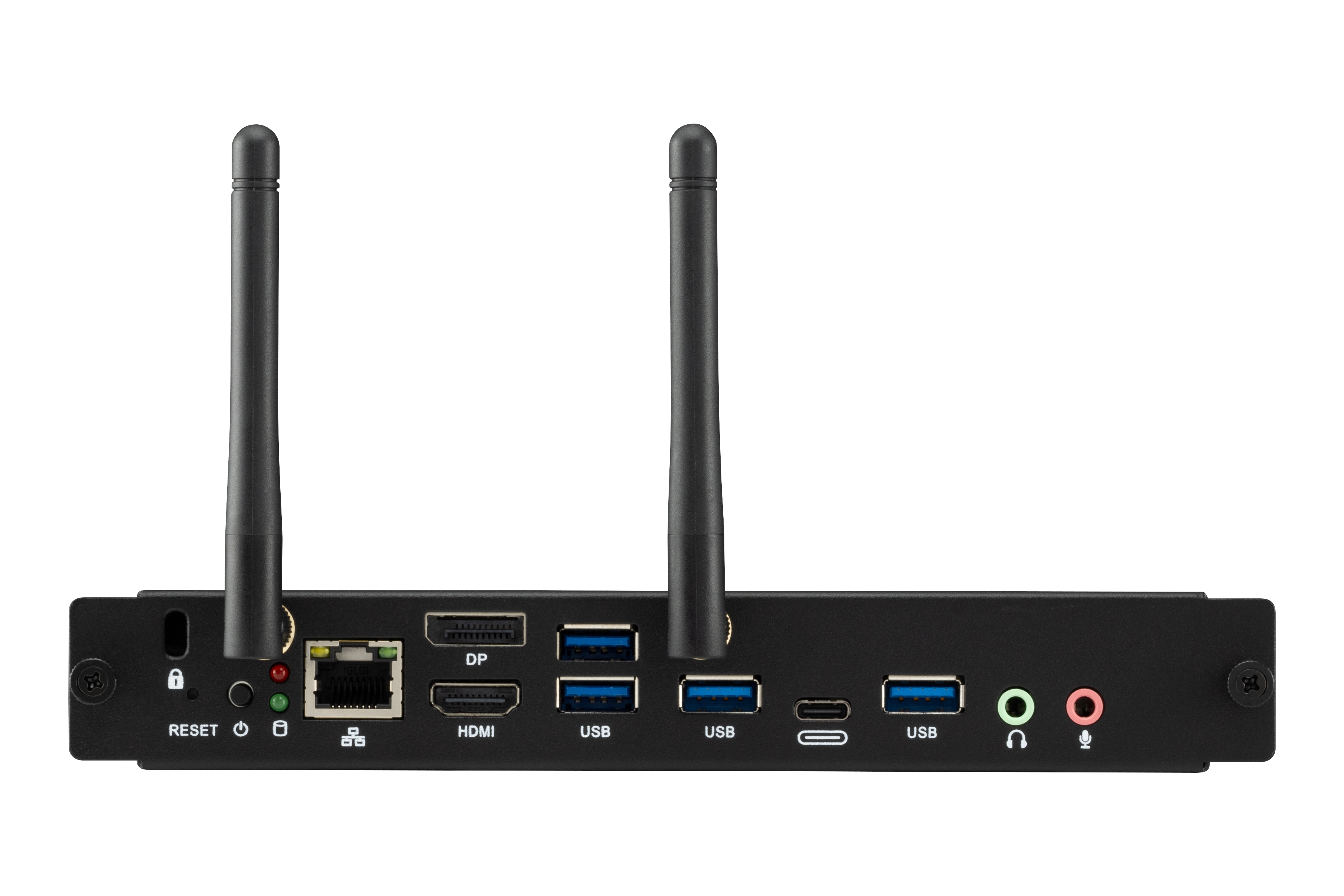

Interfață: PCIE and SATA 3 - INPUTMIC (Microfon): x1

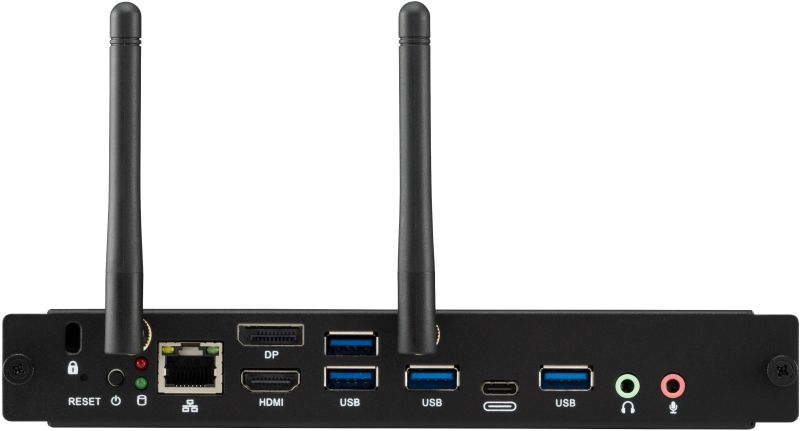

- OUTPUTDisplay Port: x1 (1.4 max. resolution 7860x4320@60Hz)
HDMI: x 1 (2.0 max. , resolution 3840x2160@60Hz)
Audio: x 1 Line out - LANRJ45: x1
- Wireless/ BluetoothWireless/ Bluetooth: Intel® Wi-Fi 6 AX200 802.11 a/b/g/n/ac/ax 2T2R + BT5.1
- USBTip A: USB 3.0 x 4
Tip C: x 1 (data only) - Bundled SoftwarePachet Software: myViewBoard for Window
Adobe Reader
BIOS Winflash tool
FinchGuard (Watch Dog)" - PutereVoltaj: DC 12-19V/ 8A
Consum: 96 W (Max) - OPERATING CONDITIONSTemperatură (º C): -5~40°C
Umiditate: 10% ~ 90% @ 40°C Non-condensing. - DIMENSIUNU (D x Î x A)Dimensiuni (inch/ mm): 7.95 x 4.83 x 1.18 in / 202 x 122.6 x 30 mm
Ambalare (inch/ mm): 10.51 x 7.56 x 2.83 in / 267x 192 x 72mm - WEIGHTMasă (Ib/ kg): 1.33lb/0.6kg
Greutate (Ib/ kg): 2.14 lb/0.97kg - CONȚINUT PACHETCONȚINUT PACHET: 1. VPC37-W53-G1
2. Quick Start Guide
COMPATIBIL CU VPC37-W53-G1
105” 5K Presentation Display
Display de prezentare fără fir (WPD) 4K de 65"
65" 4K Presentation Display
Display Wireless de Prezentare 75" 4K (WPD)
75" 4K Presentation Display
Display Wireless de Prezentare 86" 4K (WPD)
86" 4K Presentation Display
98" 4K Presentation Display
ViewBoard® 105" 5K Interactive Display
ViewBoard® 110” 4K Interactive Display
55” 4K OS-Free Interactive Display
ViewBoard® 65" 4K Interactive Display
ViewBoard® Display Interactiv 4K de 65"
65“ 4K PCAP Touch EDLA Certified Interactive Display
Enterprise Device Licensing Agreement (EDLA) Certified ViewBoard 75” 4K Interactive Display
ViewBoard® Display Interactiv 4K de 75"
75“ 4K PCAP Touch EDLA Certified Interactive Display
75” 4K OS-Free Interactive Display
86“ 4K PCAP Touch EDLA Certified Interactive Display
ViewBoard® IFP86G1 86" 4K OS-Free Interactive Display
ViewBoard® 92" 5K Interactive Display
