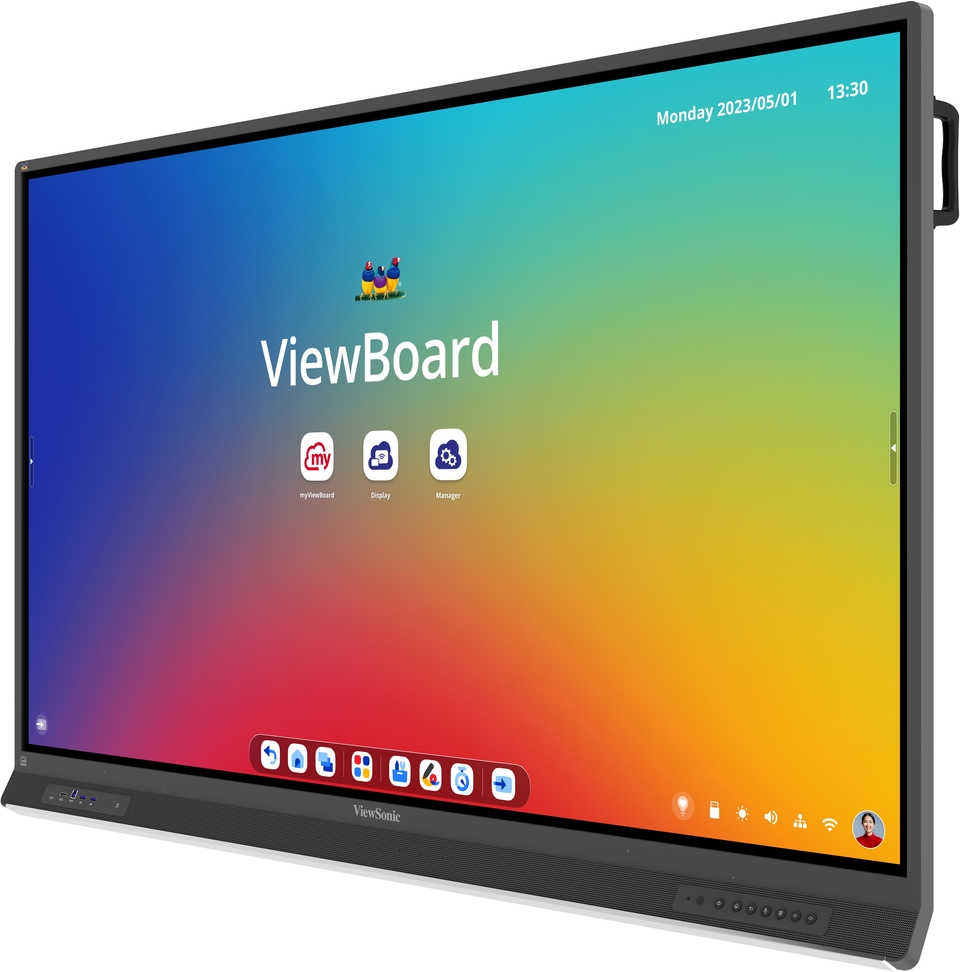

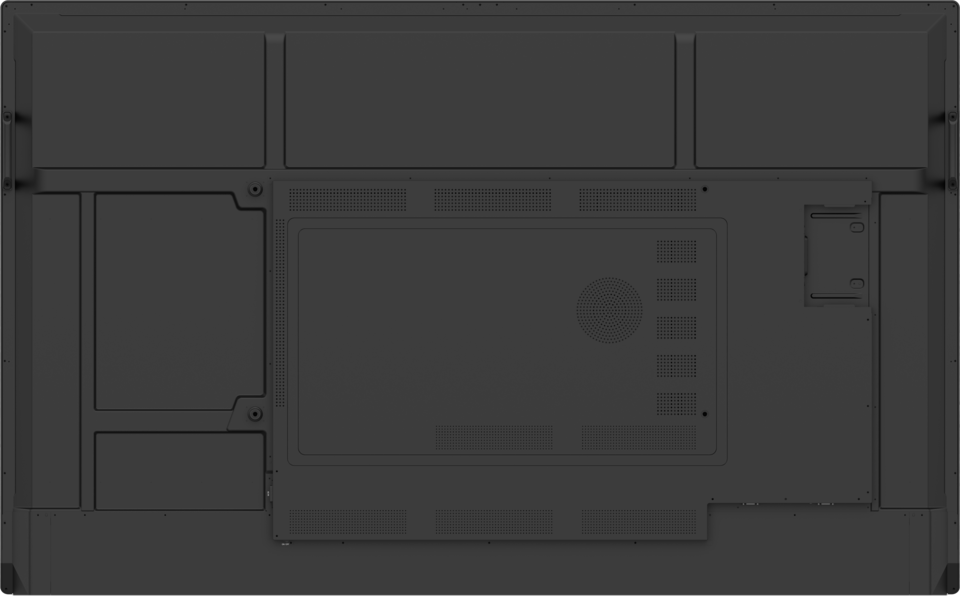

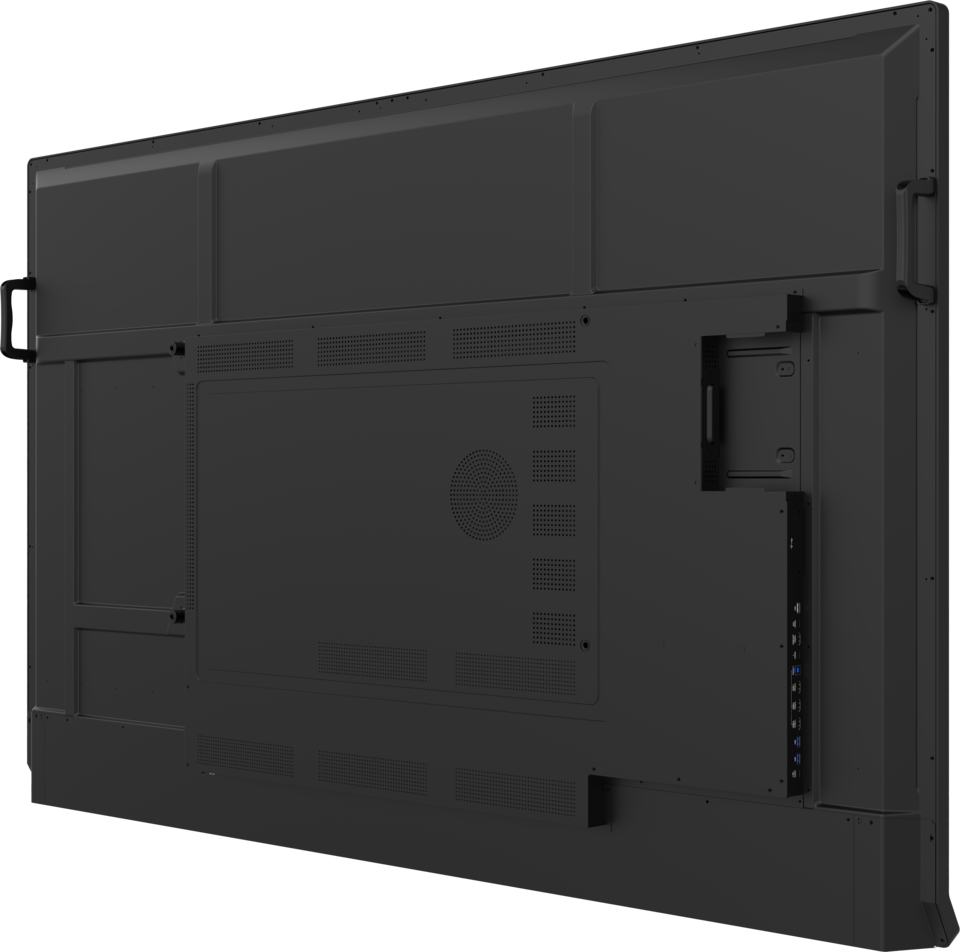

ViewBoard IFP7553

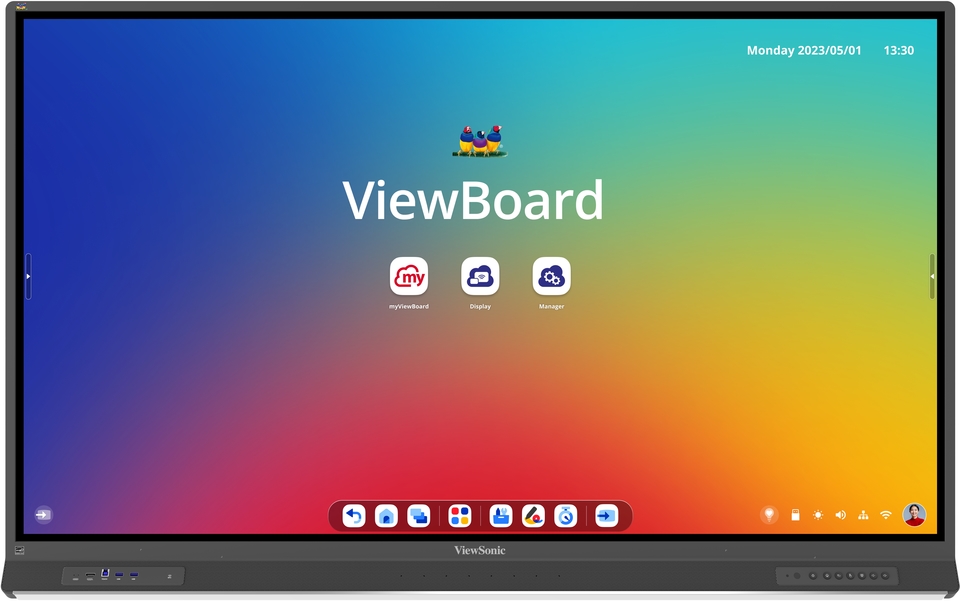

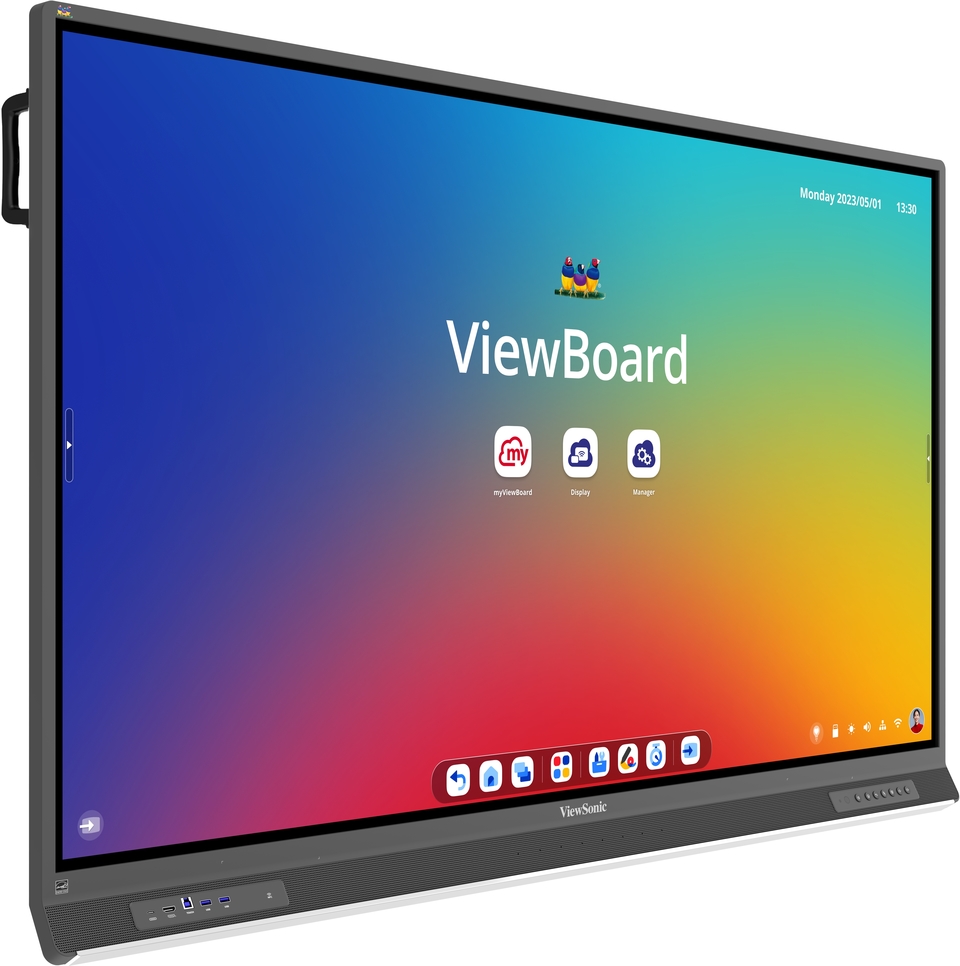

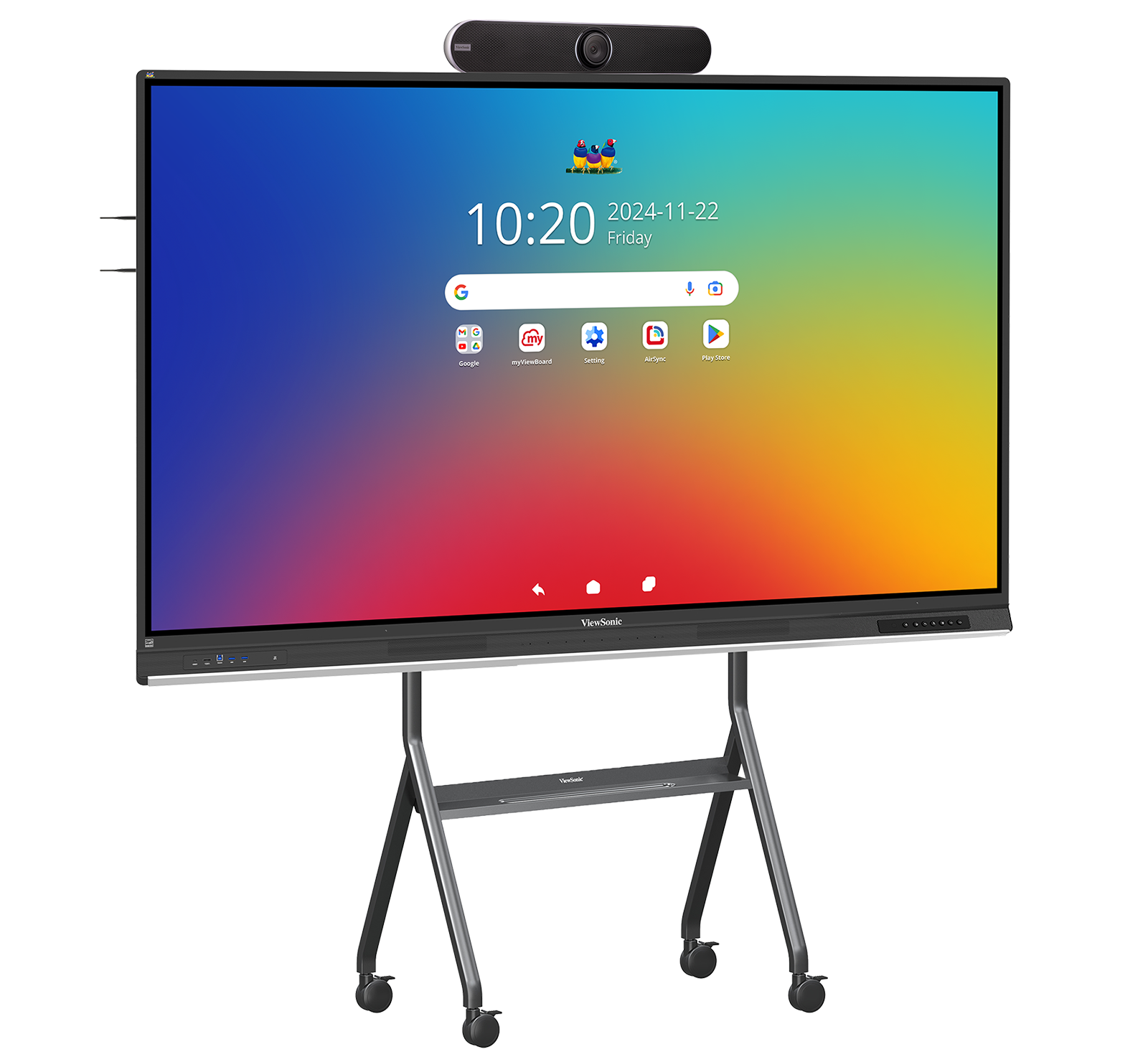

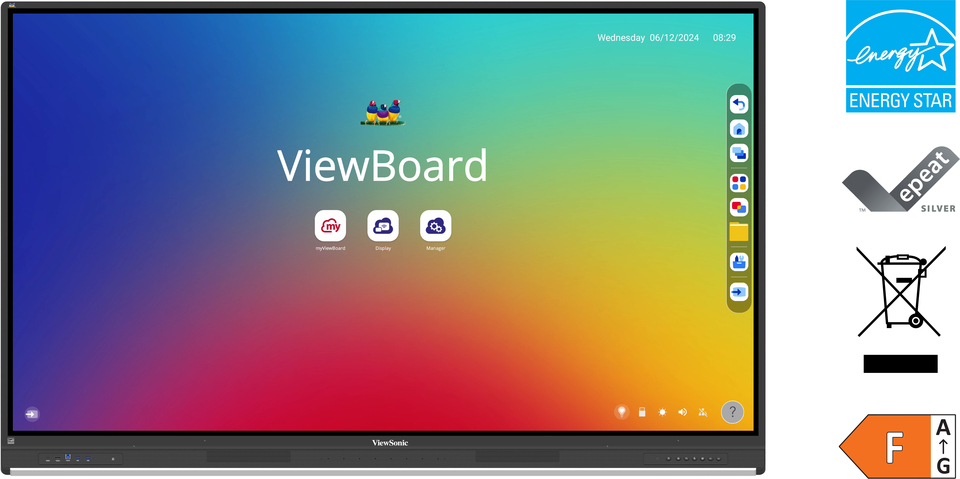

ViewBoard® 75" 4K Interactive Display

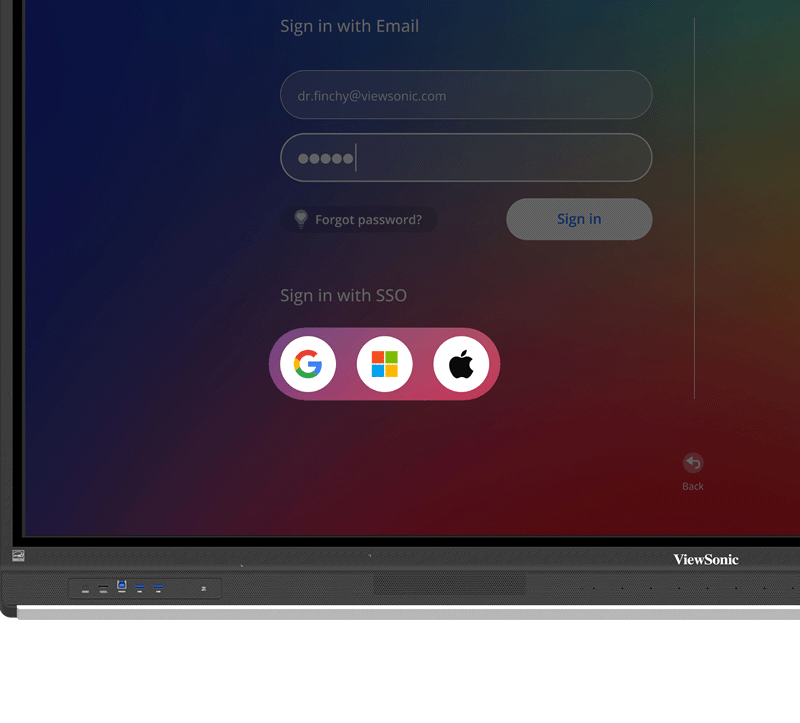

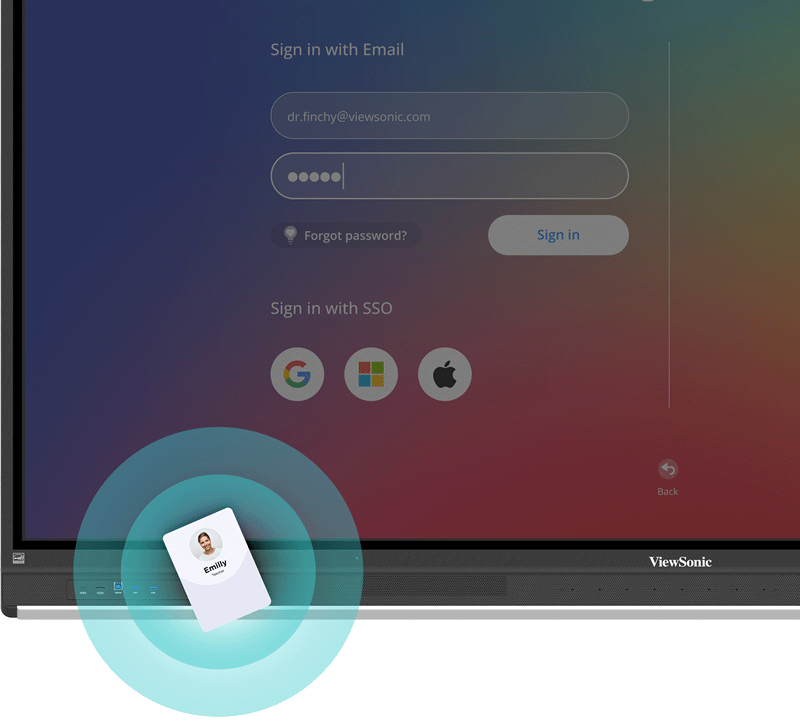

NFC and SSO sign-in for swift access to the intuitive launcher and personal settings
Quick-start annotation, sketching, and four-color switching with the stylus
Octa-core CPU with 8GB RAM and 8GB virtual memory for smooth multitasking

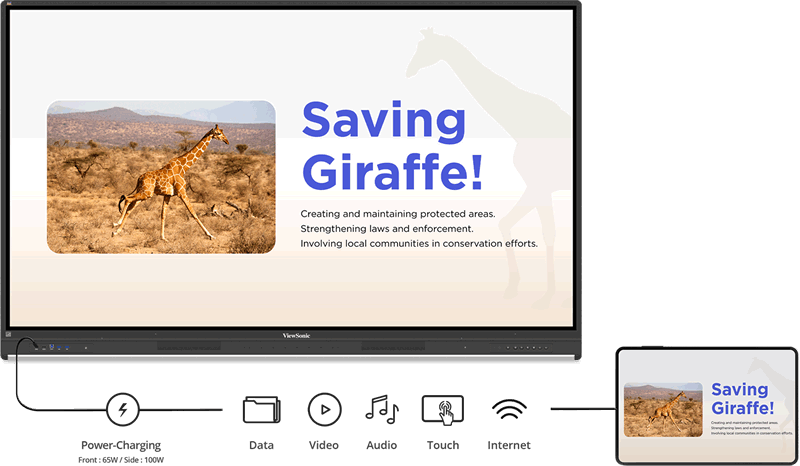

Four USB-C ports ensure seamless connectivity, supporting up to 100W charging
Android 14 with integrated ViewSonic Education Software

GALERIE

SPECIFICAȚII

Display
Dimensiune Panel: 75"
Tip Panel: TFT LCD Module with DLED Backlight
Suprafață Display (mm): 1650.24 (H) x 928.26 (V) (74.5" diagonal)
Aspect Ratio: 16:9
Rezoluție: UHD 3840x2160(Pixels)
Colors: 1.07B colors
Luminozitate: 450 nits
Rată de contrast: 5500:1(Typ.)
5000:1(Min. with DCR enabled)
Timp de răspuns: 6.5 ms
Unghiuri de vizualizare: H = 178, V = 178 typ.
Durată de viață sursă de lumină fundal: 50,000 hrs
Tratament pentru protecția suprafeței: Panel Anti-Glare 3H + Anti-Fingerprint (7H Mohs; 9H pencil hardness)
Orientare: Landscape
Platformă
Procesor: Octa-Core CPU (A73*4 + A53*4)
Memorie RAM: 8GB (Physical RAM) + 8GB (Virtual Ram) *
Stocare: 128GB
Touch
Tipul/ Tehnologia: UFT (Ultra Fine Touch) Technology
Rezoluție Touch: 32767 x 32767
Touch Point: Windows: 40 points touch, Android: 20 points touch
Touch Response Time: ≤5ms

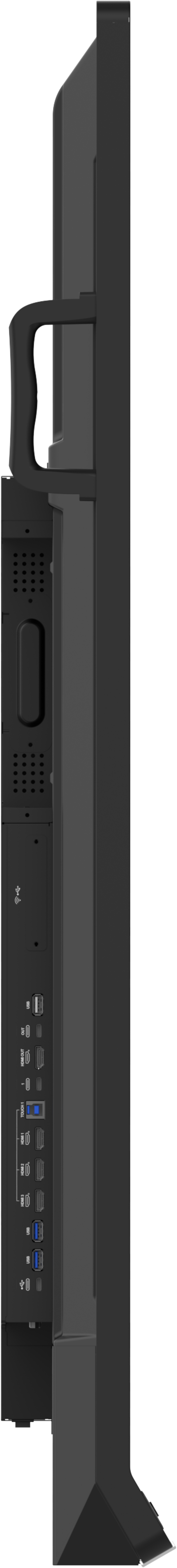

INPUT
HDMI: x4 (Frontx1:HDMI2.1 with CEC ; Rearx3:(HDMI2.1 with CEC)x2 & (HDMI2.1 with CEC,ARC)x1
RGB/ VGA: x1
Display Port: x1
Audio: x1 (PC audio in)
RS232: x1
OPS: module slot x 1
OUTPUT
HDMI: x1
Audio: x1 (Earphone out)
SPDIF: x1
LAN
RJ45: x2
USB
Tip A: USB3.0x4 (Frontx2; Rearx2)
USB2.0x1 (Rear)
Tip B: USB 3.0x3(Frontx1; Rearx2)
Tip C: Input:x3 (Frontx1 with USB3.0, DP1.2, Ethernet 100M, PD 100W; Rearx1 with USB3.0, DP1.2, Ethernet 100M, PD 65W; Rearx1 with USB3.0, PD 15W)
Output:x1, DP
DIFUZOARE
20W x 2 front soundbar + 20W x 1 subwoofer
MICROPHONE
built-in 8-array microphone

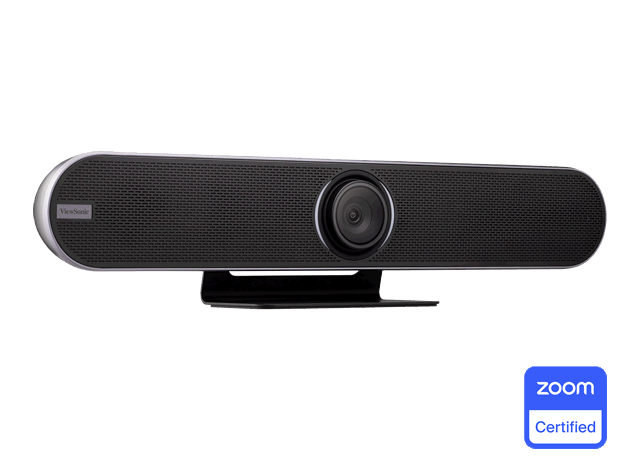

Top Camera Plate
Yes
Sistem de operare incorporat
Android 14
Bundled Software
Software Basic Annotation: myViewBoard for Android
Software Pro Annotation: myViewBoard for Windows (embedded in VPC)

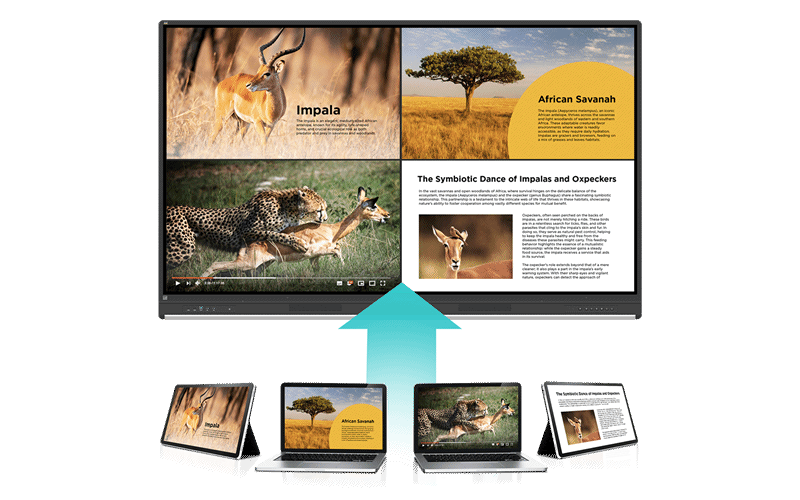

Prezentare wireless: Display, vCast
Device Management: Manager
Launcher ViewSonic: Yes
Caracteristici speciale
All-in-one USB port: USB 3.0 “SmartPort USB” to all channels.
Partajare simplă LAN între IFP și dispozitivul cu slot-in: 10/100/1000M (USB Type-C 10/100, Android & PC 10/100/1000)
Light Sensor: Yes
NFC Reader: Yes
Pen Sensor: Yes
Putere
Voltaj: 100-240VAC +/- 10% Wide Range
Consum: On:101.77W / Off: <0.5W
ERGONOMICS

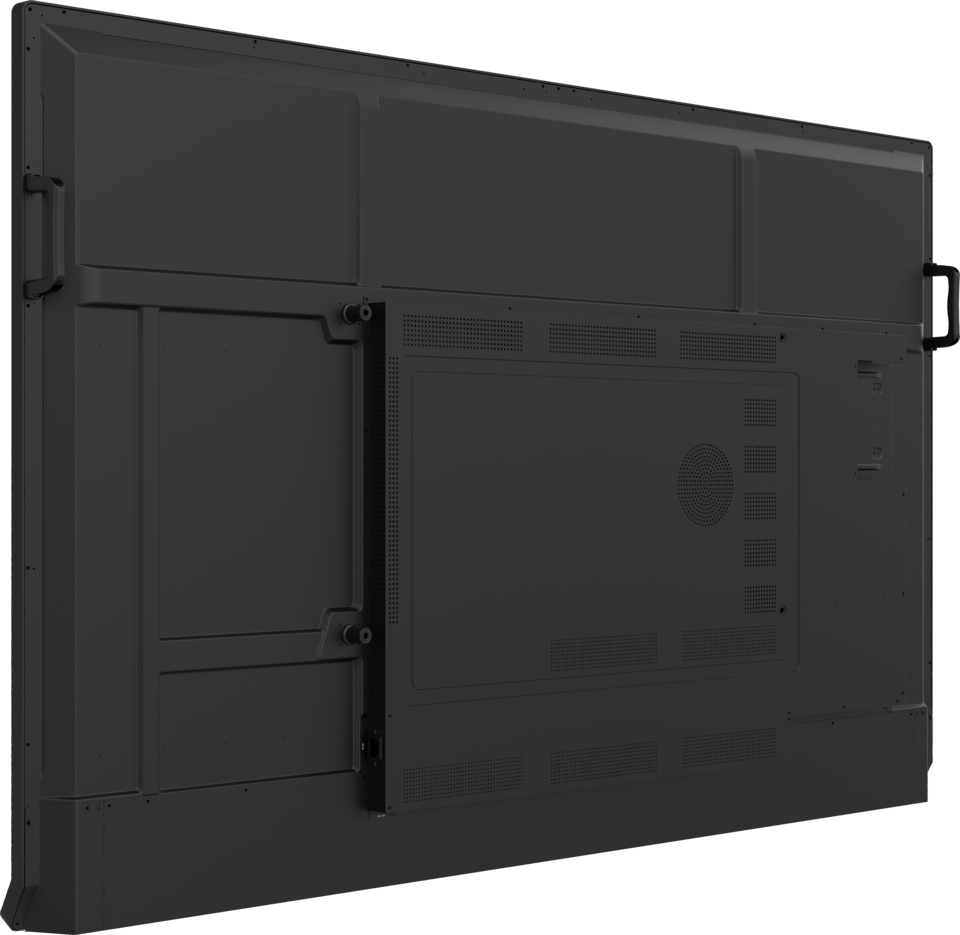

Montare pe perete (VESA® ): 800 x 400
OPERATING CONDITIONS
Temperatură (º C): 0°C to 40°C
Umiditate: 20% ~ 80% RH non-condensing
DIMENSIUNU (D x Î x A)

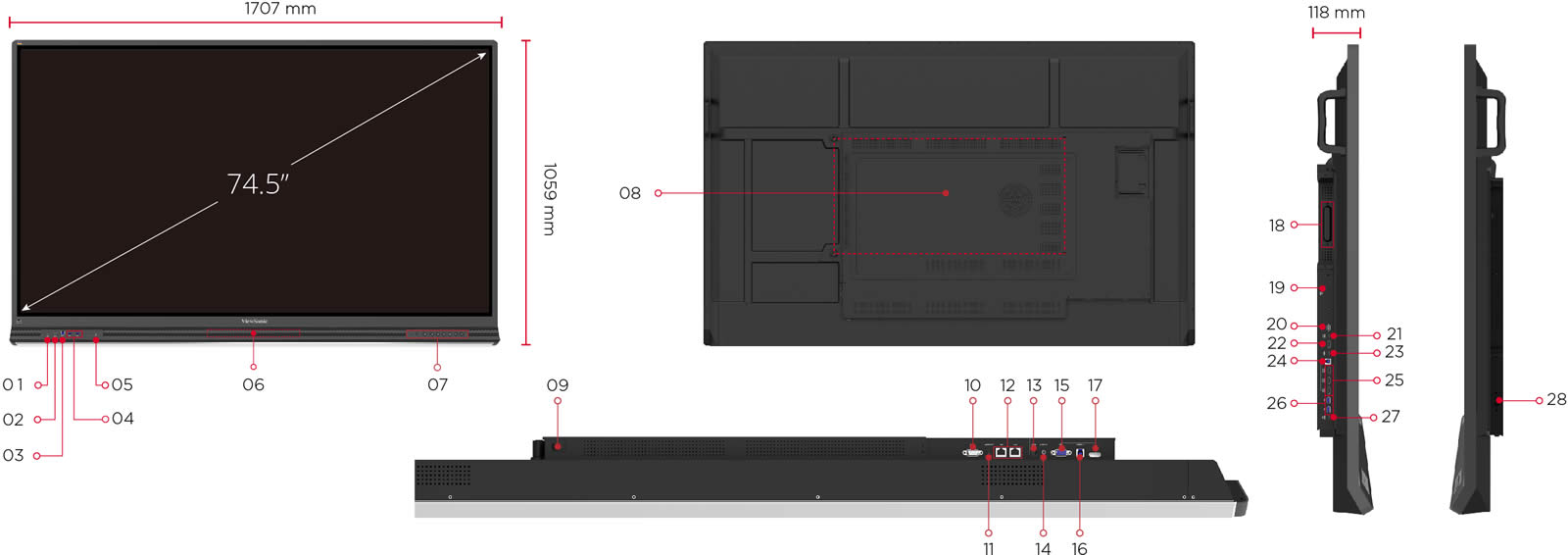

Dimensiuni (inch/ mm): 67.21 x 41.7 x 4.66 in / 1707 x 1059.2 x 118.4 mm
Ambalare (inch/ mm): 74.8 x 45.67 x 8.46 in / 1900 x 1160 x 225 mm
WEIGHT
Masă (Ib/ kg): 113.98 lb / 51.7 kg
Greutate (Ib/ kg): 140.87 lb / 63.9 kg
CONȚINUT PACHET
1. 3m power cord by ship area
2. Type C cable 1.8m(USB-IF certified)
3. Remote control with AAA battery
(new VS remote control)
4. 3m touch USB cable(USB 2.0)
5. Touch pen x 2 (VB-PEN-002)
6. Quick Start Guide
7. RS232 adapter
8. Clamp x 5
9. Camera Plate
10. Screw x 8 (camera 2+2, wall mount 4)
11. HDMI cable 3m(HDMI LA certified)
12. AAA Battery x 2
13. Compliance statement

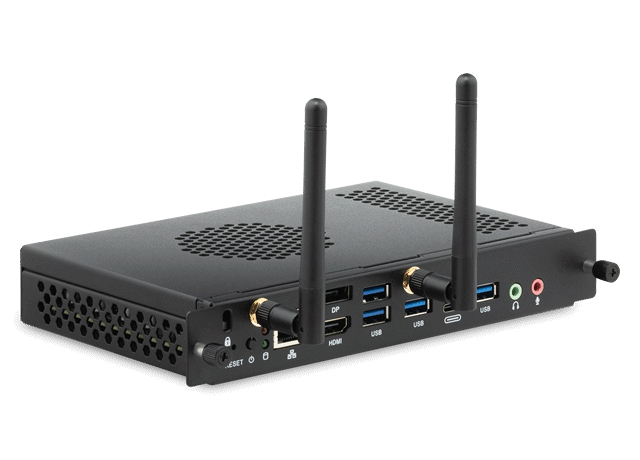

Compatibil Slot intrare PC
VPCF5-W33-G1
VPC37-W53-G1
VPC35-W53-G1
VPC-A31-O1
Note
*Disclaimer for Virtual RAM Usage:
This device's Virtual RAM uses part of the internal storage to potentially enhance performance. It's not a substitute for physical RAM and might impact storage availability and device longevity. Users should assess their needs before enabling this feature. Note that performance outcomes can vary based on application use and device conditions. The manufacturer may modify or discontinue this feature at any time without notice.
