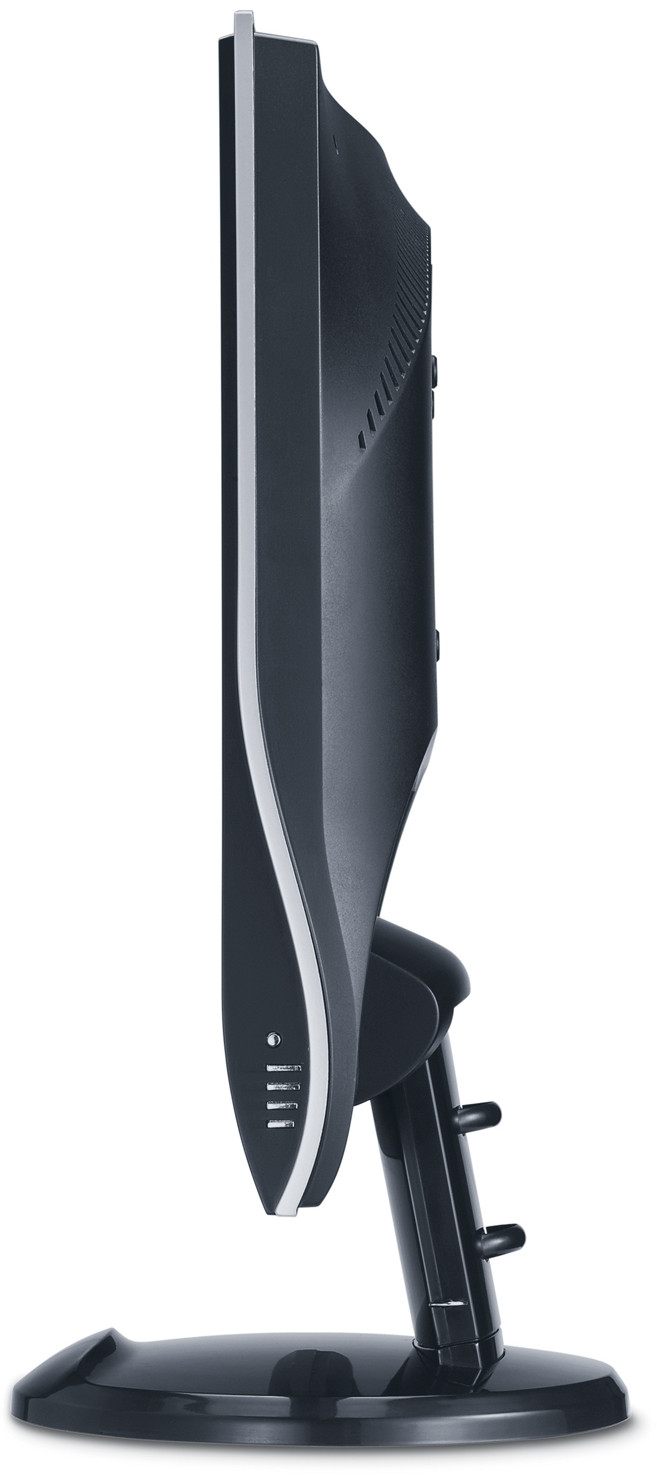

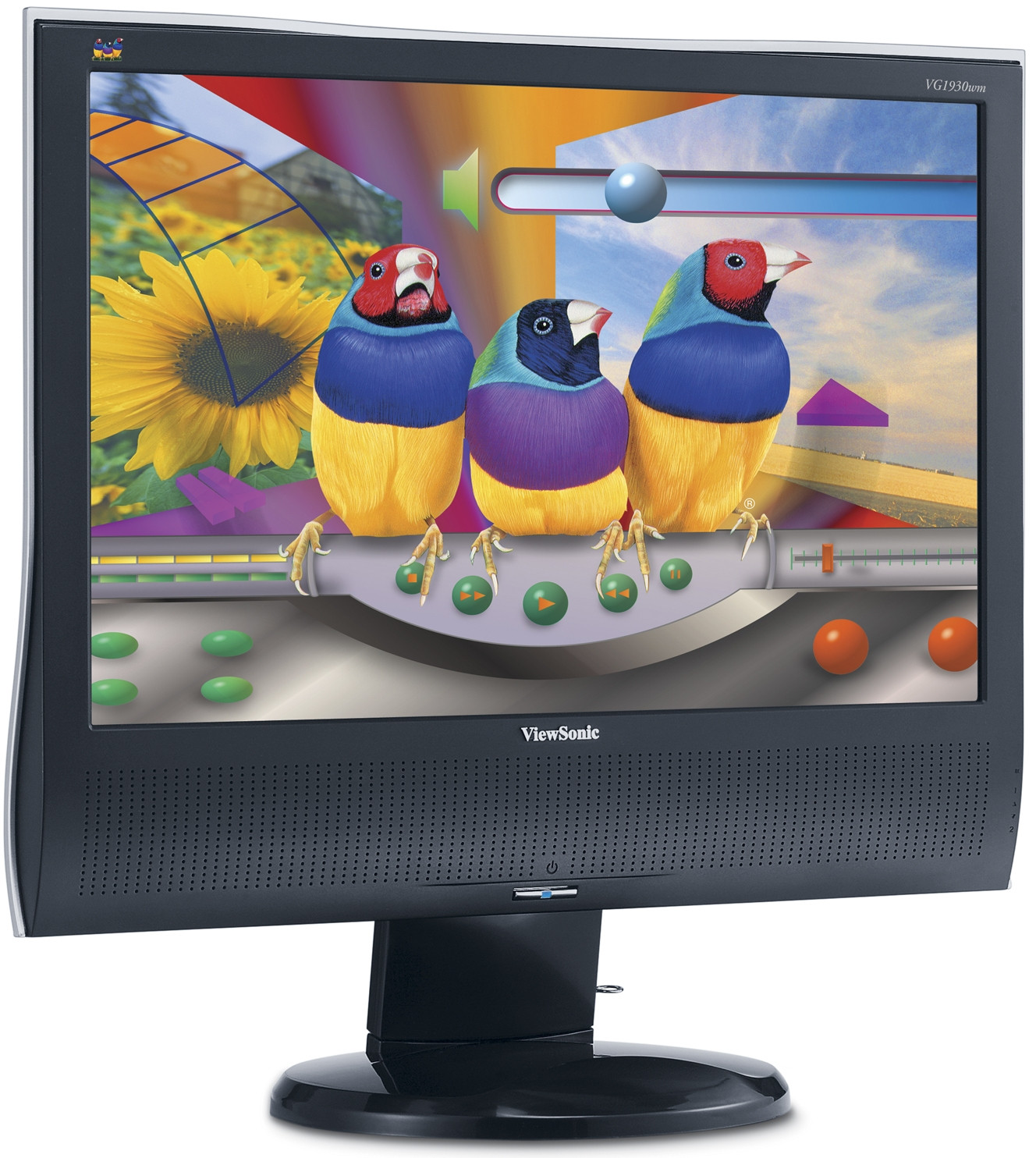

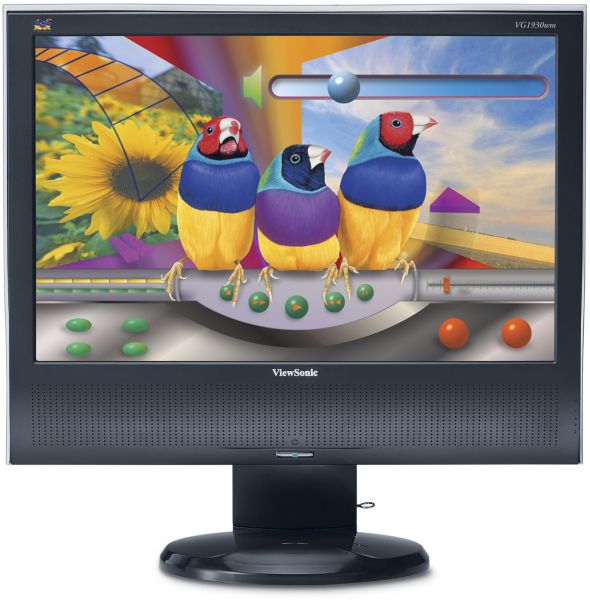

ViewSonic Display LCD VG1930wm

VG1930wm

19" WIDESCREEN GRAPHICS SERIES LCD WITH SWIVEL AND HEIGHT ADJUST

GALERIE

RECENZII

Best Buy

“"...if you want strong image quality and an enticing price tag, the ViewSonic is for you. It's practical to use and is perfect for films and games."”

4/5

“"Muy buena calidad de imagen y ergonomía."”

4/5

“"Muy buena calidad de imagen y ergonomía."”

4/5

“"Muy buena calidad de imagen y ergonomía."”

4/5

“"Muy buena calidad de imagen y ergonomía."”

4/5

“"Muy buena calidad de imagen y ergonomía."”

4/5

“"Muy buena calidad de imagen y ergonomía."”

4/5

“"Muy buena calidad de imagen y ergonomía."”

SPECIFICAȚII

COLORS
Black
LCD
Tip: 19” Wide TN colour TFT active matrix WXGA+ LCD
Rată de contrast: 700:1 (typ.)
Unghiuri de vizualizare: 160° horizontal, 160° vertical (at 10:1)

170° horizontal, 170° vertical (at 5:1)
Luminozitate: 300cd/m² (typ.)
Display Area: 41.0cm horizontal x 25.6cm vertical; 48.3cm diagonal
Optimum Resolution: 1440 x 900@60Hz
Timp de răspuns: 5ms (off-on-off) (typ.)
Sursă de lumină: Long life, 40000 hrs. (typ.)
Panel Surface: Anti-glare
Pixel Pitch: 0.285mm
Pixel Clock: 135MHz
COMPATIBILITY
PC: VGA up to 1440 x 900 non-interlaced
Mac®: Power Mac™ G3/G4/G5 up to 1440 x 900

DIMENSIONS
Physical With Stand: 460 x 434–514 x 230
Physical Without Stand: 460 x 352 x 61
W x H x D mm: 560 x 525 x 282
CONȚINUT PACHET
LCD display, VGA cable, power cable, audio cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers) (multi-language)
AUDIO
Difuzor: 2 x 1.5 watt integrated speakers
Amplifier: 1.5-watt @ THD < 8%
CONNECTOR
Analogue: 15-pin mini D-sub (detachable cable)
Digital: 24-pin DVI-D (detachable cable)
Putere: 3-pin AC plug (CEE22)
Audio: 3.5mm stereo audio line-in
POWER
Voltaj: AC 100–240V, 50/60Hz (auto switch), internal power supply
Consum: 35 watt (typ.), <1 watt in power save mode
CONTROLS
Basic: Power, menu [1], up, down, select [2], mute, volume up/down
OSD: Auto image adjust, contrast, brightness, input select (D-sub, DVI-D), View Match® colour adjust (sRGB, 9300K, 7500K, 6500K, 5400K), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), memory recall
OPERATING CONDITIONS
Temperatură: 0°C–40°C
Umiditate: 10%–90% (non-condensing)
WEIGHT
Net With Stand: 5.4kg
Greutate: 6.9kg
VIDEO INPUT
Frequency: Fh: 24~82kHz, Fv: 50~75Hz
Sync: H/V separated (TTL) (screen-on-screen)
Analogue: RGB analogue (0.7 Vp-p, 75 ohm)
Digital: DVI-D (TMDS, 100 ohm)
POWER MANAGEMENT
Meets TCO’03 and ENERGY STAR® standards
SECURITY
Kensington® security port
VESA MOUNT COMPLIANT
VESA FDMI 75mm x 75mm
ERGONOMICS
Înclinare: Down 5°, Up 20°
Pivotant: 360° swivel base
Height Adjustment: 0~80mm

SUPORT & DESCĂRCĂRI

Datasheets

VG1930wm Datasheet
