VB-WMK-004

Name: VB-WMK-004
Brand: ViewSonic
SKU: VB-WMK-004

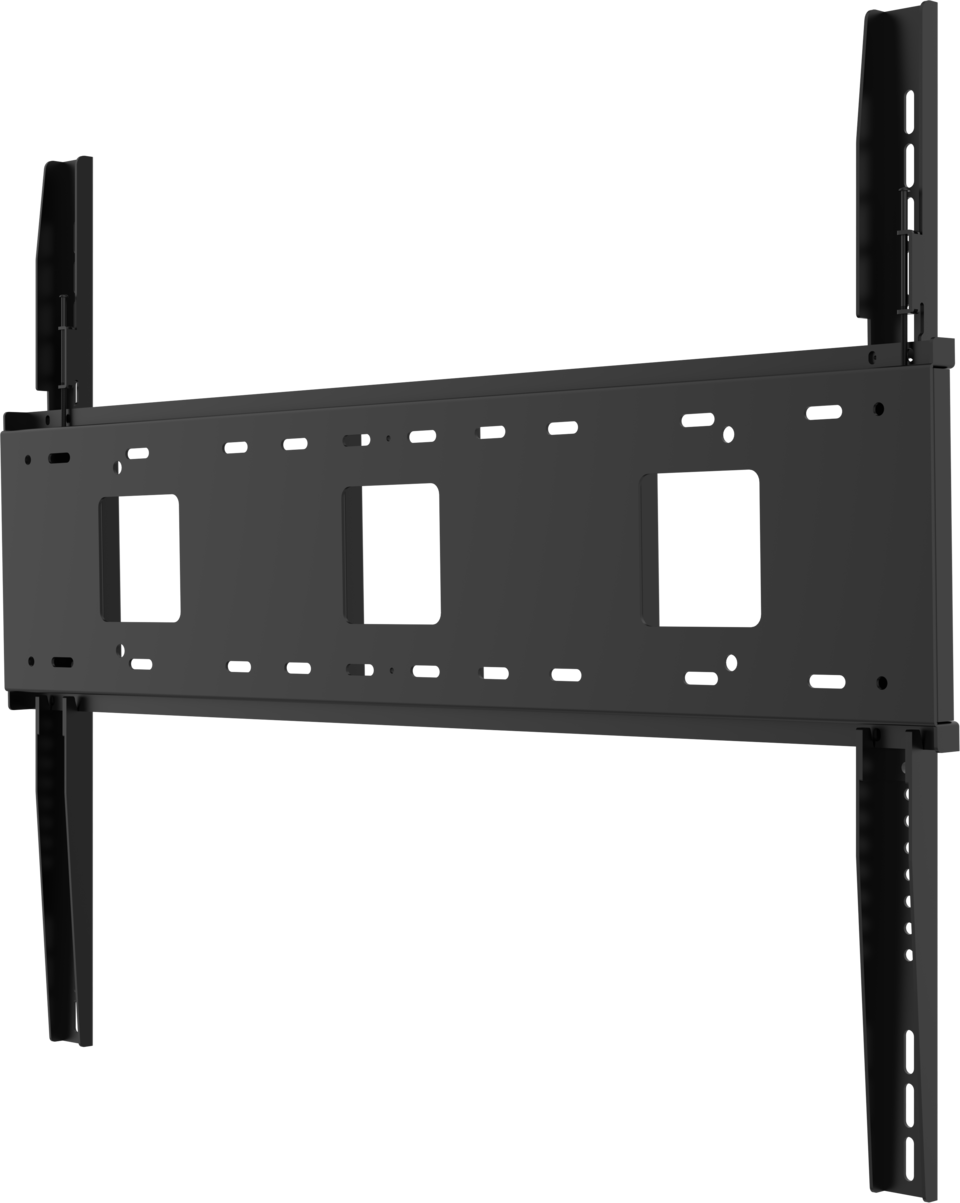

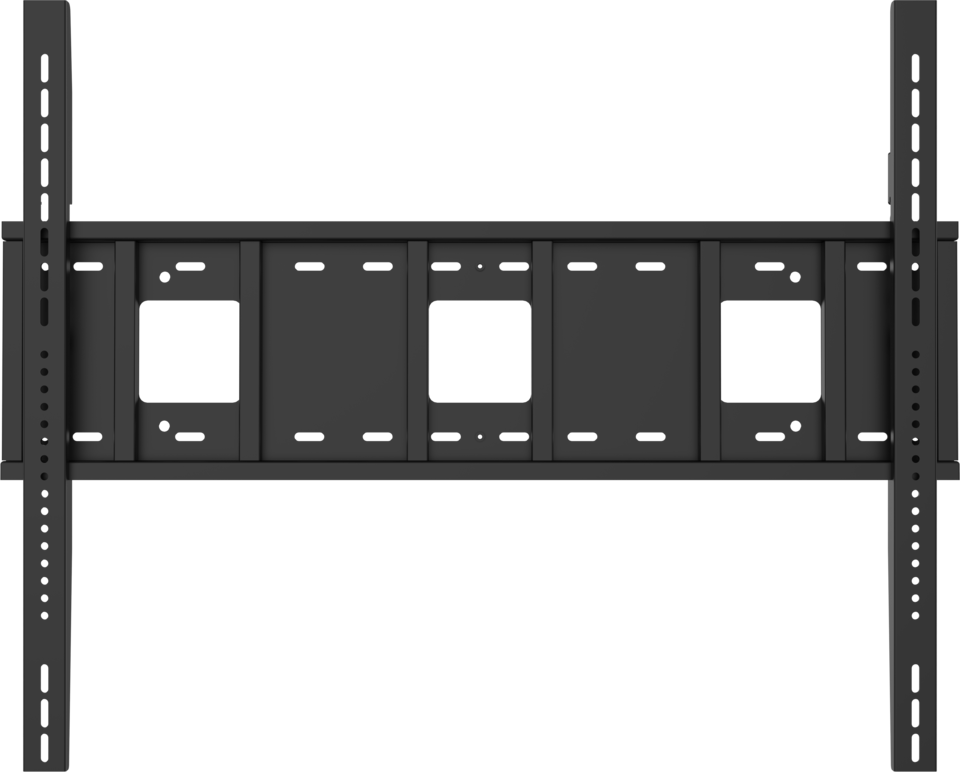

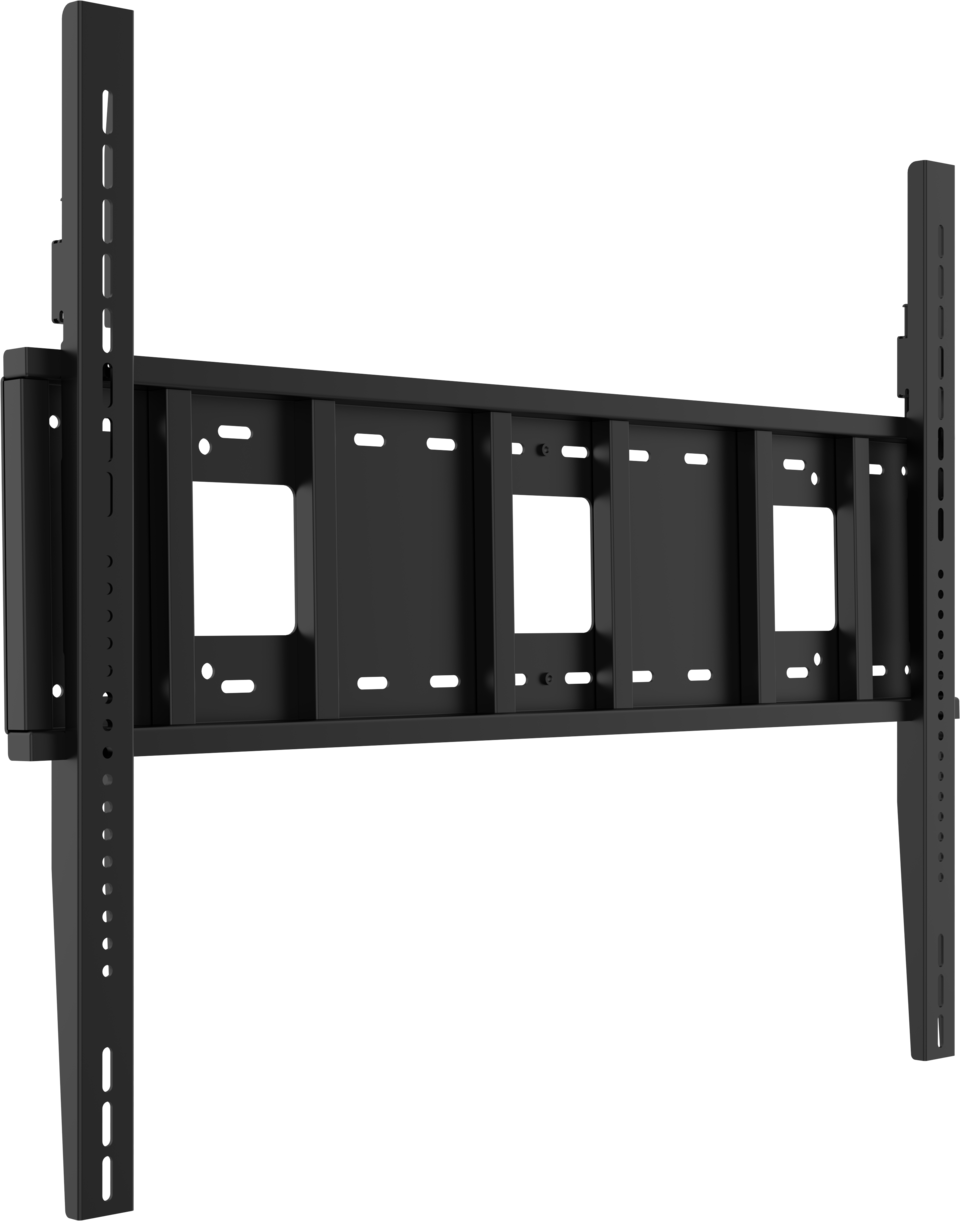

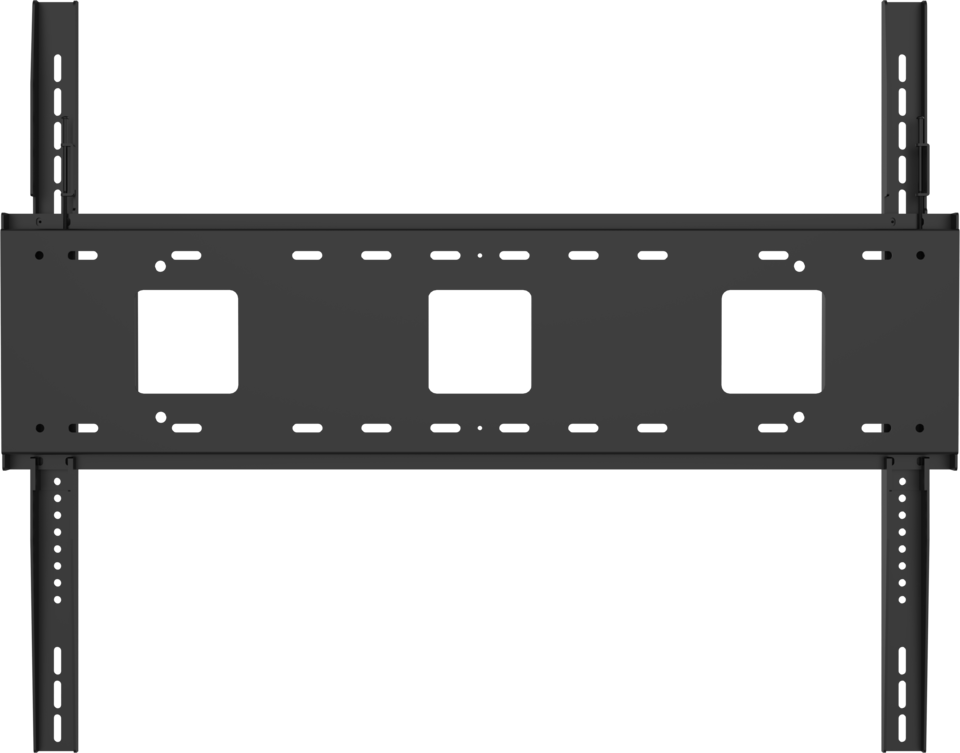

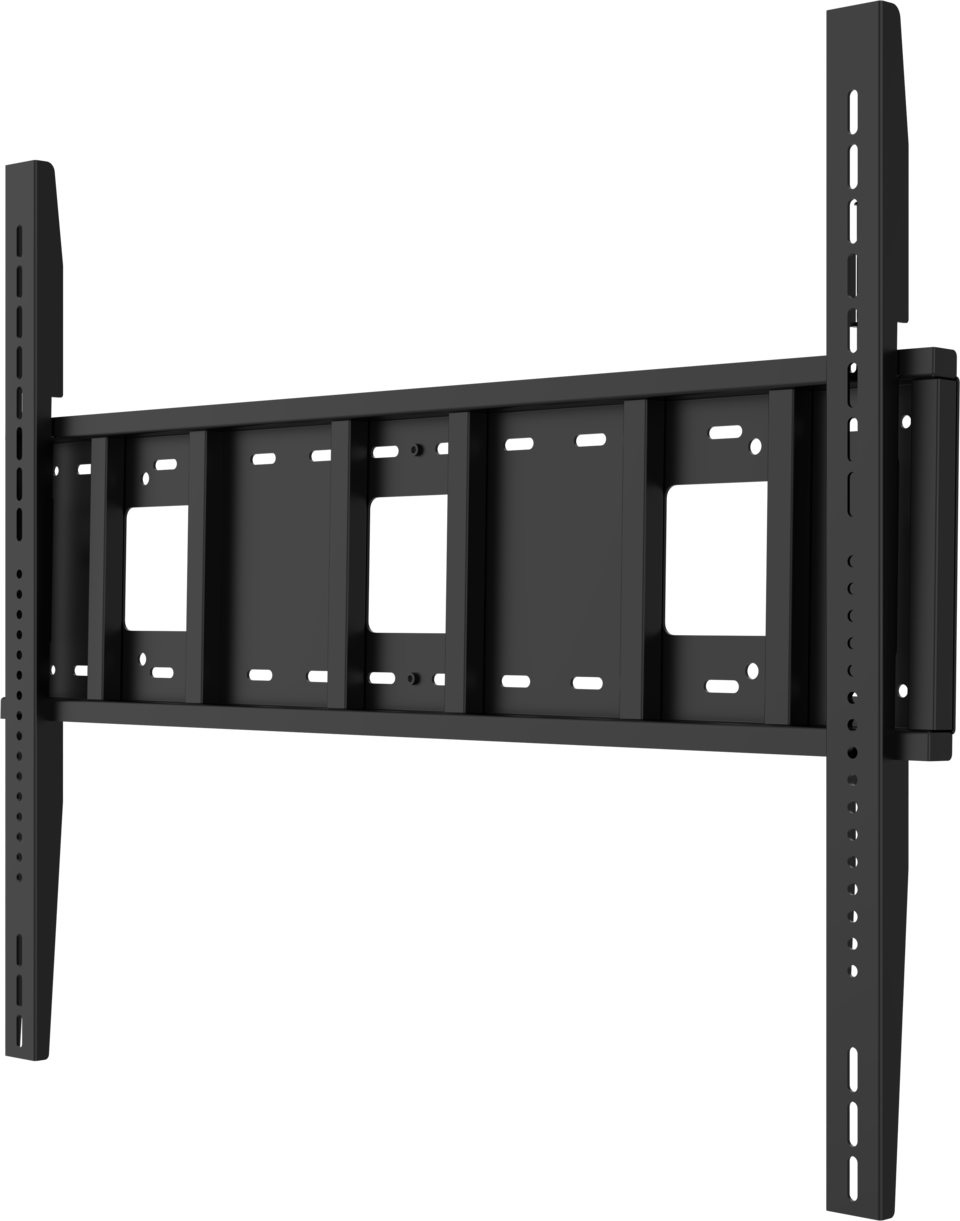

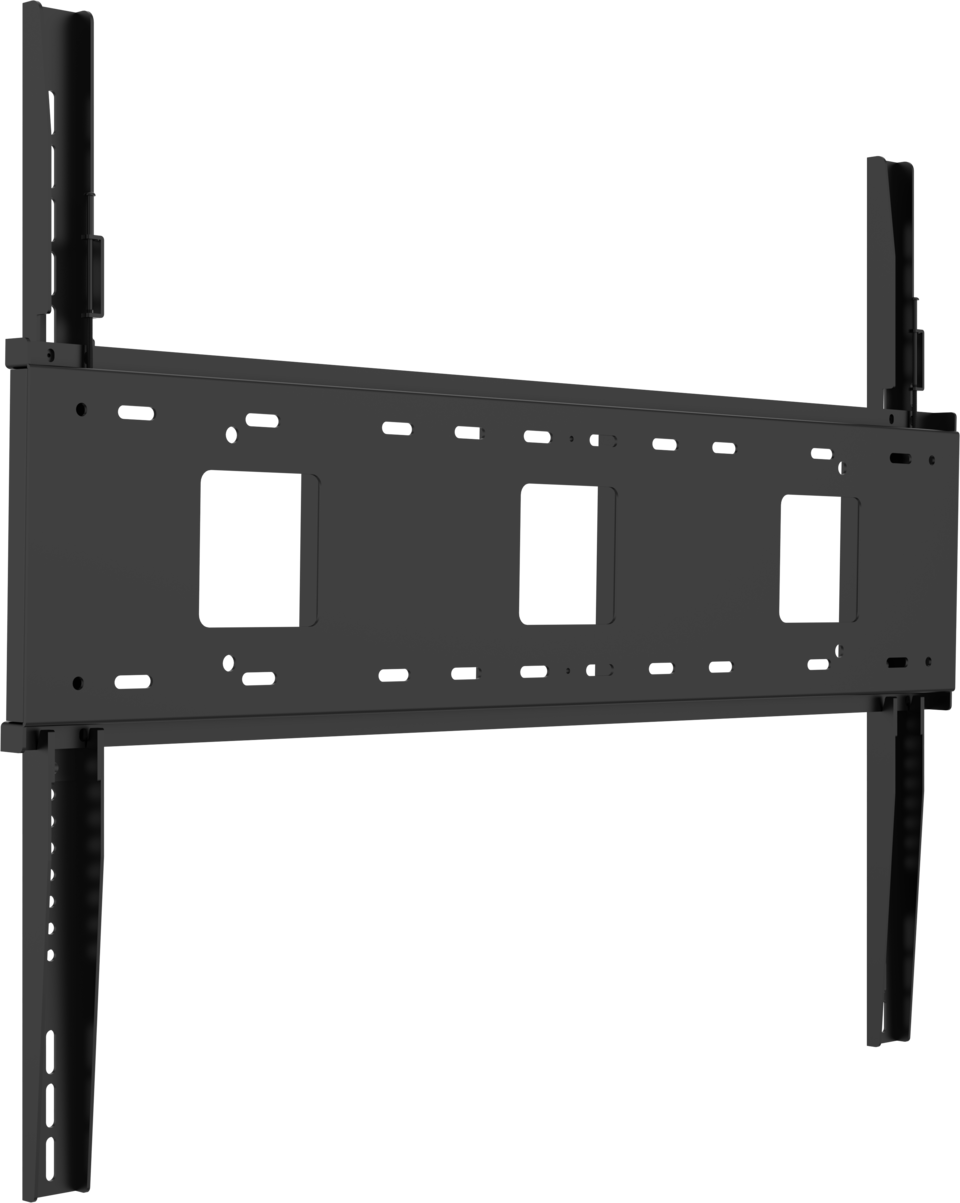

Fixed Wall Mount for ViewBoard and Presentation Display

Contactează-ne

The VB-WMK-004 is designed to mount 75" to 110" ViewBoard and Presentation Display

Dimension (WxHxD)
Dimensiuni (DxÎxA): 1110 x 885.8 x 43.5 mm / 43.7 x 34.87 x 1.71 in
Ambalare (DxÎxA): 1195 x 340 x 150 mm / 47.05 x 13.39 x 5.91 in
Weight (Net)
Masă: 13.5 kg / 29.76 lb(Support Max. weight: 360 kg / 793.66 lb)
Greutate: 14.7 kg / 32.41 lb
Support Flat Panel Size
75" - 110"
Min. Distance To The Wall
43.5mm
Included Accessories
110” Vertical beam x 2
110” Cross beam x 1
M8×20mm P head flat tail screw x 6
M5*130mm crossed screw x 2
M4×10mm round head flat tail screw x 2
80mm Expansion screw x 8
Installation Guide x 1
PE Bags x 1
