ViewBoard
IFP6563-1C
Funcții esențiale
- Ultra-precise writing with 50-point PCAP touch, palm rejection, and Write Away™ technology
- Secure, future-ready performance with upgradable Android 15 OS, EDLA certification, and octa-core processor with 16GB RAM
- Streamlined device management with ViewSonic Manager
- NFC login for fast, secure user access in shared workspaces
- Smart sensors that auto-adjust brightness, monitor ambient conditions, and activate power-saving modes
- EPEAT Gold certified delivering up to 24% greater energy efficiency than the previous generation.
Descrierea produsului

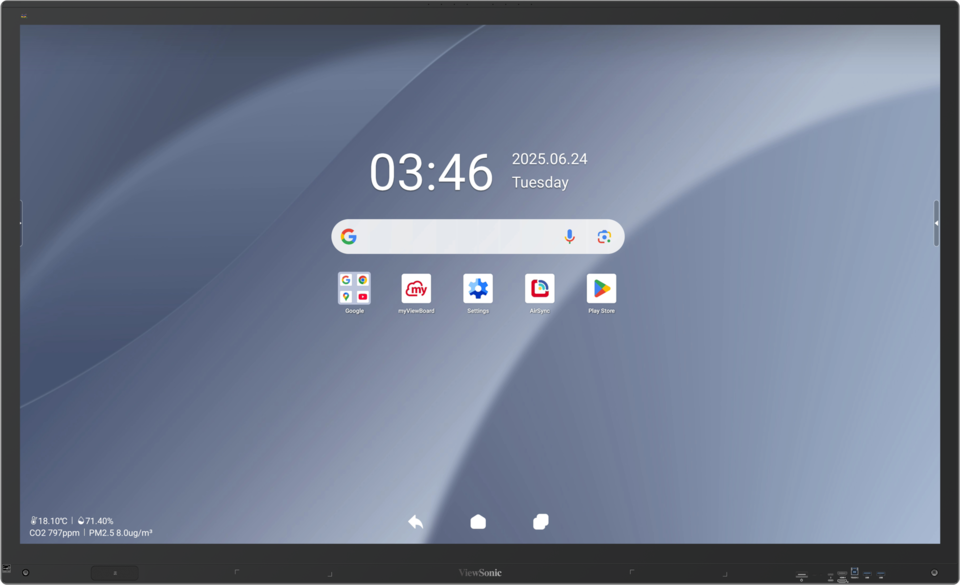

The ViewSonic® ViewBoard® IFP63 Series is a 4K UHD interactive flat panel designed for secure, high-performance collaboration in enterprise and higher education environments. With ultra-responsive 50-point PCAP touch, palm rejection, and Write Away™ technology, it enables seamless, pen-on-paper annotation—ideal for hybrid meetings, interactive lessons, and brainstorming sessions. Powered by Android 15 and EDLA-certified, the interactive display provides secure access to the latest apps and updates on a future-ready platform. An octa-core processor and 16GB of RAM support smooth multitasking for demanding workflows, while NFC tap-to-sign-in simplifies access in shared settings. Part of the ViewSonic Business Solutions, it includes three powerful software tools: Manager for remote device management, AirSync for wireless casting, and TeamOne for real-time collaboration. Designed with sustainability in mind, this display features integrated sensors that adjust brightness, monitor environmental conditions, and trigger energy-saving modes. It is certified EPEAT Gold and EEI Level F for efficient, environmentally responsible deployment.
- NFC
- Power
- USB-C 3.2 Gen 1
- HDMI 4
- Touch 3
- USB-A 3.2 Gen 1
- USB-A 3.2 Gen 1
- USB-C 3.2 Gen1
- VESA® Wall Mount (600x400 mm)
- OPS Slot
- Audio In
- USB-C Out
- Audio Out
- USB-A 3.2 Gen 1*2
- Micro SD
- HDMI Out
- Touch 1
- HDMI 1
- HDMI 2
- HDMI 3
- USB-C 3.2 Gen 1
- WiFi Slot
- Speaker
- Power Switch
- AC In
- SPDIF
- LAN
- DP In
- RS232
- Touch 2
- USB-A 2.0
Vizitează Noi
- www.viewsonic.com
-
DISPLAY
Dimensiune Panel: 65" Tip Panel: TFT LCD module with DLED backlight, ADS Suprafață Display (mm): 1428.48(H) × 803.52(V)(64.5” diagonal) Aspect Ratio: 16:9 Rezoluție: UHD 3840x2160(Pixels) Colors: 1.07G colors (8-bit+FRC) Luminozitate: 450 nits (typ.) Rată de contrast: 5000:1 Timp de răspuns: 6.5ms Unghiuri de vizualizare: H = 178, V = 178 (Typ.) Durată de viață sursă de lumină fundal: 50,000hrs (Typ.) Tratament pentru protecția suprafeței: Pencil Hardness 9H with AG+AF+Anti-bacteria Ramă: 3.8/3.8/11.3/32.5 Orientare: Landscape -
PLATFORMă
Procesor: Octa-Core CPU (A76*4 + A55*4) Memorie RAM: 16GB LPDDR Stocare: 128GB eMMC -
TOUCH
Tipul/ Tehnologia: PCAP Rezoluție Touch: 32767 x 32767 Touch Point: Windows: 50 Android: 50 Palm Rejection: both passive and active pens -
INPUT
HDMI: FRONT x1
(HDMI 2.1) (HDMI support CEC)
REAR x3
(HDMI 2.1) (HDMI 1 support CEC, ARC)
(HDMI 2.1) (HDMI 2, 3 support CEC)Display Port: 1 (DP1.2) Audio: 1 (3.5mm phone jack, mic in) RS232: x1 Card SD/SDHC: MicroSD card slot x1 OPS: OPS slot x1 WiFi: WIFI slot x1 -
OUTPUT
HDMI: x1 (4K@60Hz) Audio: x1 (Earphone out) SPDIF: x1 (Optical) -
LAN
RJ45: x2
(Speed: 10/100/1000Mbps, WOL supported, ProAV vendor & ViewSonic protocol supported) -
USB
Tip A: REAR x1 (USB 2.0 support OTG)
REAR x2 (USB 3.2 Gen 1)
FRONT x2 (USB 3.2 Gen 1)Tip B: FRONT x1 (USB 2.0)
REAR x2 (TOUCH 1: USB 3.0; TOUCH 2: USB 2.0)Tip C: FRONT x1 (DP 1.2, touch, 100M ethernet, USB 3.2 Gen 1, smart USB 2.0, PD 65W)
REAR x1 (DP 1.2, touch, 100M ethernet, USB 3.2 Gen 1, smart USB 2.0, PD 100W)
Top x1 (USB 3.2 Gen 1 + PD15W to support Camera mounting) -
DIFUZOARE
20W x 2 + 20W x 1 (Subwoofer) -
MICROPHONE
Built-in 8 Array Microphone -
TOP CAMERA PLATE
Yes -
COMPATIBILITY
HDMI: 3840x2160 @ 60Hz Display Port: 3840x2160 @ 60Hz -
SISTEM DE OPERARE INCORPORAT
Android 15 EDLA -
BUNDLED SOFTWARE
Software Basic Annotation: myViewBoard for Android Software Pro Annotation: myViewBoard for Windows (embedded in VPC) Pro Whiteboarding Software: TeamOne Prezentare wireless: AirSync Device Management: Manager Launcher ViewSonic: Yes -
CARACTERISTICI SPECIALE
All-in-one USB port: USB 3.2 Gen1 “SmartPort USB” to all channels Partajare simplă LAN între IFP și dispozitivul cu slot-in: (10/100/1000M) (USB Type-C 10/100, Android & PC 10/100/1000) Light Sensor: Yes PIR Sensor: Yes NFC Reader: Yes Pen Sensor for supporting Write Away: Yes Environmental Sensor: Temperature Sensor x1, Humidity Sensor x1, eCO2 Sensor x1, VOCs Sensor x1, PM2.5 Sensor x1 -
PUTERE
Voltaj: 100-240VAC +/- 10% Wide Range Consum: On: 88.5W / Off: <0.5W -
ERGONOMICS
Montare pe perete (VESA® ): 600 x 400 -
OPERATING CONDITIONS
Temperatură (º C): 0℃ ~ 40℃ Umiditate: 20% ~ 80% RH non-condensing -
DIMENSIUNU (D X Î X A)
Dimensiuni (inch/ mm): 58.8 x 35.8 x 3.1in/ 1493.3 x 909.3 x 78.8 mm Ambalare (inch/ mm): 64.1 x 40.9 x 7.3in/ 1628 x 1040 x 185 mm -
WEIGHT
Masă (Ib/ kg): 92.8lb / 42.1kg Greutate (Ib/ kg): 110.9lb/ 50.3kg -
REGULATIONS
cTUVus, FCC, EPEAT, CE, CB, BSMI, NCC, RoHS DoC, WEEE, ErP, Flicker Free, Low Blue Light -
VERSIUNE ENERGY STAR
ES8.0 -
RATING EEI
Level F -
CONȚINUT PACHET
1. 3m power cord by ship area
2. Type C cable 1.8m(USB-IF certified)
3. 3m touch USB cable(USB 2.0)
4. Touch pen x 2 (VB-PEN-101-2C)
5. RS232 adapter
6. Quick Start Guide
7. Screw x 10 (camera 2+4, wall mount 4)
8. HDMI cable 3m (HDMI LA certified)
9. Remote control
10. AAA Battery x 2
11. Compliance statement -
COMPATIBIL SLOT INTRARE PC
VPC3X Series/ VPCF5-2A Series/ VPCF5 Series/ VPC-A31-O1
