LED-дисплеи Direct View
LDS136-152
Ключевые особенности
- Foldable design fits through elevators, doorways and tight spaces for easy deployment
- Pre-assembled, tool-free setup enables instant start with no installation required
- Built-in control box and industry-leading height motorized stand ensure clear sightlines
- GOB surface protection and flight case safeguard the display during use and transport
- Single remote control adjusts display settings and stand height for simplified operation
- 136" seamless display delivers large-scale visuals for high-impact presentations
Описание продукта

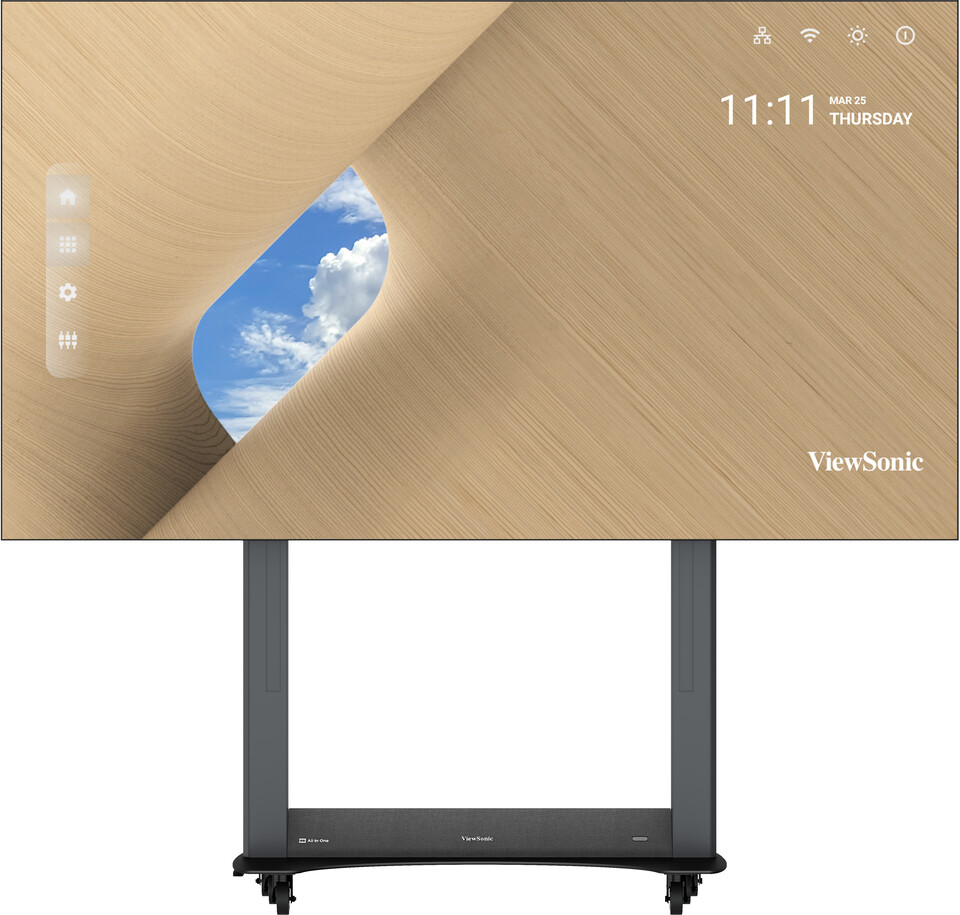

The ViewSonic® LDS136-152 is a 4th-generation mobile All-in-One direct view LED display designed for rapid deployment, easy transport, and simplified operation. With a pre-assembled design and an integrated control box with motorized stand, setup takes just 10 minutes with no wall mounting required. Its foldable screen significantly reduces packaging size, improving shipping efficiency and enabling easy transport through tight spaces and between locations. The motorized stand extends up to an industry-leading 3.76 ft (1148 cm), ensuring clear sightlines across audiences. Integrated control and rear I/O within the motorized stand enable tidy cable management and a clean, frameless appearance. A single remote controls stand height and display settings, simplifying operation. Featuring GOB surface treatment with IP65 and IK06 ratings, the display resists dust, moisture, and impact during use. With its seamless 136-inch display and dual 30W speakers, the LDS136-152 is ideal for high-end boardrooms, receptions, galleries, auditoriums, and other large venues.
- Power Key
- HDMI In x3
- HDMI Out
- USB-C
- USB x3
- Audio Out
- S/PDIF
- LAN
- Service
- RS232
- Slot In OPS
- Power Switch
- AC In
- Slot In Mini PC
Посетите нас
- www.viewsonic.com
-
Спецификация
Screen Size: 136" Область отображения (мм): 3000 (H) x 1687.5(V) Аппаратное разрешение: 1920x1080 Panel Technology: Direct view LED LED Package Type: SMD 3 in 1 (GOB) Bonding Wire: Copper Pixel Pitch (mm): 1.56 Brightness (max.): 600 nits (100 levels adjustable) Contrast Ratio (typ.): 6500:1 Color Temperature: 3000K -10000K Ориентация: Landscape Viewing Angles (typ.): H = 170, V = 170 LED Lifetime (typ.): 100,000 Hours Встроенная память: Total 64GB
(36GB available storage)Встроенная ОС: Android 13 Поддержка разрешения: VGA(640 x 480) to 4K(3840 x 2160@60hz) HDTV-совместимость: 480p, 576p, 720p, 1080p, 2160p Частота горизонтальной развертки: 31K-94kHz Скорость вертикального сканирования: 56-84Hz -
Вход
HDMI: 4
(HDMI 2.0/HDCP 2.2)
(internal x1, external x3)USB Type A: 3 RJ45 Input: 3
(internet/control x1, service x1, reserve x1)IR in (3.5mm): 1 Wi-Fi Input: 2.4G/5G Hz USB Type C: 1
(data only)OPS slot (80Pin): 1 -
Выход
HDMI out: 1
(HDMI 2.0/HDCP 2.2)Speaker: 30Wx2 Audio out (3.5mm): 1 S/PDIF: 1 USB Type A (Power): USB 5V/1.5A x1;
USB 5V/1A x2, 5V/0.5A x1
(shared with USB A input)USB Type C (Power): Shared with USB Type C input
(5V/1A x1) -
Управление
RJ45 (LAN control): 1 USB Type A (Services): 1(shared with USB A input) USB Type B: 1(reserve) RS232 (DB 9-pin female): 1 IR Receiver: 1 Light Sensor: 1 -
Другое
Напряжение питания: 100-240V ~ 50/60Hz
(vary by country)Power Consumption (W/unit): 609W (typ), 1827W (max)
< 0.5W (Hibernate)
Inrush Current:TBDHeat Dissipation (BTU/hr): 2077.9 (typ), 6234 (max) Heat Dissipation per Unit Area (BTU/h/m²): 410.4 (typ), 1231.4 (max) Рабочая температура: 0~40℃ Total LED Module Quantity: 100 Ingress Protection Rating: IP65(Front) Impact Protection Rating: IK06(Front) Вес нетто: 594.15 lbs
(269.5 kg)Gross Weight: 963.42 lbs
(437 kg)Product Dimensions (WxHxD): 71.68x76.68x30.71 inches (min.)
(1821x1948x780 mm (min.))
118.58x112.13x 30.71 inches (max.)
(3012x2848x780 mm (max.))Packing Dimensions (WxHxD): 77.6x78.29x34.37 inches
(1971x1989x873 mm) -
STANDARD ACCESSORIES
Шнур питания: 1 LAN Cable (Cat 5E): 1 IR Extender Cable: 1 Пульт ДУ: 1(Bluetooth & IR) Инструкция по быстрому запуску: 1 Spare Parts: LED module x7
3 in 1 hub board x3Maintenance Tool: LD-MK-006 x1 -
OPTIONAL ACCESSORIES
Maintenance Tool: LD-MK-006
