VP950b

Stand İle Birlikte Fiziksel: 412 x 391-510 x 279
Stand Olmadan Fiziksel: 412 x 331 x 63
Ambalaj (GxYxD): 470 x 523 x 195

LCD Monitor, power cable, 15-pin VGA video cable, DVI-D cable, USB cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers)
(multi-language)

Analog: 15-pin mini D-sub (detachable cable)
Dijital: 24-pin DVI-D (detachable cable) (HDCP enabled)
Güç: 3-pin plug (CEE22)
USB: 1 x upstream (4-pin Typ B)/4 x downstream (4-pin Typ A), USB 2.0

Gerilim: AC 100–240V, 50–60Hz (Auto-Switch), internal power supply
Tüketim : 40 watt (typ., without USB peripheral connected), <1 watt in power save mode

Temel: Power, menu [1], up, down, select [2]
OSD: Auto image adjust, contrast, brightness, input select (D-sub, DVI-D),
ViewMatch® colour adjust (sRGB, 9300K, 7500K, 6500K, 5000K, user RGB),
information (resolution, H/V frequency, pixel clock, model number, serial
number), manual image adjust (H/V position, H size, fine tune, sharpness, DCR [on/off], response time [standard, advanced, ultra-fast]), setup menu
(language, resolution notice, OSD position, OSD timeout, OSD background, OSD pivot), auto white balance, OSD/power lock

Isı: 0° to 40°
Nem: 10% to 90% (non-condensation)

Stand İle Birlikte Net: 5.6kg
Stand Olmadan Net: 4.4kg
Brüt: 7.5 kg

Frekans: Fh: 24-82kHz, fv: 50-85Hz
Senk.: H/V separated (TTL), composite, sync on green
Analog: RGB analogue (0.7/1.0 Vp-p , 75 ohms)
Dijital: DVI-D (HDCP enabled, TMDS, 100 ohms, DDC/CI)

Meets TCO’03 and ENERGY STAR standards

Kensington security port

VESA FDMI 100mm x 100mm

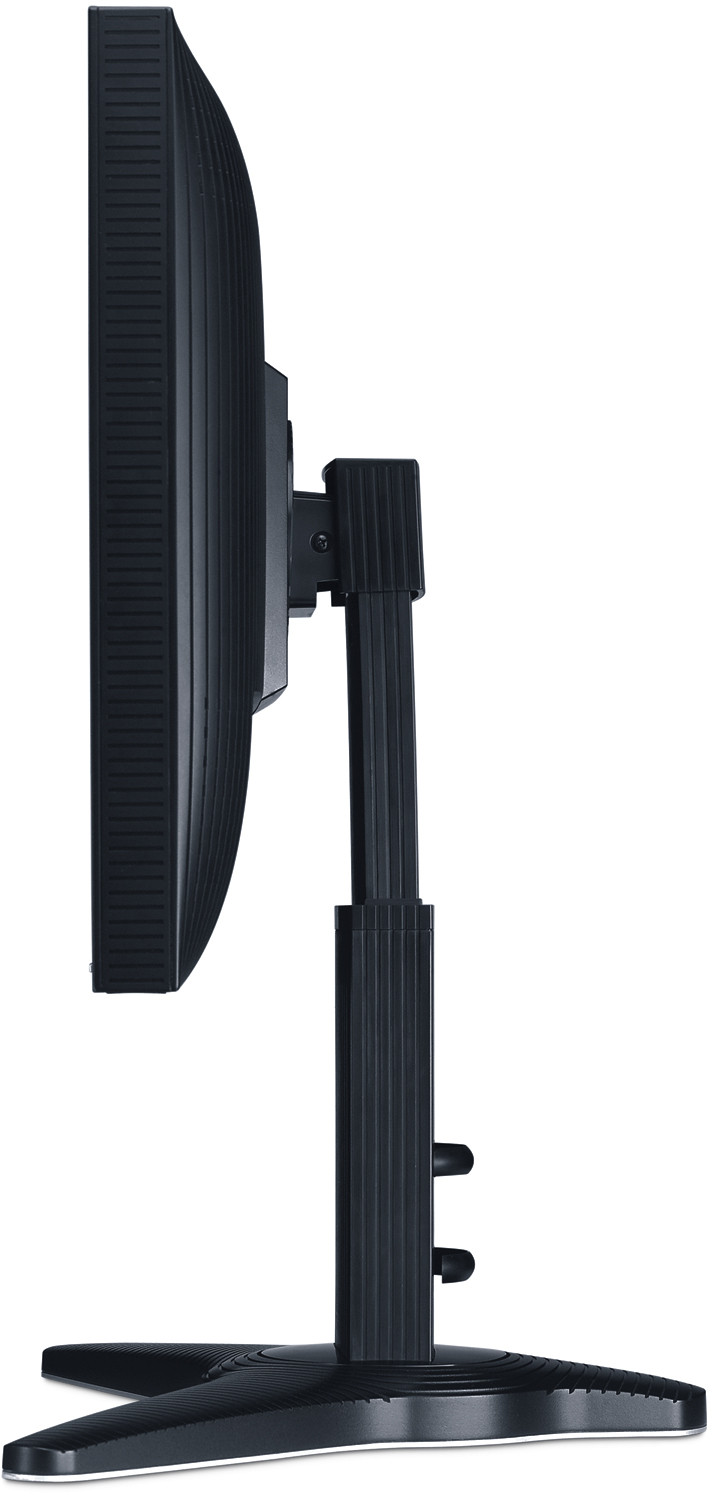

Eğilme: Down 5°, up 20°
Kendi Etrafında Dönme: 120° (60° left/right)
Yükseklik Ayarı: 0~120mm
Eğme: 0°~90°
