關鍵功能
  • 136 吋大螢幕,亮度達 600 尼特,搭配雙 30W 揚聲器,為任何空間呈現鮮明影像與強勁音效
  • 先進 COB 技術,提升耐用性,具備防水、防塵與抗衝擊能力,適合人流密集的專業環境。
  • All-in-One 整合設計,將電源、控制、影像拼接與顯示系統合而為一,簡化安裝流程。
  • 節能設計採用共陰極 LED 智慧 IC 有效降低耗電量,支援環境永續經營。
  • 智慧協作功能包含PIP/PBP 分割畫面模式、LAN 控制 ,以及透過ViewShare 與 AirSync 進行無線內容分享

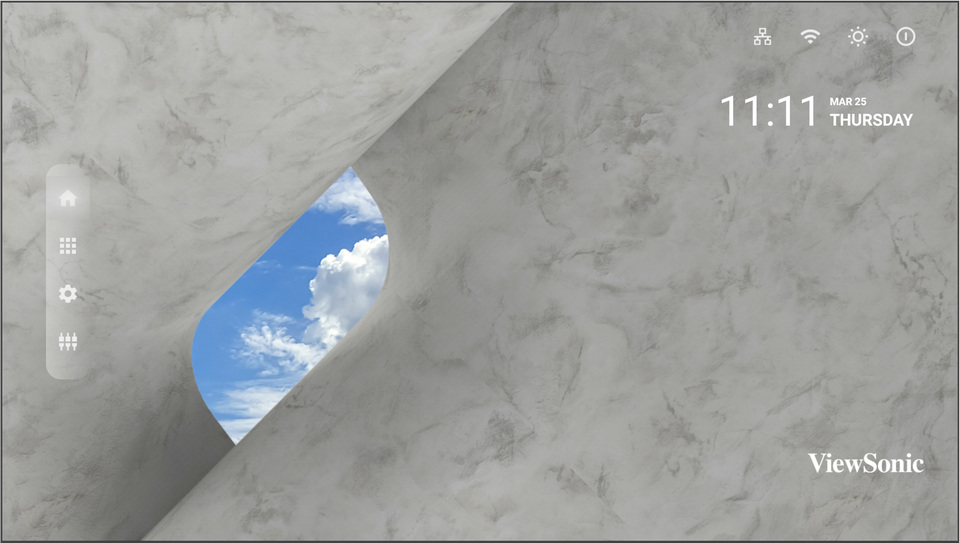

LDP136-151C
產品說明
The ViewSonic LDP136-151C is a 136" enterprise-class All-in-One LED Display designed to elevate visual performance for business presentations, corporate communications, and collaborative environments. Featuring Full HD (1080p) resolution, 600 nits of brightness, a 10,000:1 contrast ratio, and dual 30W speakers, it delivers sharp visuals, vibrant color, and powerful sound for impactful presentations. Ideal for mid to large conference rooms, C-level boardrooms, and corporate lobbies, the display is built with Chip-on-Board (COB) technology for enhanced durability against impact, dust, and moisture, achieving IP54 and IK08 protection ratings. All-in-One integration simplifies installation by combining power, control, image stitching, and display, allowing two people to complete setup in under two hours. A 31mm ultra-slim profile and near bezel-free design create a premium aesthetic that complements any professional space. Powered by a common cathode LED design and smart driving ICs, the display reduces power consumption while supporting long-term energy efficiency. Designed for seamless collaboration, it features PIP/PBP screen-split modes, LAN control, and optional wireless content sharing via ViewShare (sold separately) and AirSync—making it a smart, future-ready LED video wall solution for corporate and educational environments.
  1. Speakers
  2. HDMI 2.0 x3
  3. RJ45 (Internet, Control) x2
  4. Audio Out x1
  5. IR Out x1
  6. USB-A (Power) x1
  7. HDMI 2.0 x1
  8. RS232 x1
  9. Audio Out x1
  10. Wireless/ Bluetooth Antenna
  11. USB-C (Data only) x1
  12. USB-A (2.0, 3.0) x2
  13. Keypad
  14. Power Button
  15. IR Receiver
造訪我們
  • www.viewsonic.com
  • 規格資訊
    Screen Size: 136"
    顯示區域 (mm): 3000 (H) x 1687.5 (V)
    原始解析度: 1920x1080
    Panel Technology: Direct view LED
    LED Package Type: Flip Chip COB
    Pixel Pitch (mm): 1.56
    Brightness (max.): 600 nits (100 levels adjustable)
    Contrast Ratio (typ.): 10000:1
    Color Temperature: 3000K -10000K
    顯示方向: Landscape
    Viewing Angles (typ.): H = 170, V = 170
    LED Lifetime (typ.): 100,000 Hours
    本機儲存空間: Total 32GB (26GB available storage)
    內建作業系統: Android 9.0
    支援解析度: VGA(640 x 480) to 4K(3840 x 2160@60hz)
    HDTV 相容性: 480p, 576p, 720p, 1080p, 2160p
    水平頻率: 31K-94kHz
    垂直掃描率: 56-85Hz
  • 輸入
    HDMI: 4 (HDMI 2.0/HDCP 2.2) (internal x3, external x1)
    USB Type A: 3 (USB3.0 x1, USB2.0 x2)
    RJ45 輸入: 3 (internet x2, control x1)
    IR in (3.5mm): 1
    Wi-Fi Input: 2.4G/5G Hz
    USB Type C: 1 (data only)
  • 輸出
    HDMI out: 1 (HDMI 2.0/HDCP 2.2) (internal x1)
    喇叭: 30Wx2
    耳機輸出孔 (3.5 mm): 2
    S/PDIF: 1
    USB Type A (供電): Shared with USB A input (USB 3.0 5V/0.9A x1, USB 2.0 5V/0.5A x1, USB 2.0 5V/2A x1)
    USB Type C (Power): Shared with USB Type C input (5V/1A x1)
  • 調整選項
    RJ45 (LAN control): 1(shared with internet)
    USB Type A (Services): 1(shared with USB A input)
    RS232 (DB 9-pin female): 1
    IR Receiver: 1
    Light Sensor: 1
  • 其他
    電源供應電壓: 100-240V ~ 50/60Hz (vary by country)
    Power Consumption (W/unit): 400W (typ), 1095W (max) < 0.5W (Hibernate)
    Heat Dissipation (BTU/hr): 1365 (typ), 3736 (max)
    Heat Dissipation per Unit Area (BTU/h/m²): 269.6 (typ), 738 (max)
    運作時溫度: 0~40℃
    Total LED Module Quantity: 200
    Ingress Protection Rating: IP54(Front)
    Impact Protection Rating: IK08(Front)
    Net Weight (without wall mount): 270.51 lbs (122.7 kg)
    Net Weight (with wall mount): 301.37 lbs (136.7 kg)
    Gross Weight: 599.66 lbs (272 kg)
    Product Dimensions (WxHxD): 118.58 x 72.22 x 1.61 inches (3012 x 1834.5 x 41 mm)
    Product Dimensions (WxHxD) with wall mount: 118.58 x 72.22 x 2.35 inches (3012 x 1834.5 x 59.8 mm)
    Packing Dimensions (WxHxD): 77.95 x 40.16 x 48.03 inches (1980 x 1020 x 1220 mm)
  • STANDARD ACCESSORIES
    Control Box: 1
    電源線: 1
    LAN Cable (Cat 5E): 1
    IR Extender Cable: 1
    遙控器: 1(Bluetooth & IR)
    Installation Guide: 1
    壁掛: 1
    Spare Parts: LED module x14 2 in 1 hub board x1 Receiving board x1
    Maintenance Tool: LD-MK-004 x1 LD-MK-006 x1
  • OPTIONAL ACCESSORIES
    Maintenance Tool: LD-MK-004 LD-MK-006
    Floor Stand: LD-STND-009
