關鍵功能
  • True 4K HDR visual experience
  • 4.2ms Utra-Fast Input & 240Hz high refresh rate
  • Warping, auto V keystone and 1.3x zoom for fexible installation
  • 3,200 ANSI Lumens offering bright images in any environment
  • Larger screen size with lower cost-per-inch
  • Energy-efficient 20,000 hours lamp life

PX701-4KE
產品說明
The PX701-4KE is a 3,200 ANSI Lumens high brightness 4K home projector, a great-value choice for upgrading to 4K. Take in impressive visuals in true 4K clarity supporting HDR/HLG, or upgrade your gaming experience to the next level with 4.2ms Ultra-Fast Input and 240Hz refresh rate. Project an up-to-300” big screen on any surface easier than ever with powerful warping, auto V keystone, H/V keystone and 1.3x optical zoom. In addition, the energy-efficient 20,000 hours long lamp life gives it an even lower total cost of ownership than the typical lamp projector.

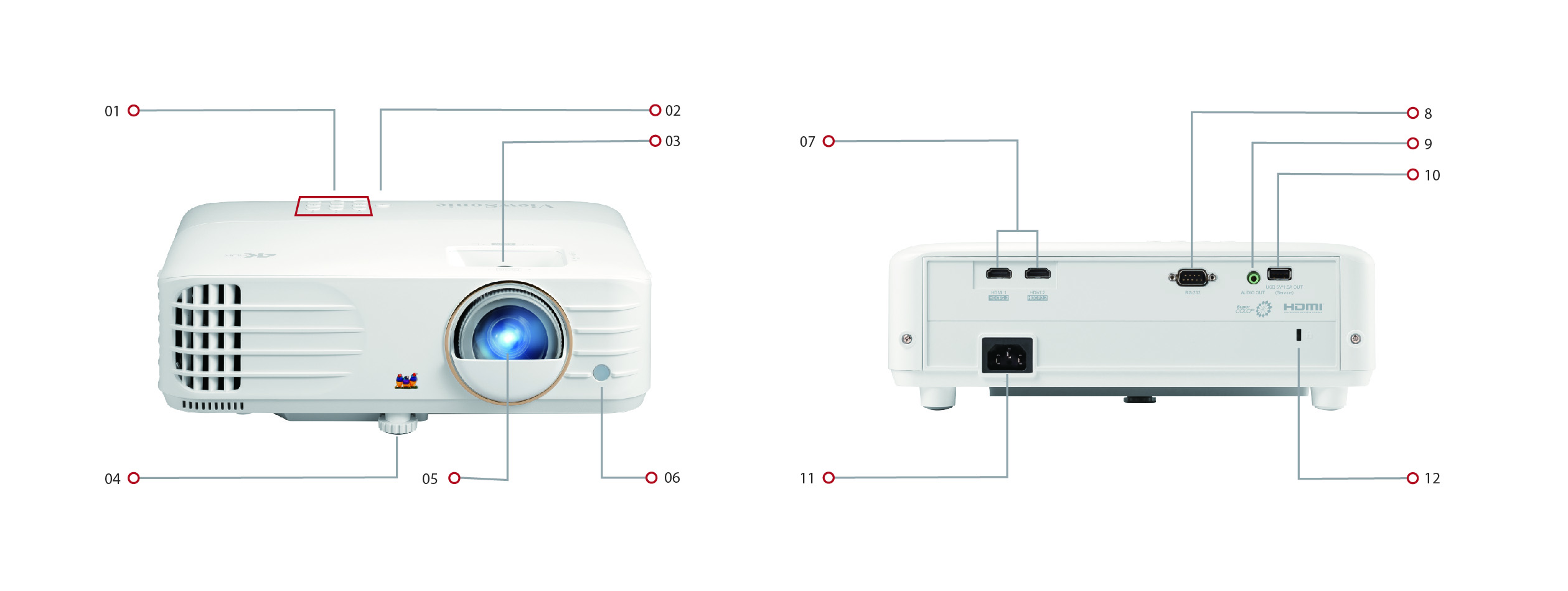

  1. Keypad
  2. Power Key
  3. Zoom/Foucs Ring
  4. Adjustment Foot
  5. Lens
  6. Front IR
  7. HDMI x 2
  8. RS-232
  9. Audio Out
  10. USB Type A(5V/1.5A)
  11. AC In
  12. Kensington Lock
造訪我們
  • www.viewsonic.com
  • 規格資訊
    投影系統: 0.47" 4K-UHD
    原始解析度: 3840x2160
    亮度: 3200 (ANSI Lumens)
    對比率 (超節電模式): 12000:1
    Display Color: 1.07 Billion Colors
    光源類型: 203W UHP Lamp
    Light Source Life (hours) with Normal Mode: 6000
    Light Source Life (hours) with SuperEco Mode: 20000
    鏡頭: F=1.94-2.12, f=12-15.6mm
    投影偏移: 120%+/-6%
    投射比: 1.13-1.47
    光學變焦: 1.3x
    數位變焦: 0.8x-2.0x
    投影尺寸: 30"-300"
    投影距離: 0.75-9.76m
    (100"@2.50m)
    Keystone: H:+/-40° , V:+/-40°
    Auto Keystone: +/- 40° (V)
    鏡頭垂直位移範圍: Up to 20% (Digital)
    鏡頭水平位移範圍: Up to 20% (Digital)
    噪音標準 (正常): 32dB
    Audible Noise (Eco): 28dB
    輸入延遲: 4.2ms
    支援解析度: VGA(640 x 480) to 4K(3840 x 2160)
    HDTV 相容性: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
    水平頻率: 15K-135KHz
    垂直掃描率: 23-240Hz
  • 輸入
    HDMI: 2
    (HDMI 2.0, HDCP 1.4/2.2)
  • 輸出
    Audio-out (3.5mm): 1
    喇叭: 10W
    USB Type A (供電): 1 (5V/1.5A)
  • 調整選項
    RS232 (DB 9 針公頭傳輸線): 1
    USB Type A (Services): 1
    (share with USB A Output)
  • 其他
    電源供應電壓: 100-240V+/- 10%, 50/60Hz
    (AC in)
    電源消耗: Normal: 265W
    Standby: <0.5W
    運作時溫度: 0~40℃
    Carton: Brown
    淨重: 2.8kg (6.17 lbs)
    Gross Weight: 4kg (8.82 lbs)
    外觀尺寸 (寬x深x高，含可調整底座): 312x222x108mm (12.3x8.7x4.3 in)
    Packing Dimensions: 415x168x297mm (16.3x6.6x11.7 in)
    OSD 語言: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, Hindi, Arabic, Vietnamese, Greek, Total 23 languages
    User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finnish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, Total 20 languages
  • STANDARD ACCESSORY
    電源線: 1
    遙控器: 1
    快速使用手冊: Yes
    Warranty Card: Yes (CN & JP)
  • 選購配件
    燈泡/光源: RLC-126
    Wall/Ceiling Mount: PJ-WMK-007
    便攜包: PJ-CASE-008
