ОГЛЯД

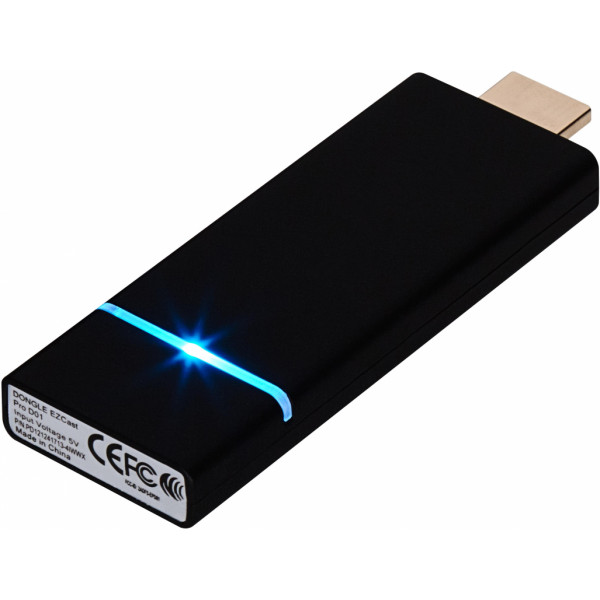

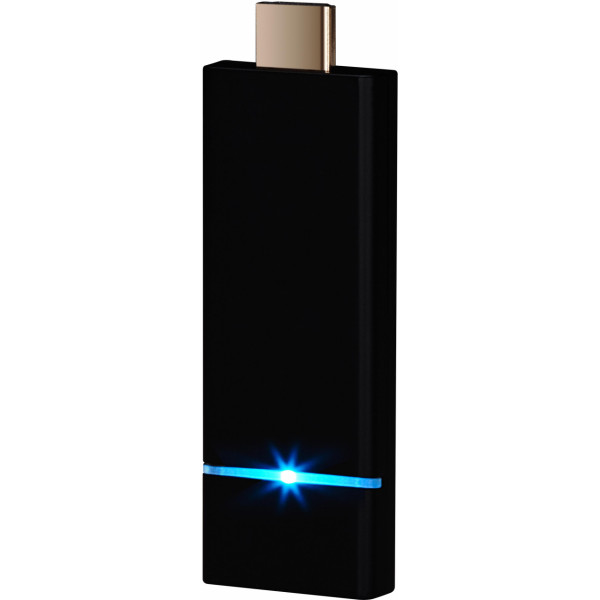

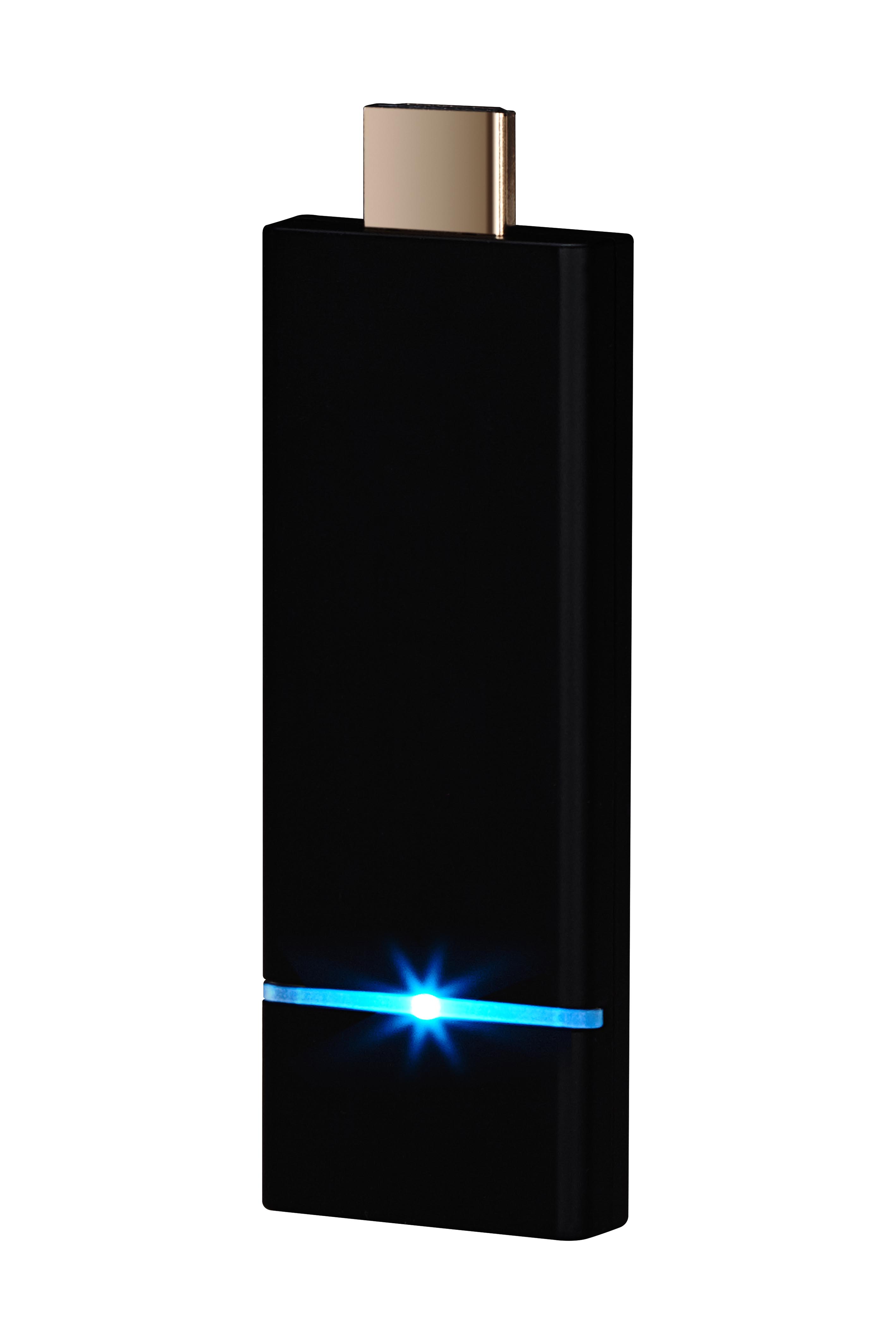

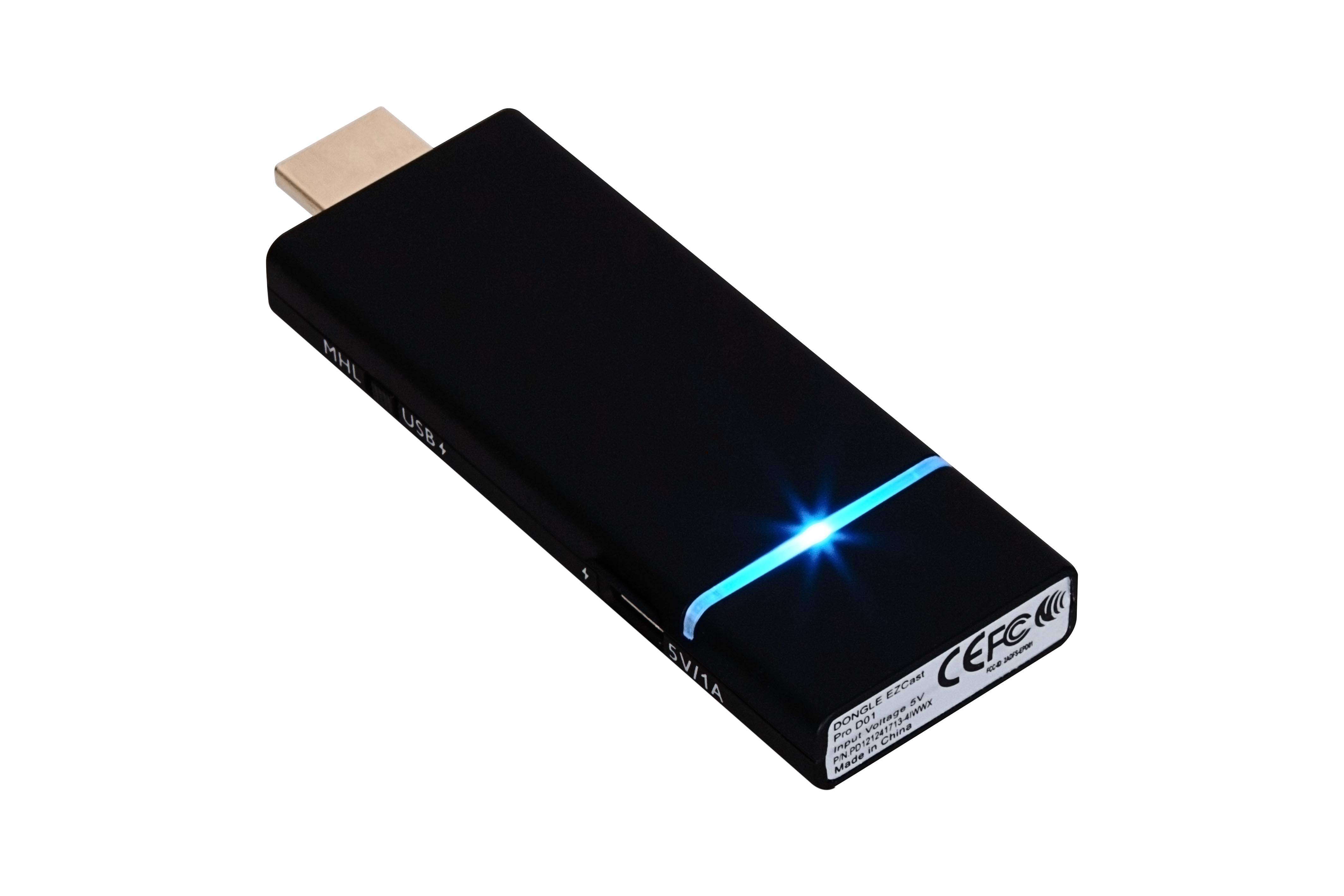

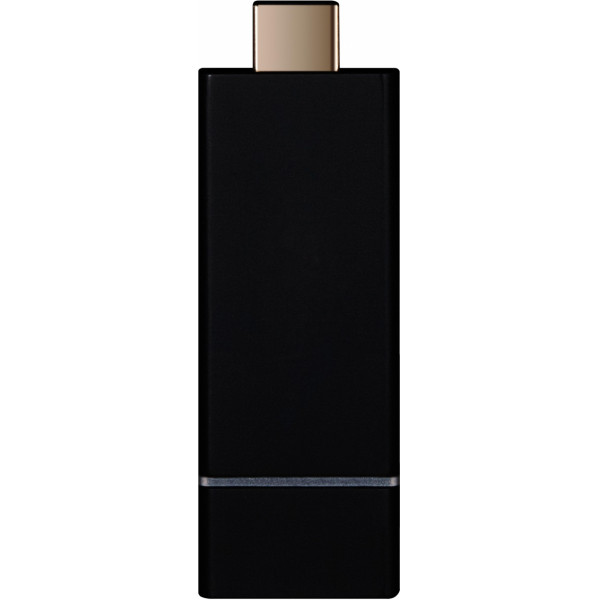

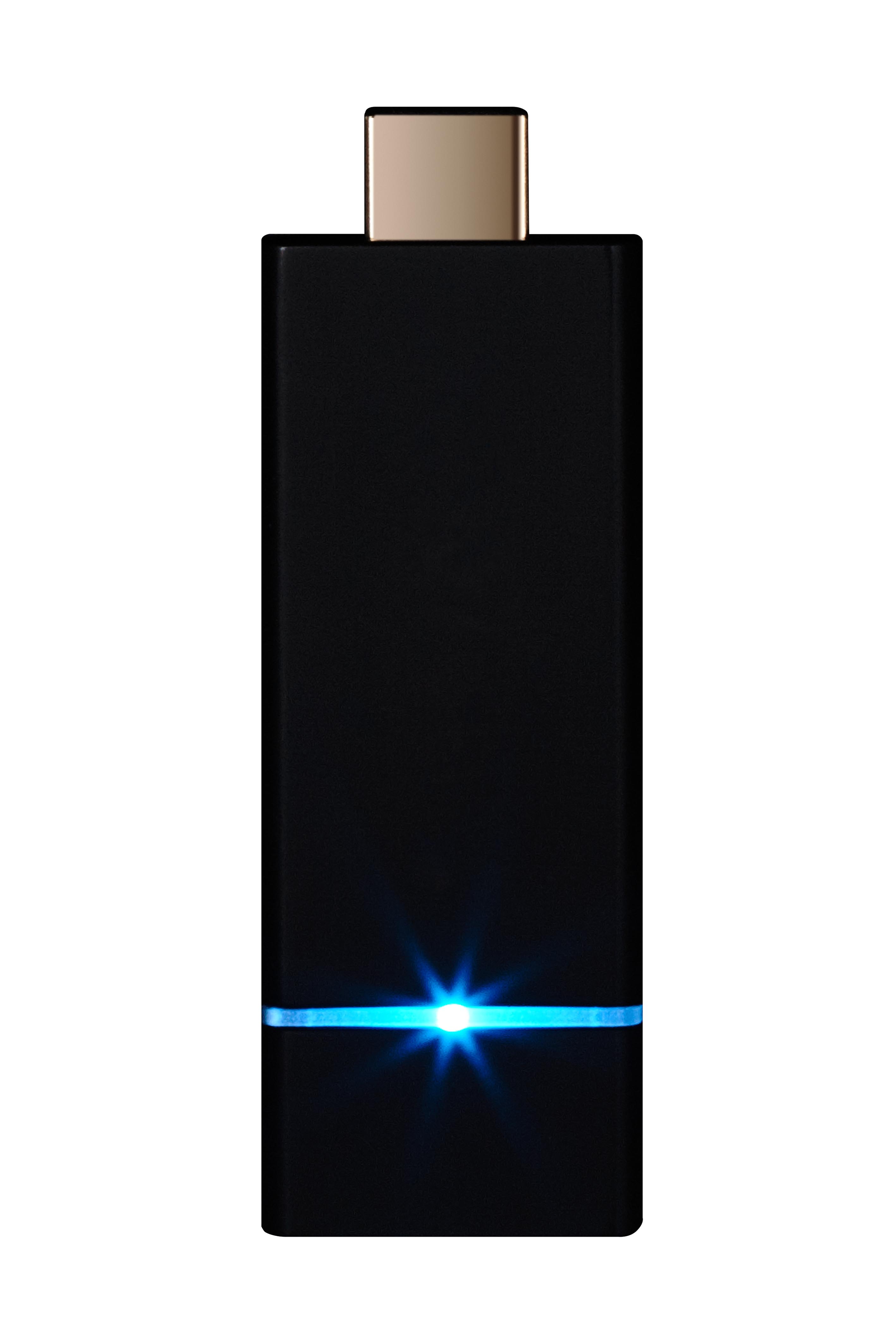

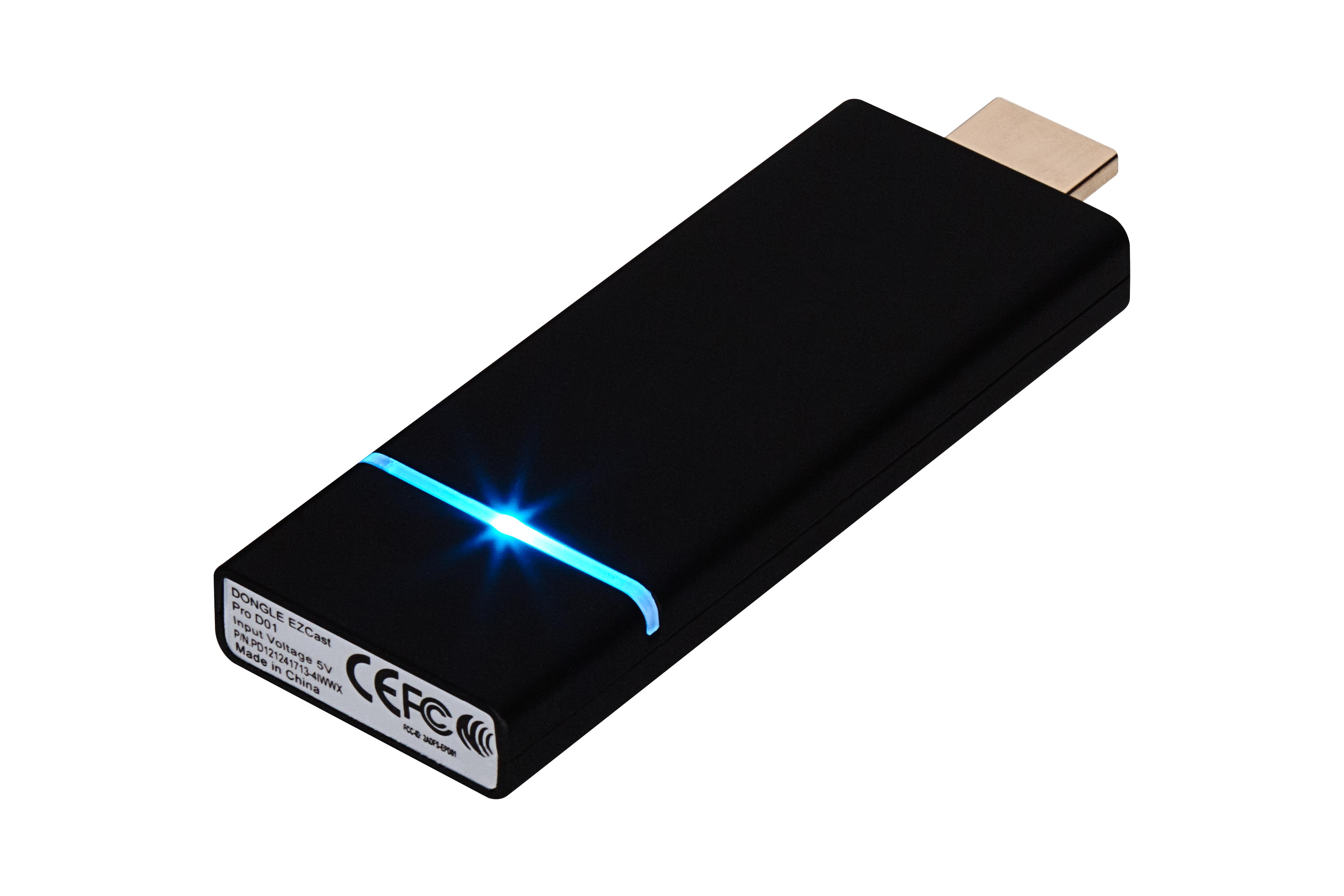

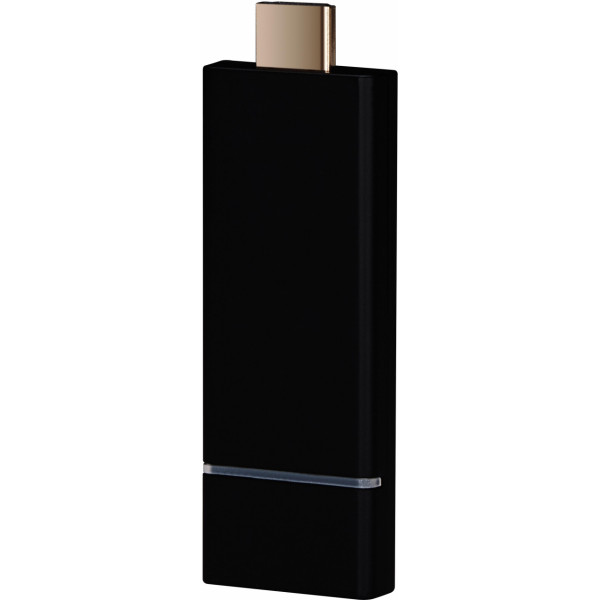

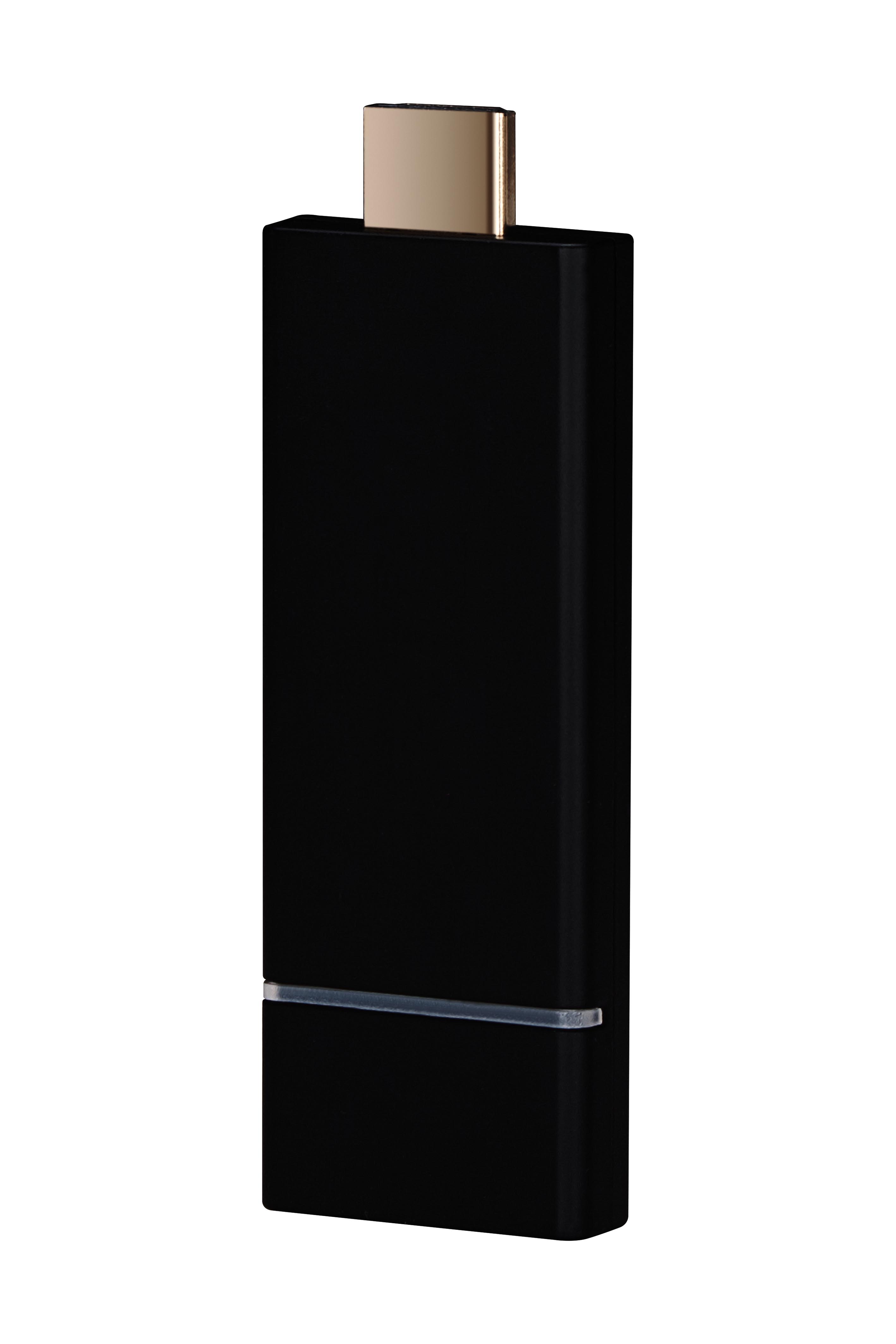

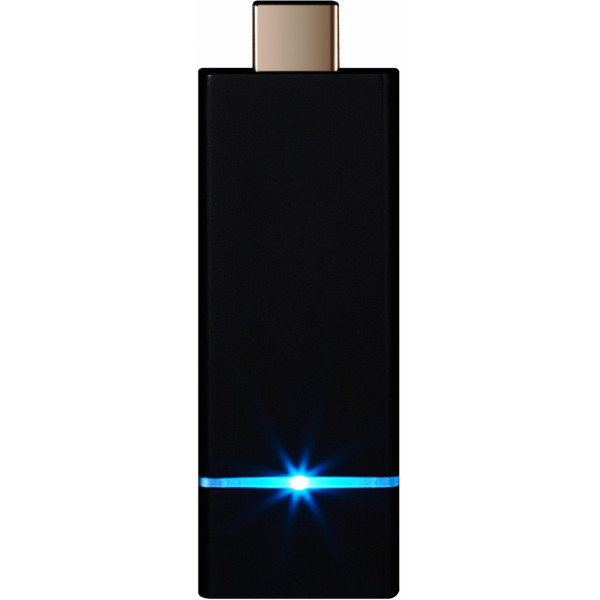

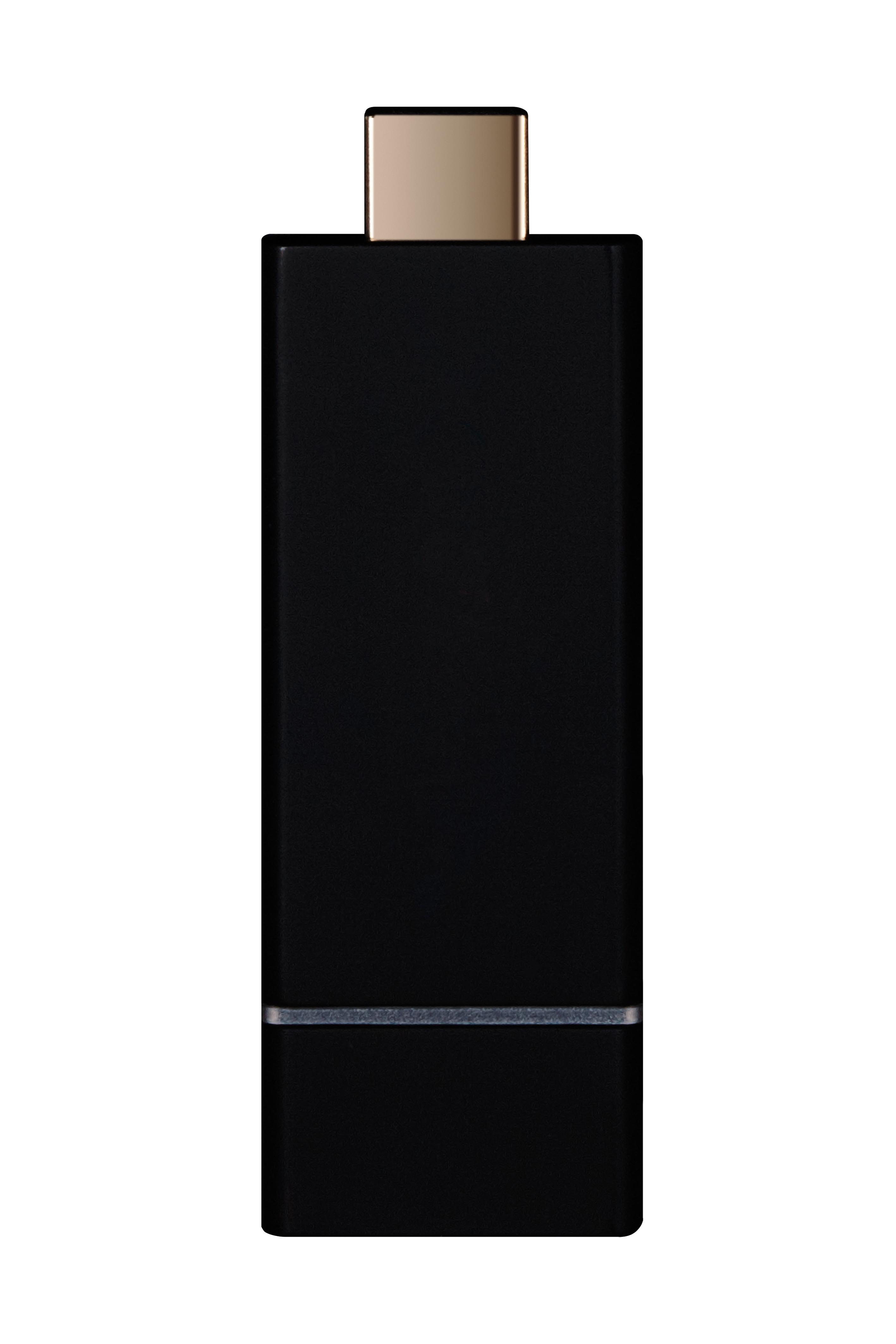

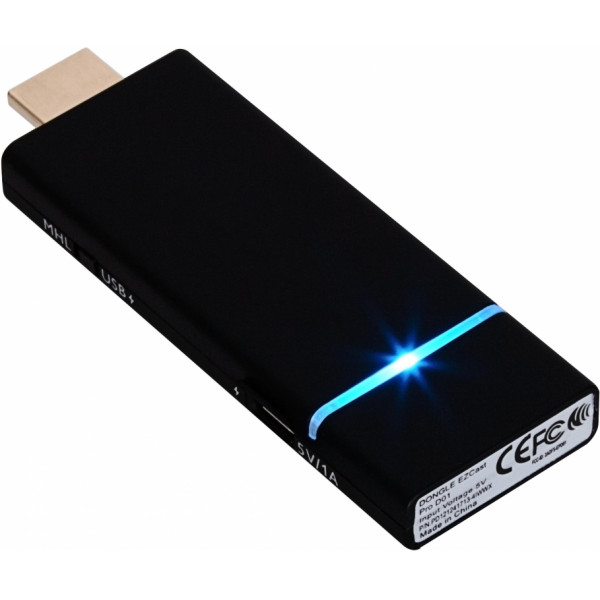

VC10 is a powerful and compact wireless dongle that enables content to be streamed wirelessly from mobile devices, PCs, and laptops to any projector or display. With its shared HDMI/MHL interface, VC10 is designed for cable-free connection and setup, making your wireless presentations easy and effective in any meeting room or classroom. The VC10 wireless dongle supports commonly used WiFi display standards which allows users to stream content to any display, while enterprise WiFi router access allows users to access business networks. In addition, VC10 can be plugged directly into ViewSonic’s PortAll® dongle compartment to provide wireless projection with ViewSonic projectors.

Shared HDMI/MHL display interface

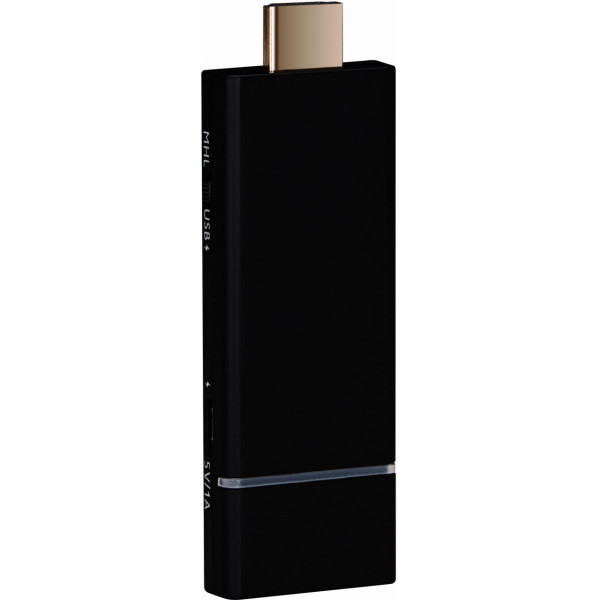

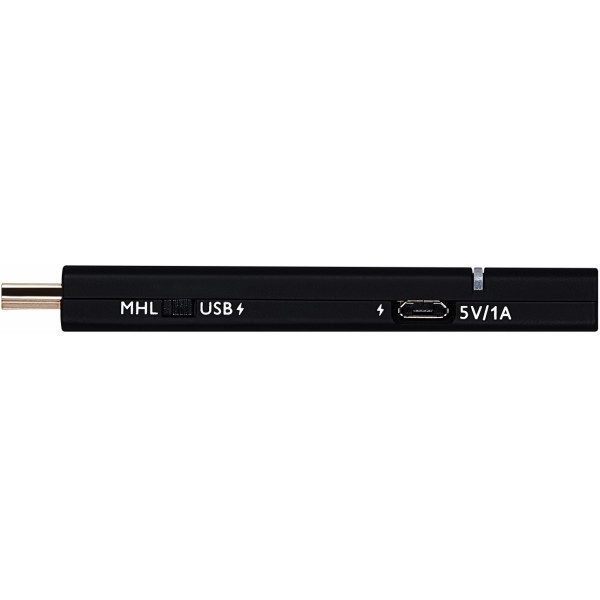

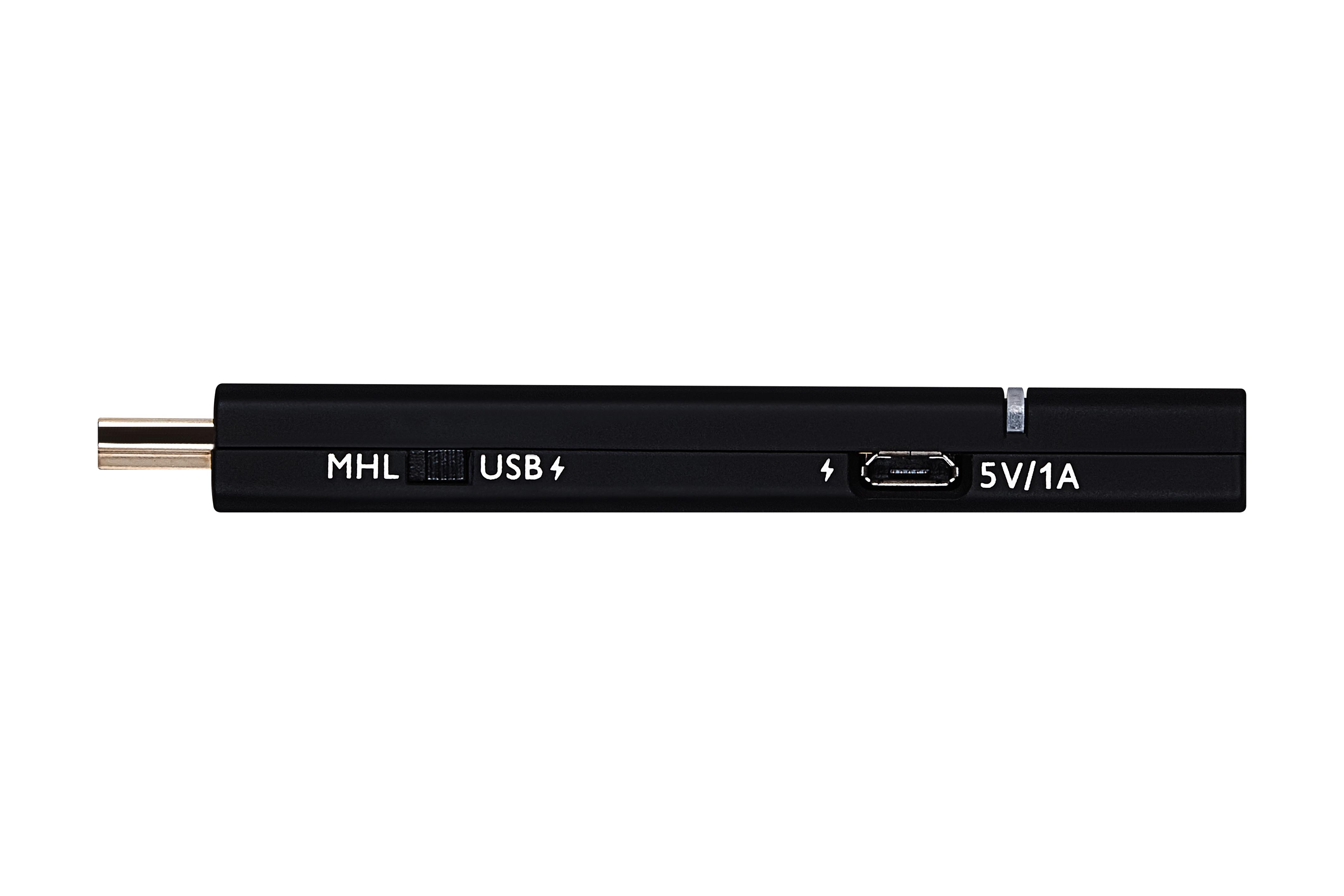

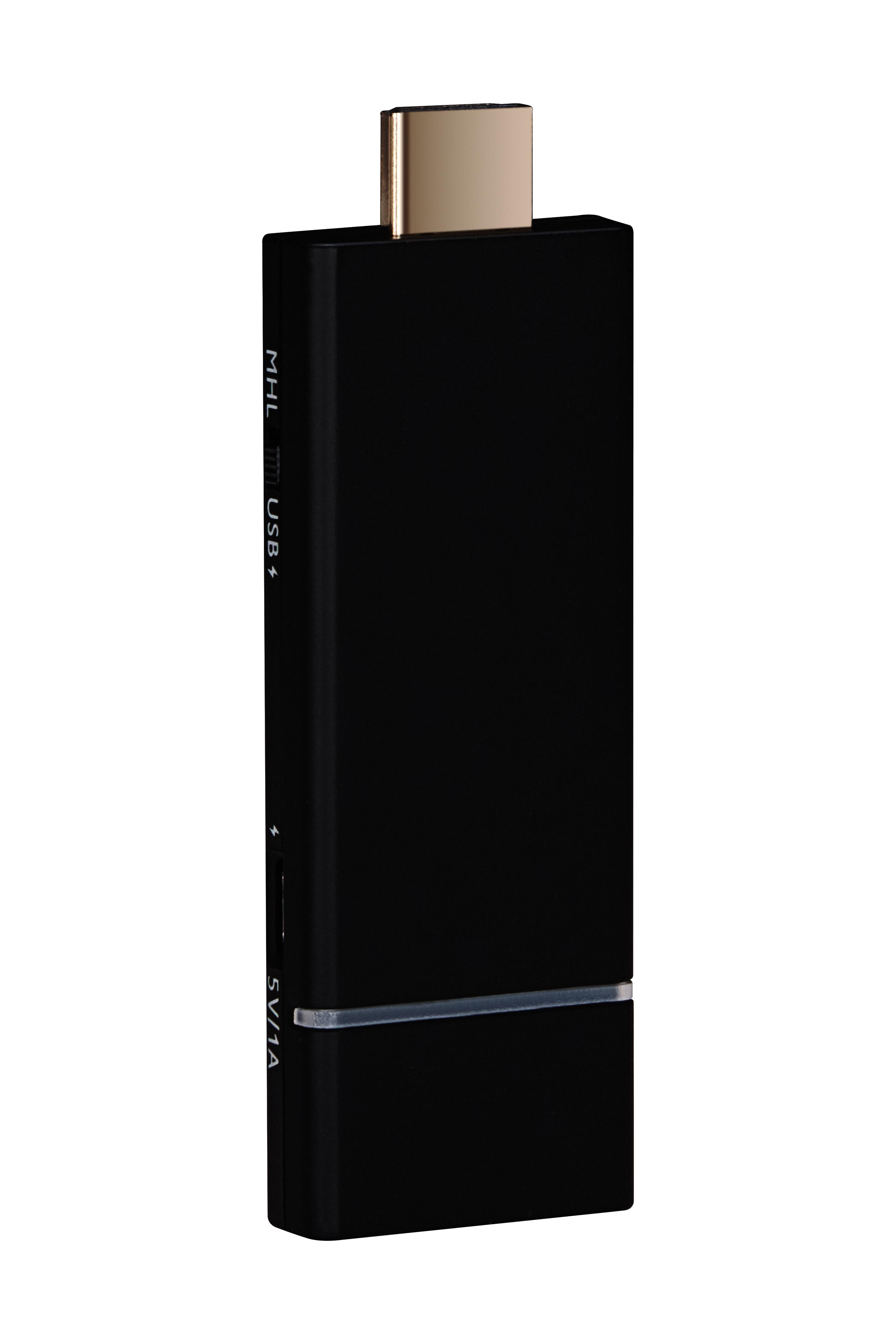

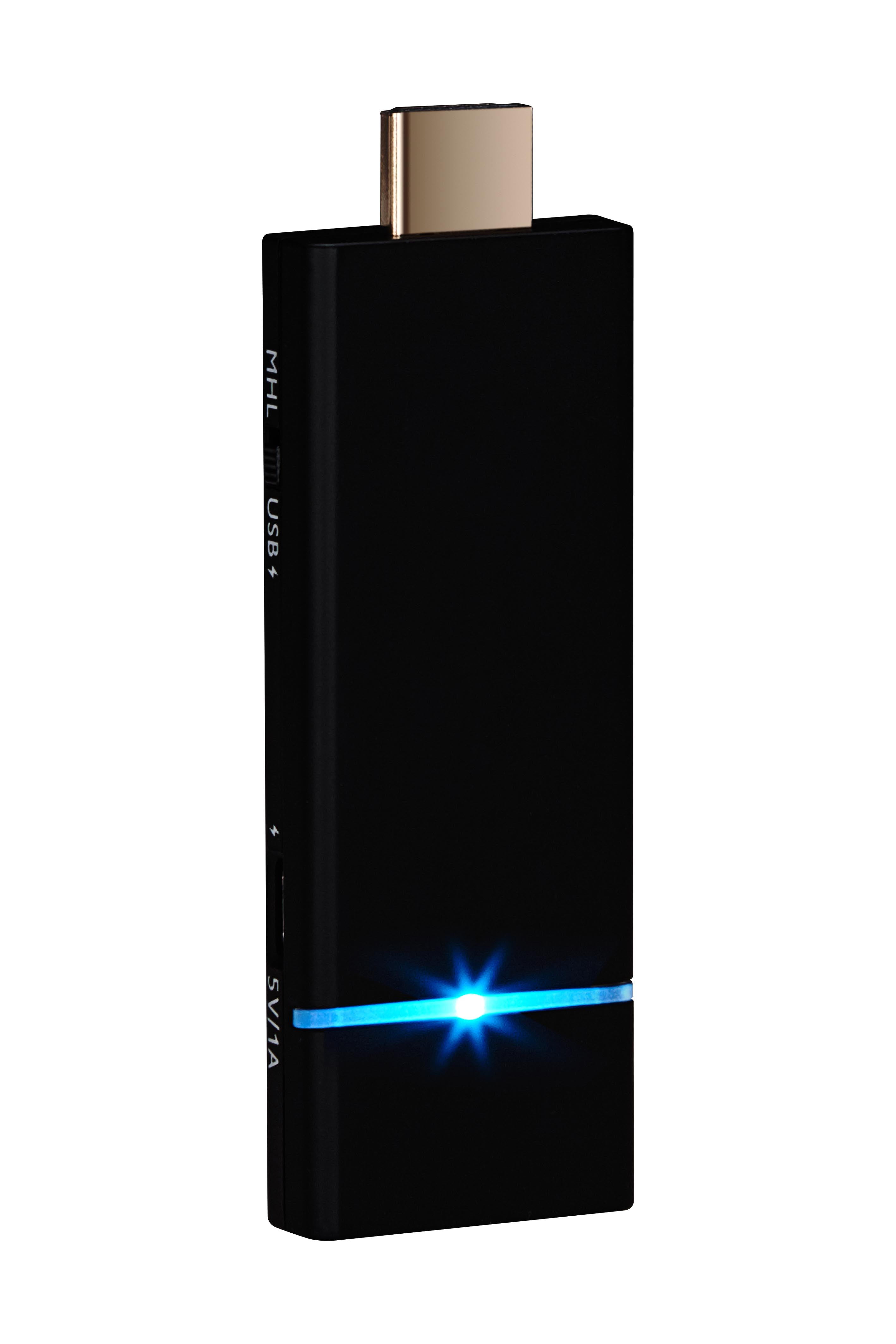

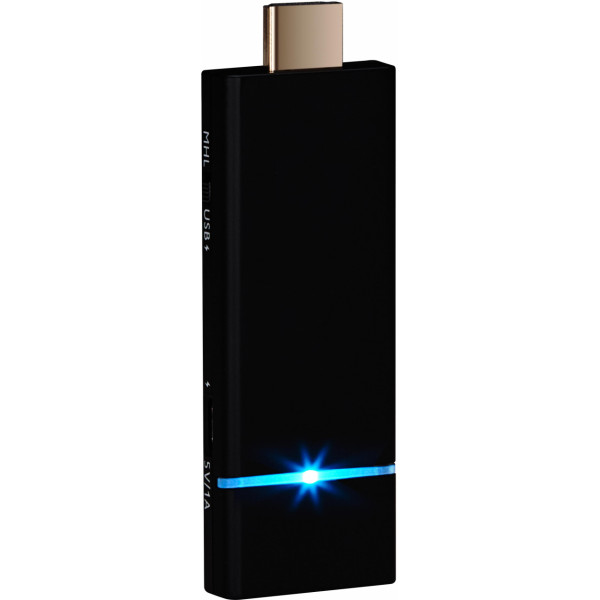

To enhance better convenience, VC10 comes with a shared HDMI and MHL output interface for flexible connectivity with projectors, TVs and monitors. A user-friendly switch allows users to easily toggle between MHL and HDMI modes.
*HDMI mode must be with USB charging port

Easy Streaming from 3rd Party Apps

VC10 supports common WiFi display standards such as Miracast, Airplay, and DLNA, making it easy and convenient for users to stream from content from 3rd party apps.

Enterprise WiFi Routers

VC10 is able to access enterprise WiFi routers such as PEAPvo or EAP-MSCHAPv2 which allows users to access business networks for convenience when presenting.

Cleverly Concealed Wireless Projection

VC10 can be easily plugged in and concealed within ViewSonic PortAll® compartments for convenient, cable-free projection.

Unobstructed Viewing from Any Seat

ViewSonic’s AirView function allows users to mirror projected or displayed images on their mobile device wherever they are in the room for unobstructed viewing.

Four Way Split Screen Viewing

V10 allows users to view content from up to 4 connected sources, such as TVs, smartphones, and tablets, on a 4-way spit screen. All displayed content can then be controlled by a host or administrator for a smooth split screen experience.

ТЕХНІЧНІ ХАРАКТЕРИСТИКИ


  • Key Component
    Процесор: Action Micro AM8251
    Wireless Module: RTL8192EU 2.4G 2T/2R
  • System requiremet
    WiFi Display(vPresenter Pro): • w/o smoothly video playback : Celeron 2.0G above CPU
    • Video playback smoothly – i5 2.4G CPU with SandyBridge
    • iOS 7 and above
    • Android 4.0 and above
  • Wireless Network
    Інтерфейс: Built-in 802.11 b/g/n 2T2R
    Frequency Band: 2.4GHz(2.312~2.472GHz, 2.484GHz)
    Data transfer speeds: • 150Mbps (max) @ 20MHz
    • 300Mbps (max) @ 40MHz
