Основні особливості
  • 24 hours a day 7 days a week operations
  • Built-in Quad Core Media Player with 16GB Storage
  • Embedded LAN and Wi-Fi
  • Internal Scheduler
  • Content Management Software

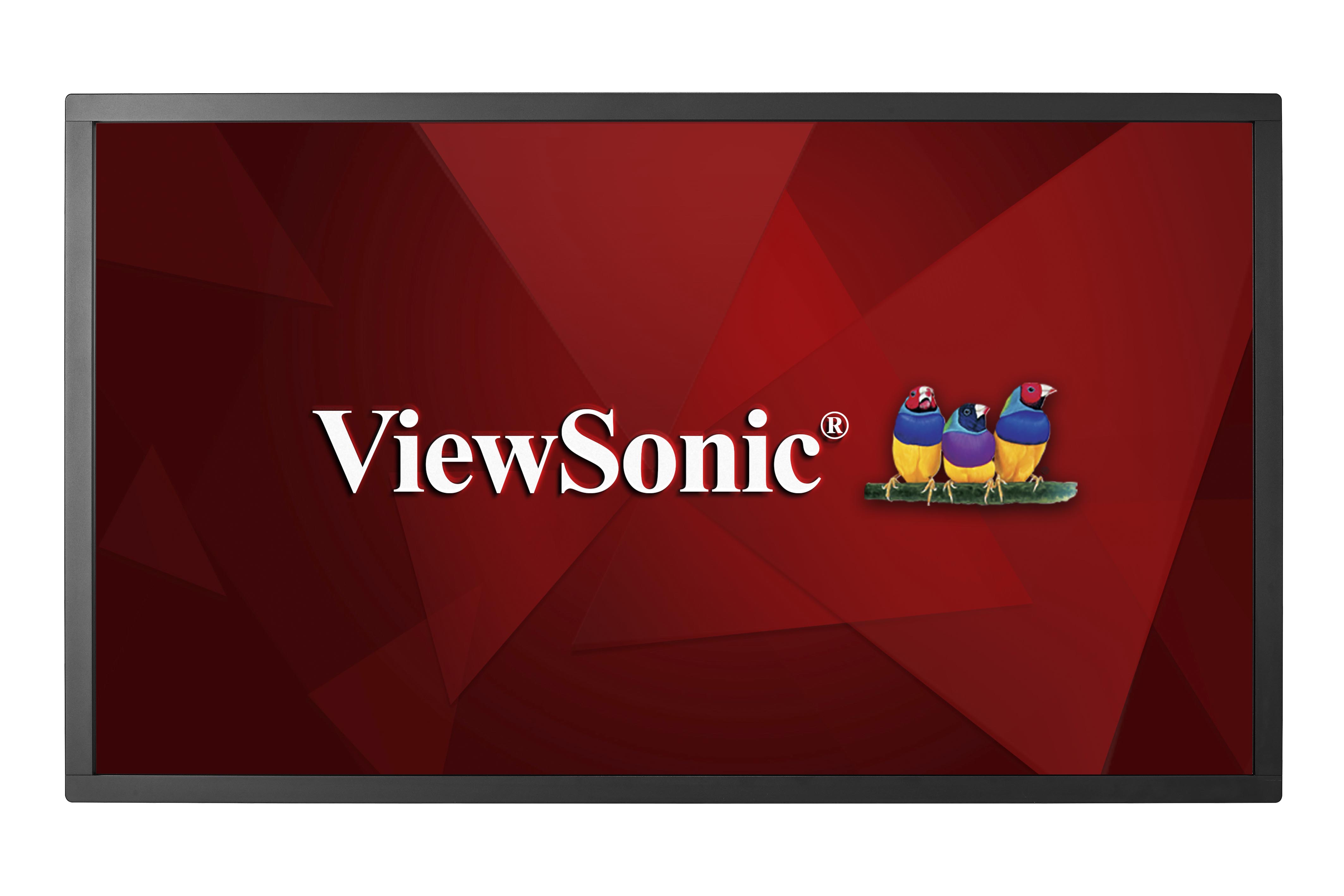

CDM5500T
Опис товару
Content deployment, interactivity, and messaging couldn’t be easier than with the ViewSonic® CDM5500T. Featuring a 10-point touchscreen and internal media player, this presenation display gives you everything you need for easy interactive digital signage – right out of the box. Loaded with a powerful, high-performance processor and 16GB of storage (upgradeable to 32GB), the built-in media player ensures hours upon hours of smooth, high-definition multimedia content delivery. The CDM5500T also features built-in LAN / WiFi for easy connection to the internet for content delivery. Additional commercial features include an internal scheduler, tiling for video wall applications, and commercial construction for reliable messaging 24 hours a day, 7 days a week.
Відвідайте нас
  • www.viewsonic.com
  • SPECIFICATION
    Розмір панелі: 55'' (54.64” diagonal)
    Тип/ Технологія: IPS type
    Площа екрана (мм): 1209.6 (H) x 680.4 (V)
    Співвідношення сторін: 16:09
    Роздільна здатність: 1920 x 1080
    Colors: 16.7 M colors
    Яскравість: 450 nits (typ.)
    Коефіцієнт контрастності: 1100:1 (typ.)
    Час відповіді: 12 ms
    Кути перегляду: H = 178, V = 178 (typ.)
    Backlight: ELED
    Термін служби підсвітки: 50,000 Hours (typ.)
    Hardness: Hard coating(3H), Anti-glare treatment of the front polarizer (Haze 1%)
  • TOUCH
    Тип/ Технологія: Infrared
    Точка дотику: 10 Points
  • INPUT
    HDMI: x 2 (HDMI1.4)
    DisplayPort: x 1
    DVI: x 1
    Аудіо: x 1
    RS232: x 1
    SD/SDHC: Micro SD card slot (Up to 32GB)
    IR: x 1
  • OUTPUT
    DisplayPort: x 1
    DVI: x 1
    RS232: x 1
    IR: x 1
  • LAN
    RJ45: x 1
  • USB
    Type A: x 2 (Multi-media playback x 1, 5V/2A x 1)
    Type B: x 1 (Touch out)
    Micro USB: x 1 (Support USB OTG)
  • ДИНАМІКИ
    10W x 2
  • BUILT-IN PC
    Процесор: Quad core A9, 1.6G
    Зберігання: eMMC 16G
  • COMPATIBILITY
    VGA: 480i, 480p,720p,1080i,1080p
    DVI: 480i, 480p,720p,1080i,1080p
    DisplayPort: 480i, 480p,720p,1080i,1080p, 4K2K@30Hz
    HDMI: 480i, 480p,720p,1080i,1080p, 4K2K@30Hz
  • CONTROLS
    Physical- Top OSD: POWER, MUTE, INPUT, VOL -/+, UP, DOWN, MENU
    PCTURE: Brightness, Contrast, Sharpness, Black level, Tint, Color, Noise reduction, Gamma selection, Color temperature, Color control, Picture Mode, Overscan, Flicker Free, Blue Filter, Picture reset
    SCREEN: H Position, V Position, Clock, Clock phase, Zoom mode, Custom Zoom, Auto adjust, Screen reset
    AUDIO: Balance, Treble, Bass, Volume, Maximum volume, Minimum volume, Mute, Audio source, Audio out, Sync. Volume, Audio reset
    PIP: Sub mode, PIP size, PIP position, PIP change, PIP source, PIP audio, PIP reset
    CONFIGURATION 1: Switch on state, Panel saving, RS232 routing, Boot on source, WOL, DDC/CI, Light sensor, Human sensor, Power LED light, Configuration 1 reset, Factory reset
    CONFIGURATION 2: OSD turn off, OSD H position, OSD V position, OSD transparency, Information OSD, Logo, Monitor ID, Heat status, Monitor information, DP version, Window selection, Rotation, Language, QR code, Configuration 2 reset
    ADVANCED OPTION: Input resolution, IR control, Keybard conrol, Off timer, Date and time, Schedule, HDMI with One Wire, Auto signal detection, Power Save, Scaler FW Update, Auto FW Update, USB cloning, Advanced option reset
  • POWER
    Напруга: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
    Споживання: Normal 76W, Max 143W
    Настінне кріплення (VESA® ): 400x400mm ; Screw: M6*(10+X) mm (X=thickness of wall mount plate)
  • OPERATING CONDITIONS
    Температура (º C): 0 to 40°C (Landscape)/0 to 35°C (Portrait)
    Вологість: 20% ~ 80% non-condensing
  • РОЗМІРИ (Ш X В X Г)
    Фізичні (дюйми / мм): 50.0 x 31.87 x 15.75 / 1271 x 809.45 x 400
    Physical w/o Stand (inch / mm): 50.0 x 29.2 x 2.52 / 1271 x 741.8 x 64
    Упаковка (дюйм / мм): 60.12 x 38.78 x 11.02 / 1527 x 985 x 280
  • WEIGHT
    Нетто (фунт/кг): 77.38 / 35.1
    Net w/o Stand (lb / kg): 68.34 / 31
    Брутто (фунт/кг): 87.3 / 39.6
  • WHAT'S IN THE BOX?
    1. CDM5500T presenation display
    2. Remote Control with batteries
    3. User manual CD wizard
    4. Quick Start Guide
    5. Power Cables
    6. DVI to VGA cable
    7. RS232 cable
    8. RS232 daisy chain cable (2.4mm – 2.4mm).
    9. IR sensor cable
    10. USB cable (Type A-B)
