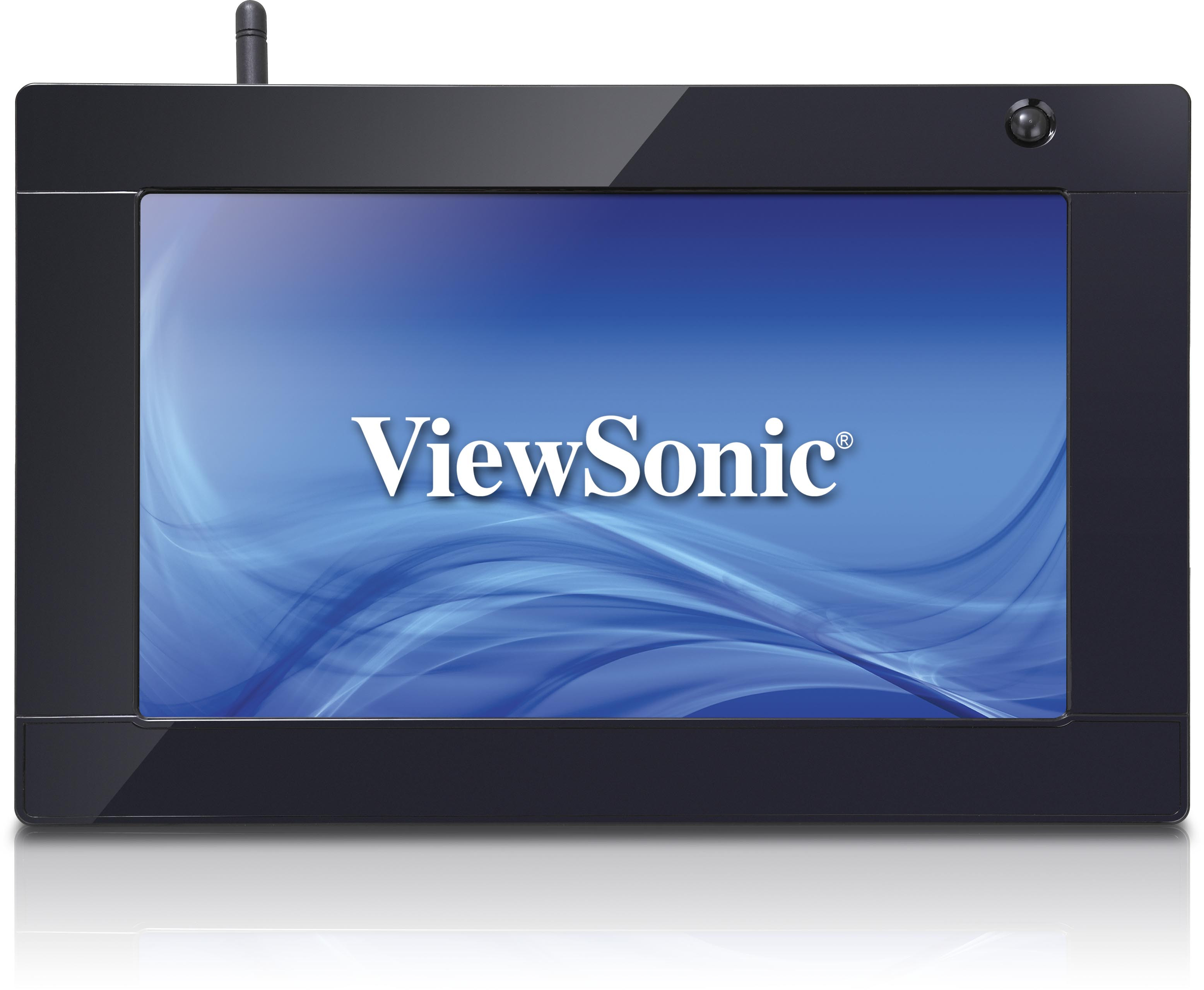

ViewSonic EP1031r 10.1’’ Multimedia Digital Poster

Основні особливості

Опис товару

The ViewSonic EP1031r is a 10’’ wall-mounted multimedia all-in-one digital ePoster. It delivers eye-catching commercial messaging at retail POS, hotel lobbies and front desks, conference and exhibition venues, and other high-visibility locations. The EP1031r features wireless b/g/n network and LAN connectivity for easy loading of content, and supports Power over Ethernet (PoE) for convenient one-wire installation. Boasting an exclusive integrated motion sensor, 6 touch-screen control keys, and bundled Signage Manager Express software, the EP1031r effectively delivers customized messaging to target audiences. Its built-in media player, 4GB internal storage, and integrated speakers enable the playback of video clips, as well as photos and music, from a USB hard drive or SD/SDHC memory card. With VESA-mount compliance (75mm x 75mm), and W3C and SMIL compatibility, the EP1031r provides versatile options to display creative brand messaging.

Відвідайте нас

www.viewsonic.com

COLORS

Black

LCD

Тип:	TFT LCD Module with LED Backlight
Коефіцієнт контрастності:	500:1
Кути перегляду:	Top 45°/ Bottom 65°/ Left 65° / Right 65°
Display Area:	219.6(W) x 131.76(H)
Optimum Resolution:	800 x 480
Час відповіді:	30ms
Colour Support:	16.7M colors
Size:	10.1’’ viewable
Яскравість:	300 cd/m2
Backlight:	LED

COMPATIBILITY

HDMI: 720p@50/60, 1080i@50/60, 1080p@50/60
DIMENSIONS

Фізичні (ШxВxГ): 10.94 x 7.32 x 1.57 (inches)/ 278 x 186 x 40 (mm)

Packaging: 12.60 x 10.04 x 3.50 (inches)/ 320 x 255 x 89 (mm)

ВМІСТ УПАКОВКИ

1. AC Adapter

2. Ethernet Cable

3. Standard 3.5mm to RCA AC cable

4. Display stand and screws

5. Hardware Quick Start Guide

6. Software Quick Start Guide

7. Documentation CD

*Actual content may differ from market to market

WARRANTY

1-year limited

**Warranty offered may differ from market to market
CONNECTOR

HDMI (input): x1

Аудіо: x1

LAN: x1

SD: x1 (for expand storage)

Динамік: 2-watt x2
POWER

Напруга: 100-240VAC +/- 10% Wide Range
CONTROLS

Physical: Touch button
OPERATING CONDITIONS

Температура: -4°F to 140°F (-20°C to 60°C)

Вологість: 5% ~ 85% @ 40°C, non-condensing

Altitude: <2000M
VESA® MOUNT

75 x 75mm
WEIGHT

Брутто: 3.42 (lbs)/ 1.55 (kg)

Нетто: 1.72 (lbs)/ 0.78 (kg)
Вхід

USB Type A: x 2 (for content loading, F/W upgrade, Key board, Mouse)

USB Type B (mouse control): x 1 (for F/W troubleshooting)
STORAGE / SHIPPING CONDITION

Температура: -4°F to 140°F (-20°C to 60°C)

Вологість: 5% ~ 85% non-condensing

Altitude: <2000M
POWER SAVING FUNCTION

On: Max. : 12W

Off (Suspend): <0.5 W

Фізичні (ШxВxГ):	10.94 x 7.32 x 1.57 (inches)/ 278 x 186 x 40 (mm)
Packaging:	12.60 x 10.04 x 3.50 (inches)/ 320 x 255 x 89 (mm)

HDMI (input):	x1
Аудіо:	x1
LAN:	x1
SD:	x1 (for expand storage)
Динамік:	2-watt x2

Температура:	-4°F to 140°F (-20°C to 60°C)
Вологість:	5% ~ 85% @ 40°C, non-condensing
Altitude:	<2000M

Брутто:	3.42 (lbs)/ 1.55 (kg)
Нетто:	1.72 (lbs)/ 0.78 (kg)

USB Type A:	x 2 (for content loading, F/W upgrade, Key board, Mouse)
USB Type B (mouse control):	x 1 (for F/W troubleshooting)

On:	Max. : 12W
Off (Suspend):	<0.5 W
